PC310 Series

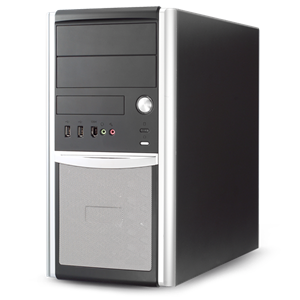

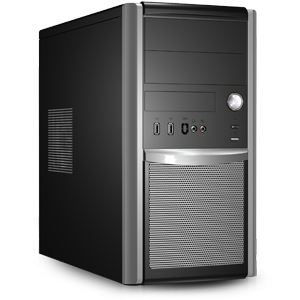

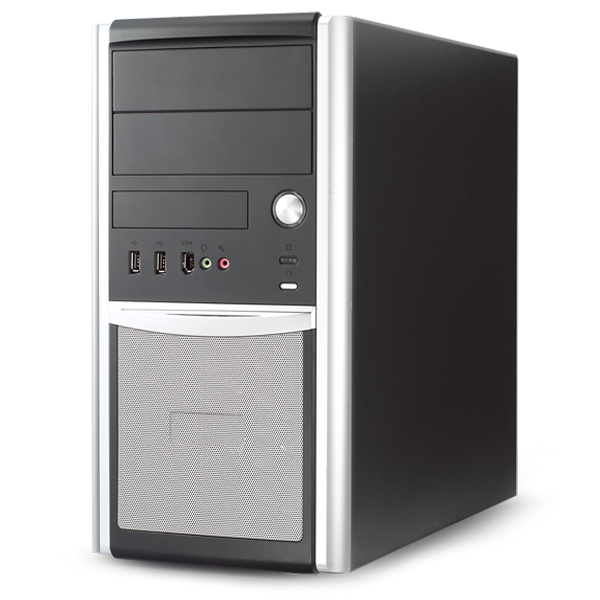

Tool-less uATX mini-Tower PC Chassis

PC310 chassis takes advantages on its exquisite tool-less design and robust structure.

Compare

Clear GO

Quick Search

Search

Compare

Feature & Benefit
Specification
Accessory
Download
Order Information

- Supports the latest Intel platform thermal requirement
- One-piece formed rear window for strong chassis structure
- Removable covers on both sides
- Supports 92 mm front and 120mm rear fans
- Patented tool-less kits for drive bay and PCI card holder
- Security provision: Padlock loop, Kensington slot and intrusion switch
- Optional 2-bay 3.5" HDD cage
- Supports PS/2 PSU

M/B Form Factor	Micro ATX
Dimensions (Dx Wx H)	375mm x 198mm x 370mm, 14.8" x 7.8" x 14.6"
Drive Bay	External 5.25"：2 External 3.5"：1 Internal 3.5"：2
PSU Form Factor	PS/2
Indicator	1 x Power Status 1 x HDD Activity
Front Button	1 x Power On/Off 2 x USB 2.0/USB 3.0(option) 1 x Headphone Jack 1 x MIC Phone Jack
System Security	Kensington Slot, Padlock Loop, Intrusion Switch(option)
Cooling Fan	Front: 1 x 80 mm or 1 x 92 mm , Rear: 1 x 80 mm, 1 x 92 mm x 1 or 1 x 120 mm
Expansion Slot	4 x Full Height
Sheet Metal Material	SECC
Metal Thickness	0.7 mm
Net Weight	5.5 Kg
Gross Weight	6.5 Kg
Container Information	20': 488, 40': 992, 40'H: 1,090

Category	Part. No#	Description	Support
Fan	130-09225-1200A0	Fan, 92mm, 3P3C, Sleeve, w/mounting screws
FPIO	83H801310-009	USB2.0 x 2+ Audio(HD), w/500mm cables, PC31031
FPIO	83H801310-012	USB3.0 x 2+ USB2.0 x2 + Audio(HD), w/500mm cables, PC31039 only
FPIO	83H801310-013	USB2.0 x 4+ Audio(HD), w/500mm cables, PC31039 only
FPIO	83H801310-014	USB3.0 x 2+ Audio(HD), w/500mm cables, PC31031
HDD Cage	83H561310-003	2 x 3.5" + 1x 2.5" HDD cage, Screw Installation
HDD Cage	83H561310-004	2 x 3.5" + 1x 2.5" HDD cage w/tool-less kit(for 3.5" HDD only)
Click Part. No# to view item picture
