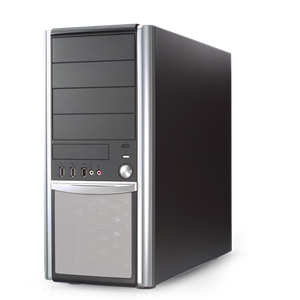

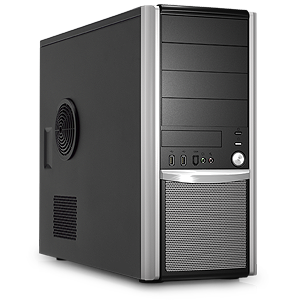

PC617 Series
High Performance ATX Mid-Tower PC Chassis
PC617 chassis provides patented tool-less features for easy installation and its optional 2-bay or 4-bay internal HDD cage delivers maximum configuration flexibility.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
  • Feature & Benefit
  • Specification
  • Accessory
  • Download
  • Order Information
    • Supports the latest Intel platform thermal requirement
    • One-piece formed rear window for strong resistance
    • Supports 120mm front and rear fan installations
    • Patented tool-less designs for drive bay, PCI card holder and from bezel
    • Pre-punched motherboard stand-off for quick installation
    • Security provision: Padlock loop, Kensington slot and intrusion switch
    • Optional 2-bay or 4-bay 3.5" HDD cage
    • Supports PS/2 PSU
  • M/B Form Factor ATX
    Dimensions (Dx Wx H) 465 x 198 x 425 (mm)
    18.3" x 7.8" x 16.7"
    Drive Bay External 5.25"：4
    External 3.5"：1
    Internal 3.5"：2
    PSU Form Factor PS/2
    Indicator 1 x Power Status
    1 x HDD Activity
    Front Button 1 x Power On / Off
    2 x USB2.0 / USB3.0 (option)
    1 x System Reset
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fan Front: 1 x 92mm or 1 x 120mm
    Rear: 1 x 80mm, 1 x 92mm or 1 x 120mm
    Expansion Slot 7 x Full Height
    Sheet Metal Material SECC
    Metal Thickness 0.7mm
    Net Weight 8.2kg
    Gross Weight 9.4kg
    Container Information 20': 364
    40': 748
    40'H: 842
  • Category Part. No# Description Support
    Fan
    130-08025-1200A0    		 92mm, Sleeve, 3P3C, L650mm
    FPIO
    83H801303-137    		 USB2.0 x 2+ Audio(HD), w/500mm cables (Vertical)
    FPIO
    83H801617-003    		 USB2.0 x 2+ Audio(HD), w/700mm cables (Horizontal)
    FPIO
    83H801617-012    		 USB3.0 x 2+ Audio(HD), w/700mm cables (Horizontal)
    FPIO
    83H801617-013    		 USB2.0 x 4+ Audio(HD), w/700mm cables
    FPIO
    83H801617-014    		 USB3.0 x 2+ USB2.0 x2 + Audio(HD), w/700mm cables
    FPIO
    83H801617-015    		 USB3.0 x 2+ Audio(HD), w/500mm cables (Vertical)
    HDD Cage
    83H561310-003    		 2 x 3.5" + 1x 2.5" HDD cage, Screw Installation
    HDD Cage
    83H561310-004    		 2 x 3.5" + 1x 2.5" HDD cage w/tool-less kit(for 3.5" HDD only)
    HDD Cage
    83H561617-001    		 4-bay 3.5" HDD cage w/tool-less kit
    HDD Cage
    83H561617-003    		 4-bay 3.5" HDD cage, screw-mounted, w/screw pack
    Others
    83H501310-001    		 Guide Rail, Tool-less, for FDD Cage
    Others
    83H501310-002    		 Guide Rail, Tool-less, for HDD Cage
    Others
    83H551617-003    		 Guide Rail, Tool-less, for ODD Cage
    Click Part. No# to view item picture
  • Category Description Revision Size Download
    Datasheet PC617 Datahseet V1.3 991.1 KB
  • Order Code PSU FPIO FAN Side Venting 2nd HDD Cage
    PC61731 Option USB 3.0 x 2 + USB 2.0 x 2 + Audio 120mm(rear) Yes 4x 3.5" Internal HDD
