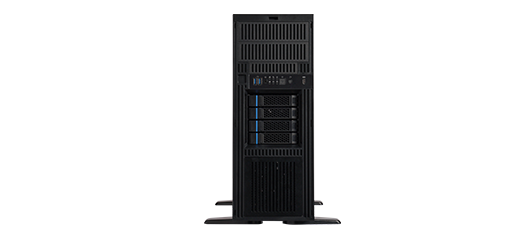

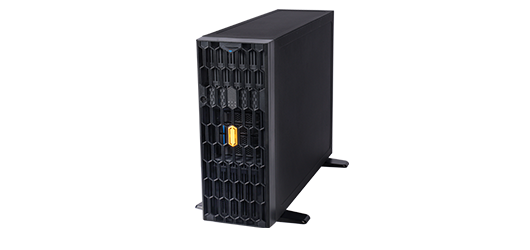

TB115

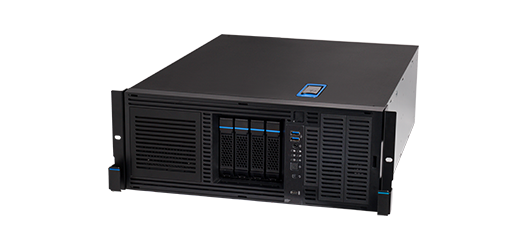

4U Mainstream Workstation Rackable Tower Server Barebone system
TB115 is the general-purpose server as a workstation to fulfill small to mid-size enterprises' low to high workloads demands. Its flexible workstation deployment can support more applications.
Compare
Features & Benefits

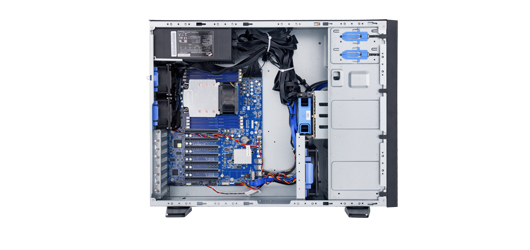

- Supports Gigabyte MU72-SU0 MB up to Level 6
- Supports modular 2x5.25 media bay or 8 bay 2.5 drive cage
- Supports 12Gb/s Mini-SAS HD Expander
- Flexible PSU support PS2
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
M/B Form Factor GIGABYTE MU72-SU0 ATX (12" x 9.6") Dimensions (D x W x H) 602.6 x 180.0 x 438.0 (mm) ; 23.7" x 7.08" x 17.24" (With bezel) Drive Bay 4-Bay external HDD hot-swap module with 80mm fan, 4500RPM：
Storage Backplane 3.5" 4-port 12 Gb/s, SAS/SATA
PSU Form Factor PSU ATX FSP 1200W
Indicator 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo Cooling Fan Front fan：1 x 120mm (T:25mm) fan support 2600RPM, and fix fan in the middle,1 x 80mm fan 4500RPM
Rear fan：2 x 80mm (T:38mm) fan support 8200RPM
System Security Intrusion Switch; Key Lock on the front door
Expansion Slot Opening 7 x Full Height Net Weight 16.85 KG Gross Weight 23 KG
Cubic Feet 6.934
Container Loading 20' FCL: 126 pcs / 40' FCL: 252 pcs -
Category Description Revision Size Download Datasheet TB115_Datasheet_V1.0 V1.0 442.3 KB
-
Category Part. No# Description Support 5.25” to 3.5” Kit SK41101H01-10879 5.25” to 3.5” Kit: 1 x 5.25" Bay to 1 x Internal 3.5" HDD Bay, 48pcs/carton
SK41101H01*10879

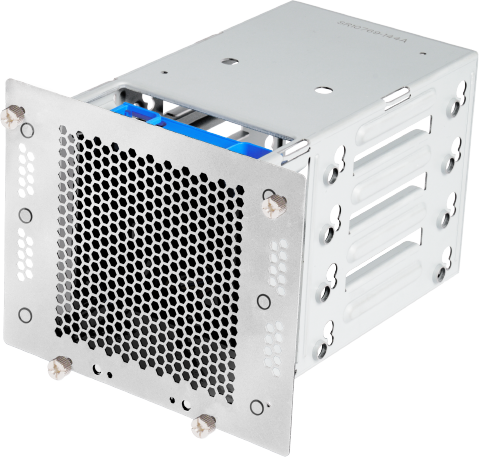

CMA 84H349010-006 Cable Management Arm (CMA) HDD Cage 384-MIX00411B0A0 Internal 4-Bay HDD cage w/ fan： 384-MIX00411B0A0
HDD Module SK32801H01-15188 SK32801 8 Bay 2.5” SAS/SATA hot-swap module Rack Handle 384-MEC000327BA0 Rack handles (a set, left and right), 50 sets/carton Click Part. No# to view item picture Support -
Order Code TB1156901-0010A0 Part Category Part No. Qty. Description
