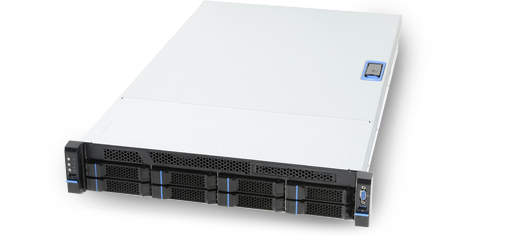

2U High-Performance Server with Expansion Flexibility
With dual 2nd Generation Intel® Xeon® Scalable Processors and 24 DIMMs, RB23708-U1 delivers large memory capacity, flexible storage, and toolless design for HPC solutions.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports Intel S2600WFTR motherboard
  • Supports hot-swap 8 x 3.5" SAS/SATA HDD
  • Optional 2-bay 2.5” internal drive and 1-bay slim ODD for maximum configuration flexibility (in RB23708M3-R800 SKU)

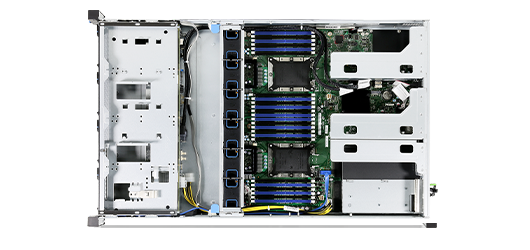

  • Supports 4 x FHFL + 2 x FHHL + 2 x HHHL PCIe card
  • Optimizes thermal performance by 6 x 6038 mm hot-swap cooling fan
  • Toolless fan module, fan cage, top cover, HDD tray, slide rail, PCIe bracket, and internal 2.5” HDD
  • Optional toolless slide rail
  • Supports 1+1 CRPS (80+ Platinum)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 2U
    MB Intel S2600WFTR (Wolf Pass)
    CPU Dual 2nd Generation Intel® Xeon® Scalable Processors, up to 165W
    Chipset Intel® C624 chipset
    CPU Heatsink 1U passive
    Memory Type DDR4 UDIMM ECC, 2933 MT/s, 1.2V
    Memory Capacity Up to 7.5TB
    Max DIMM Slot 24 x DDR4 DIMM Slot, 6 x Channel per processor
    Dimensions (D x W x H) 735 x 438 x 87(mm), 28.94" x 17.24" x 3.43"
    Drive Bay 3.5" Hot-swap:8
    2.5" Internal:2
    Slim ODD (Optional):1
    PSU Form Factor 1+1 CRPS, 80+ Platinum
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x UID

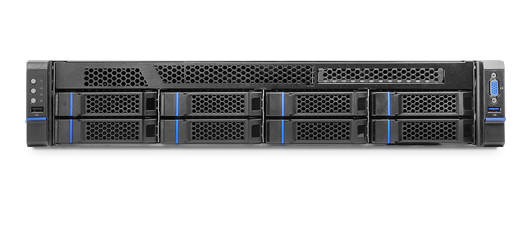

    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    1 x VGA
    1 x USB3.0
    1 x USB2.0
    Cooling Fan 60 x 38 mm (6), 17KRPM, Hot-swap
    Expansion Slot Riser Card 1&2:
    - 1 x PCIe x16 slot (Gen3 x8), FHFL
    - 1 x PCIe x16 slot (Gen3 x8), FHFL
    - 1 x PCIe x8 slot (Gen3 x8), FHHL
    Riser Card 3:
    - 1 x PCIe x8 slot (Gen3 x8), HHHL
    - 1 x PCIe x8 slot (Gen3 x4), HHHL
    1 x I/O Module
    1 x Integrated RAID Module
    HDD Backplane 3.5" 8-port 12Gbps SAS/SATA Backplane

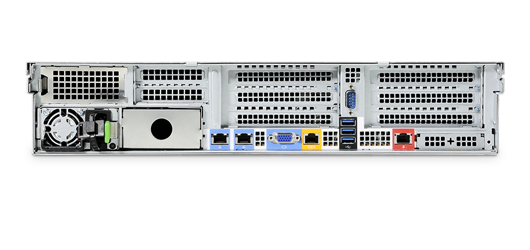

    I/O Module 1 x UID
    2 x 10GbE Base-T, RJ-45
    1 x MGNT
    3 x USB3.0
    TPM Version 2.0
    Ethernet Dual RJ45, Network Interface Connectors supporting 1GBASE-T Single RJ45-Dedicated, 1GbE Server Management port
    Net Weight 16.63 Kg
  • Category Description Revision Size Download
    Certification RB237 Series CB V1.0 126.3 KB
    Certification RB237 Series CE V1.0 343.3 KB
    Certification RB237 Series FCC V1.0 182.4 KB
    Certification RB237 Series UL V1.0 177.0 KB
    Datasheet RB237 Series Datasheet V1.0 789.1 KB
    User Manual RB237 Series User Manual V1.1 6.5 MB
  • Category Part. No# Description Support
    Power Supply
    CRPS module, 800W, ACBEL R1CA2801A, Full Range, 80+ Platinum [MPQ=8]
    Slide Rail
    32.8“ slide rail, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Slide Rail
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
