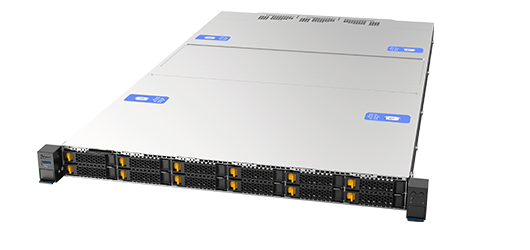

RB151 Series
1U High Performance Computing Server for Enterprise and Cloud Applications
The latest 1U rackmount barebones server, based on the Intel® Xeon® Scalable Ice Lake Series Processor, is designed to be the primary workhorse server for enterprise and cloud applications.
Compare
Features & Benefits
- Intel® Server Board M50CYP2SBSTD
- 3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189
- High performance SAS/SATA/NVMe Gen 4 storage, up to 12 x 2.5” or 4 x 3.5” HDD
- Support for up to 3 low profile, half length PCIe 4.0 cards
- 1+1 redundant CRPS, 1600W
- Flexible ethernet with support for OCP 3.0 module per server
- Higher memory capacity, up to 12TB memory, 32 DIMMs per system
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-

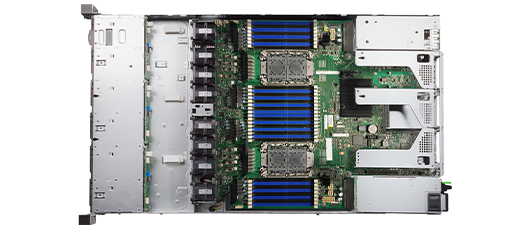

Form Factor 1U MB Intel M50CYP2SBSTD (Coyote Pass) CPU 3rd Gen Intel Xeon Scalable Product Family, up to 205W
Dual Socket-P4 LGA4189CPU Socket Dual Socket-P4 LGA4189 Chipset C621A CPU Heatsink 1U Passive Memory Type Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM Memory Capacity Up to 12TB Memory Max DIMM Slot 32 DIMMs (16 per CPU), 8 Channels Dimensions (D x W x H) 770 x 438.5 x 43.0 mm;

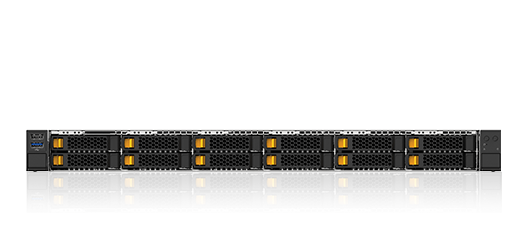

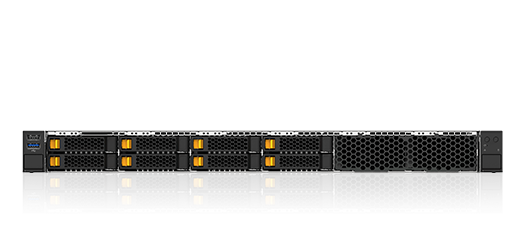

30.3” x 17.26” x 1.7”Drive Bay 2.5” SKUs: 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 12-Bay, option)：

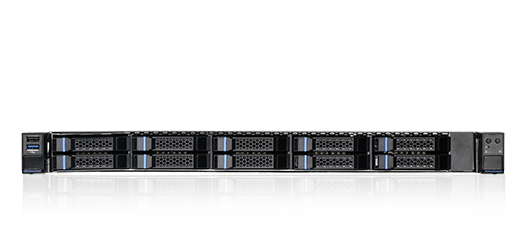

2.5” SKUs: 10 x 2.5” Tool-less, Hot-swap; Supports SAS/SATA：

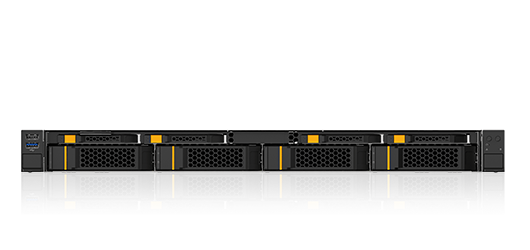

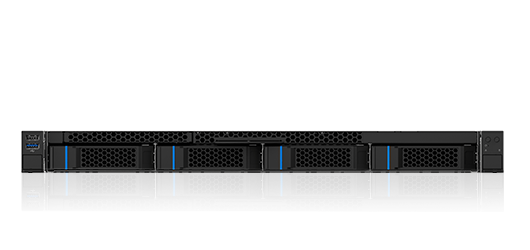

3.5” SKU: 4 x 3.5” HDD Hot-swap; Supports SAS/SATA - 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap;：
Hybrid SKU: 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap; Supports Combo NVMe Gen4 or SAS/SATA：
PSU Form Factor 1600W 1+1 CRPS, 80+ Platinum Indicator 1 x System Status, 1 x HDD Activity Front Control 1 x Power On/Off, 1 x System Reset, 1 x ID Button
1 x USB 3.0, 1 x USB 2.0System Security Intrusion Switch and Security Bezel with Key Lock (Option) Cooling Fan 8 x 40 mm Middle Fix Fan, PWM, Dual Rotors, 23000 RPM Expansion Slot Up to 3-slot PCIe 4.0: 3 x Low-Profi le and Half-Length
Riser 1 (CPU#0)
- 1 x PCIe 4.0 x16 (LPHL)
* P/N# Intel CYP1URISER1STD
Interposer Riser (CPU#1)
- 1 x PCIe 4.0 x8 (LPHL)
* P/N# Intel CYP1URISER2KIT
Riser 2 (CPU#1)
- 1 x PCIe 4.0 x16 (LPHL)
* P/N# Intel CYP1URISER2KIT
Riser 3 (CPU1): NVMe Gen4 Expansion Slot
- 2 x PCIe SlimSAS x8 support up to four NVMe SSDs in the front drive bay through a backplane.
* P/N# Intel CYPRISER3RTM (Optional)
Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)I/O Module OCP 3.0 Ethernet OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional) Serial Port 1 x RJ45 Serial Port A USB Rear: 3 x USB 3.0
Front: 1 x USB 3.0, 1 x USB 2.0Video Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory Net Weight 19.6 KG/PCS Gross Weight 26.5 KG/PCS -
