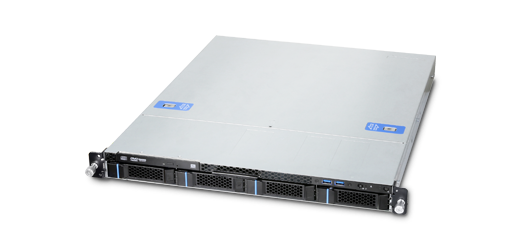

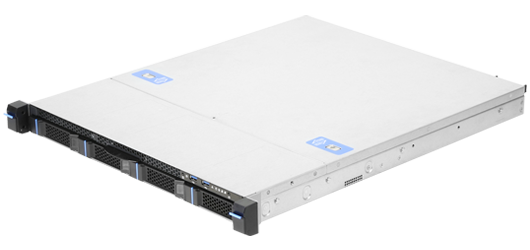

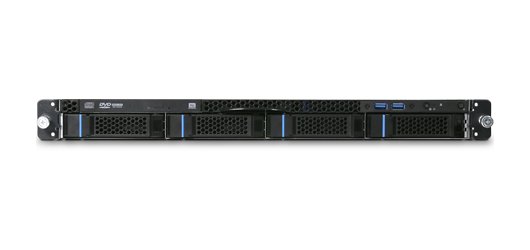

RB14604
1U Single Socket Entry Level Server for Enterprise and Cloud Applications
The latest 1U barebones server, based on the Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors, is designed to be the primary workhorse server for mainstreaming needs.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

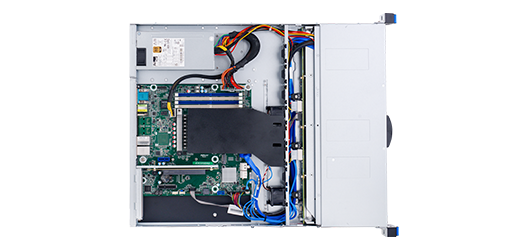

  • ASRock® Server Board E3C252D4U
  • Supports M/B size up to Micro-ATX (9.6" x 9.6")
  • Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors, Single Socket H5 (LGA1200)
  • 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
  • 1U single 400W (80+ Platinum)
  • 1 x PCIe 4.0 x16 , FHHL
  • Intel® C252 (6 SATA 6Gb/s; RAID 0/1/5/10) : 5 SATA 7-pin, 1 SATA DOM or 1 M.2
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 1U
    MB Micro-ATX(9.6" x 9.6") ASRock E3C252D4U
    CPU Intel Xeon E Processor (Single LGA1151), up to 95W TDP
    CPU Socket Single Socket H5 (LGA1200)
    Chipset Intel® C252
    CPU Heatsink 90 x 90 x 33.9(mm) , w/SCREW*4 , CU/AI
    Memory Type 4 DIMM slots (2DPC) support DDR4 288-pin ECC/non-ECC UDIMM ​
    (up to 32G-Max. Capacity per DIMM)
    Memory Capacity 4 DIMM slots (2DPC)
    Max DIMM Slot ECC/non-ECC UDIMM: up to 32GB(per DIMM)
    Memory Voltage 1.2V
    Dimensions (D x W x H) 547.6 x 438.5 x 43.5 (mm) ; 21.56" x 17.26" x 1.71"
    Drive Bay 3.5" Hot-swap：4
    PSU Form Factor 1U single 400W (80+ Platinum)
    Indicator 1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x System Alarm, 1 x HDD Status

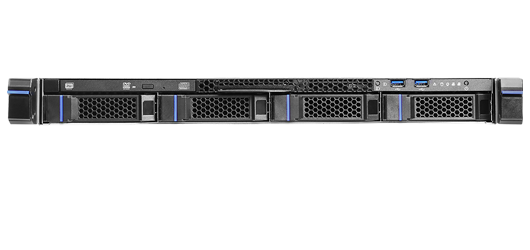

    Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB3.1 Gen1
    Cooling Fan 4 x FAN,40*40*28(mm) ,14500RPM
    Expansion Slot 1 x Full Height and Half Length (PCIe 4.0 x16 supported)
    HDD Backplane 3.5" 4-port 12 Gb/s, SAS/SATA

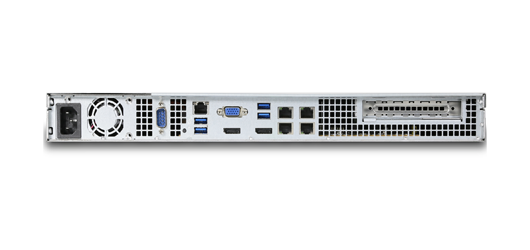

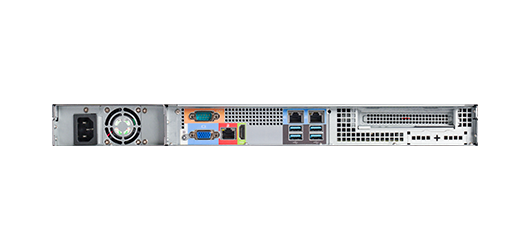

    Ethernet 4 x 1GbE Base-T RJ45
    1 x MGNT
    Serial Port 1 x ASPEED IPMI2.0 Compliant AST 2500 BMC
    USB 2 x USB3.1 Gen1
    Net Weight 14.0 Kg
    Gross Weight 26.5 KG/PCS
  • Category Description Revision Size Download
    Datasheet RB14604 Datasheet V1.0 259.2 KB
  • Category Part. No# Description Support
    Backplane
    380-14610-3000A2    		 3.5" 4-port 12Gbps SAS/SATA Backplane
    Cable

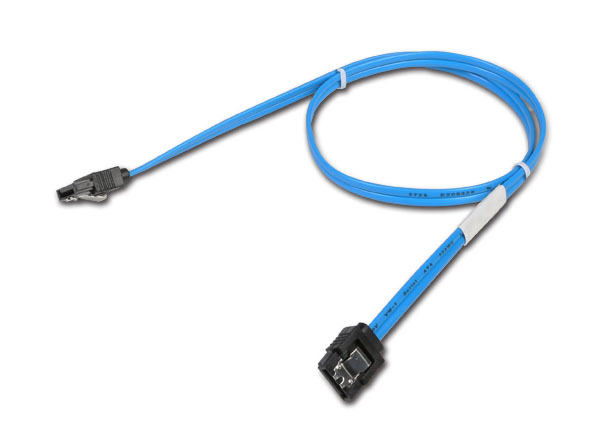

    126-14612-3007A1    		 SATA Cable, 650mm
    Cable
    126-14612-3008A1    		 SATA Cable, 280mm
    Cable
    126-14612-3009A1    		 SATA Cable, 400mm
    Cable
    126-14612-3010A1    		 SATA Cable, 500mm
    Cable
    126-E0000-0010A0    		 DISPLAY CABLE,18P/4P TO 10P/20P/4P,W/I2C,680MM,FOR ASROCK MB

    Cable
    126-E0000-0011A0    		 CABLE,SGPIO,8P TO 10P,450MM,RB14604e003,REV.A0,JR3N04519,IDC TYPE

    Cable
    26H03313601A0    		 CABLE,USB 3.0 REV.A0,RM13604e05,INTERNAL 20P TO TYPE A PLUG,750MM
    Fan
    130-04028-3100A0    		 40x28mm System Fan
    HDD Tray

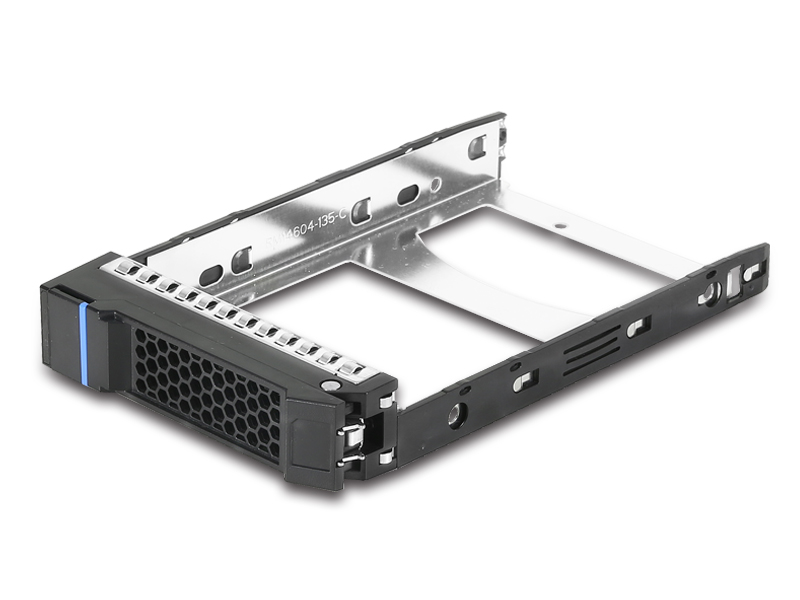

    384-14602-3124A0    		 3.5" HDD TRAY,Panel BK, Screw-on
    Heat Sink
    166-14603-E000A0    		 CPU Heatsink
    PCBA
    380-14610-3000A2    		 AS'Y PCB,SAS,12G,4 PORT,RM14604b005,REV.A2,W/ANTI-STATIC BAG

    Power Supply
    132-10400-0700A3    		 PSU,SINGLE,400W,FULL RANGE,P20+4:235MM/P8:280MM,W/BRACKET,ACTIVE PFC,FSE001-7HAG,RM14604e023,REV.A3,ACBEL

    Riser Card
    380-14609-3000B0    		 PCI-e x16 Riser Card
    Slide Rail

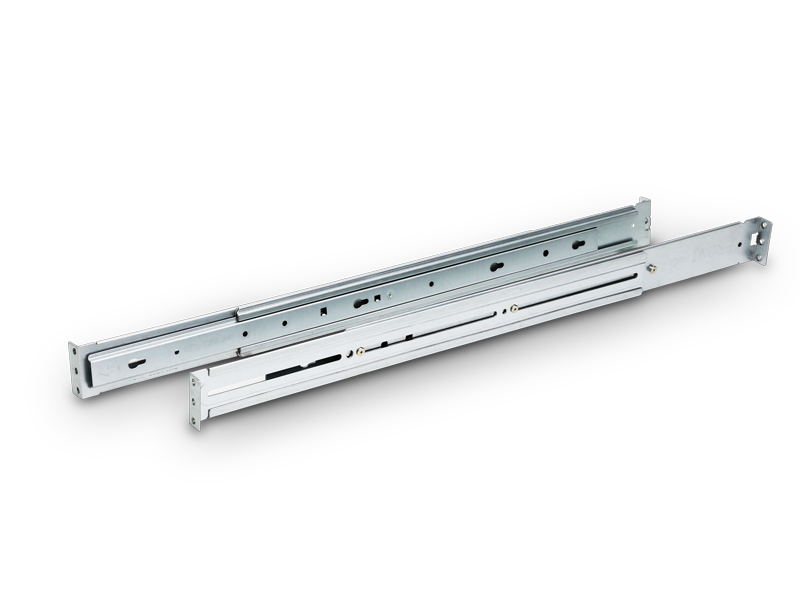

    384-14303-3102A0    		 23.2“ Slide Rail, Post to Post: 23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6kg, Non Tool-less
    Slide Rail
    384-14303-3103A0    		 17.2“ Slide Rail, P2P:22.8" to 27.7", Traveling Distance 11.3", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    84H314610-003    		 Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
