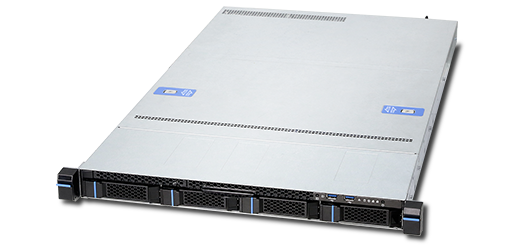

RB13804
1U Ultimate Tuned Dual-Socket Barebone System
Powerful computing capability combined with flexible storage, add-in card, and fan configurations meet business IT, data center and cloud applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

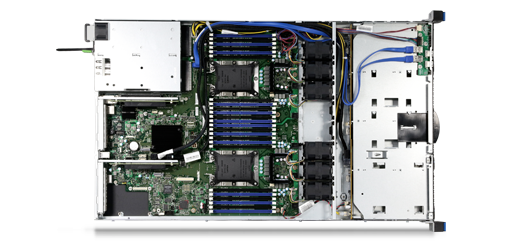

  • Supports Intel S2600WF motherboard
  • Supports 4-bay 3.5” drive cage (tri-mode)
  • Supports 2 x FHHL PCIe card
  • Tool-less 3.5" HDD tray
  • Tool-less top cover
  • Optional 2-bay 2.5” internal drive and 1-slim ODD bay for maximum configuration flexibility
  • Optimizes thermal performance by 6 x 4056 mm easy-swap cooling fan
  • Supports 1+1 CRPS (80+ Platinum)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 1U
    MB Intel S2600WFTR (Wolf Pass)
    CPU Dual 2nd Generation Intel® Xeon® Scalable Processors, up to 165W
    Chipset Intel® C624 chipset
    CPU Heatsink 1U passive
    Memory Type 24 x DDR4 DIMM Slot, 6 x Channel per processor
    Up to 7.5TB, DDR4 UDIMM ECC, 2933 MT/s, 1.2V
    Dimensions (D x W x H) 735.0 x 438.5 x 43.2 (mm)
    28.94" x 17.26" x 1.70"
    Drive Bay 3.5" Hot-swap：4
    2.5" Internal：2
    Slim ODD (Optional)：1
    PSU Form Factor 800W CRPS, 80+ Platinum (single unit default)
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x UID

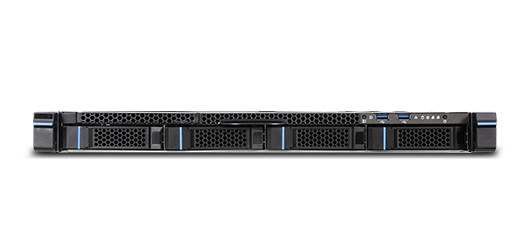

    Front Control 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x System Alarm
    2 x USB3.0
    Cooling Fan Middle : 6 x 4056 mm, non-hot-swap, 22.5K RPM
    Expansion Slot 2 x FHHL PCIe Gen 3.0 x16
    1 x I/O Module
    1 x Integrated RAID Module
    HDD Backplane 3.5” 4-port SAS/SATA/NVMe PCIe Gen 3 (Tri-mode)

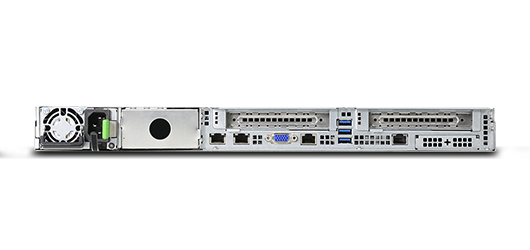

    I/O Module 1 x UID
    2 x 10GbE Base-T, RJ-45,
    1 x MGNT
    3 x USB3.0
    TPM Version 2.0
    Ethernet Dual RJ45, Network Interface Connectors supporting 1GBASE-T Single RJ45-Dedicated, 1GbE Server Management port
    Net Weight 11.6 Kg / 25.55 lb
    Gross Weight 15.3 KG x 33.70 lb
  • Category Description Revision Size Download
    Datasheet RB13804 Datasheet V1.0 2.0 MB
    User Manual RB13804 User Manual V1.1 2.6 MB
  • Category Part. No# Description Support
    Power Supply
    32H1080001101    		 CRPS module, 800W, ACBEL R1CA2801A, Full Range, 80+ Platinum [MPQ=8]
    Slide Rail
    384-23803-3300D0    		 Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Slide Rail
    84H314610-003    		 Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
