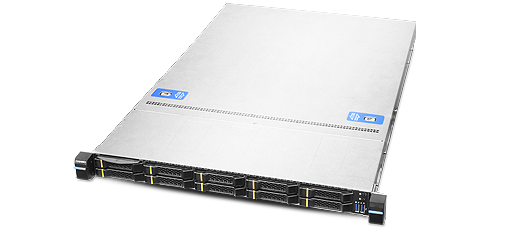

RB133G13-U10
1U Dual Sockets NVMe SSD Server System
Supports 10 x direct-attached NVMe drive, offering Intel VROC, Apache Pass, and Redfish compliance with superior redundant thermal performance in a compact enclosure.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Boost performance on critical workloads with ultra-low latency direct-attached NVMe drives
  • Reserve one HH/HL expansion slot with PCIe Gen3 x16 signal
  • Fit with high performance dual-rotor fan with N+1 fan redundancy
  • Fan anti-vibration mechanism to protect storage drives from data throughput degradation
  • Tool-less drive carrier design for easy installation
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 1U
    MB SSI EEB
    CPU Intel Purley Platform , Cascade Lake Xeon Scalable Processor
    CPU Socket LGA3647
    Chipset Intel C621
    CPU Heatsink 1U Passive
    Memory Type DDR4 (Apache Pass Support)
    Memory Capacity Up to 2TB
    Max DIMM Slot 16 DIMMs
    Memory Speed 2666MHz
    Dimensions (D x W x H) 660.0 x 438.5 x 43.5 (mm)
    25.89”x 17.26” x 1.71”
    Drive Bay U.2 NVMe Drive, Hot-swap:10
    M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe) :2
    PSU Form Factor 1+1 RPSU (850w)

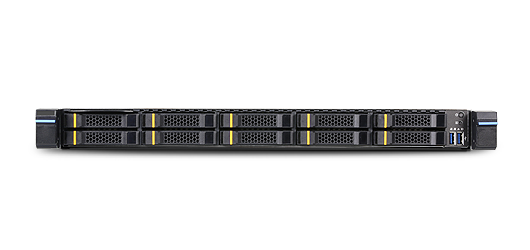

    Indicator Front :
    1 x System Power
    1 x UID
    1 x HDD Activity
    1 x System Status
    2 x LAN Activity

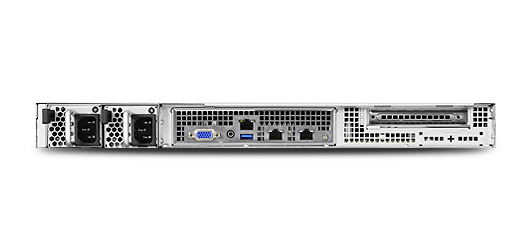

    Rear :
    1 x UID
    Front Control 1 x System Power
    1 x UID
    2 x USB 2.0
    Cooling Fan Middle : 6 x 40mm (T=56mm), Dual-rotor
    Expansion Slot 1 x PCIe Gen 3 @ x16 HH/HL
    HDD Backplane 2.5" 10-port PCIe Gen 3, OCuLink
    TPM Version TPM 2.0 Module
    Ethernet 1 x RJ45 for BMC Management LAN
    2 x RJ45 for 10GbE LAN
    USB 1 x USB 3.0 Port
    Video Integrated on AST2500 BMC, 16MB of DDR4 Video Memory
    Net Weight 16.0 kg
  • Category Description Revision Size Download
    Datasheet RB133G13-U10 Datasheet V1.1 V1.1 709.3 KB
    User Manual RB133G13-U10 User Manual V1.0 V.1.0 6.2 MB
