勤诚 - 产品

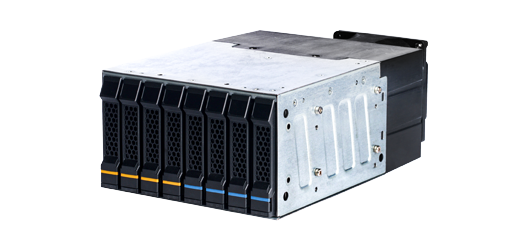

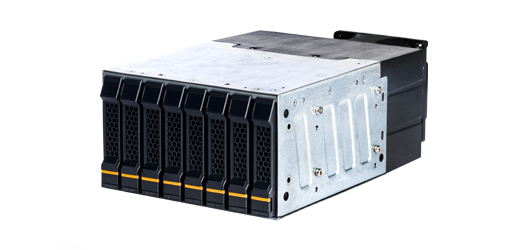

SK62801

8 盘位 2.5 英寸热插拔硬盘，带 PCIE 3.0 或 5.0 背板

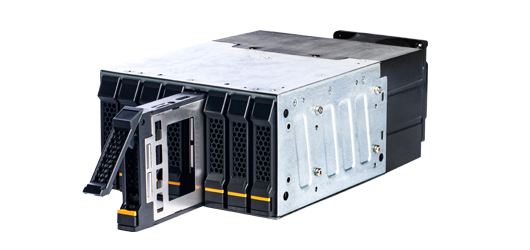

SK62801 设计有标准安装孔，可将 2 x 5.25 英寸驱动器托架转换为 8 x 2.5 英寸 NVMe/SATA 热插拔硬盘驱动器托架。

产品规格比较

清除确认

快速查找

搜寻

产品规格比较

产品特点

Support three types of backplanes: Gen3/4T4S/Gen5, enabling compatibility with different motherboards to cater to a broader range of application scenarios.
Suggest using Chenbro tower server SR113 and SR115, easy to install

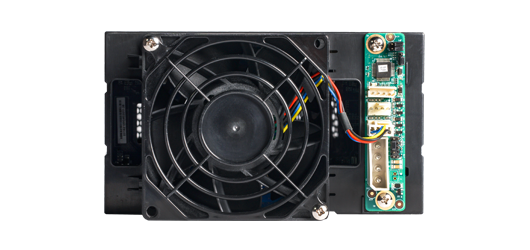

Back-mounted 80mm fan to deliver optimized cooling performance

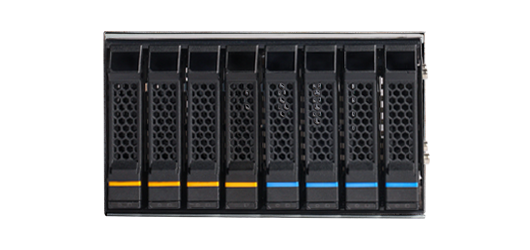

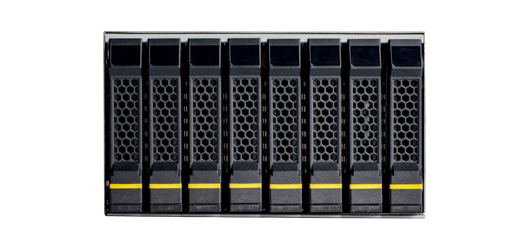

HDD failure and activity indicators on each hot-swap drive carrier
Compatible Chassis: RM41300, RM42300, SR113, SR115

Specification
Download
Accessory
Compatibility
Order Information

尺寸 (长x 宽x 高)	250.7mm x 146mm x 84.1mm; 9.87" x 5.75" x 3.31"
槽位	8 x 2.5" HDD Tray
风扇	80 x 38 (1)
Material	SGCC
净重	1.35 kg
热抽拔背板	SK62801 (NVME N8 Gen3): 8Gbps NVME Gen3 SK62801 (4T4S Gen3): 4T4S 8G NVME Gen3 + 12G SAS/SATA SK62801 (NVME N8 Gen5): 32Gbps NVMe Gen 5
端口(连接硬盘)	SK62801 (NVME N8 Gen3): 8 x SFF 8639 (SAS 68P) SK62801 (4T4S Gen3): 4 x SFF 8639 (SAS 68P)/ 4 x SFF 8680 (SAS 29P) SK62801 (NVME N8 Gen5): 8 x SFF 8639 (SAS 68P)
端口(连接RAID控制器)	SK62801 (NVME N8 Gen3): 8 x SFF 8621 (OCulink4i) SK62801 (4T4S Gen3):4 x SFF 8621 (OCulink4i)/ 2 x SFF 8643 (Mini SAS HD 4i) SK62801 (NVME N8 Gen5): 8 x SFF-TA-1016 (MCIO 4i)
Package Cotents	SK62801 (NVME N8 Gen3): 1 x SK628, 1 x Power extend Cable, 1x Screw PKG SK62801 (4T4S Gen3): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG SK62801 (NVME N8 Gen5): 1 x SK628, 1 x Power extend Cable, 1 x Screw PKG
订购码	SK62801
线材选配	Due to the variation in MB connector type, it will not include a cable option

电源供应器


主板


RAID 阵列卡


硬盘
