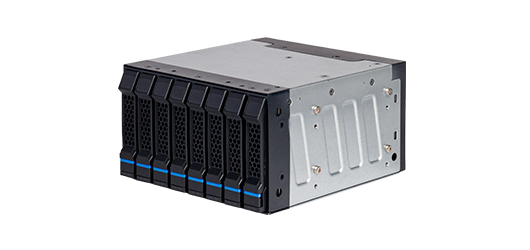

SK32801
8槽2.5"硬碟模组带12Gb/s SAS/SATA 背板
SK32801可以相容于大部分带有两个5.25"磁碟空间的机壳，让机壳支援硬碟热插拔功能与增加储存空间。
首页
>
产品
准系统服务器
-
1U 准系统服务器
-
2U 准系统服务器
-
直立式准服务器系统
机架式服务器机箱
-
1U 机架式服务器机箱
-
2U 机架式服务器机箱
-
3U 机架式服务器机箱
-
4U 机架式服务器机箱
塔式服务器机箱
-
Mini-ITX塔式服务器机箱
-
ATX塔式服务器机箱
-
EATX主流塔式服务器机箱
-
EATX高阶塔式服务器机箱
个人电脑机箱
-
NUC超迷你电脑机箱
-
Mini-ITX 迷你电脑机箱
-
Micro ATX薄型电脑机箱
-
Micro ATX塔式电脑机箱
-
液晶屏幕与机箱支架
-
ATX塔式电脑机箱
存储容量扩展套件
-
热抽拔硬盘模块
-
内接式硬盘模块
OEM/JDM
-
我们OEM/JDM服务的优势
-
我们提供什么产品与服务
-
开始我们的服务
产品规格比较
清除
确认
快速查找
机箱类型
选择产品线
准系统服务器
机架式服务器机箱
塔式服务器机箱
个人电脑机箱
存储容量扩展套件
盘位
External 5.25"
External 3.5"
Internal 3.5"
Slim ODD
Slim FDD
Internal 2.5"
3.5" Hot-swap
Hot-swap 2.5"
Hot-swap 3.5"
or 3.5" (Hot-swappable)
External: 2 x 5.25” and 1 x 3.5”
Storage: Option, max to 2pcs
4-Bay internal HDD cage with 80mm fan, 4500RPM
4-Bay external HDD hot-swap module with 80mm fan, 4500RPM
External 3.5 HDD hot-swap module with 80mm fan, 4500RPM
Internal 3.5 HDD cage with 80mm fan, 4500RPM (option)
3.5" internal HDD module with 80x38 mm fan
3.5" external HDD hot-swap module with 80x38 mm fan
External
2.5" Hot-swap
Hot-swap: 2 x 4-bay 3.5” SAS/SATA Hot-swap Module
RM14604 Plus (3.5" Hot-swap)
RM14604 Plus (2.5" Internal)
RM14604 Plus (Slim ODD, 9.5mm)
Optional 2.5" (Internal) for OS
RM14610 Plus (2.5" Hot-swap)
RM14610 Plus (2.5" Internal)
RM13804 (3.5" Hot-swap)
RM13804 (2.5" Internal)
RM13804 (Slim ODD)
RM13810 (2.5" Hot-swap)
External 2.5" (Optional)
External 3.5" (Optional)
RM41736: 36 x 3.5” Hot-swap HDD (24-bay plus 12-bay HDD cage)
RM41772: 72 x 2.5” Hot-swap HDD (3pcs 24-bay HDD cage)
2.5" Hot-swap (Option)
2.5" Internal (Rear, Option)
RM25206/FIO (2.5" Hot-swap)
RM25204/RIO (2.5" Hot-swap)
RM35206(RIO/FIO)
RM24500 GPU: 1 x 3.5” (Internal)+ 1 x2.5” (Internal), 2 x Open Bay
RM24504 GPU: 4 x 3.5" (Hot-swap), 2 x Open Bay
Optional 2 x 2.5" for OS (Hot-swap, 1+1 CRPS SKU only)
RM23800 GPU: 2 x Open Bay
RM23804 GPU: 4 x 3.5" Hot-swap, 2 x Open Bay
RM23808 GPU: 8 x 3.5 Hot-swap, 2 x 2.5 Internal, 1 x Slim ODD
Optional 2 x 2.5” Hot-swap (Rear)
Internal: 2 x 2.5"
1 x 3.5
External: 4 x 3.5" HDD, Hot swap
2.5” SKUs: 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 12-Bay, option)
2.5” SKUs: 10 x 2.5” Tool-less, Hot-swap; Supports SAS/SATA
3.5” SKU: 4 x 3.5” HDD Hot-swap; Supports SAS/SATA - 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap;
Hybrid SKU: 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap; Supports Combo NVMe Gen4 or SAS/SATA
2 x Internal Fixed Mount 2.5” SSDs (Rear)
2.5” SKUs:
- 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 16 or 24-Bay, Optional)
- 24 x 2.5” tool-less, Hot-swap; Supports SAS/SATA
3.5” SKUs:
- 8 x 3.5” Tool-less, Hot-swap; Supports SAS/SATA
- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA
4 x SAS/SATA
2.5" HDD, Hot-Swap, Rear (Option)
3.5” Internal (Option)
2.5" HDD, Hot-Swap, Front
2.5" HDD, Hot-swap, Front
2.5" HDD, Hot-swap, Rear (Option)
2.5” HDD, Hot-swap, Front
12 Bay 3.5" HDD hot swap module, front / left / right
*Option: 2 Bay 2.5" HDD hot swap module, rear
External: 2 x 2.5" HDD, Hot-swap, Front
Front: 3.5” HDD, Hot-swap
Rear: 2.5” HDD, Hot-swap (Option)
3.5" hot-swap drive bay
RM25204 MIO RIO [Front] 2.5" Hot-swap HDD
RM25204 MIO RIO [Rear] 2.5" Hot-swap HDD
RM25206 MIO FIO [Front] 2.5" Hot-swap HDD
3.5" bays, Hot-swap; supports SAS/SATA3
2.5" Tray-less, Hot-swap; supports NVMe Gen 4
3.5" Combo bays, Hot-swap; supports 8 tri-mode + 4 SAS/SATA3
Front: 2.5" Hot-swap HDD
RM23708 (Slim ODD)
RM23708 (3.5" Hot-swap)
RM23708 (Internal 2.5")
RM23712 (3.5" Hot-swap)
RM23724 (2.5" Hot-swap)
Optional 2.5" (Hot-swap) for OS
RM23808 (3.5" Hot-swap)
RM23808 (Slim ODD)
RM23808 (Internal 2.5")
RM23812 (3.5" Hot-swap)
RM23824 (2.5" Hot-swap)
RM23800 (5.25" Open-bay)
RM23804 (5.25" Open-bay)
RM23804 (3.5" Hot-swap)
RM24508 (3.5" Hot-swap)
RM24508 (Slim ODD)
RM24508 (Internal 2.5")
RM24512 (3.5" Hot-swap)
RM24500 (5.25" Open-bay)
RM24504 (5.25" Open-bay)
RM24504 (3.5" Hot-swap)
Internal 2.5" (Option)
RM13304 3.5" Hot-swap
RM13304 2.5" Internal :
RM13304 slim ODD :
RM13310 2.5" Hot-swap
2.5" Hot-swap HDD for OS
Internal: 1 x 3.5” or 1 x 2.5” (option)
RM23508: 8 x 3.5” Hot-swap HDD, 1 x Slim ODD, 2 x internal 3.5”
RM23512: 12 x 3.5” Hot-swap HDD
RM23524: 24 x 2.5” Hot-swap HDD
2.5” SKU SFF Hot-Swap (Tray-less
3.5” SKU LFF Hot-Swap (Tool-less)
2.5" sku SFF Hot-Swap (Tray-less) 3 x 4-port 2.5” NVMe(Gen4) 16 Gb/s NVMesupport
3.5" sku LFF Hot-Swap (Tool-less)
Rear Storage:
- 2 x Internal Fixed Mount 2.5” SSDs (* Power Cable Option)
- 2-Bay 2.5” HDD Hot Swappable, Supporting 7mm SSD or 15mm NVMe (Option)
* NVMe module must be option with cooling fan kit (2pcs)
* Shared PCIe low profile space, need to remove riser card w/ bracket
- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA
2.5” SAS/SATA Drive
U.2 NVMe Drive, Hot-swap
M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe)
M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe)
2.5" Internal
Slim ODD (Optional)
主板
品牌
ASRock Rack
ASUS
FUJITSU
Gigabyte
Intel
MSI
Supermicro
Tyan
Winstron
Wistron
RAID阵列卡
品牌
3Ware
Adaptec
ASRock
Broadcom
Intel
LSI
电源供应器
品牌
3Y
AcBel
Delta
FSP
Zippy
搜寻
产品规格比较
产品特点
可安装于带有两个5.25"磁碟空间的机壳

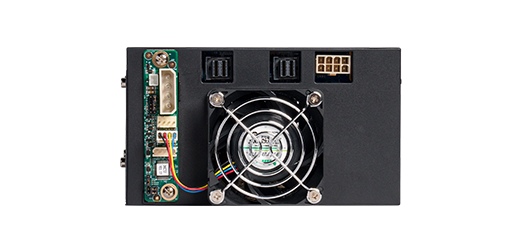

后置6公分风扇提供最直接的散热效果

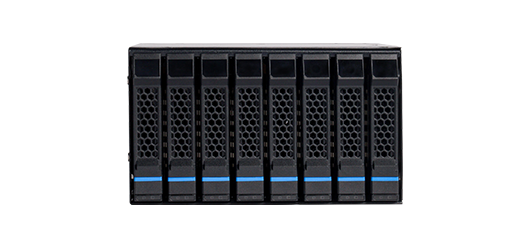

每个热插拔托盘都有硬碟状态指示灯
支援热插拔突波电流吸收电路
背板支援另一组硬碟状态指示灯
背板内建温度感应器与过热警报系统
Specification
Download
Accessory
Compatibility
Order Information
尺寸 (长x 宽x 高)
187.75 x 146.0 x 84.1 (mm) ；7.39" x 5.75" x 3.31"
槽位
8 x 2.5" HDD Tray
风扇
60 x 25 (1)
Material
SGCC
净重
1.23 kg
热抽拔背板
12Gbps SAS/SATA
端口(连接硬盘)
8 x SFF8630
端口(连接RAID控制器)
2 x miniSAS HD
包装内含
1 x SK328
1 x Power extend Cable
1 x Screw PKG
订购码
SK32801T3
线材选配
Mini SAS HD to MINI SAS HD, 550MM
分類
说明
版本号
档案大小
下载
Datasheet
SK32801 Datasheet
V1.0
1.4 MB
类型
型号
说明
支持机型
请选配件编号以观看图片
Support
电源供应器
主板
RAID 阵列卡
硬盘
订购码
Occupancy
Backplane
Supported Drives
Fan
SK32801
2 x 5.25”
8-Port 12Gb/s Mini SAS HD
8 x 2.5''
60mm
Part Category
Part No.
Qty.
Description
