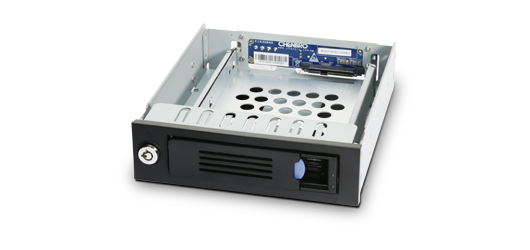

SK31101
單一3.5寸硬盘槽附6Gb/s SAS/SATA背板
SK31101附标准安装孔，将1个5.25寸光驱槽转换为1个3.5寸SATA热抽拔硬盘槽。
首页
>
产品
准系统服务器
-
1U 准系统服务器
-
2U 准系统服务器
-
直立式准服务器系统
机架式服务器机箱
-
1U 机架式服务器机箱
-
2U 机架式服务器机箱
-
3U 机架式服务器机箱
-
4U 机架式服务器机箱
塔式服务器机箱
-
Mini-ITX塔式服务器机箱
-
ATX塔式服务器机箱
-
EATX主流塔式服务器机箱
-
EATX高阶塔式服务器机箱
个人电脑机箱
-
NUC超迷你电脑机箱
-
Mini-ITX 迷你电脑机箱
-
Micro ATX薄型电脑机箱
-
Micro ATX塔式电脑机箱
-
液晶屏幕与机箱支架
-
ATX塔式电脑机箱
存储容量扩展套件
-
热抽拔硬盘模块
-
内接式硬盘模块
OEM/JDM
-
我们OEM/JDM服务的优势
-
我们提供什么产品与服务
-
开始我们的服务
产品规格比较
清除
确认
快速查找
机箱类型
选择产品线
准系统服务器
机架式服务器机箱
塔式服务器机箱
个人电脑机箱
存储容量扩展套件
盘位
External 5.25"
External 3.5"
Internal 3.5"
Slim ODD
Slim FDD
Internal 2.5"
3.5" Hot-swap
Hot-swap 2.5"
Hot-swap 3.5"
or 3.5" (Hot-swappable)
External: 2 x 5.25” and 1 x 3.5”
Storage: Option, max to 2pcs
4-Bay internal HDD cage with 80mm fan, 4500RPM
4-Bay external HDD hot-swap module with 80mm fan, 4500RPM
External 3.5 HDD hot-swap module with 80mm fan, 4500RPM
Internal 3.5 HDD cage with 80mm fan, 4500RPM (option)
3.5" internal HDD module with 80x38 mm fan
3.5" external HDD hot-swap module with 80x38 mm fan
External
2.5" Hot-swap
Hot-swap: 2 x 4-bay 3.5” SAS/SATA Hot-swap Module
RM14604 Plus (3.5" Hot-swap)
RM14604 Plus (2.5" Internal)
RM14604 Plus (Slim ODD, 9.5mm)
Optional 2.5" (Internal) for OS
RM14610 Plus (2.5" Hot-swap)
RM14610 Plus (2.5" Internal)
RM13804 (3.5" Hot-swap)
RM13804 (2.5" Internal)
RM13804 (Slim ODD)
RM13810 (2.5" Hot-swap)
External 2.5" (Optional)
External 3.5" (Optional)
RM41736: 36 x 3.5” Hot-swap HDD (24-bay plus 12-bay HDD cage)
RM41772: 72 x 2.5” Hot-swap HDD (3pcs 24-bay HDD cage)
2.5" Hot-swap (Option)
2.5" Internal (Rear, Option)
RM25206/FIO (2.5" Hot-swap)
RM25204/RIO (2.5" Hot-swap)
RM35206(RIO/FIO)
RM24500 GPU: 1 x 3.5” (Internal)+ 1 x2.5” (Internal), 2 x Open Bay
RM24504 GPU: 4 x 3.5" (Hot-swap), 2 x Open Bay
Optional 2 x 2.5" for OS (Hot-swap, 1+1 CRPS SKU only)
RM23800 GPU: 2 x Open Bay
RM23804 GPU: 4 x 3.5" Hot-swap, 2 x Open Bay
RM23808 GPU: 8 x 3.5 Hot-swap, 2 x 2.5 Internal, 1 x Slim ODD
Optional 2 x 2.5” Hot-swap (Rear)
Internal: 2 x 2.5"
1 x 3.5
External: 4 x 3.5" HDD, Hot swap
2.5” SKUs: 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 12-Bay, option)
2.5” SKUs: 10 x 2.5” Tool-less, Hot-swap; Supports SAS/SATA
3.5” SKU: 4 x 3.5” HDD Hot-swap; Supports SAS/SATA - 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap;
Hybrid SKU: 4 x 3.5” + 4 x 2.5” (7 mm) Tool-less, Hot-swap; Supports Combo NVMe Gen4 or SAS/SATA
2 x Internal Fixed Mount 2.5” SSDs (Rear)
2.5” SKUs:
- 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 16 or 24-Bay, Optional)
- 24 x 2.5” tool-less, Hot-swap; Supports SAS/SATA
3.5” SKUs:
- 8 x 3.5” Tool-less, Hot-swap; Supports SAS/SATA
- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA
4 x SAS/SATA
2.5" HDD, Hot-Swap, Rear (Option)
3.5” Internal (Option)
2.5" HDD, Hot-Swap, Front
2.5" HDD, Hot-swap, Front
2.5" HDD, Hot-swap, Rear (Option)
2.5” HDD, Hot-swap, Front
12 Bay 3.5" HDD hot swap module, front / left / right
*Option: 2 Bay 2.5" HDD hot swap module, rear
External: 2 x 2.5" HDD, Hot-swap, Front
Front: 3.5” HDD, Hot-swap
Rear: 2.5” HDD, Hot-swap (Option)
3.5" hot-swap drive bay
RM25204 MIO RIO [Front] 2.5" Hot-swap HDD
RM25204 MIO RIO [Rear] 2.5" Hot-swap HDD
RM25206 MIO FIO [Front] 2.5" Hot-swap HDD
3.5" bays, Hot-swap; supports SAS/SATA3
2.5" Tray-less, Hot-swap; supports NVMe Gen 4
3.5" Combo bays, Hot-swap; supports 8 tri-mode + 4 SAS/SATA3
Front: 2.5" Hot-swap HDD
RM23708 (Slim ODD)
RM23708 (3.5" Hot-swap)
RM23708 (Internal 2.5")
RM23712 (3.5" Hot-swap)
RM23724 (2.5" Hot-swap)
Optional 2.5" (Hot-swap) for OS
RM23808 (3.5" Hot-swap)
RM23808 (Slim ODD)
RM23808 (Internal 2.5")
RM23812 (3.5" Hot-swap)
RM23824 (2.5" Hot-swap)
RM23800 (5.25" Open-bay)
RM23804 (5.25" Open-bay)
RM23804 (3.5" Hot-swap)
RM24508 (3.5" Hot-swap)
RM24508 (Slim ODD)
RM24508 (Internal 2.5")
RM24512 (3.5" Hot-swap)
RM24500 (5.25" Open-bay)
RM24504 (5.25" Open-bay)
RM24504 (3.5" Hot-swap)
Internal 2.5" (Option)
RM13304 3.5" Hot-swap
RM13304 2.5" Internal :
RM13304 slim ODD :
RM13310 2.5" Hot-swap
2.5" Hot-swap HDD for OS
Internal: 1 x 3.5” or 1 x 2.5” (option)
RM23508: 8 x 3.5” Hot-swap HDD, 1 x Slim ODD, 2 x internal 3.5”
RM23512: 12 x 3.5” Hot-swap HDD
RM23524: 24 x 2.5” Hot-swap HDD
2.5” SKU SFF Hot-Swap (Tray-less
3.5” SKU LFF Hot-Swap (Tool-less)
2.5" sku SFF Hot-Swap (Tray-less) 3 x 4-port 2.5” NVMe(Gen4) 16 Gb/s NVMesupport
3.5" sku LFF Hot-Swap (Tool-less)
Rear Storage:
- 2 x Internal Fixed Mount 2.5” SSDs (* Power Cable Option)
- 2-Bay 2.5” HDD Hot Swappable, Supporting 7mm SSD or 15mm NVMe (Option)
* NVMe module must be option with cooling fan kit (2pcs)
* Shared PCIe low profile space, need to remove riser card w/ bracket
- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA
2.5” SAS/SATA Drive
U.2 NVMe Drive, Hot-swap
M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe)
M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe)
2.5" Internal
Slim ODD (Optional)
主板
品牌
ASRock Rack
ASUS
FUJITSU
Gigabyte
Intel
MSI
Supermicro
Tyan
Winstron
Wistron
RAID阵列卡
品牌
3Ware
Adaptec
ASRock
Broadcom
Intel
LSI
电源供应器
品牌
3Y
AcBel
Delta
FSP
Zippy
搜寻
产品规格比较
产品特点
兼容1個标准5.25寸光驱槽尺寸
顶部开口，硬盘可藉由系统风扇散热
每热抽拔硬盘架皆配有硬盘活动及失败指示灯
支持热插拔及侵入电流控制
支持RAID或扩充卡之单一硬盘失败讯号

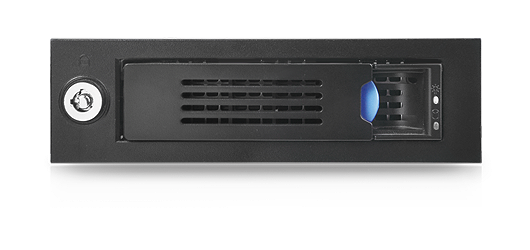

钥匙锁确保硬盘安全
规格
下载
选配件
兼容列表
订购讯息
尺寸 (长x 宽x 高)
171 x 146 x 43 (mm) 6.73" x 5.8" x 1.6"
槽位
3.5" SATAII/SAS HDD Tray x 1
指示灯号
Power ON/OFF LED HDD Failure LED
前方控制
Key Lock
风扇
N / A
材质
SECC
净重
0.5 Kg

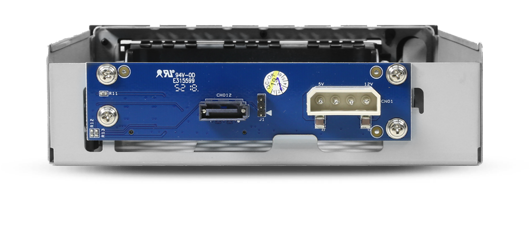

热抽拔背板
6Gb/s SATA
端口(连接硬盘)
1 x (22+7) pins SAS connector
端口(连接RAID控制器)
1 x 7 pins SATA/SAS connector
包装内含
1 x SK31101 , 1 x SATA cable 700 mm, 1 x signal cable 600 mm , 1 x key (2pcs / 1set)
分類
说明
版本号
档案大小
下载
Datasheet
3.5'' 硬盘存储套件产品参数
V1.1
365.6 KB
User Manual
12Gb/s 1端口 SAS/SATA 背板, SK31101专用
V1.0
879.5 KB
类型
型号
说明
支持机型
请选配件编号以观看图片
Support
电源供应器
主板
RAID 阵列卡
硬盘
订购码
Occupancy
Backplane
Supported Drives
Fan
SK31101T2
1x 5.25"
6Gb/s SAS& SATA
1x 3.5"
N/A
