RM43736

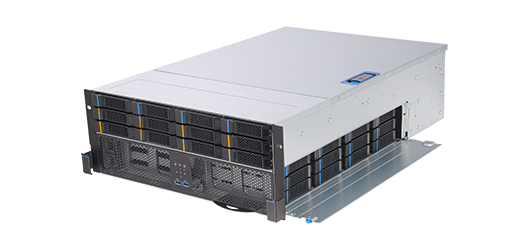

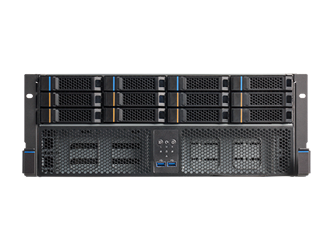

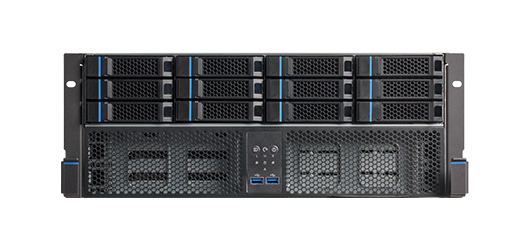

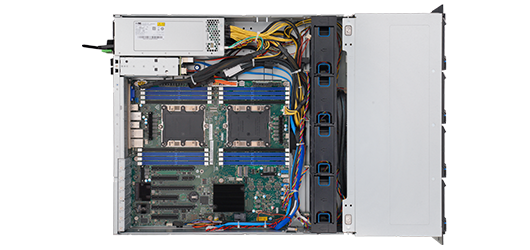

4U 36-Bay 三载高密度存储服务器机箱
4U 高密度三重负载存储服务器机箱设计，具有 24 x 3.5” 侧面接入和 12 x 3.5” 正面接入热插拔 HDD 和 EEB 主板支持数据存储和高性能应用
产品规格比较
产品特点
- Ultra-dense 4U storage server chassis optimized for warm and cold data tiering

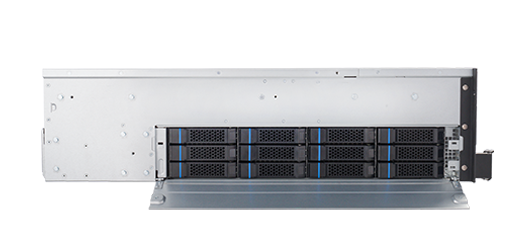

- Innovative Tri-load design for 24 x 3.5” side access and 12 x 3.5” front access hot-swap HDDs
- Front storage up to eight SAS/SATA/NVMe Gen 4 drives and rear optional two-bay NVMe Gen 4 SSD module
- Flexible motherboard support to EATX, ATX, microATX
- 4+4 Redundant 80mm fan module support hot-swappable
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
适应主板 EATX(12" x 13 "), ATX (12" x 9.6"), mATX (9.6" x 9.6“)
机箱尺寸(深x 宽x 高) 660mm x 438mm x 175mm ; 26’’ x 17.2’’ x 6.9" 槽位 12 Bay 3.5" HDD hot swap module, front / left / right：3
*Option: 2 Bay 2.5" HDD hot swap module, rear：
电源类型 Redundant CRPS (1+1), 1200W or 1600W(80+Platinum) 指示灯号 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Activity, 3 x HDD Status (L/M/R), 1 x System Status 前板控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
安全装置 Intrusion Switch 风扇 Middle: 80mm (T:38mm) fan module with fan bar
-Performance: 4 x 14400RPM, PWM, Hot-swap
-Mainstream: 3 x 11000RPM, PWM, Hot-swap

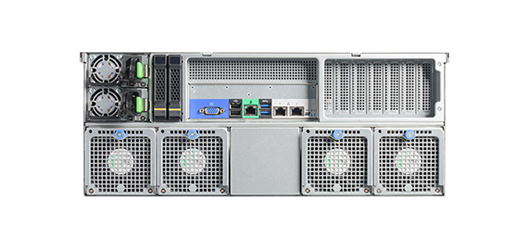

Rear: 80mm (T:38mm) fan module, 4 x 11000 RPM, PWM, Hot-swap扩展卡位 7 x Low Profile or 3 x Full Height (Option) 热抽拔背板 12 port 12Gbps SAS Expander Backplane, front / left / right
12 port 8T4S Gen 4 Backplane, front
*Option:
-2 Port 12Gbps SAS/SATA, rear
-2 Port NVMe Gen3, rear
-2 Port NVMe Gen4, rear净重 25KG /PCS 毛重 28.64KG/CTN 才积 5.34 装柜数量(单包) 20' FCL: 132pcs / 40' FCL: 276pcs (Single Packing + Pallet) -
分類 说明 版本号 档案大小 下载 Datasheet RM43736 Datasheet v1.1 v1.1 643.7 KB
User Manual RM43736 User Manual V1.0 v1.0 5.7 MB
-

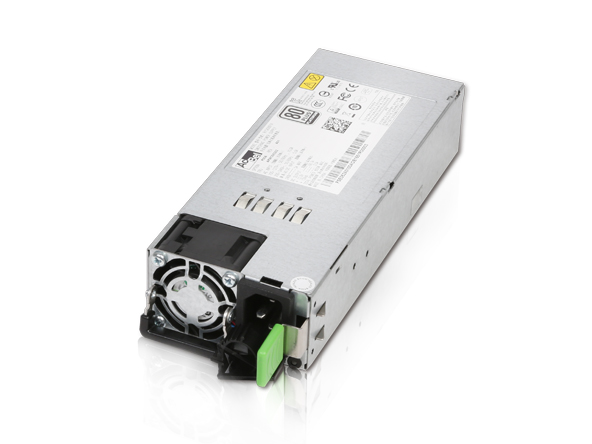

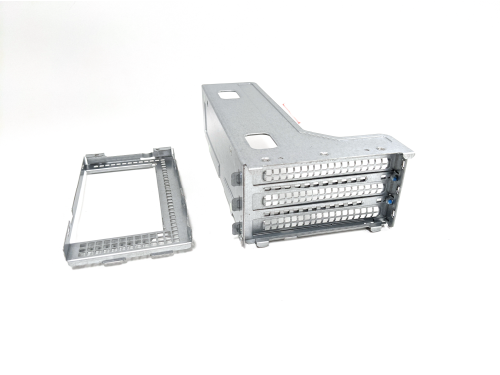

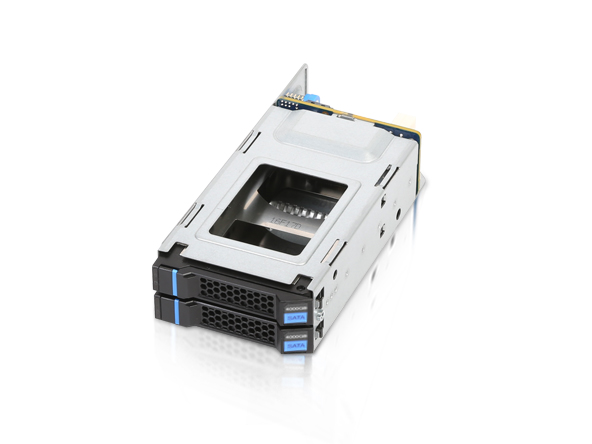

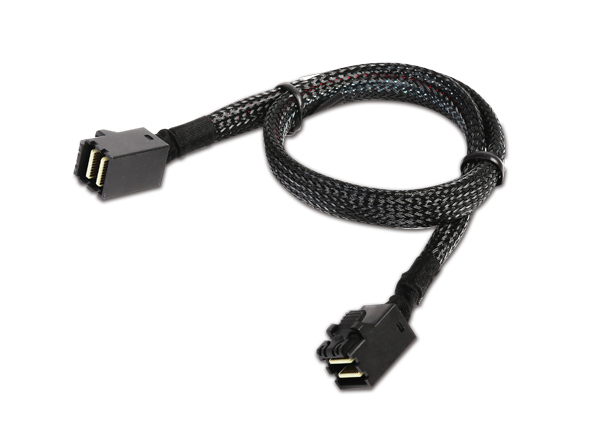

类型 型号 说明 支持机型 Cable 126-14512-3021A0 Mini-SAS HD to mini-SAS HD, 850mm Cable 126-23612-3000A0 miniSAS-HD to miniSAS-HD cable, 600mm Cable 126-23811-3003A0 Display cable for Super Micro, 500mm Cable 126-25112-3008A0 Slim SAS 8i to dual 4i cable Cable 126-30000-0136A0 Slim SAS 4i to 4i cable CMA 84H349010-006 Cable Management Arm (CMA) Fan 384-FAN00006BA0 80mm fan module (Middle), 11000RPM, hot swap, spare Fan 384-MIX00275B0A0 80mm fan module (Rear), 11000RPM, hot swap, spare HDD Cage 384-23701-3116B0 2-bay 2.5" HDD Cage, w/2-port 12Gb/s SATA&SAS Backplane , w/ 2 x 2.5" HDD Tray(TOOL-LESS) NVMe Gen4 SSD module 384-PCB00053B0A0 2-Bay NVMe Gen4 SSD module (Rear) Power Supply 132-41200-0700A1 PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module Riser Kit 384-23812-3112A0 PCIe 3.0 x16 Riser Kit (EN62368) Slide Rail 384-RAL00001BA0 Slide rail kit can support CMA - P2P: 26" to 36.7", Traveling Distance 28.5", tool-less 请选配件编号以观看图片 Support -
