RM42300

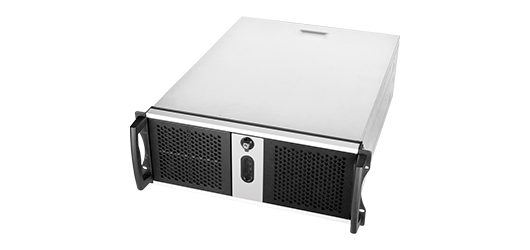

4U高性能工业服务器机箱
配备完全隔离的防振驱动器笼、防尘过滤器和可靠的附加卡座，使其成为高性能 IPC 的理想选择。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点
  • Supports M/B up to 12” x 9.6”
  • Available for rackmount and stand-alone installation
  • Dedicated 80 mm fan for HDD cooling
  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Card retainer to hold low profile and full height add-on cards
  • Front 120mm fan with filter for add-on card cooling
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility

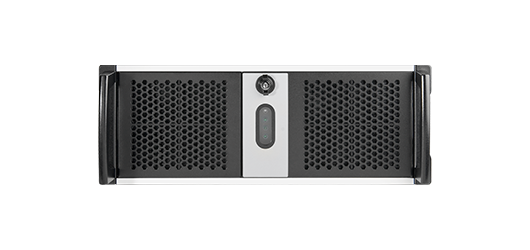

  • Supports 1-door or 2-door front bezel configuration
  • Supports 1200W (1+1) 2U CRPS module (w/ housing and PDB)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 4U
    适应主板 ATX (12” x 9.6”)
    机箱尺寸(深x 宽x 高) 465.2 x 430.0 x 176.0 (mm)
    18.32” x 16.93” x 6.93”
    槽位 External 3.5"：1
    External 5.25"：3
    Internal 3.5"：4
    Slim ODD：1

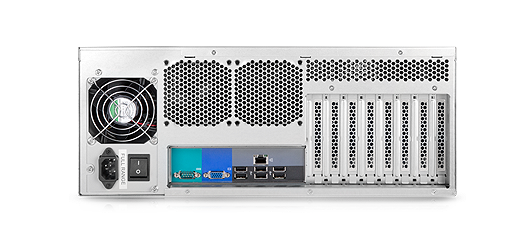

    电源类型 -PS/2 single

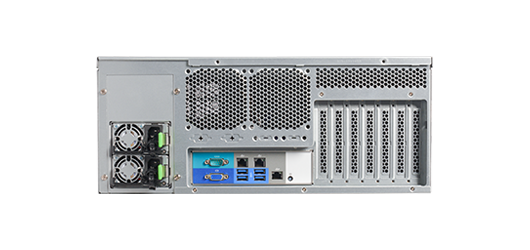

    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    指示灯号 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    前板控制 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    安全装置 Intrusion Switch (Option)
    Key Lock on Front Door
    风扇 Front: 1 x 120 mm (T=25 mm), PWM,
    Rear: 2 x 80 mm (T=25 mm) (Option)
    扩展卡位 7 x Full Height
    热抽拔背板 N/A
    净重 9.5 kg/20.93 lb
    毛重 12.3 kg/27.09 lb
    面板 Option
    才积 3.44
    装柜数量(单包) 20': 192 ,
    40': 432 ,
    40'H: 504 (Single + Pallet)
  • 分類 说明 版本号 档案大小 下载
    Datasheet RM42300 datasheet v1.4 v1.4 709.5 KB
    Datasheet RM42300 产品参数 V1.3 7.4 MB
    User Manual RM42300_QIG V1.1 443.4 KB
  • 类型 型号 说明 支持机型
    Bezel
    84H341310-004    		 Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel
    84H341310-005    		 Front Bezel, 4U, 2-door, RM41300/RM42300
    Bracket

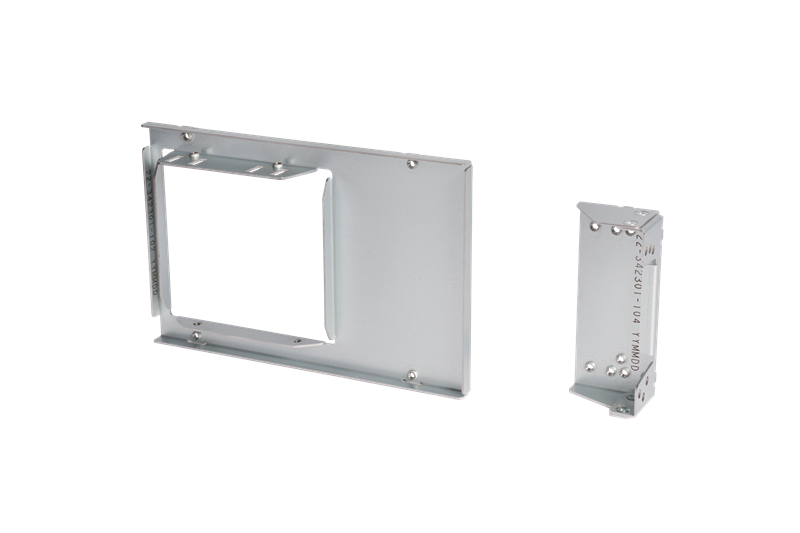

    384-MIX00438B0A0    		 PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    Drive Cage
    84H342310-003    		 Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012    		 Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058    		 80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws
    Fan
    84H342310-004    		 FAN Module, 120x25mm,AVC
    Foot Stand
    84H342210-002    		 Stand alone Kit, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101    		 Foot stand, 4pcs/set, w/cabinet ear, for RM41300/RM42300
    PCB
    66H243131-001    		 Adapter, SATA to SATA, For Slim ODD
    PCB

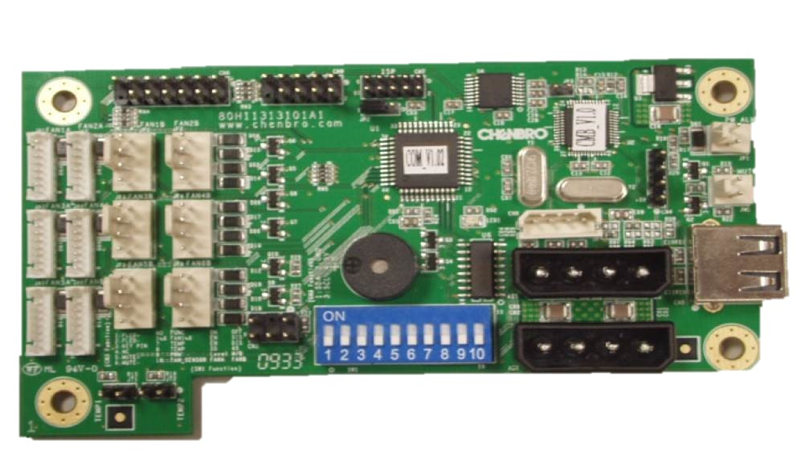

    84H331410-025    		 6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PCBA
    84H331410-025    		 6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PSU module+bracket
    384-PSU00024B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 800W FSL025-7HCG
    PSU module+bracket
    384-PSU00028B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 550W FSK011-7HHG
    Rear Window
    84H342310-005    		 Rear window, 15-slot, w/slot brackets, RM41300/RM42300
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm

    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
