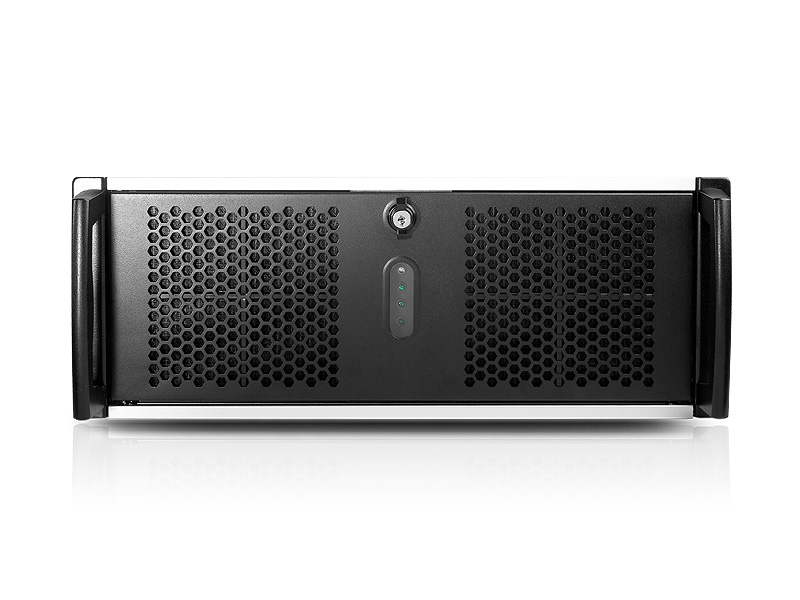

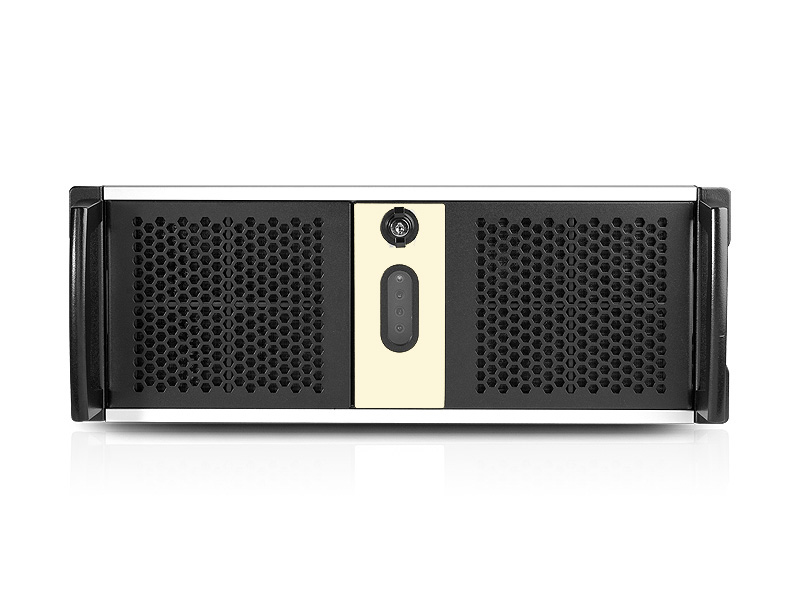

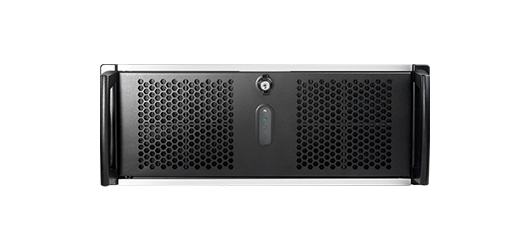

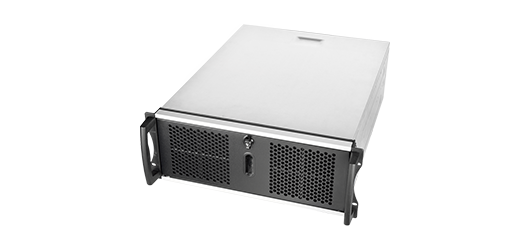

RM41300
4U高性能工业服务器机箱
配备完全隔离的防振驱动器笼、防尘过滤器和可靠的附加卡座，使其成为高性能 IPC 的理想选择。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点

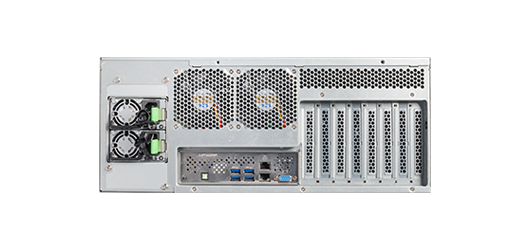

  • RM41300 8-Slot upgrade to support CRPS & 2 GPU*

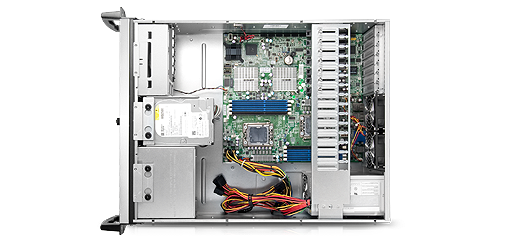

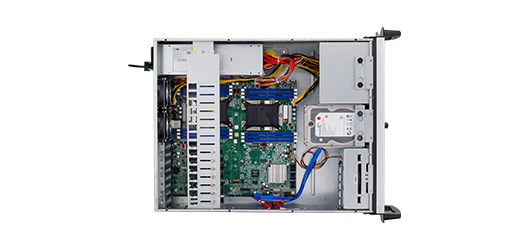

  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Dedicated 80mm fan for HDD cooling
  • Card retainer to hold low profile and full-height add-on cards (RM41300)
  • Supports stand-alone installation via an optional kit (RM41300)
  • Supports 1-door or 2-door front bezel configuration (RM41300)
  • *With an 8-slot rear window, if you want to install a GPU card whose TDP is up to 320W, please give a space between each card for better thermal performance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 4U
    适应主板 EATX (12" x 13")
    机箱尺寸(深x 宽x 高) With front bezel: 563.7 x 430.0 x 176.0 (mm)
    Without front bezel: 543.7 x 430.0 x 176.0 (mm)
    槽位 External 5.25"：3
    External 3.5"：1
    Internal 3.5"：4
    Slim ODD：1
    电源类型 -PS/2 single

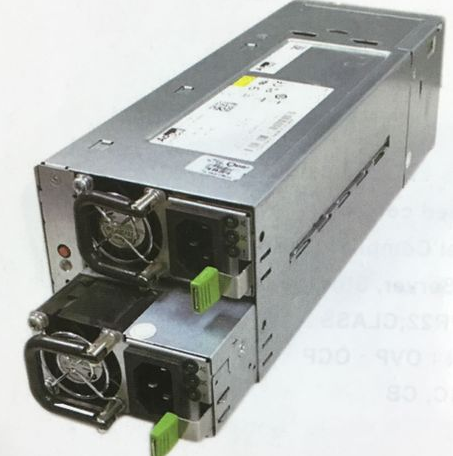

    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    指示灯号 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    前板控制 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    安全装置 Intrusion Switch (Option)
    Key Lock on Front Panel
    风扇 Front: 1 x 120 mm (120 x 25 mm), PWM
    Rear: 2 x 80 mm (Option)
    扩展卡位 7 x Full Height and Full Length (*RM41300)
    8 x Full Height and Full Length (*RM41300G)
    热抽拔背板 N/A
    净重 12.5 kg/27.53 lb
    毛重 15.5 kg/34.14 lb
    面板 Option
    才积 4.03
    装柜数量(单包) 20’: 245, 40’: 524, 40’H: 592(single packing)
  • 分類 说明 版本号 档案大小 下载
    Datasheet RM41300 产品参数 V1.2 11.5 MB
    User Manual RM41300 Quick Installation Guide V1.1 454.3 KB
    User Manual RM41300G Quick Installation Guide V1.1 290.8 KB
  • 类型 型号 说明 支持机型

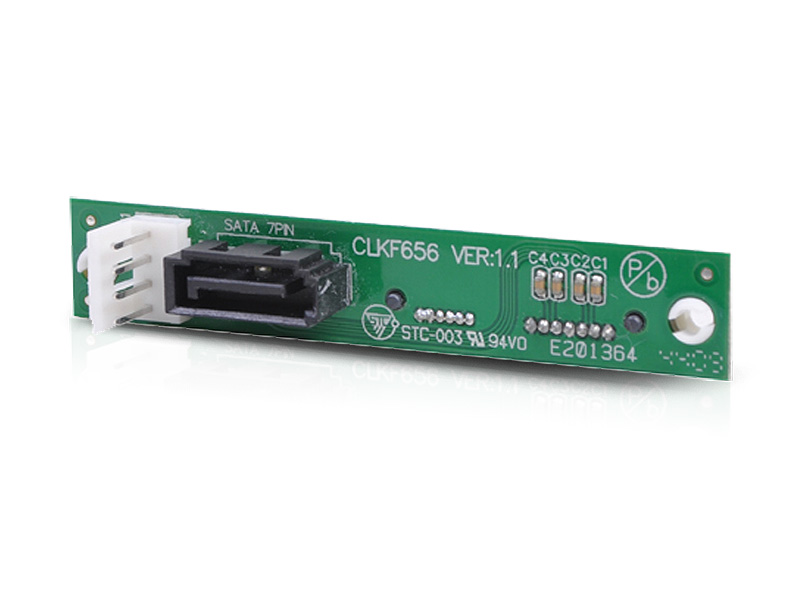

    Adapter
    66H243131-001    		 Adapter, SATA to SATA, For Slim ODD
    Bezel
    84H341310-004    		 Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel
    84H341310-005    		 Front Bezel, 4U, 2-door, RM41300/RM42300

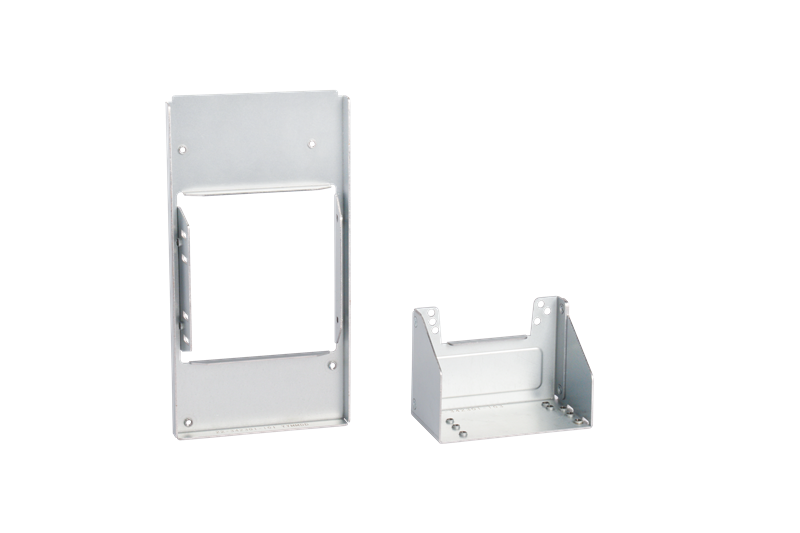

    Bracket
    84H341310-011    		 Bracket, PSU, 4U,  For C2W-5620V / C2W-5820V
    Bracket
    84H341310-027    		 Bracket, PSU, 4U, For R2IS7651A-G/R21S7871A-G

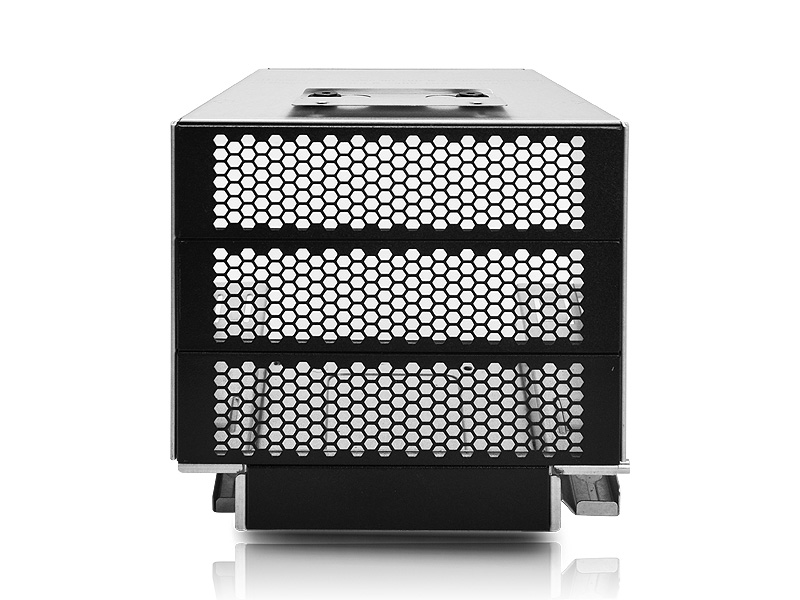

    Drive Cage
    84H342310-003    		 Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012    		 Drive Cage, 3 x 5.25" Bay, For Tower Application

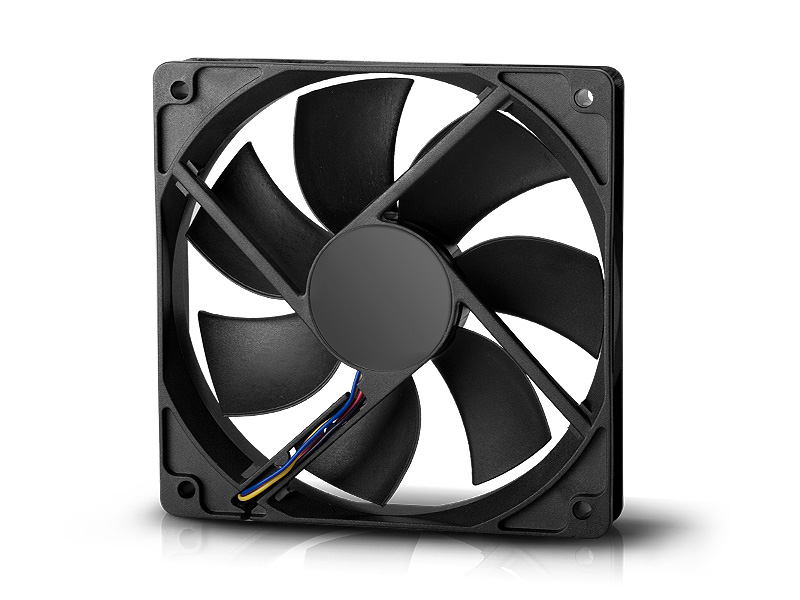

    Fan
    84H000010-058    		 80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws
    Fan
    84H342310-004    		 FAN Module, 120x25mm,AVC

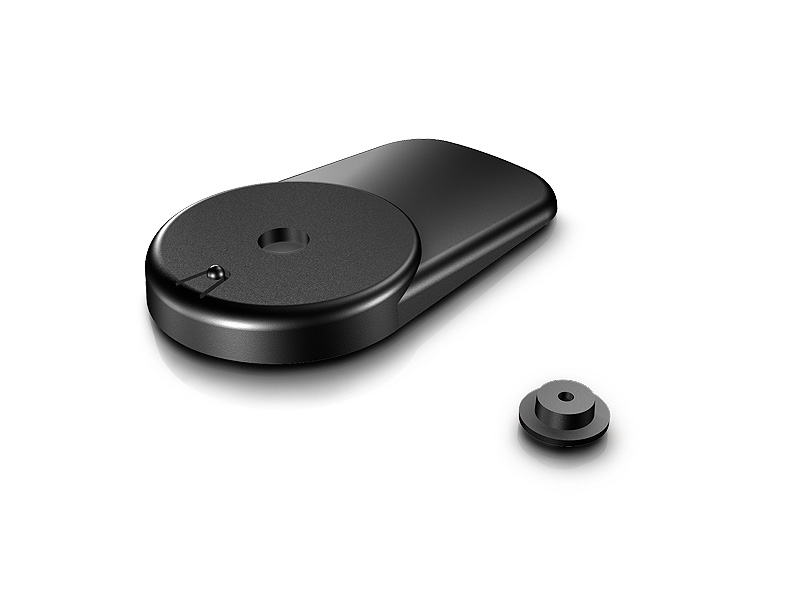

    Foot Stand
    84H342210-002    		 Stand alone Kit, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101    		 Foot stand, 4pcs/set, w/cabinet ear, for RM41300/RM42300
    PCB
    66H243131-001    		 Adapter, SATA to SATA, For Slim ODD

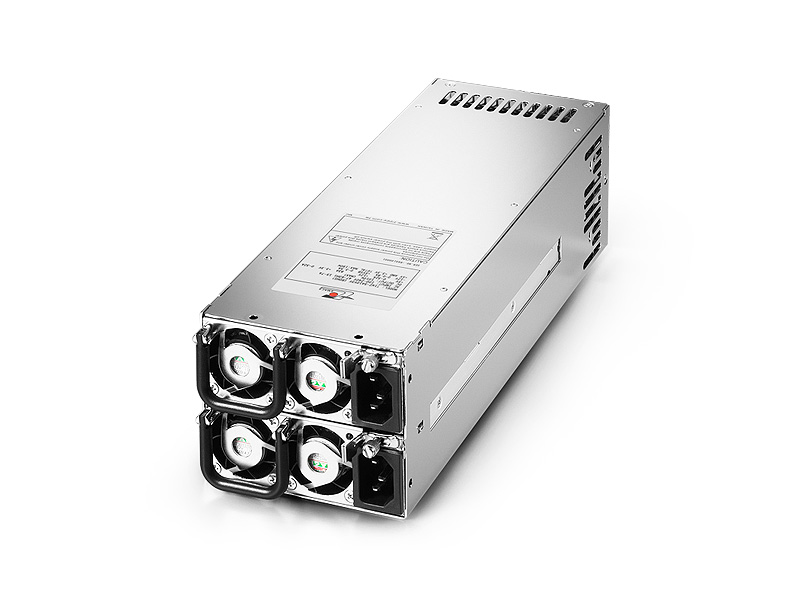

    Power Supply
    132-20650-0701C1    		 PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply
    32H2062000202    		 PSU, 620W,1+1 Redundant, C2W-5620V, PM Bus V1.1
    Power Supply
    32H2065001101    		 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000205    		 PSU, 820w, 1+1 Redundant, C2W-5820V, PM Bus V1.1

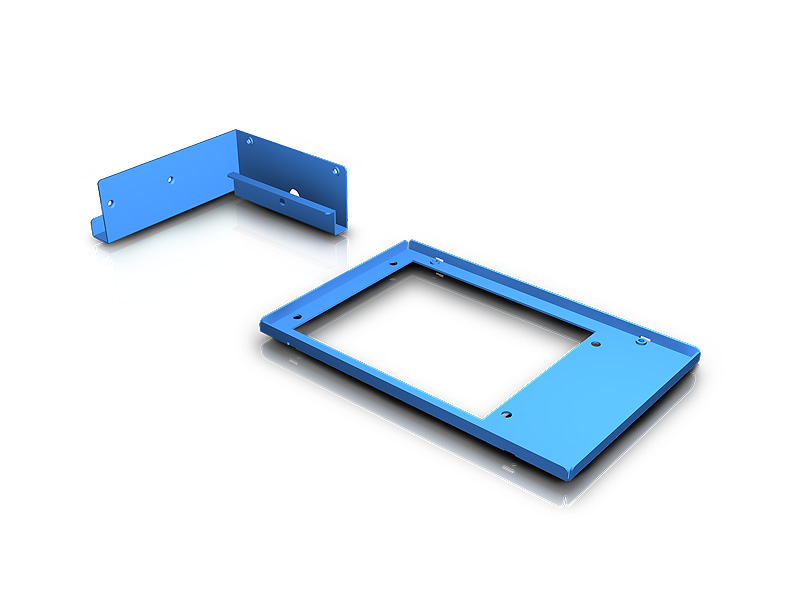

    PSU bracket
    384-MIX00430B0A0    		 PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    PSU module+bracket
    384-PSU00025B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 1200W short version FSL026-7HBG
    PSU module+bracket
    384-PSU00026B0A0    		 PSU module+bracket
    CRPS power module +bracket for Acbel 1200W long version R2CU5122A

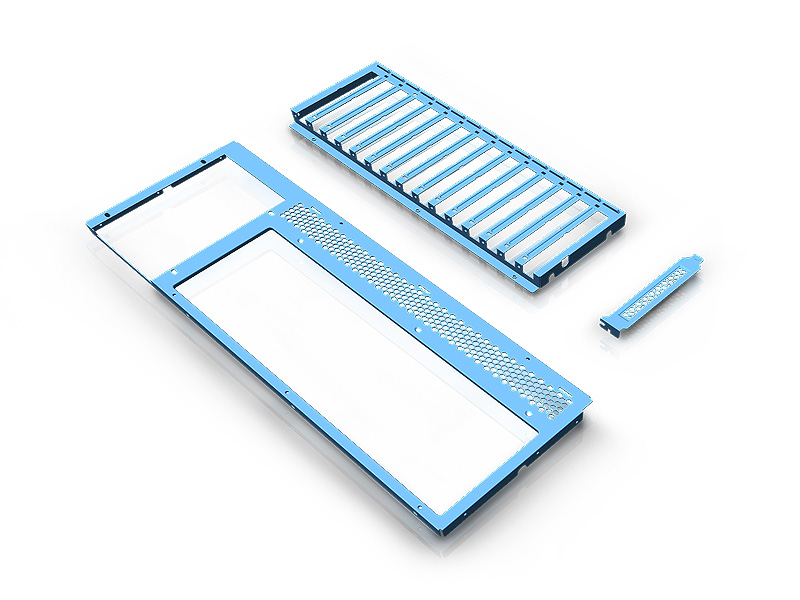

    Rear Window
    84H342310-005    		 Rear window, 15-slot, w/slot brackets, RM41300/RM42300
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm

    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U
    请选配件编号以观看图片
