RM252 Series
2U 可扩充短机身边缘运算服务器机壳
2U 短机身服务器机壳,专为双CPU主机板设计及支援热插拔风扇配置,可极大化边缘运算效能,以助力IT分散式系统建置。
产品规格比较
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
产品规格比较
产品特点
  • 450 mm ultra-short chassis fits various environments and is perfect for footprint minimization.
  • Optimized I/O design for machine learning in edge sites offering up to three full-height or seven low-profile PCIe expansion slots for GPU/FPGA accelerator cards
  • Equipped with the latest tool-less design, storage, HDD trays, system fans and PCIe riser brackets for easy upgrades and maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • 适应主板 SSI EEB (12” x 13”), CEB (12” x 10.5”), ATX (12” x 9.6”)
    机箱尺寸(深x 宽x 高) 450.0 x 438.0 x 87.0 mm; 17.72” x 17.24” x 3.43”

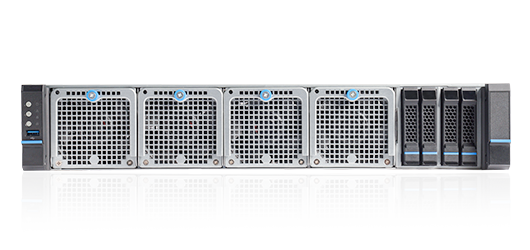

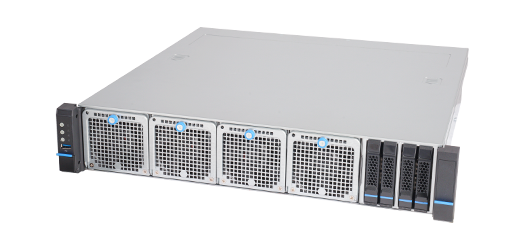

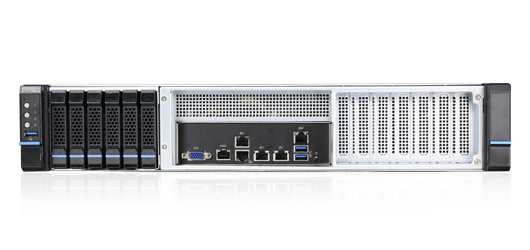

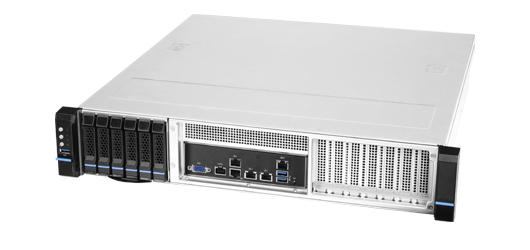

    槽位 RM25206/FIO (2.5" Hot-swap):6
    RM25204/RIO (2.5" Hot-swap):4

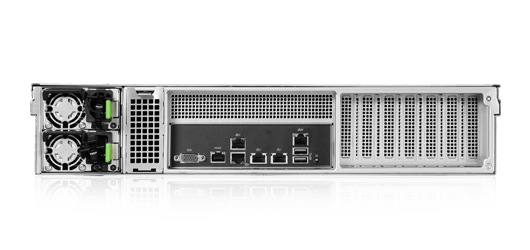

    电源类型 2U 800W 1+1 CRPS
    指示灯号 1 x Power Status, 2 x LAN Activity, 1 x UID,
    1 x HDD Status, 1 x System Alarm
    前板控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0

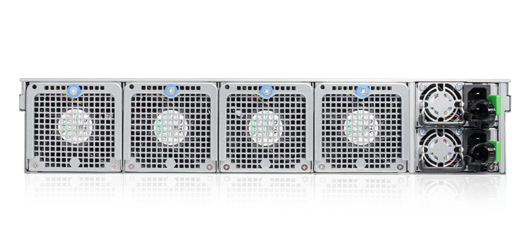

    风扇 Rear : 80 mm (4), 11000 RPM
    up to T=38 mm, Hot-swap
    扩展卡位 3 x Full Height or 7 x Low Profile
    热抽拔背板 RM25206/FIO:
    -2.5” 6-port 12Gbps SAS/SATA
    RM25204/RIO:
    - 2.5” 2-port 12Gbps SAS/SATA
    - 2.5” 2-port PCIe Gen3 NVMe
    - 2.5” 2-port PCIe Gen4 NVMe
    净重 9.5 KG/PCS
    毛重 12.5 KG/CTN
    才积 2.80
    装柜数量(单包) 20' FCL: 208 PCS / 40' FCL: 448 PCS
  • 分類 说明 版本号 档案大小 下载
    Datasheet RM252 upgrade Datasheet V1.0 489.5 KB
  • 类型 型号 说明 支持机型
    请选配件编号以观看图片
  • 订购码
