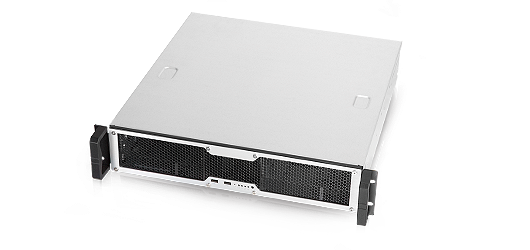

RM24100
2U 功能先进工业计算机机箱
RM24100设计是采用标准、主流规格的组件，并舍弃部分不常使用的工控机箱规格，而使常用功能做到更极致，让产品更实用。
产品规格比较
产品特点
- Depth 18” of chassis for space-sensitive applications

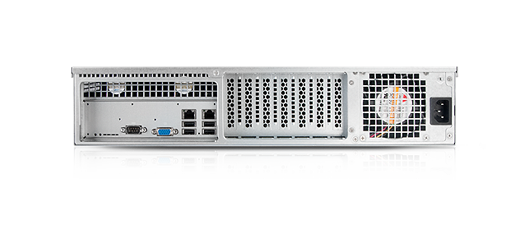

- Modular 3-slot riser or 7-slot low profile rear window for flexible configuration
- Cushion on 3.5” and 2.5” HDD cages to depress HDD vibration

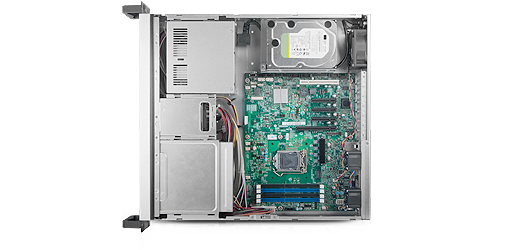

- Removable drive cages for easy installation
- Supports PS/2 PSU and other standard components to lower TCO
- Specification
- Download
- Accessory
- Compatibility
-
Form Factor 2U 适应主板 ATX (12” x 9.6”) 机箱尺寸(深x 宽x 高) 457.0 x 430.0 x 88.1 (mm)
18.00” x 16.93” x 3.47”槽位 External 5.25"：1
External 3.5"：1
Internal 3.5"：2
Internal 2.5"：2
电源类型 PS/2 Single (Front) 指示灯号 1 x Power Status
1 x HDD Activity
2 x LAN Activity前板控制 1 x Power On/Off
1 x System Reset
2 x USB2.0/ USB3.0 (Option)安全装置 Intrusion Switch (Option) 风扇 Middle: 80 x 32 mm (1), Option
Rear: 80 x 32 mm (1),

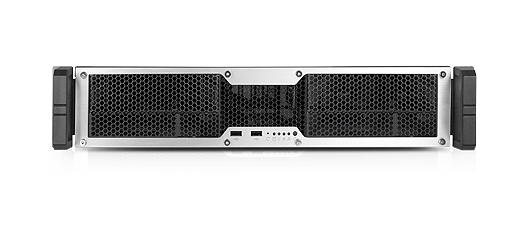

40 x 28 mm (2), Option扩展卡位 3 x Full Height or 7 x Low Profile 热抽拔背板 N/A 净重 6.9 kg/15.2 lb 毛重 9.4 kg/20.70 lb 面板 Aluminum bezel frame or two-door bezel with air filter 才积 2.50 装柜数量(单包) 20’: 388, 40’: 788, 40’H: 940 -
分類 说明 版本号 档案大小 下载 Datasheet RM24100 Datasheet V1.3 1.1 MB
User Manual LED 显示屏(80H03324101A0) 特徵与Jumper 设定 V1.0 762.6 KB
User Manual RM24100 Quick Installation Guide V1.1 574.7 KB
-

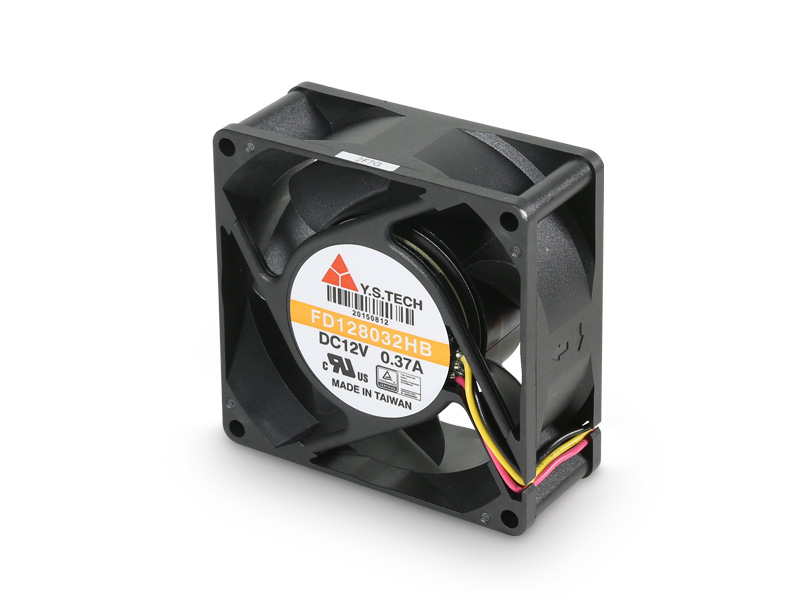

类型 型号 说明 支持机型 Cable 26H11324102A0 Cable, PSU, Wire Extension, 24P to 24P, 250mm Cable 26H11324103A0 Cable, PSU, Wire Extension, 8P to 4P+4P, 400mm Cable 84H324110-010 Cable, Intrusion, 2-Pin, 500mm Drive Cage 84H324110-007 Drive cage, 1x5.25"+1x slim ODD bays, exposed Drive Cage 84H324110-008 Drive cage, 1x5.25"+1x3.5" bays, exposed Fan 30H080032-101 FAN, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), For Rear Window Fan 30H080032-112 FAN, 1pcs YS 80x32 Ball Bering , L300mm (4P4C),For Rear Window Fan 84H324110-009 FAN, 1pcs AVC 40x28 Ball Bering, L310mm (4P4C), w/ fan guard For Rear Window Fan 84H324210-004 Fan, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), for Rear Window Power Supply 32H1030000706 PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan Power Supply 32H1030001104 PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan Rear Window 84H323610-006 Rear Window, 3-slot, Full Height Slide Rail 84H323610-034 Slide rail, Tool-less, Travel: 698.4mm Slide Rail 84H341300-002 Slide Rail, 21.9",For 2U/3U/4U
请选配件编号以观看图片 Support
