RM238 NVMe Gen4
2U 通用 NVMe Gen 4 服务器机箱
RM238 NVMe Gen 4 服务器机箱可最大限度地提高计算性能或分布式和开放式 IT 基础架构。支持针对多种应用程序需求的可定制配置和优化。
产品规格比较
产品特点

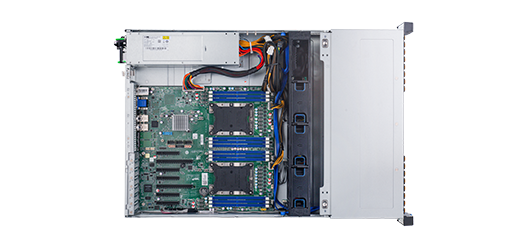

- Rackmount 2U supports M/B size up to 12” x13”.

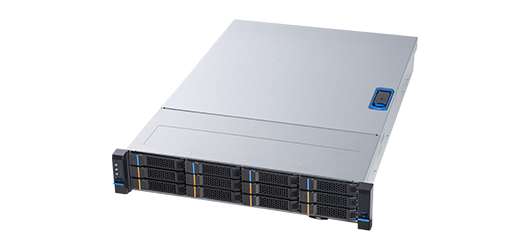

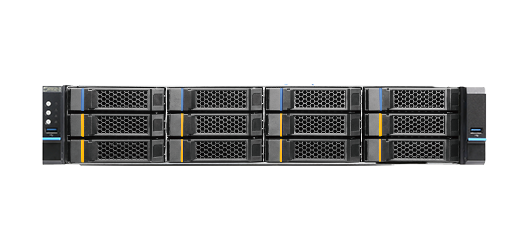

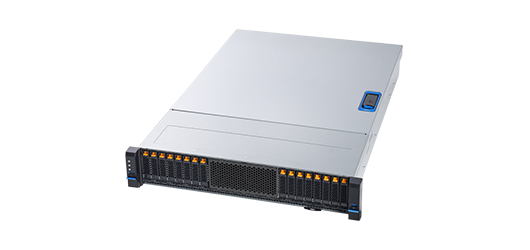

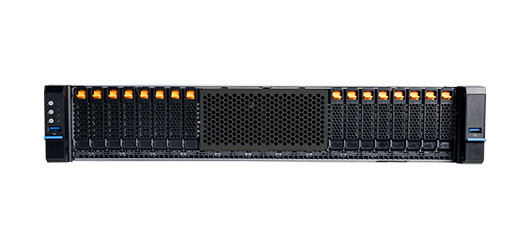

- 16 port 2.5" (2pcs x 8 port) 16G PCIe Gen 4 NVMe SSD Backplane, or 12 port 3.5", 8 Tri-mode (SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane, and 2 Bay 2.5" OS option module on the rear.
- Easy service toolless 2.5" / 3.5" HDD trays.
- Supports 12-bay or 16-bay 2.5"/3.5" HDD cage for wide workload use.
- Optional rear two-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache ( NVMe) buffer use.
- Built-in up to two front access USB 3.0 ports.

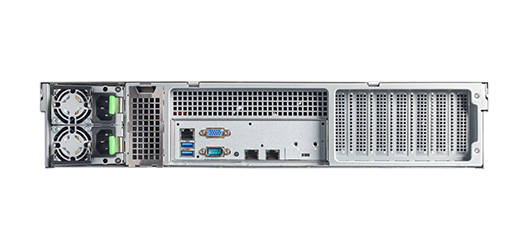

- Easy conversion three-slot / 7-slot rear window.
- Supports 2U CRPS 1+1.
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
适应主板 Extended ATX (12” x 13”) 机箱尺寸(深x 宽x 高) 658.6 x 438.0 x 87.0 (mm), 25.93” x 17.24” x 3.43” 槽位 3.5" Hot-swap：12
2.5" Hot-swap：16
电源类型 1+1 CRPS, 1200W 80 Plus Platinum 指示灯号 1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x HDD Status, 1 x System Status 前板控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB3.0 安全装置 Intrusion Switch(Option) 风扇 3 x 80 x 38 mm, 11000RPM, Hot-swap 扩展卡位 7 x Low Profile or 3 x Full Height (Option) 热抽拔背板 -16 port 2.5" (2pcs x 8 -port) 16G PCIe Gen 4 NVMe SSD Backplane,
-12- port 3.5”, 8 Tri-mode(SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane
净重 11.5 kg
毛重 14.0 kg
才积 3.3
装柜数量(单包) 20': 200, 40': 460, 40'H: 506 (Single Packing)
-
分類 说明 版本号 档案大小 下载 Datasheet RM238 NVMe Gen4 Datasheet v1.1 572.6 KB
-

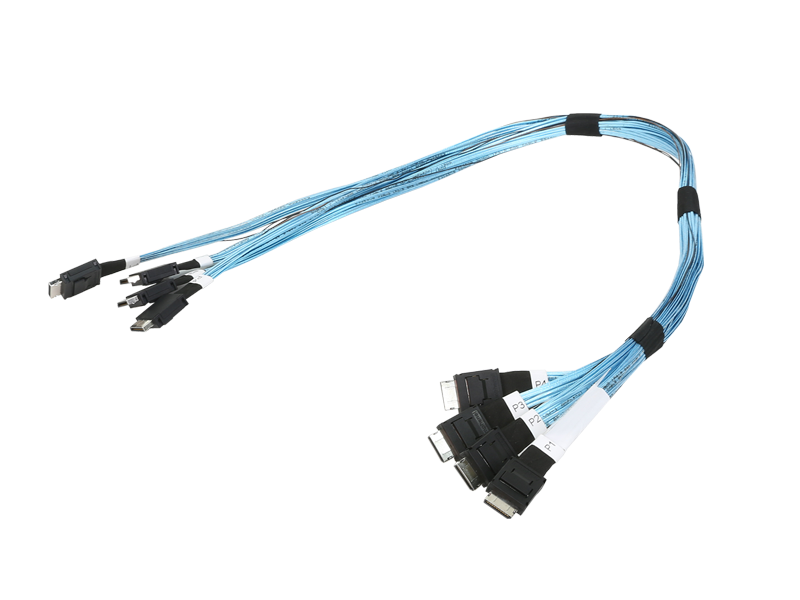

类型 型号 说明 支持机型 Bracket 55H073219A004 Dummy Cover, for CRPS Module Opening Cable 126-23712-3004A0 Cable, Oculink to Oculink R/A, 2 in 1, 300mm Cable 126-23712-3005A1 Cable, OCuLink Vertical to OCuLink Vertical, 4-in-1, 650mm/600mm Cable 26H11313705A0 I2C, 4-pin to 4-pin, 800mm, M/B to LED Board Cable 26H12314604A0 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock Cable 26H12314607A0 Cable, Mini SAS HD, HDD Backplane to Motherboard/HBA Card, 550 mm Fan module(Spare Parts) 384-23811-3106A0 3 x 80 x 38 mm, 11000RPM, Hot-swap HDD Cage 384-23701-3116B0 2-bay 2.5" HDD Cage, w/2-port 12Gb/s SATA&SAS Backplane , w/ 2 x 2.5" HDD Tray(TOOL-LESS) NVMe Gen4 SSD module 384-PCB00053B0A0 2-Bay NVMe Gen4 SSD module (Rear) Panel 384-23705-3106B0 PANEL,RM23708,18BOX/12CTN/PALLET,FOR OTS Power Supply 132-41200-0700A1 PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module PSU Cage 380-23807-3002A1 PSU Cage w/PDB & Cable Riser Bracket 384-23812-3110A0 PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder. Riser Card 384-23812-3101A0 Riser Card, PCBA, 2 x PCI-ex8 Slide Rail 384-23803-3300D0 Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less Slide Rail 84H314610-003 599 mm, Tool-less, Single Packing Upgrade Kits 384-23801-3103A0 2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane and Mylar Air Duct Upgrade Kits 384-23801-3104A0 2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane, Oculink Cable, and Mylar Air Duct 请选配件编号以观看图片 Support -
订购码 RM2381202-01*934159 RM2382402-01*934161 Part Category Part No. Qty. Description
