RM238 Series

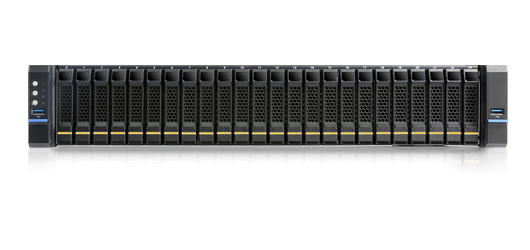

2U 双路模块化通用服务器机箱
模块化和全免工具设计是这个机箱最大的特点，通过灵活的配置可以最大限度满足企业的需求
产品规格比较
产品特点
- 提供模組化NVMe 解決方案，让企业轻松解决大量商务需求

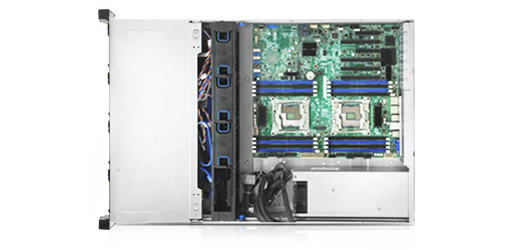

- 支持主机板尺寸最大至12”x 13""
- 搭配免工具安装的2.5"" 或 3.5"" 硬碟盘

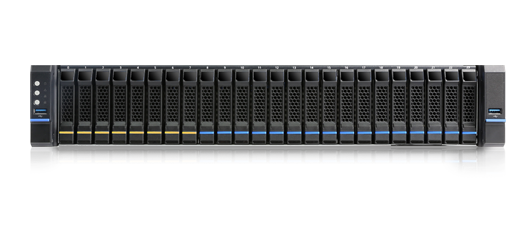

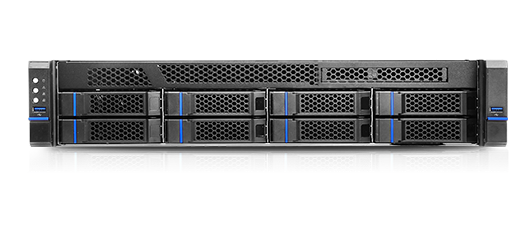

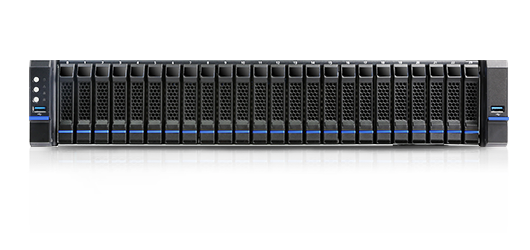

- 模组化的硬碟盒可支持8颗3.5''、12颗3.5''或24颗2.5''硬碟，符合多种应用需求

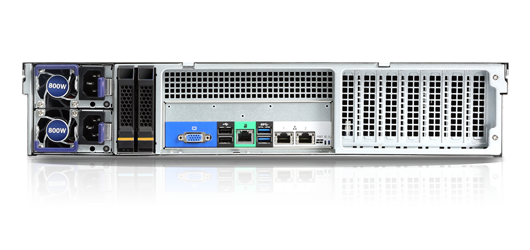

- 选配后置2颗2.5''热插拔硬碟盘

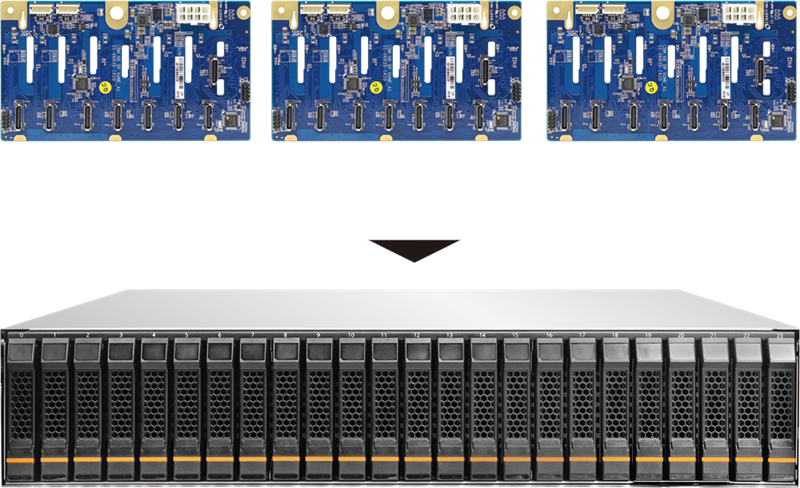

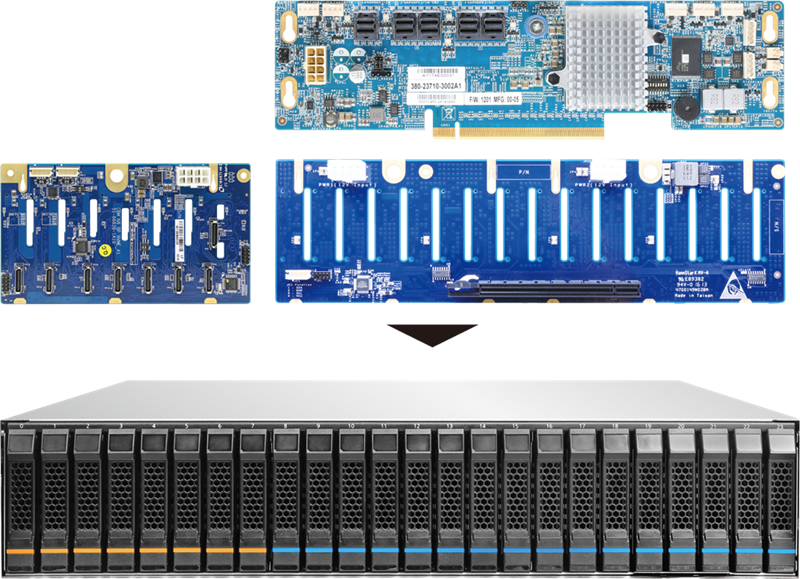

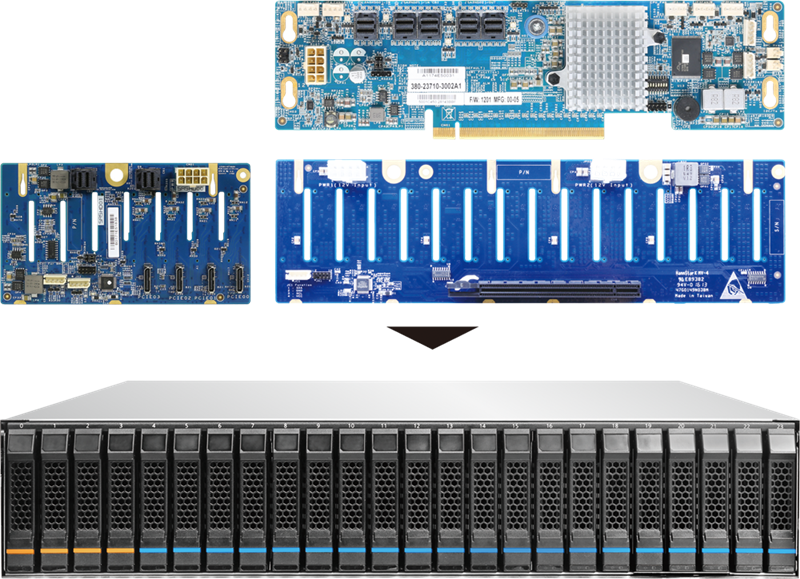

- 支持多种12Gb/s 背板，提供弹性化的产品组态
- 最多可配置2个前置USB3.0

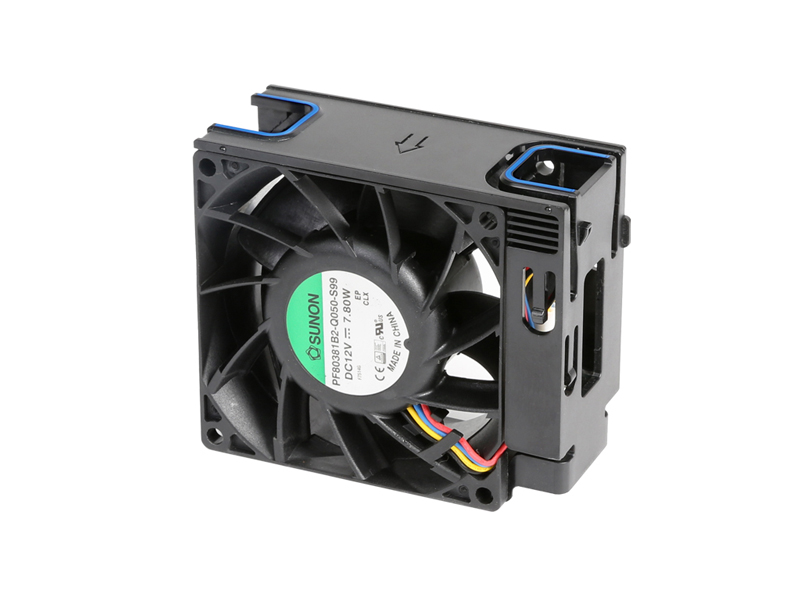

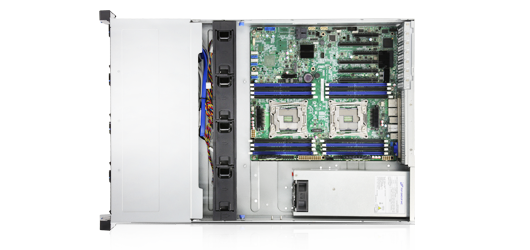

- 最多可支持4颗热抽拔80 mm中置风扇

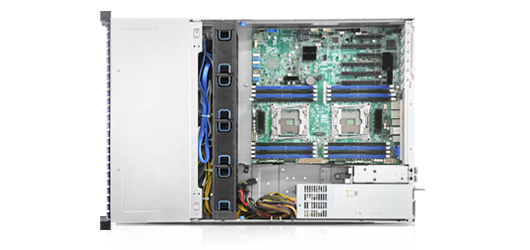

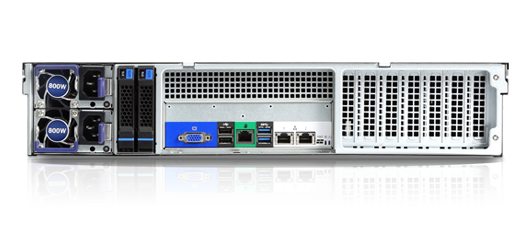

- 支持7个半高的PCI-e扩充槽位，选配3个全高的PCI-e扩展插槽位

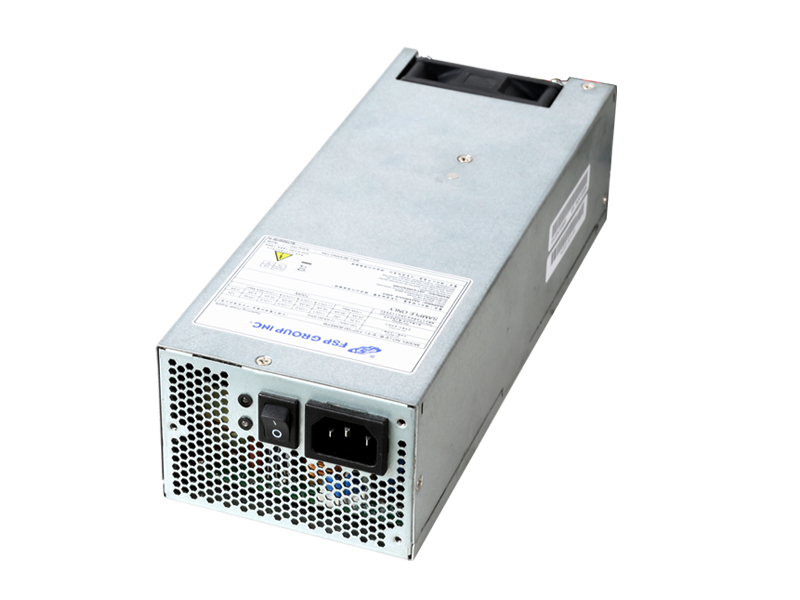

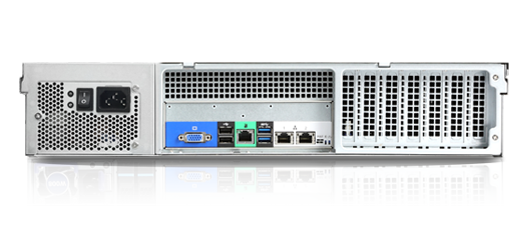

- 支持1 + 1冗余电源，或2U单电"
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 2U 适应主板 Extended ATX (12”x13”) 机箱尺寸(深x 宽x 高) 658.2 x 438 x 87 (mm)
25.92" x 17.24" x 3.42"槽位 RM23808 (3.5" Hot-swap)：8
RM23808 (Slim ODD)：1
RM23808 (Internal 2.5")：2

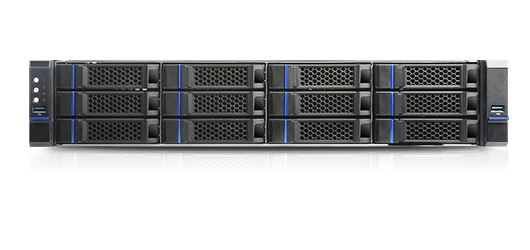

RM23812 (3.5" Hot-swap)：12
RM23824 (2.5" Hot-swap)：24
Optional 2.5" (Hot-swap) for OS：2

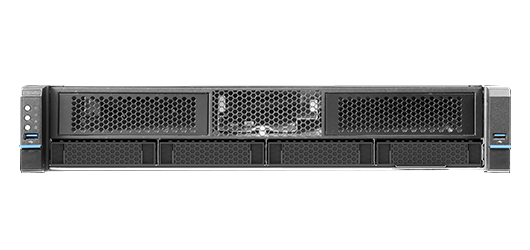

RM23800 (5.25" Open-bay)：2
RM23804 (5.25" Open-bay)：2

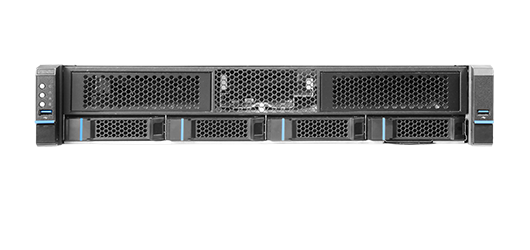

RM23804 (3.5" Hot-swap)：4
电源类型 1+1 CRPS (80+ Platinum) or 2U Single 指示灯号 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Status, 1 x System status 前板控制 Power On/Off, System Reset, UID, 2 x USB3.0 安全装置 Intrusion switch (Option) 风扇 Middle: 3 x 80 mm (Up to 4), PWM (Hot-swap & Non Hot-swap)
扩展卡位 7 x Low Profile or 3 x Full Height 热抽拔背板 12Gb/s Mini-SAS HD with or without Expander 净重 11.5 kg 毛重 14.0 kg 面板 Option 才积 3.3 装柜数量(单包) 20': 200, 40': 460, 40'H: 506 -
分類 说明 版本号 档案大小 下载 Configuration Guide RM238 Series Configuration Guide V1.1 519.9 KB
Datasheet Datasheet_RM238 series with NVMe solutions V1.8 1.7 MB
Product Brief RM238 Series Product Brief V1.0 378.1 KB
Technical Product Specification (TPS) RM238 Series TPS V1.1 6.4 MB
User Manual RM238 Series QIG V1.1 6.2 MB
-

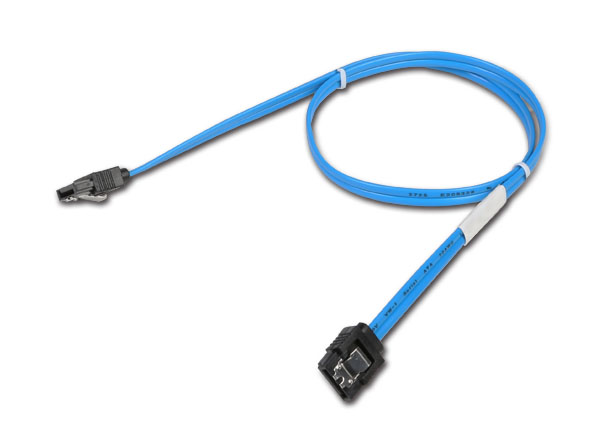

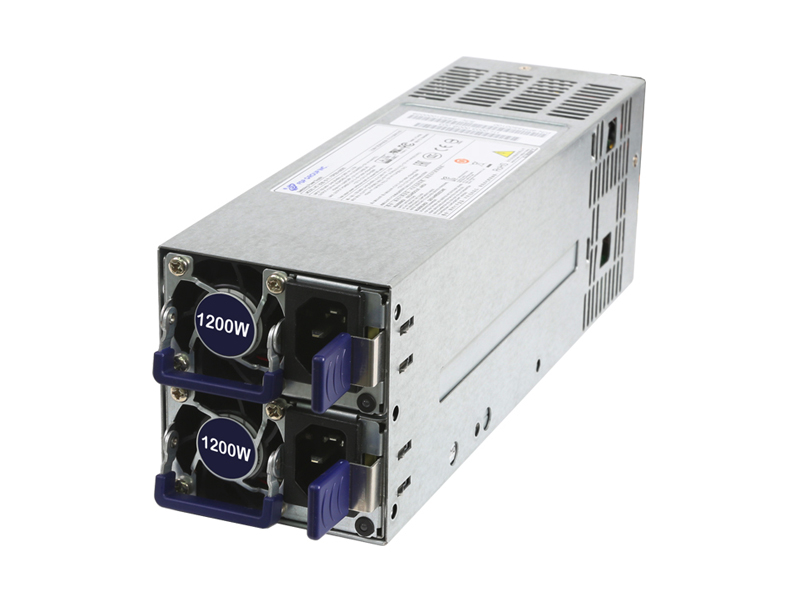

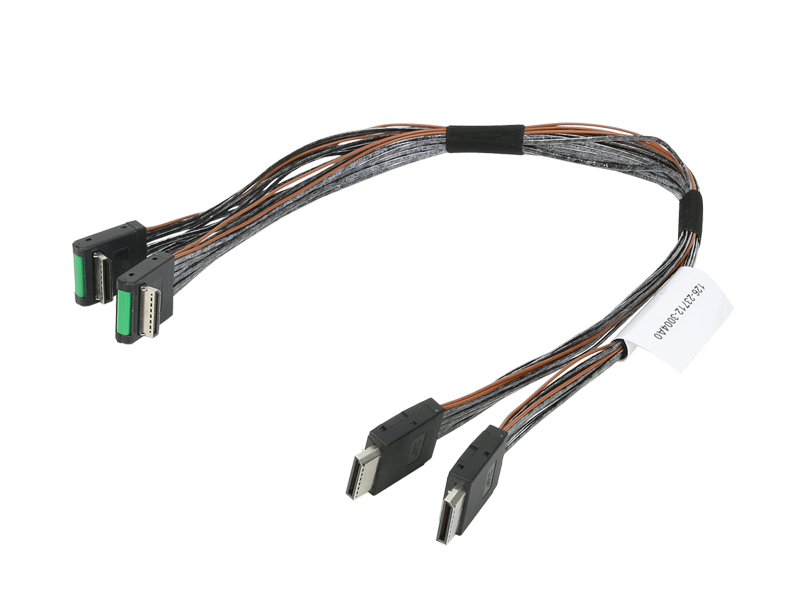

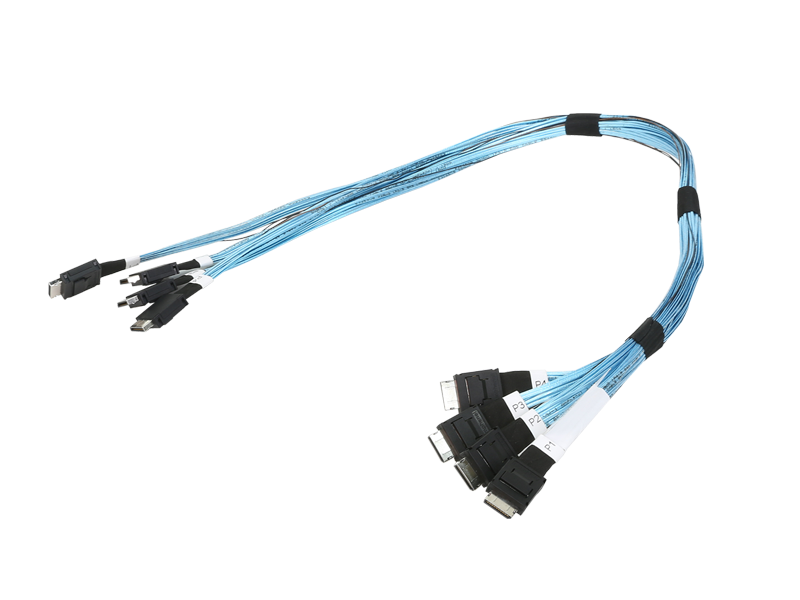

类型 型号 说明 支持机型 Backplane 80H10323703A1 2-por 12Gb/s SATA& SAS Backplane for 2.5" HDD/SSD Bezel 384-23705-3106A0 Front Bezel, 2U, Metal, 18Pcs/CTN Bracket 384-23804-3103A0 Bracket, PSU, For FSP 2U CRPS PSU, 24PCS/CTN(MOQ=48) Bracket 55H073219A004 Dummy Cover, for CRPS Module Opening Cable 126-23712-3004A0 Cable, Oculink to Oculink R/A, 2 in 1, 300mm Cable 126-23712-3005A0 Cable, Oculink to Oculink, 4 in 1, 650mm/600mm Cable 26H11313705A0 I2C, 4-pin to 4-pin, 800mm, M/B to LED Board Cable 26H12314604A0 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock Cable 26H12314607A0 Cable, Mini SAS HD, HDD Backplane to Motherboard/HBA Card, 550 mm Fan 384-23811-3101A0 Fan, 80 mm, T=38 mm, PWM, SUNON, Hot-swap, with Fan Bracket HDD Cage 384-23701-3116A0 2-bay 2.5" HDD Cage, with 2-port 12Gb/s SAS/SATA Backplane (Redundant PSU Version Only) Holder 84H314610-004 3.5" HDD Tray, Tool-less, 50 pcs/CTN Power Supply 132-10700-0500A1 PSU, 700W, 2U Single, FSP700-80WEPB Power Supply 132-20800-0501A0 PSU, 800W, 1 + 1 CRPS, FSP800-50FS(EN62368), with Power Cage and Power Distribution Board
