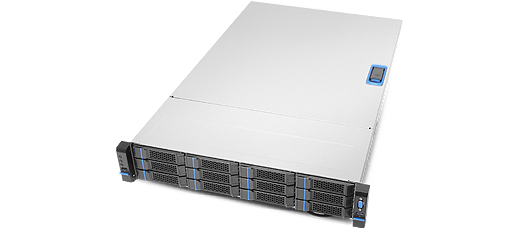

RM237 Series
2U 虚拟化应用服务器机箱

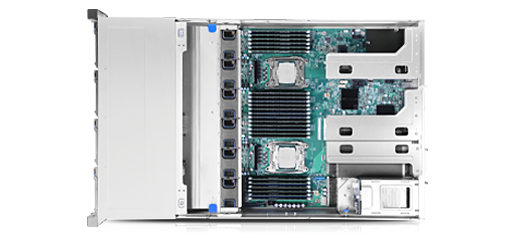

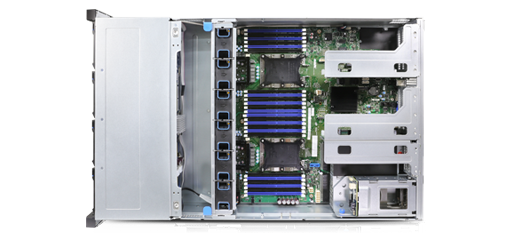

高度模组化与免工具安装设计的硬盘盒、主板托盘、风扇架和扩充卡等，可快速提供符合需求的解决方案。配有8个PCI Express插槽，拥有极佳扩充能力，满足不同虚拟化需求。
产品规格比较
产品特点
- 最大可支持16.7" x 17"(Custom) 主板
- 支持Intel S2600WT以及S2600WF系列主板
- 提供模组化的硬盘盒、主板托盘、风扇架和扩充卡架
- 免工具安装2.5"/3.5"硬盘托盘
- 提供多款12Gb/s 硬盘背板，使机箱系统组态更弹性
- 选配2个后方2.5"硬盘盒并搭配12Gb/s背板
- 支持1+1冗余CRPS电源
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 2U 适应主板 16.7" x 17" (Custom) 机箱尺寸(深x 宽x 高) 734.6 x 438 x 87 (mm)
28.92" x 17.24" x 3.42"槽位 RM23708 (Slim ODD)：1
RM23708 (3.5" Hot-swap)：8
RM23708 (Internal 2.5")：2

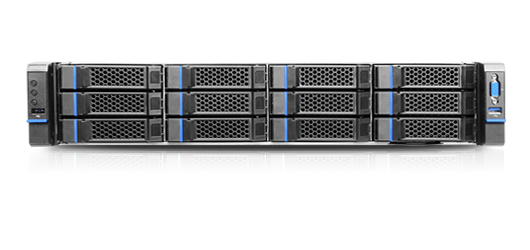

RM23712 (3.5" Hot-swap)：12
RM23724 (2.5" Hot-swap)：24
Optional 2.5" (Hot-swap) for OS：2
电源类型 1+1 Redundant CRPS 指示灯号 1 x Power Status, 2 x LAN Activity, 1 x Status, 1 x UID 前板控制 Power On/Off, System Reset, UID, 1 x VGA, 1 x USB3.0, 1 x USB2.0 安全装置 Intrusion Switch (Option) 风扇 Middle: 6 x 60 mm (T=38 mm), PWM (Hot-swap) 扩展卡位 6 x Full Height & 2 x Low Profile (Max.) 热抽拔背板 12G mini-SAS HD with/without expander
净重 14.9 Kg 毛重 19.0 Kg 面板 Option 才积 4.75 装柜数量(单包) 20': 160, 40': 336 -
分類 说明 版本号 档案大小 下载 Configuration Guide RM237 series Configuration Guide V1.2 553.9 KB
Datasheet RM237 产品参数 V1.1 4.9 MB
Product Brief RM237 Series Product Brief V1.2 470.6 KB
Product Brief RM23724 Product Brief V1.0 328.9 KB
Product Brief RM23712 Product Brief V1.0 320.4 KB
Technical Product Specification (TPS) TPS_RM237 Series V1.3 8.2 MB
User Manual RM237 Series QIG V1.0 10.6 MB
-

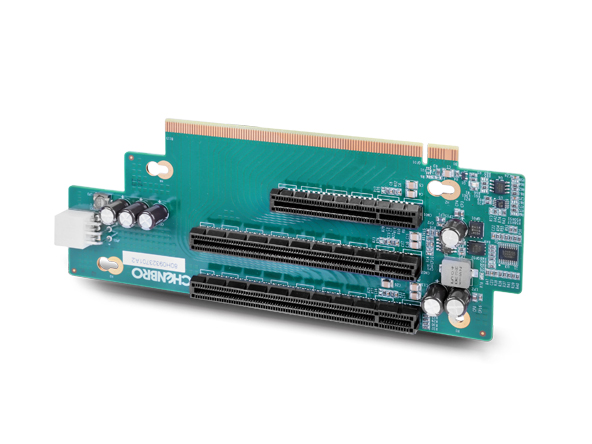

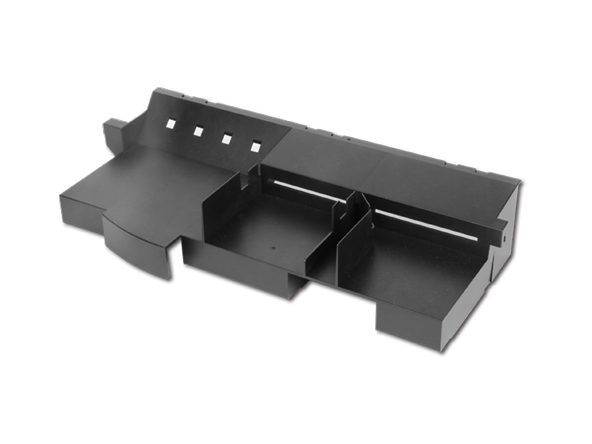

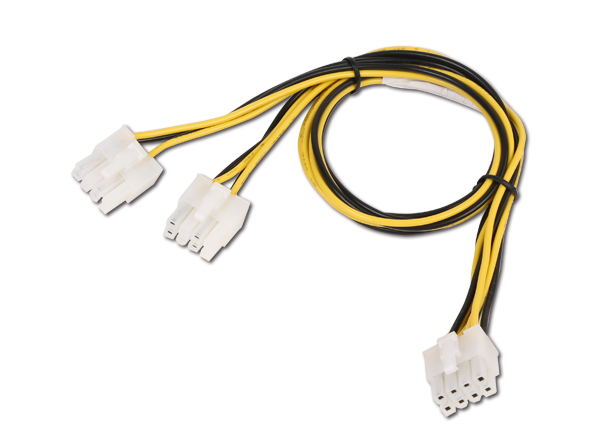

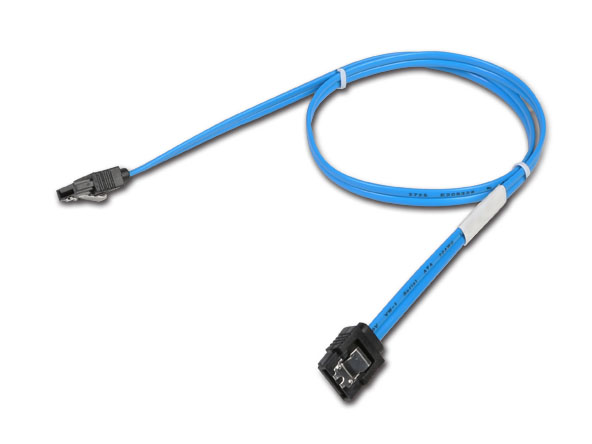

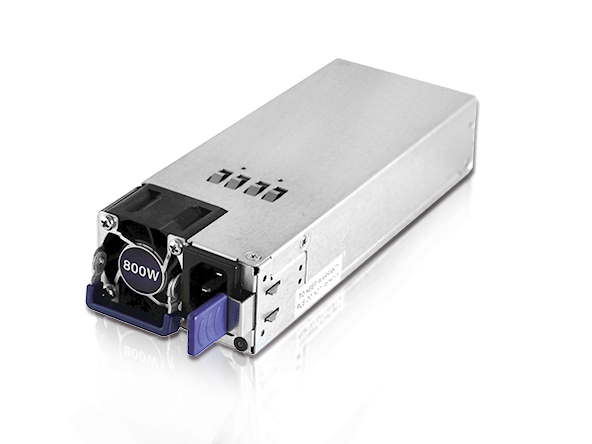

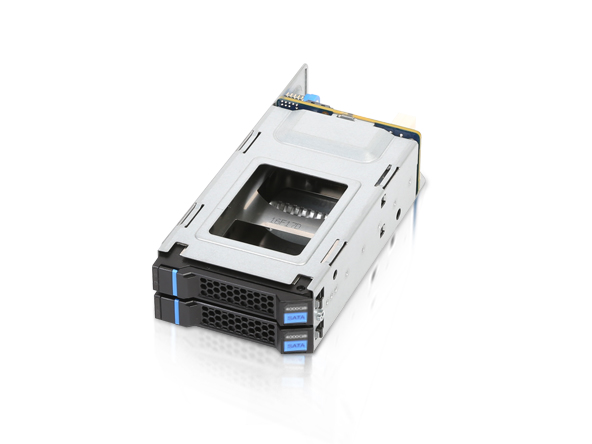

类型 型号 说明 支持机型 Air Duct 84H323710-028 PC black, For Intel S2600WT2 Backplane 80H10323703A1 2-por 12Gb/s SATA& SAS Backplane for 2.5" HDD/SSD Bezel 384-23705-3106A0 Front Bezel, 2U, Metal, 18Pcs/CTN Cable 126-23612-3005A0 Mini-SAS HD to mini-SAS HD,600mm Cable 26H06323703A0 PSU cable, 2 pcs, MINIFIT8P to MINIFIT8P x2, 500/780 mm Cable 26H06323705A0 Cable, POWER, miniFIT 4P TO MicroFit 6P, 270mm Cable 26H11323701A0 Cable, SGPIO, 270mm Cable 26H12314601A0 SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock HDD Cage 84H323710-027 2-bay 2.5", Hot-swap, Rear Installation, w/12Gbps SAS Backplane and Cables Power Supply 32H1080000701 800W, 1+1 Redundant CRPS, FSP Riser Card 384-23720-3102A0 Full Height PCIe module (W/Riser card:80H09323703A0: ONE x16 &One x8 and mounting retainer) Riser Card 80H09323701A2 2 x PCI-e 16x, 1 x PCI-e 8x Rev. A2

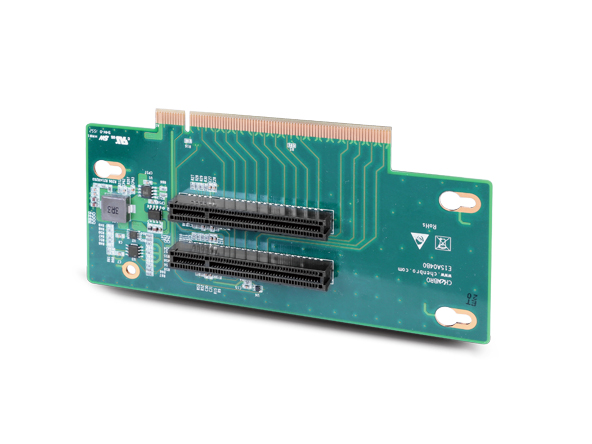

Riser Card 80H09323702A1 2 x PCI-e 8x, Rev. A1

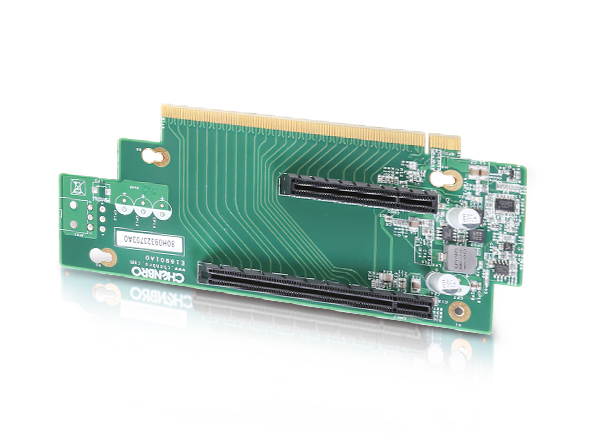

Riser Card 80H09323703A0 One X16 & One X8, For RM23724 only Riser Card 84H323710-016 Full height PCIe module (W/Riser card:80H09323701A2: TWO x16 &One x8 and mounting retainer) Riser Card 84H323710-025 Low Profile PCIe module(W/Riser card:80H09323702A1:TWO x8 and mounting retainer) Slide Rail 84H314610-003 599 mm, Tool-less, Single Packing Slide Rail 84H323710-002 34", Tool-less, Single Packing 请选配件编号以观看图片 Support
