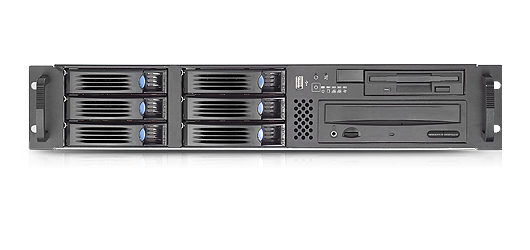

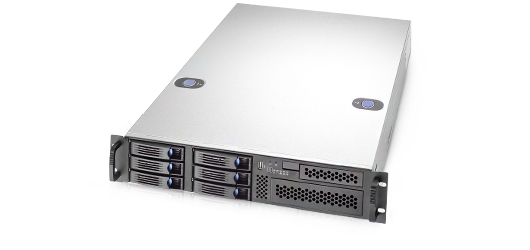

RM21706
2U 泛用型服务器机箱
支持EATX主板、六个3.5’’硬盘槽位和冗余电源，使得这个机箱可以满足一般运算与储存的需求。
产品规格比较
产品特点
- 支持主板尺寸至12’’ x 13’’
- 支持两种6Gb/s热插拔背板mini-SAS与Discrete SATA
- 3.5’’硬盘托盘可支持3.5’’和2.5’’硬盘
- 多样的磁盘组态-通过一个5.25’’和一个3.5’’槽位
- 选配的热插拔中置风扇

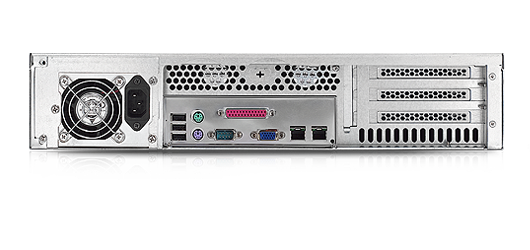

- 后窗支持三槽全高与六槽半高两种组态
- 支持2U单电源与1+1冗余电源
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 2U 适应主板 Extended ATX (12” x 13”) 机箱尺寸(深x 宽x 高) 660 x 430 x 88 (mm), 26” x 16.9” x 3.5” 槽位 External 5.25"：1
External 3.5"：1
3.5" Hot-swap：6
Internal 3.5"：1
电源类型 2U Single or 1+1 Redundant 指示灯号 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat 前板控制 Power On/Off, Alarm Mute, System Reset, 1 x USB2.0 安全装置 Intrusion Switch 风扇 Middle: 4 x 80mm , Rear: 2 x 40mm (Option) 扩展卡位 3 x Full Height and Full Length or 6 x Low Profile 热抽拔背板 12Gb/s 净重 9.5kg 毛重 13.4kg 面板 Option 才积 4.26 装柜数量(单包) 20’: 250, 40’: 520, 40’H: 575 -
分類 说明 版本号 档案大小 下载 Datasheet RM21706 产品参数 V1.2 1014.1 KB
User Manual 3Gb/s 6-port 3.5" SATA/SAS Backplane(80H103217-004) V1.0 762.7 KB
User Manual 3Gb/s 6端口 3.5" SATA / SAS 背板(80H103217-004) V1.0 762.7 KB
User Manual 3Gb/s 6-port 3.5" mini-SAS Backplane(80H10321709A0) V1.0 442.1 KB
User Manual 6Gb/s 6-port 3.5" mini-SAS Backplane(80H10321711A0), Rev.A0 V1.0 4.5 MB
User Manual RM21706 Quick Installation Guide V1.1 513.4 KB
-

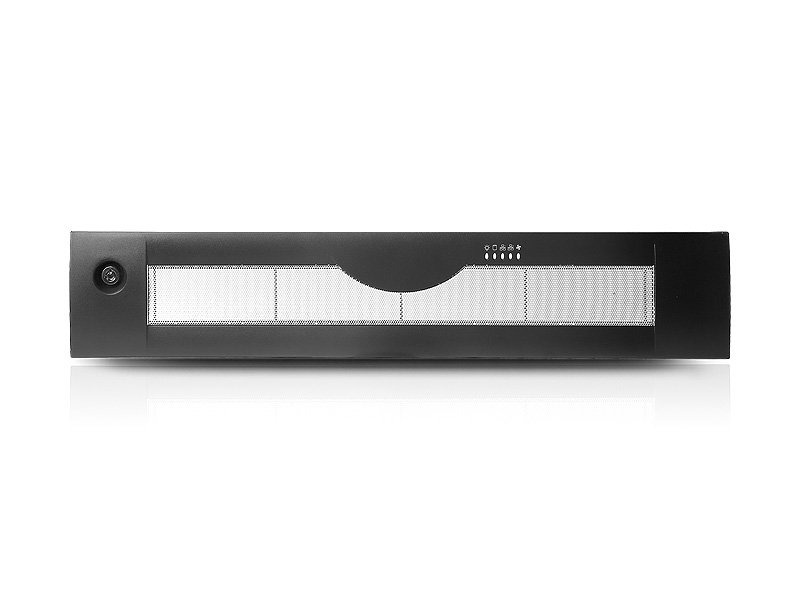

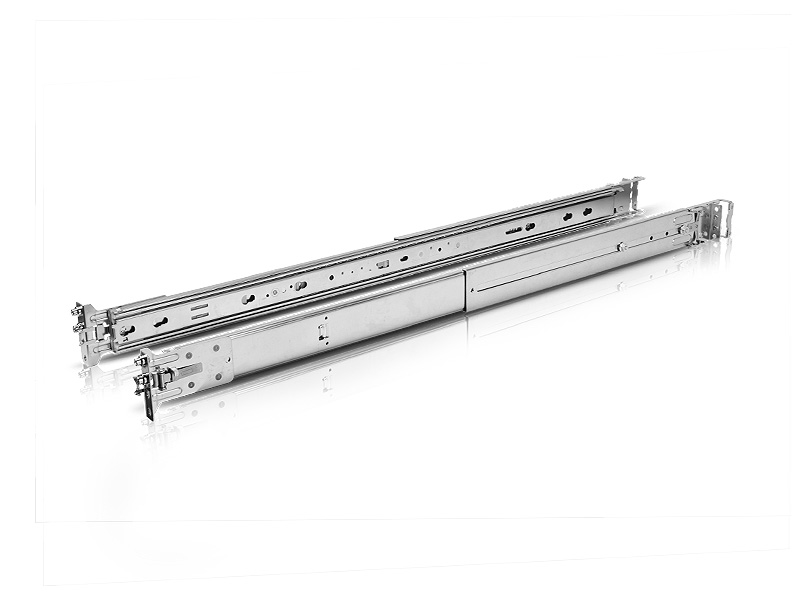

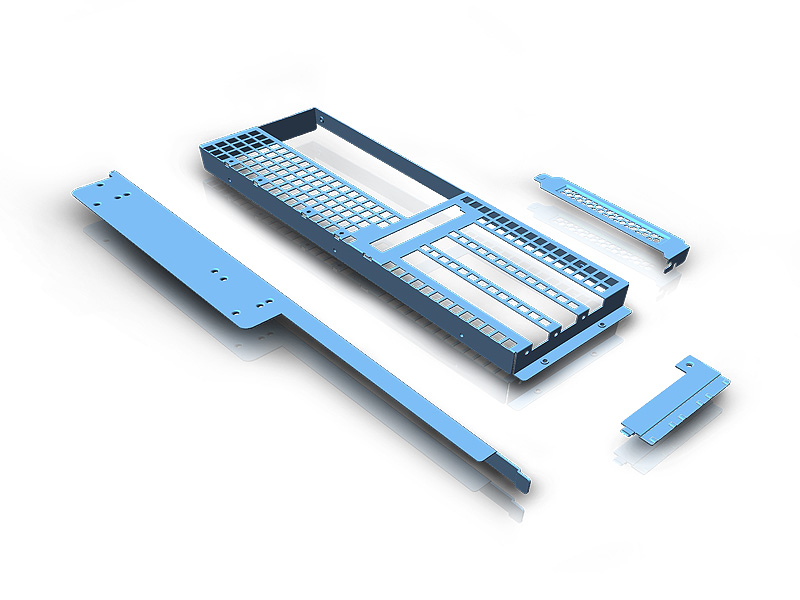

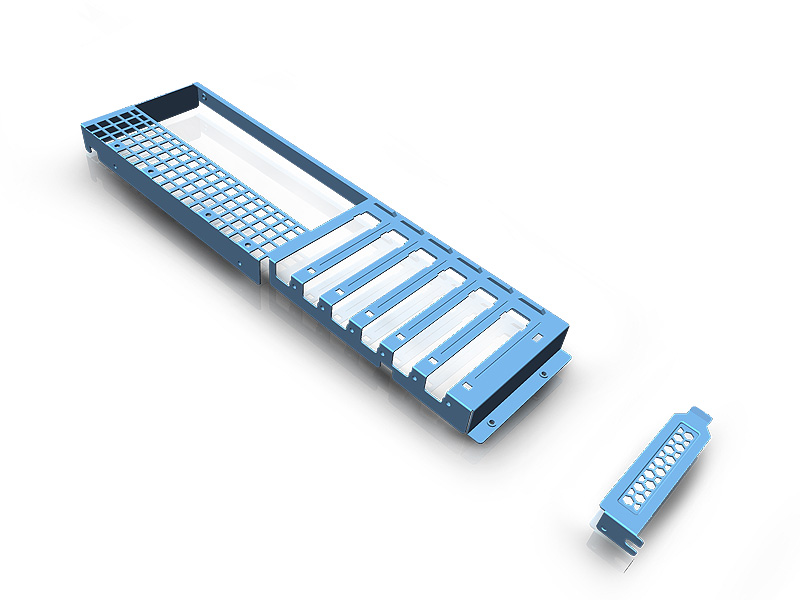

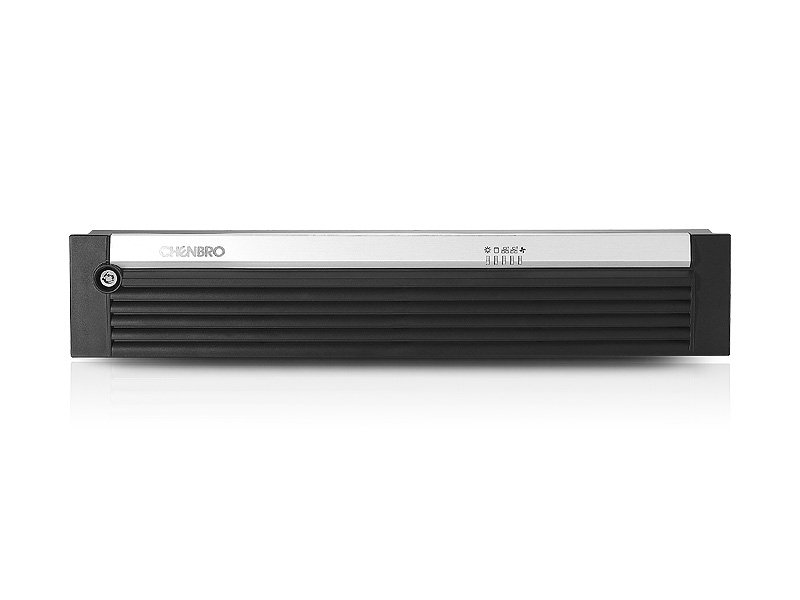

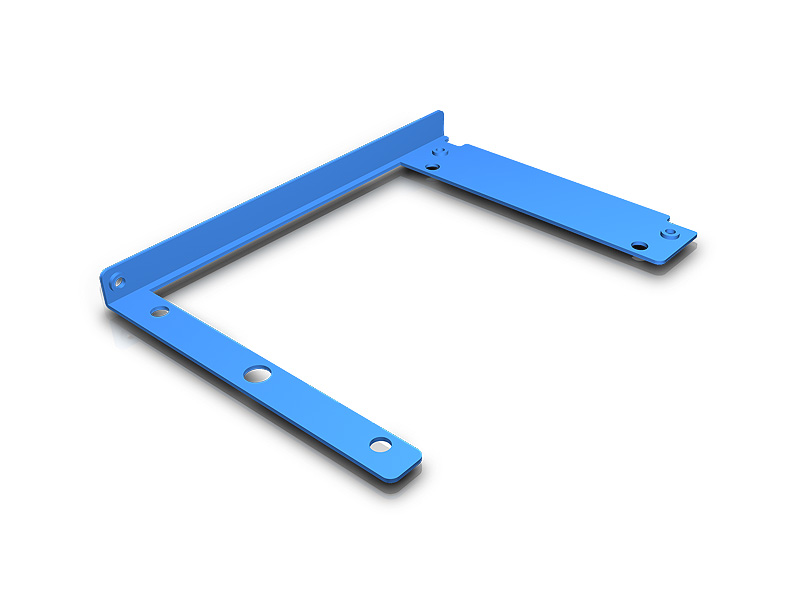

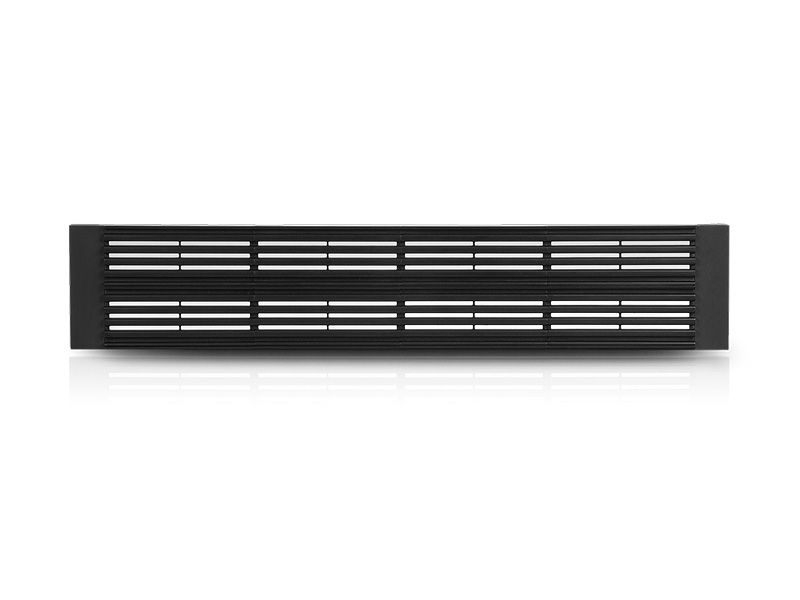

类型 型号 说明 支持机型 Bezel 84H321410-033 Front Bezel, 2U, Plastic, SilFox Bezel 84H321410-049 Front Bezel, 2U, Plastic, w/metal mesh Bezel 84H321510-076 Front Bezel, 2U, Plastic, Bricker Bracket 84H311110-003 Bracket, Extension mounting plate Bracket 84H321510-065 Bracket, PSU, 2U, For R2G-5600V4V Bracket 84H321710-045 PSU Bracket, For R2IS7651A-G/R21S7871A-G Fan 84H321710-010 40mm, 3P3C, T28, Ball Bearing, L300mm, SANYO DENKI Power Supply 32H151002-002 510W P2G-6510P (Chenbro Special) Power Supply 32H2065001101 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2 Rear Window 84H321210-050 Rear window, 2U, Low Profile, 6-Slot Rear Window 88H321400-001 Rear window, 2U, Riser, 3-slot, Full Height Slide Rail 84H321710-041 Slide Rail, 26", Tool-less Slide Rail 84H323610-034 Slide rail, Tool-less, Travel: 698.4mm Slide Rail 84H341300-002 Slide Rail, 21.9",For 2U/3U/4U
请选配件编号以观看图片 Support
