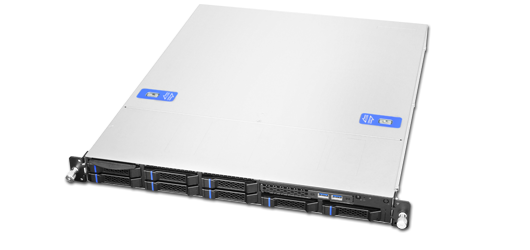

RM14608
1U 8槽位2.5"高速硬盘资料存取服务器机箱
协助中小型企业轻松维护硬件设备的RM14608，拥有大量免工具安装设计-8颗2.5"硬盘托盘、1个光驱槽位、3颗中置风扇，并搭载12Gb/s热插拔背板及智能风扇控制组。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点
  • 支持主板尺寸至12”x 9.6”
  • 免工具安装2.5”固态硬盘/硬盘托盘
  • 搭载具智能风扇控制组的12Gb/s mini-SAS HD背板
  • 中置三个4公分风扇（可支持至5.6公分厚）
  • 内置机箱整线零件组
  • 前置信息标签，便于服务器管理
  • 支持Flex ATX电源
  • 规格
  • 下载
  • 选配件
  • 兼容列表
  • 机箱高度 1U
    适应主板 ATX(12" x 9.6")
    机箱尺寸(深x 宽x 高) 546.4 x 438.5 x 43.2 (mm) 21.51" x 17.26" x 1.70"
    槽位 2.5" Hot-swap：8
    Slim ODD：1
    电源类型 Flex ATX
    指示灯号 1 x Power Status, 2 x Lan Activity, 1 x HDD Activity, 1 x Fan Failure & Overheat
    前板控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 2.0/ USB 3.0
    安全装置 N/A
    风扇 Middle: 3 x 40 mm (Up to 4), (Up to T=56 mm) PWM
    扩展卡位 1 x Full Height
    热抽拔背板 12Gb/s Mini-SAS HD
    净重 7.5 kg (Chassis Only)
    毛重 10.0 kg
    面板 Option
    才积 1.84
    装柜数量(单包) 20': 480, 40': 960
  • 分類 说明 版本号 档案大小 下载
    Configuration Guide RM14608 Configuration Guide V1.1 543.2 KB
    Product Brief RM14608 Product Brief V1.0 275.9 KB
    Technical Product Specification (TPS) RM14608 TPS V1.2 4.2 MB
    User Manual RM14608 QIG V1.0 3.8 MB
  • 类型 型号 说明 支持机型

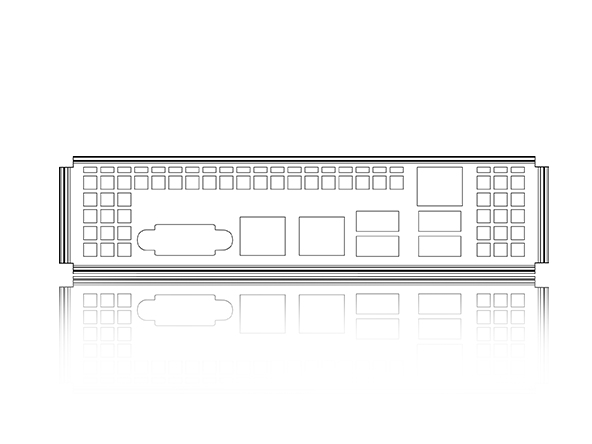

    I/O挡片
    84H314610-009    		 1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    Cable

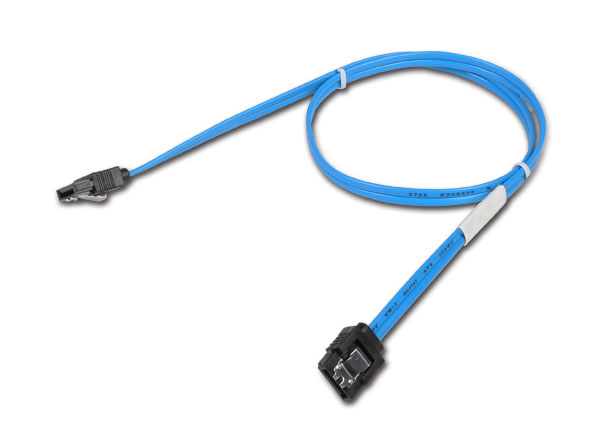

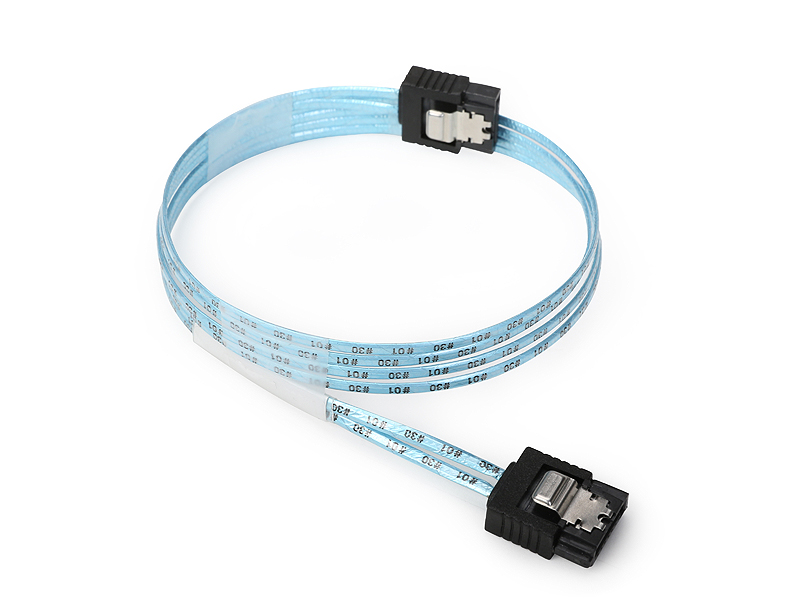

    26H12314601A0    		 SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock
    Cable
    26H12314604A0    		 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock

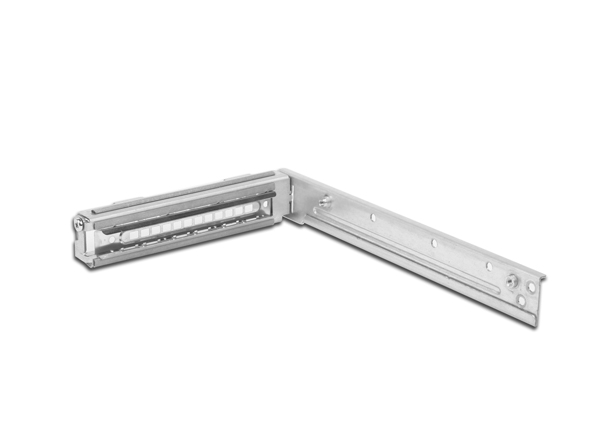

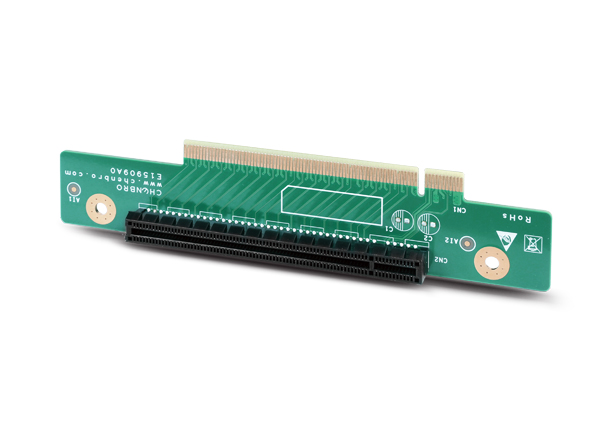

    Riser Card
    80H09314601A0    		 PCI-e 16x, Gen 3, Rev. A0
    后窗
    56H093146-003    		 Rear Window, 1 Slot, Full Height with Card Holder

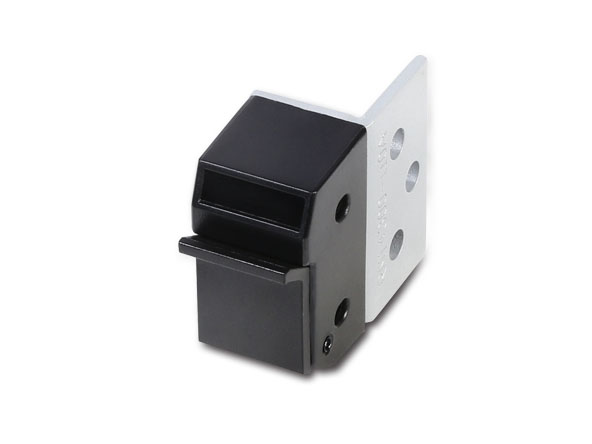

    拉柄

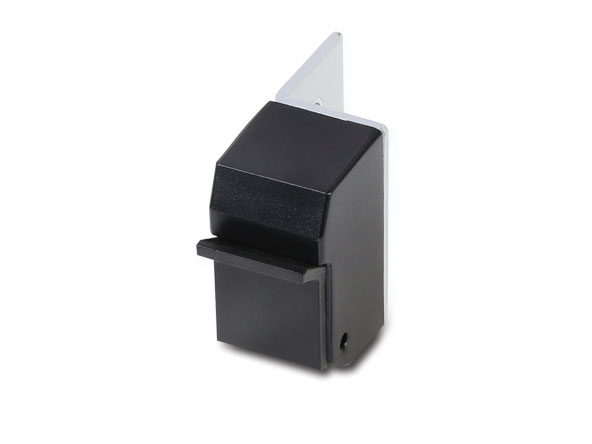

    383-14355-3015A0    		 Latch-type Rack Handle, Black (Left)
    拉柄
    383-14355-3016A0    		 Latch-type Rack Handle, Black (Right)
    排线

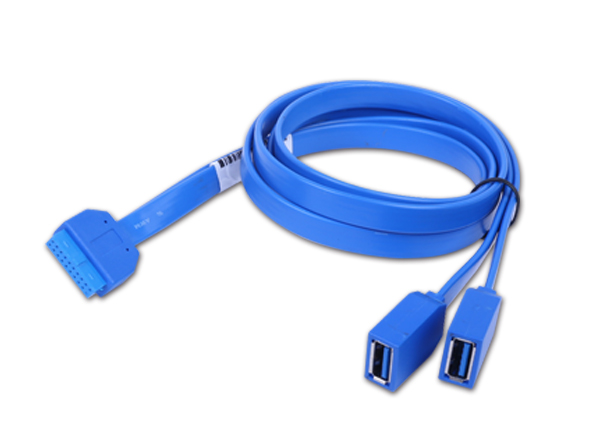

    26H03342203A0    		 USB 3.0 Type A, 750 mm
    排线

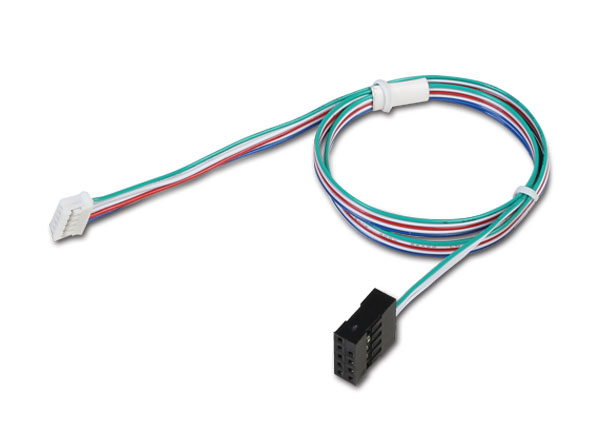

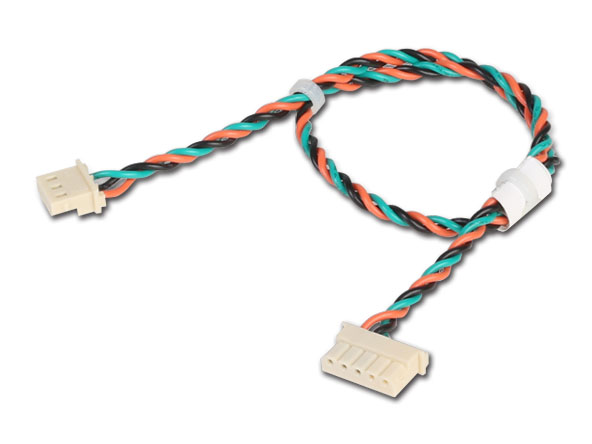

    26H11314603A0    		 SGPIO SIGNAL, 480 mm, For Intel S1200SP
    排线
    26H11314604A0    		 Backplane to Motherboard, 270 mm, For Intel S1200SP
    排线

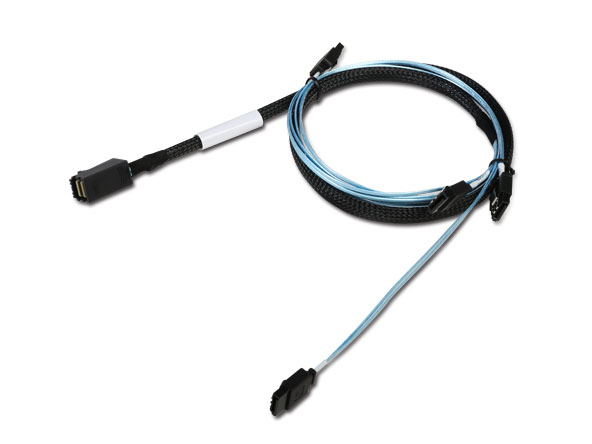

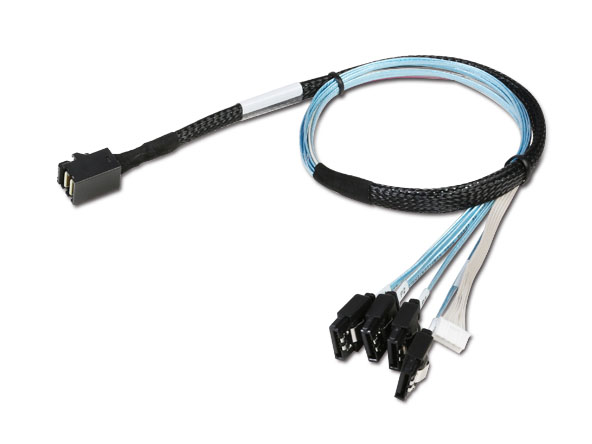

    26H12313601A0    		 Mini-SAS HD to 4*SATA, 600 mm
    排线
    26H12314515A0    		 SATA (Host) to SATA, 600 mm (2.5” HDD/SSD)
    排线
    26H12314601A0    		 SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock
    排线
    26H12314602A0    		 SATA to SATA, 7-pin, SATAIII, 450 mm, w/lock
    排线
    26H12314603A0    		 SATA to SATA, 7-pin, SATAIII, 550 mm, w/lock
    排线
    26H12314604A0    		 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
    排线

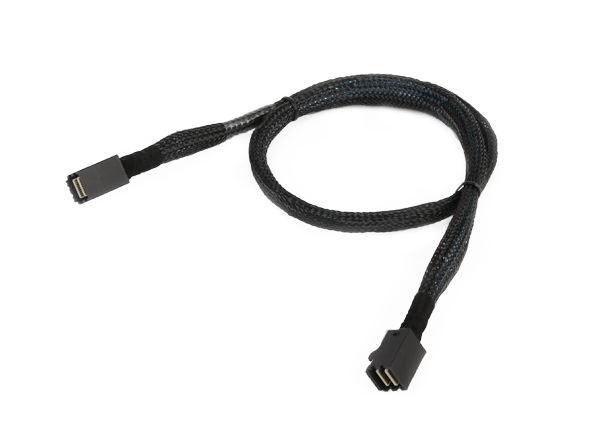

    26H12314607A0    		 Cable, Mini SAS HD, HDD Backplane to Motherboard/HBA Card, 550 mm
    排线
    26H12314609A0    		 Mini-SAS HD to 4*SATA (Host), 550 mm, For Intel S1200SP
    导轨
    384-14303-3100A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    导轨
    384-14303-3101A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    导轨
    384-14303-3102A0    		 AS'Y  COMPONENT,RM14300,SIMPLE RAIL LONG,8BOX/16CTN/PALLET
    导轨
    384-14303-3103A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,8BOX/16CTN/PALLET
    导轨

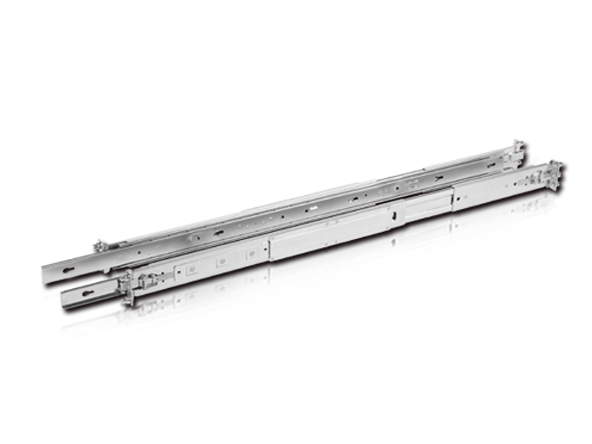

    84H314610-003    		 Slide Rail, 23.6", Tool-less, 1U/2U
    电源供应器

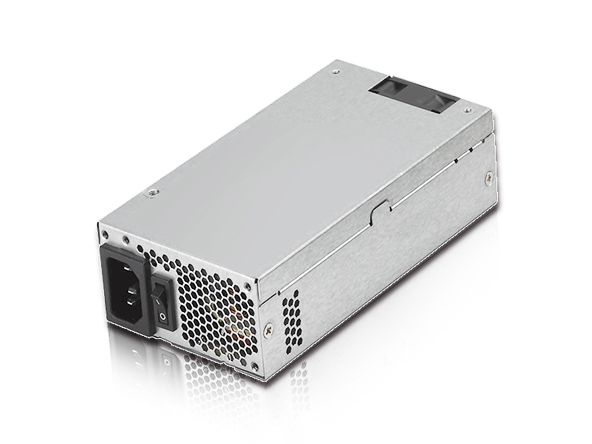

    32H1040000703    		 400W, Single, Flex ATX, 80+ Gold, FSP

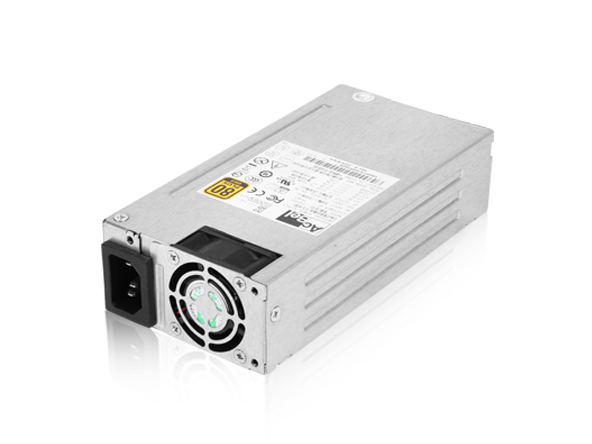

    电源供应器
    32H1040001101    		 400W, Single, Flex ATX, 80+ Gold, AcBel
    转接卡
    80H09314601A0    		 PCI-e 16x, Gen 3, Rev. A0
