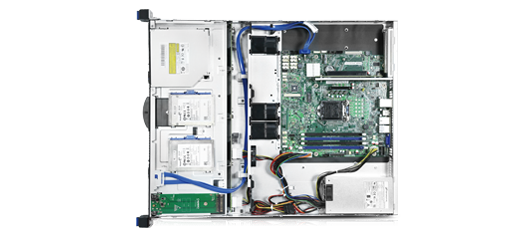

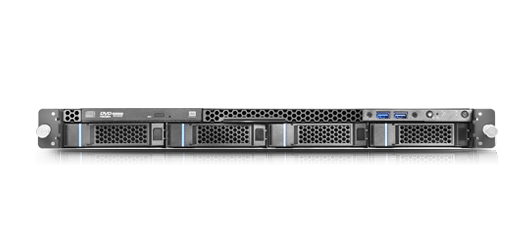

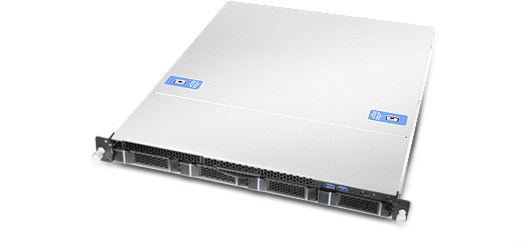

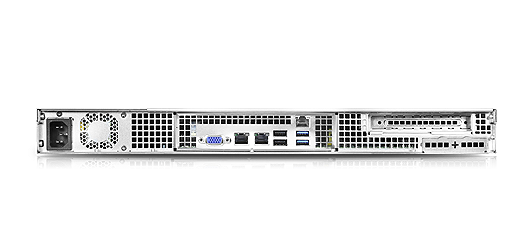

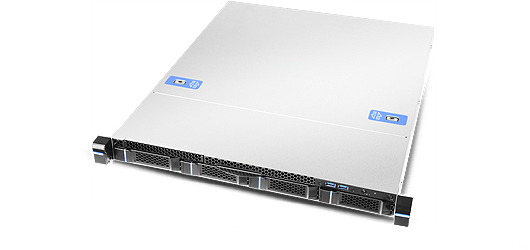

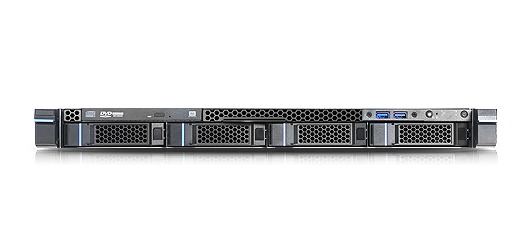

RM14604
1U ATX 企业级服务器机箱
大量免工具安装设计的RM14604，搭配12Gb/s热插拔背板、智能风扇控制组及新一代3.5''硬盘托盘，协助中小企业轻松维护硬盘设备。高度客制化设计，使产品在当地能以最小成本，进行最大的外观变更。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点
  • 配有新一代免工具安装3.5"硬盘托盘
  • 中置3个4公分风扇 (可支持至 5.6公分厚)
  • 免工具安装风扇、机箱上盖、薄型光盘驱动器及內置的2.5"硬盘
  • 支持 12Gb/s mini-SAS HD 与 SATA 背板
  • 设有前方预警灯号，方便监控机箱状态
  • 选配S1200SP主板与专属零件组，辅助运算效能
  • 内建机箱整线零件组
  • 支持Flex ATX 电源
  • 规格
  • 下载
  • 选配件
  • 兼容列表
  • Form Factor 1U
    适应主板 ATX(12" x 9.6")
    机箱尺寸(深x 宽x 高) 547.6 x 438.5 x 43.2 (mm)
    21.6" x 17.2" x 1.7"
    槽位 3.5" Hot-swap：4
    Internal 2.5"：2
    Slim ODD：1
    电源类型 Flex ATX
    指示灯号 1 x Power Status, 2 x LAN Activity, 1 x HDD Activity, 1 x Status, 1 x UID
    前板控制 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0 or USB 2.0
    安全装置 N/A
    风扇 Middle : 3 x 40 mm (up to 4), (Up to T=56 mm) PWM
    扩展卡位 1 x Full Height (Option)
    热抽拔背板 12Gb/s mini-SAS HD or 12Gb/s SAS/SATA
    净重 7.5Kg
    毛重 10.0 Kg
    面板 Option
    才积 1.84
    装柜数量(单包) 20': 480, 40':960
  • 分類 说明 版本号 档案大小 下载
    Configuration Guide RM14604 Configuration Guide V1.0 509.7 KB
    Datasheet RM14604 Datasheet V1.2 6.8 MB
    Firmware Intel S1200SPS SDR for SKU RM14604 X00 2.2 MB
    Quick Installation Guide(QIG) RM14604 QIG V1.2 5.2 MB
    Technical Product Specification (TPS) RM14604 TPS V1.2 4.0 MB
  • 类型 型号 说明 支持机型

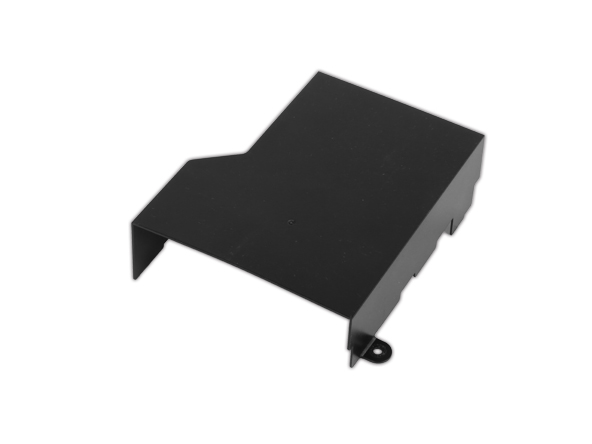

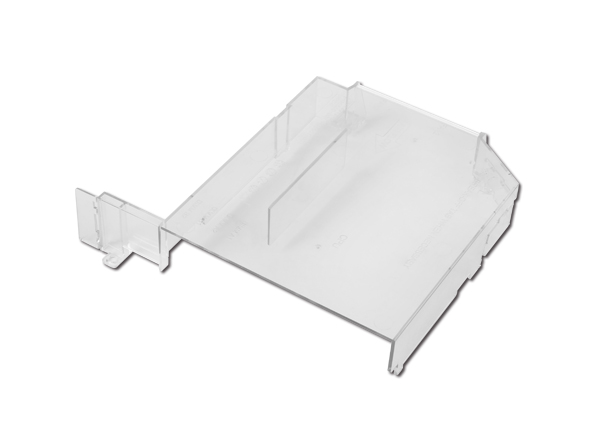

    Air Duct
    50H353149A003    		 PC Transparent, For Intel S1200SPO/ S1200SPL/S1200SPS
    Air Duct
    84H314610-021    		 Air Duct, RM14604-310A,PC MYLAR,BK, For Intel 1200SP
    Air Duct
    84H314910-093    		 Air Duct, RM14912-201A,PC TRANS. 94V-2, For Intel 1200SP
    Air Duct
    84H314910-094    		 Air Duct, RM14912-201A,PC,Black CC1012, For Intel S1200SP
    Bezel
    384-14605-3100A0    		 Front Bezel, 1U, Metal, Black
    Cable
    384-14620-3304A0    		 Cable, SATAIII, 600mm, w/Lock
    Cable

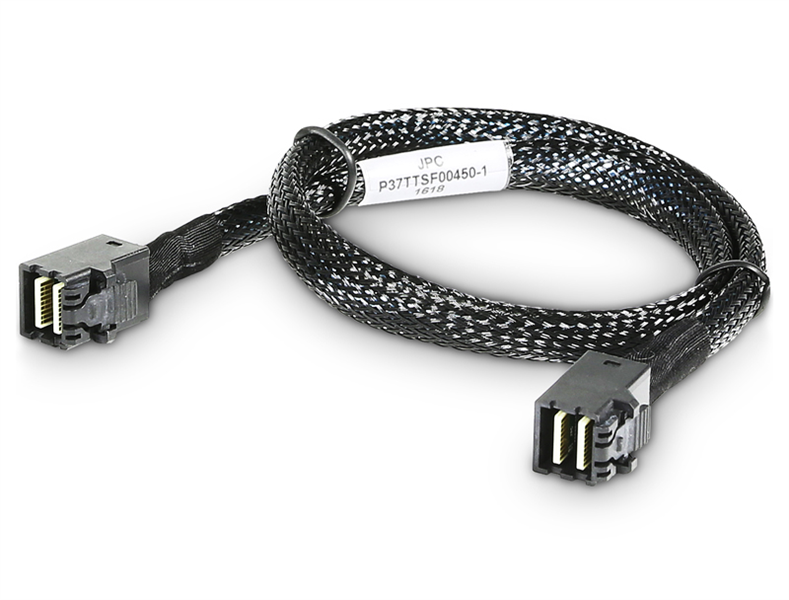

    384-14620-3305A0    		 mini-SAS HD to mini-SAS HD, 550mm
    Cable
    384-14620-3307A0    		 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment
    Cable
    384-14620-3308A0    		 USB3.0, 2 x Type A Port(26H03342203A0), 750mm
    Cable
    384-14620-3309A0    		 Cable, SATA III, 350mm, w/Lock
    Cable
    384-14620-3310A0    		 Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment
    Cable
    384-14620-3311A0    		 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment
    Cable

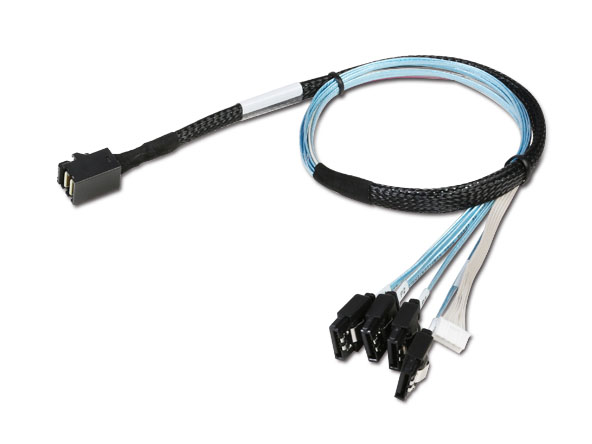

    384-14620-3313A0    		 mini-SAS HD to 4*SATA (HOST), w/Sideband, For Intel MB, 550mm
    Cable

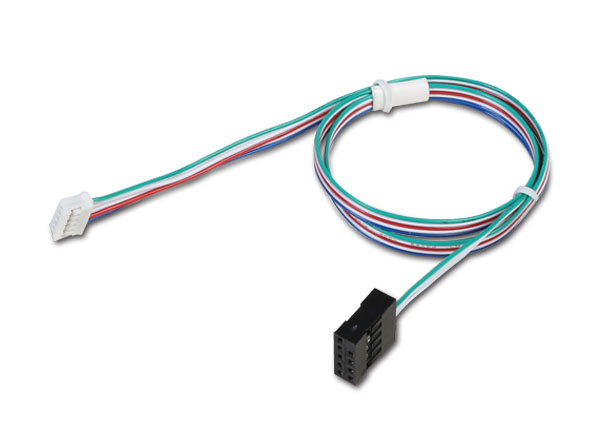

    384-14620-3314A0    		 SGPIO, 5*2 to 5*1, 480mm, For Intel MB S1200SP
    Cable
    384-14620-3315A0    		 Cable, I2C, 5*1 to 3*1, Backplane to MB, 270mm, For Intel MB S1200SP
    I/O Shield
    84H314610-009    		 1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    Power Supply
    84H314610-020    		 PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket
    Rack Handle
    384-14609-3100A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024    		 Latch-type Rack Handle (Left)
    Rack Handle
    84H314610-025    		 Latch-type Rack Handle (Right)

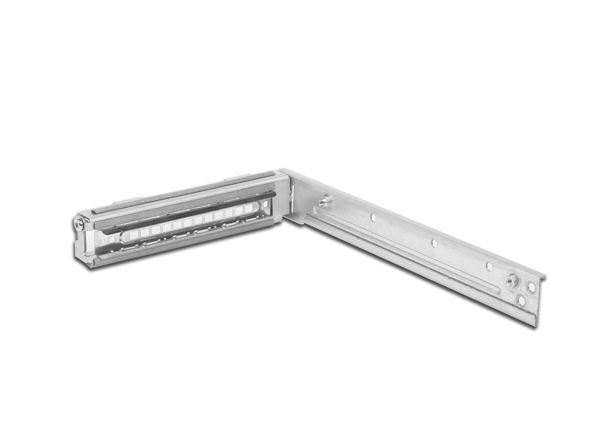

    Riser Bracket
    56H093146-003    		 Riser bracket, 1 Slot, Full Height with Card Holder
    Riser Card
    84H314610-023    		 Riser card with bracket, PCI-e 16x, Gen 3, Rev.A0
    Slide Rail
    384-14303-3100A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-14303-3101A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    84H314610-003    		 599 mm, Tool-less, Single Packing
    请选配件编号以观看图片
