RM146 Plus Series

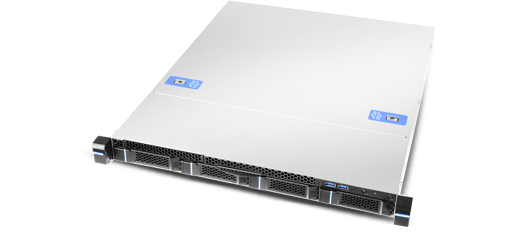

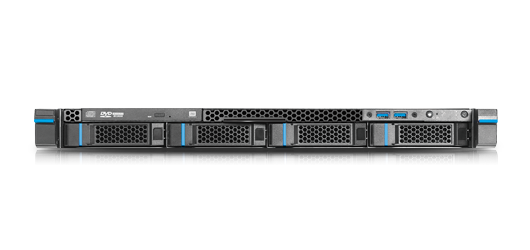

1U 简易安装紧凑型服务器机箱
机箱设计紧凑，深度仅550mm； 模块化，免工具设计，灵活支持各种电源，硬盘，主板及系统散热要求，实现性能/价格/运维成本的均衡配置，是中小型客户的理想选择
产品规格比较
产品特点
- 支持主板尺寸至12” x 9.6”

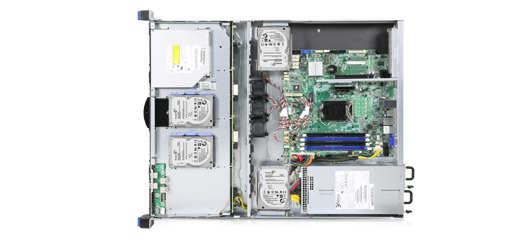

- 模块化硬盘笼设计，搭载4 x 3.5" 或 10 x 2.5" SAS/SATA 12Gb/s 直连背板

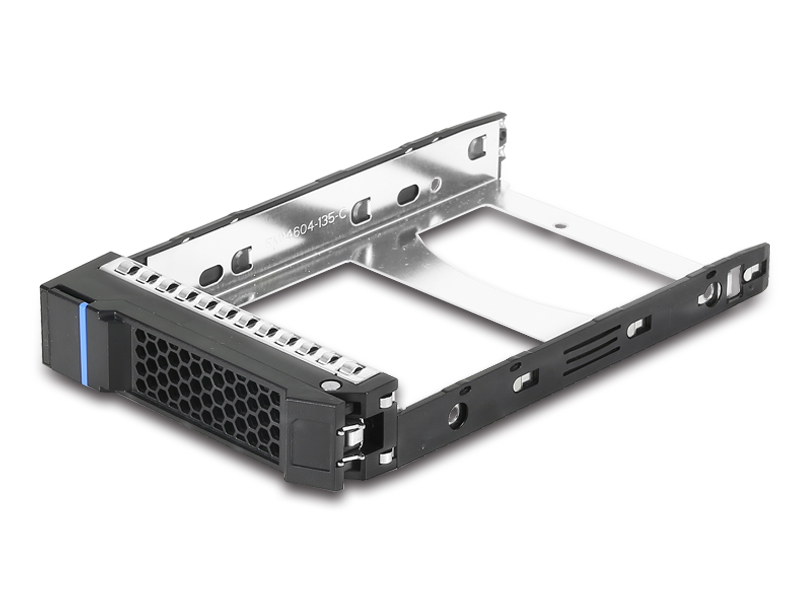

- 免工具安装 3.5'' 硬盘托架和 2.5'' 热插拔硬盘托架
- 标配 3 颗 4028 风扇，灵活支持 28/48/56 不同厚度规格，最多可安装 6 颗风扇
- 前置信息标签，便于服务器管理

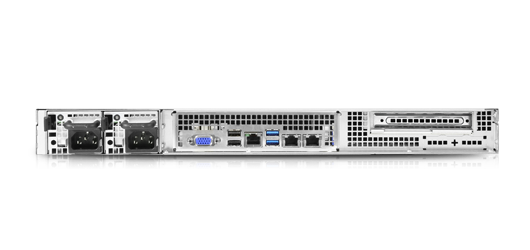

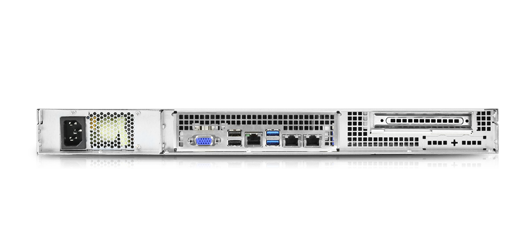

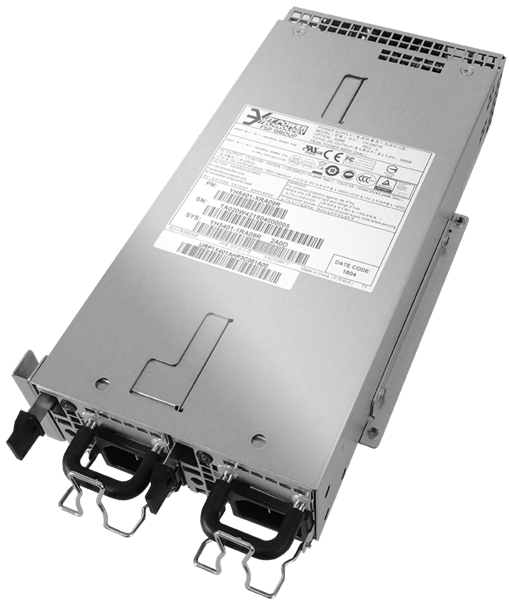

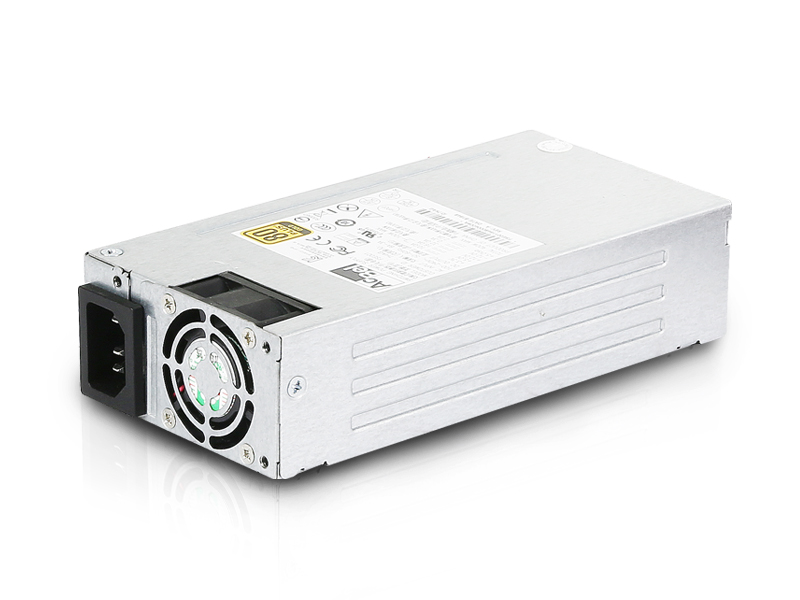

- 支持1U 单电 和 1+1 1U 冗余电源
- 选配免工具安装滑轨或高性价比简易滑轨

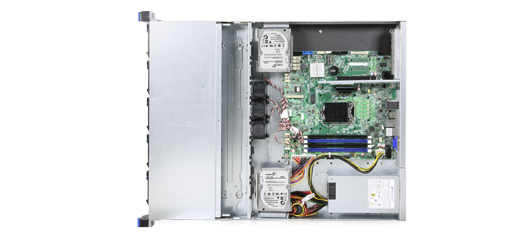

- 选配内置 2 x 2.5" 硬盘位（厚度9.5mm）
- Specification
- Download
- Accessory
- Compatibility
-
Form Factor 1U 适应主板 ATX (12" x 9.6") 机箱尺寸(深x 宽x 高) 545 x 438.5 x 43.5 (mm)
21.46" x 17.27" x 1.72"槽位 RM14604 Plus (3.5" Hot-swap)：4
RM14604 Plus (2.5" Internal)：2
RM14604 Plus (Slim ODD, 9.5mm)：1
Optional 2.5" (Internal) for OS：2

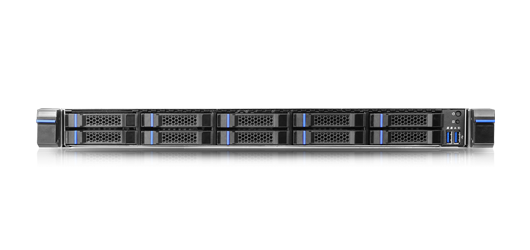

RM14610 Plus (2.5" Hot-swap)：10
RM14610 Plus (2.5" Internal)：2
电源类型 1+1 Redundant or Single 1U 指示灯号 1 x Power Status
2 x Lan Activity
1 x UID
1 x System Alarm
1x HDD Status (RM14604 Plus Only)前板控制 1 x Power On/Off
1 x UID

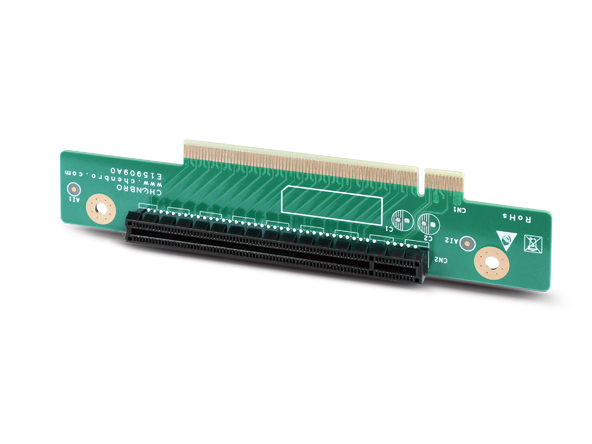

2 x USB3.0安全装置 Intrusion Switch (Option) 风扇 Middle : 3 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units) 扩展卡位 1 x Full Height PCIe Gen3 x16 热抽拔背板 4 x 3.5“ : 12Gb/s SAS/SATA (RM14604 Plus)
4 x 3.5" : 12Gb/s Mini-SAS HD (RM14604 Plus)
10 x 2.5” : 12Gb/s Mini-SAS HD (RM14610 Plus)净重 7.5kg 毛重 10.0kg 面板 Option 才积 2.82 装柜数量(单包) 20': 480, 40': 960 -
分類 说明 版本号 档案大小 下载 Datasheet RM146 Plus Series Datasheet V1.5 858.1 KB
User Manual RM146 Plus Series 用户手册 V1.5 2.3 MB
-

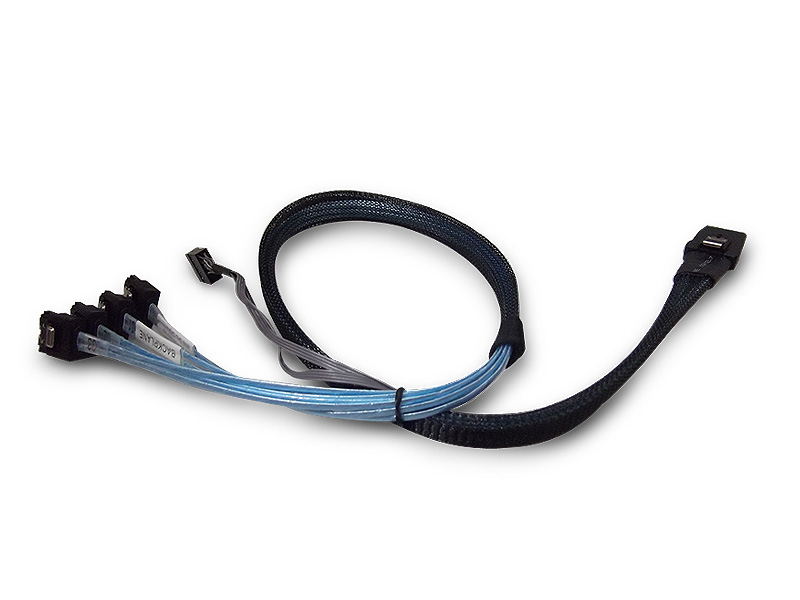

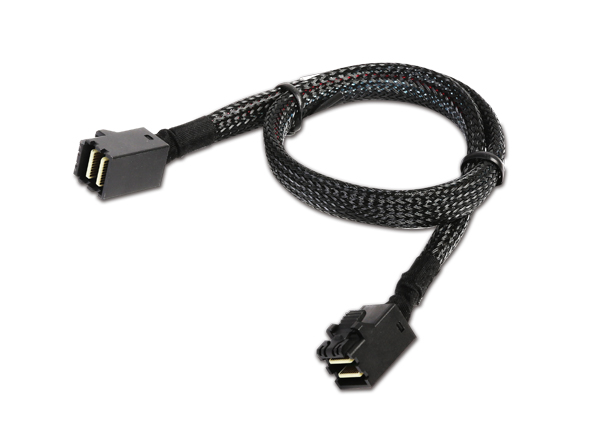

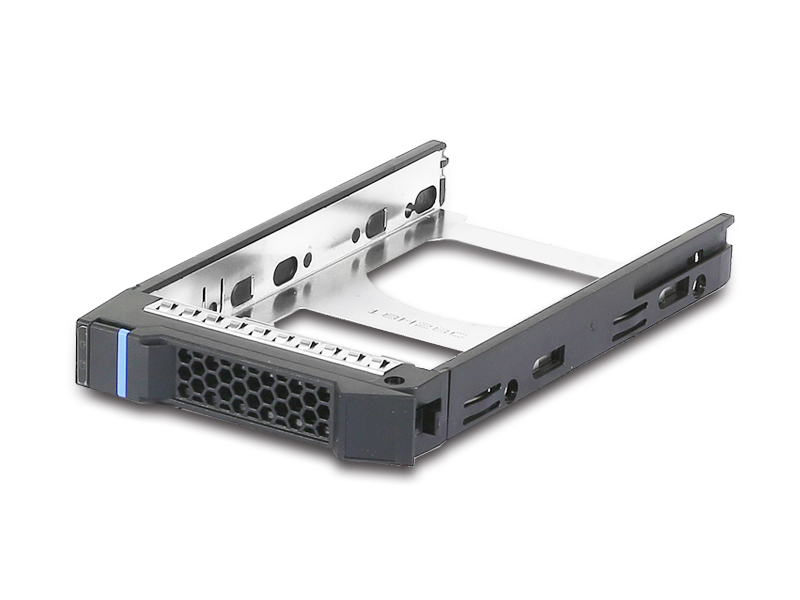

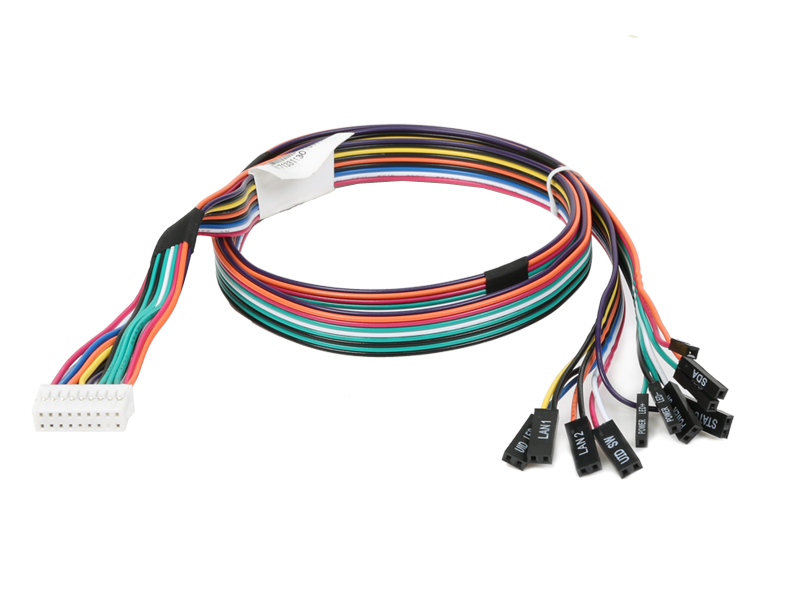

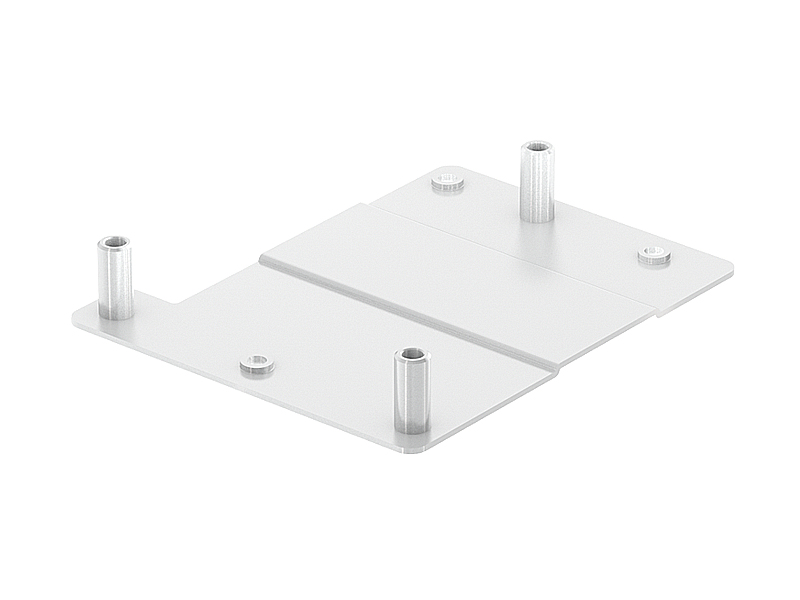

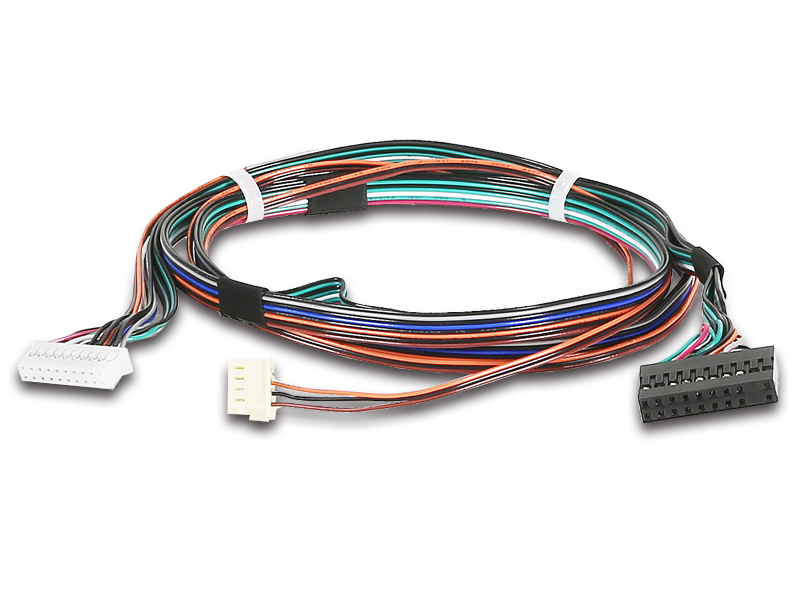

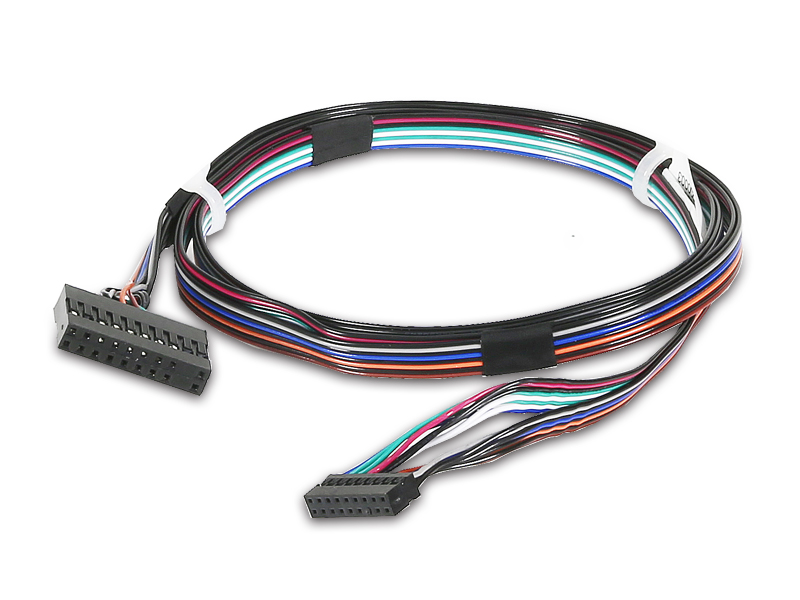

类型 型号 说明 支持机型 Bezel 384-14605-3100A0 Front Bezel, 1U, Metal, Black Bracket 384-14601-3200A0 Bracket, 2.5" HDD, Internal, Tool-less Bracket 84H314610-022 IOM Bracket,RM14604 Cable 126-13311-3000A0 Cable, Display, 900mm, w/I2C, Discrete pins Cable 126-13311-3001A0 Cable, Display, 900mm, 20-pin header to 17-pin(Discrete Pin) Cable 126-13311-3002A0 Cable, Display, 900mm, for Supermicro M/B Cable 126-13311-3003A0 Cable, Display, 900mm, RM13310e001, for Supermicro M/B Cable 126-14512-3021A0 Mini-SAS HD to mini-SAS HD, 850mm Cable 126-14612-3000A0 Mini-SAS HD to 4*SATA(Host), w/sideband, 540mm Cable 126-23612-3005A0 Mini-SAS HD to mini-SAS HD,600mm Cable 26H03313601A0 USB3.0, 20P to Type A plug, 750 mm Cable 384-14620-3307A0 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment Cable 384-14620-3310A0 Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment Cable 384-14620-3311A0 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment HDD Tray 383-14655-3034B0 2.5" HDD Tray, screw-on I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS I/O Shield 84H314610-018 1U, For Asrock D1541D4U-2T8R Packing 370-13310-3005A0 Screw Packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS, for screw-on HDD tray Packing 370-13310-3006A0 Screw Packing, 3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS, for screw-on HDD tray Power Supply 132-20350-1201B0 PSU, 1+1 redundant, 350w Power Supply 384-14620-3316A0 PSU, 400W,FSE001-7HAG,w/PFC,Full Range,P20+4:235mm/P8:280mm,w/Bracket,Acbel,20PCS/CTN Power Supply 84H314610-020 PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket Rack Handle 384-14609-3100A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left Rack Handle 384-14609-3101A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right Rack Handle 84H314610-024 Latch-type Rack Handle (Left) Rack Handle 84H314610-025 Latch-type Rack Handle (Right) Riser Card 84H314610-023 Riser card with bracket, PCI-e 16x, Gen 3, Rev.A0 Slide Rail 384-14303-3100A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX Slide Rail 384-14303-3101A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX Slide Rail 84H314610-003 599 mm, Tool-less, Single Packing 请选配件编号以观看图片 Support
