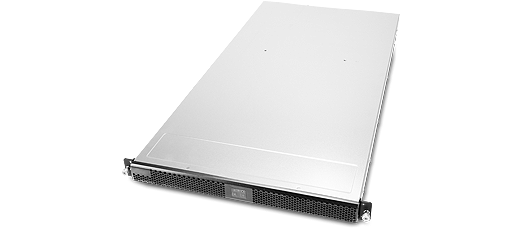

RM14500
1U 12槽位高密度存储服务器机箱

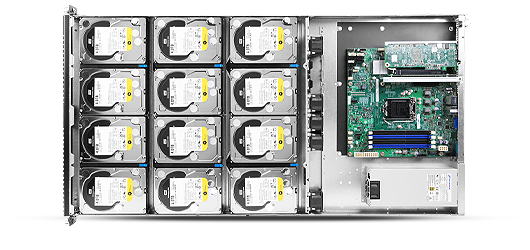

勤诚专利研发的硬盘支架，将1U服务器机箱的储存能力最大化，推升至可支持18颗硬盘，适用于物件储存与冷数据储存的应用，是款高CP值的服务器机箱。
产品规格比较
产品特点
- 采用专利的硬盘装置槽设计，可同时置放3.5”与2.5”硬盘，无须工具即可轻松拆装硬盘
- 免工具安装的硬盘槽位，利于硬盘的维护工作
- 易于安装且具防震设计的风扇装置
- 特殊整线用的档片兼具防止气体回流的功能

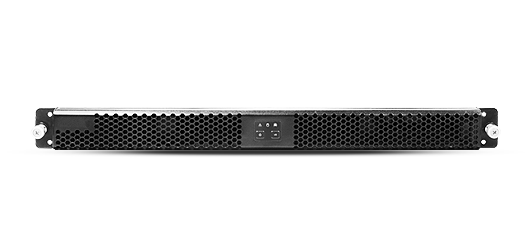

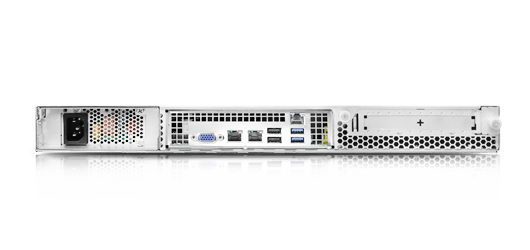

- 前后窗采用蜂巢式通风口设计以提高通风率
- 机箱底部特殊凸槽设计，强化机箱强度防止下陷或扭曲变形
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 1U 适应主板 ATX (12" x 9.6") 机箱尺寸(深x 宽x 高) 861 x 438.5 x 43.5 (mm)
33.9" x 17.26" x 1.71"槽位 Internal 3.5"：12
Internal 2.5"：6
电源类型 Flex ATX or 1U Redundant 指示灯号 1 x Power Status, 1 x HDD Activity, 1 x LAN Activity 前板控制 Power On/Off, System Reset, UID 安全装置 N/A 风扇 Middle: 5 x 40 mm (T=28 mm), PWM (Up to 7) 扩展卡位 1 x Full Height and Half Length 净重 8.60 Kg 毛重 12.3 Kg 才积 3.31 装柜数量(单包) 20': 314, 40': 647 -
分類 说明 版本号 档案大小 下载 Configuration Guide Configuration Guide_RM14500 V1.0 422.8 KB
Product Brief Product Brief_RM14500 V1.0 395.8 KB
Technical Product Specification (TPS) TPS_RM14500 V1.0 2.0 MB
User Manual RM14500_QIG V1.1 14.8 MB
-

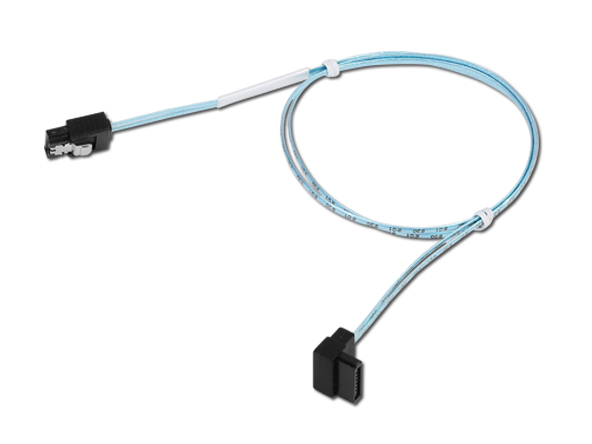

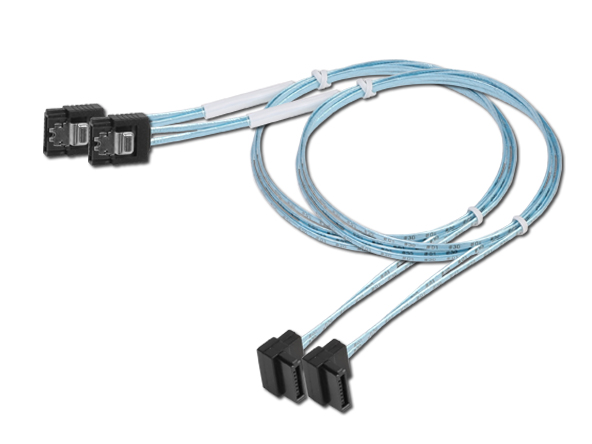

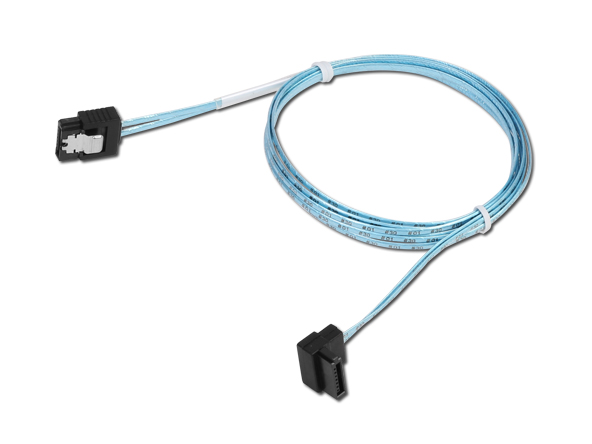

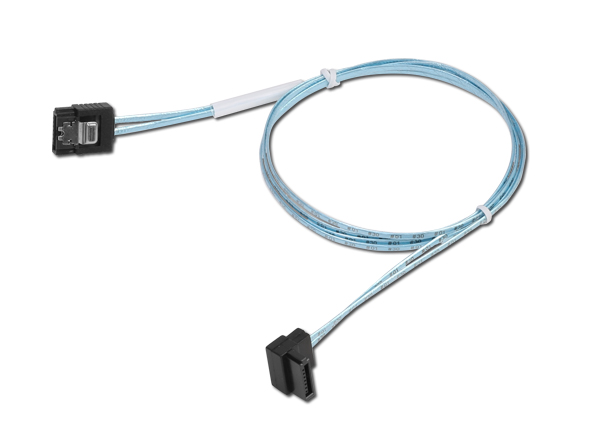

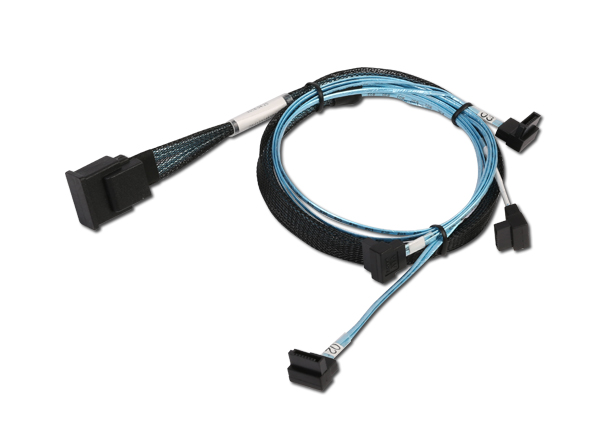

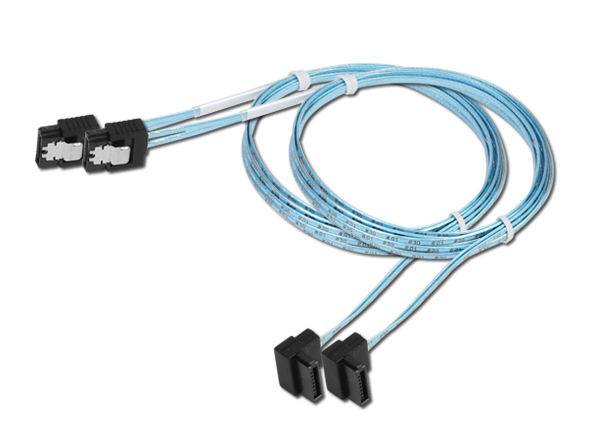

类型 型号 说明 支持机型 Cable 26H12314501A0 SATA (Host) to SATA, 500 mm (for 2.5”/ 3.5" HDD) Cable 26H12314502A0 SATA (Host) to SATA, 600 mm (for 2.5”/ 3.5" HDD) Cable 26H12314503A0 2 pcs, SATA (Host) to SATA, 700 mm (for 2.5”/ 3.5" HDD) Cable 26H12314504A0 2 pcs, SATA (Host) to SATA, 800 mm (for 2.5”/ 3.5" HDD) Cable 26H12314505A0 SATA (Host) to SATA, 900 mm (for 2.5”/ 3.5" HDD) Cable 26H12314506A0 SATA (Host) to SATA, 1000 mm (for 2.5”/ 3.5" HDD) Cable 26H12314507A0 SATA (Host) to SATA, 350 mm (for 2.5”/ 3.5" HDD) Cable 26H12314508A0 SATA (Host) to SATA, 450 mm (for 2.5”/ 3.5" HDD) Cable 26H12314509A0 SATA (Host) to SATA, 550 mm (for 2.5”/ 3.5" HDD) Cable 26H12314510A0 SATA (Host) to SATA, 650 mm (for 2.5”/ 3.5" HDD) Cable 26H12314511A0 Mini-SAS to SATA, 4 pcs, 350/450/550/650 mm (Only for 3.5” HDD) Cable 26H12314512A0 Mini-SAS to SATA, 4 pcs, 500/600/700/800 mm (Only for 3.5” HDD) Cable 26H12314513A0 Mini-SAS to SATA, 4 pcs, 700/800/900/1000 mm (Only for 3.5” HDD) Heat Sink 384-14619-3300A0 Heat Sink I/O Shield 84H313610-022 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH I/O Shield 84H313610-056 I/O GASKET, Gigabyte MX31-BS0 I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS Power Supply 384-14504-3300A0 PSU, 350W, 1U Redundant, YH5401-1RA02R(32H2035002201) ,80+ Silver, w/Bracket Power Supply 84H314510-011 PSU, 400W, 1U Single, FSP400-70LQ( 32H1040000702), 80+ Gold, w/Bracket Riser Card 84H314310-005 1-slot, PCI-e x8, Short Version Riser Card 84H314310-006 1-Slot, PCI-e 16x (80H09319001C0), w/ bracket Slide Rail 84H314510-003 Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 21.4", Loading Weight 18.8 Kg, tool-less Slide Rail 84H323710-002 34", Tool-less, Single Packing 请选配件编号以观看图片 Support
