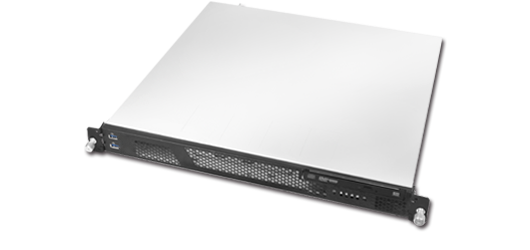

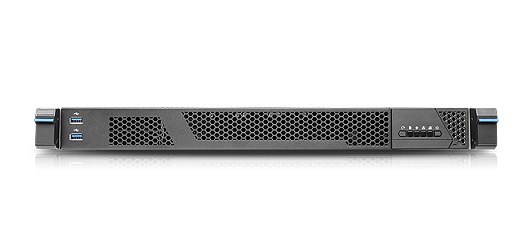

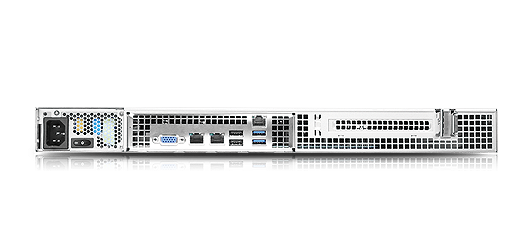

RM14300

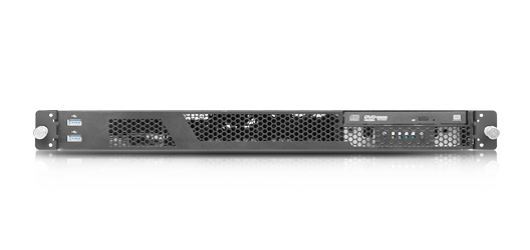

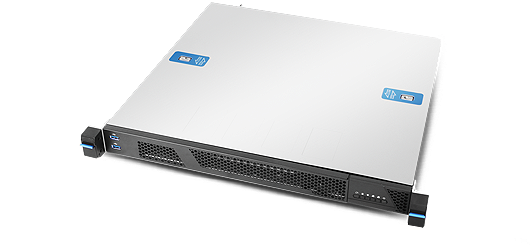

1U Micro-ATX 短版精简型服务器机箱

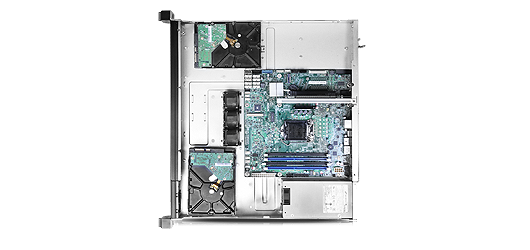

在16寸机箱内，可安装多达6个2.5''硬盘或3个3.5''SATA硬盘，高存储容量使应用更广泛。高度模组化且支持前面I/O和后面I/O，提供弹性化的组态，协助降低库存积压及销售成本。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点

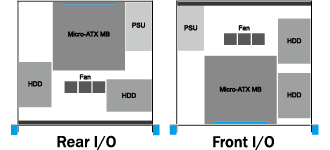

  • 支持前窗及后窗主板I/O插槽任意调换
  • 可选择免工具安装(RM14300-EZ)或锁螺丝安装(RM14300)的2.5''和3.5''合并的硬盘支架
  • 选配硬盘支架，可弹性化配置机箱内部硬盘组态
  • 配置具防震功能的4公分PWM风扇（可支持至4.8''厚）
  • 支持Flex ATX 电源模组
  • 规格
  • 下载
  • 选配件
  • 兼容列表
  • Form Factor 1U
    适应主板 Micro ATX
    机箱尺寸(深x 宽x 高) 405.5 x 438.2 x 43.2 (mm)
    15.96" x 17.25" x 1.7"
    槽位 Internal 3.5"：2
    Internal 2.5"：2
    Slim ODD：option
    电源类型 Flex ATX
    指示灯号 1x Power Status, 2x LAN Activity, 1x HDD Status
    前板控制 1x Power On/Off, 1x System Reset, 2 x USB 3.0
    安全装置 N/A
    风扇 3x 40mm(T=28mm, up to 48mm), PWM
    扩展卡位 1x Full Height
    热抽拔背板 N/A
    净重 4.15Kg
    毛重 6.22Kg
    才积 1.24
    装柜数量(单包) 20': 320, 40': 640, 40'H:720
  • 分類 说明 版本号 档案大小 下载
    Configuration Guide RM14300 Configuration Guide V1.0 441.1 KB
    Quick Installation Guide(QIG) RM14300_Quick Installation Guide V1.1 7.9 MB
    Technical Product Specification (TPS) RM14300 TPS V1.0 3.0 MB
  • 类型 型号 说明 支持机型

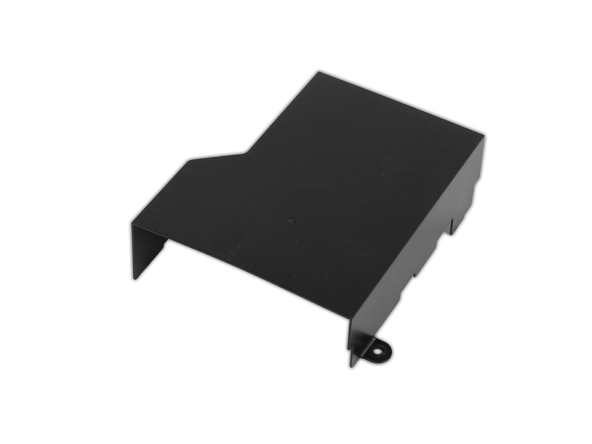

    Air Duct
    84H314910-080    		 Air Duct, For Intel S1200SPS , S1200SPO , S1200SPL

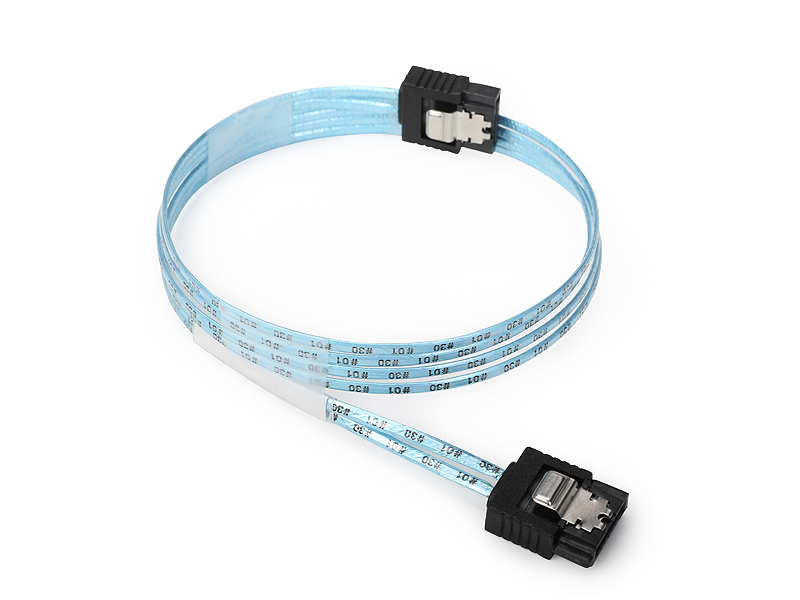

    Cable

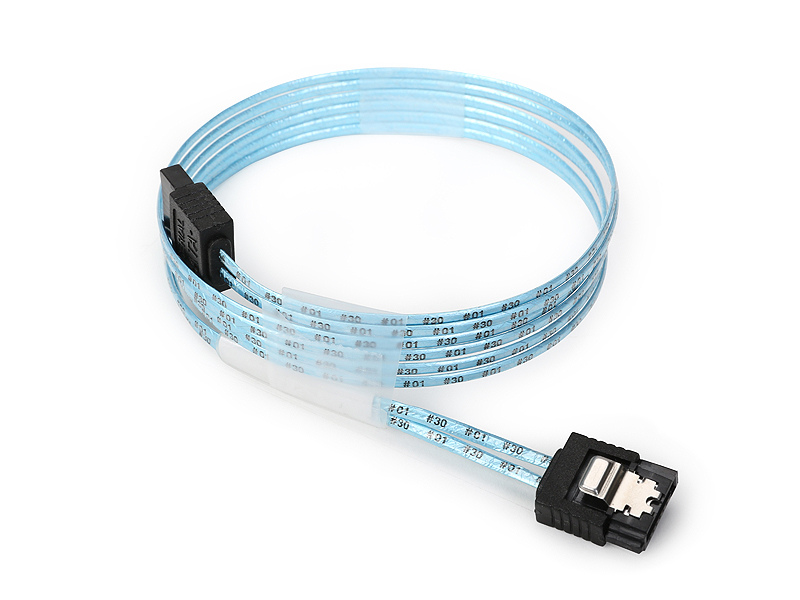

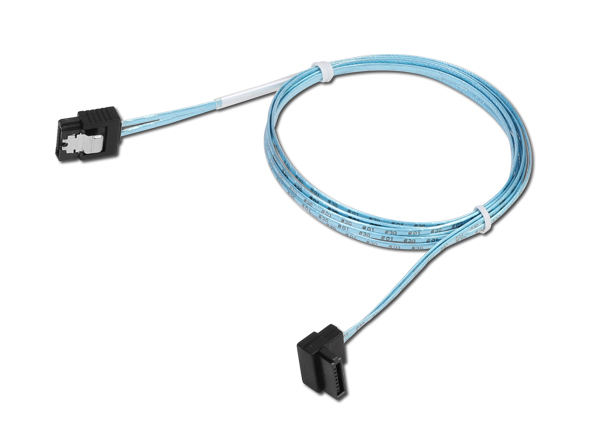

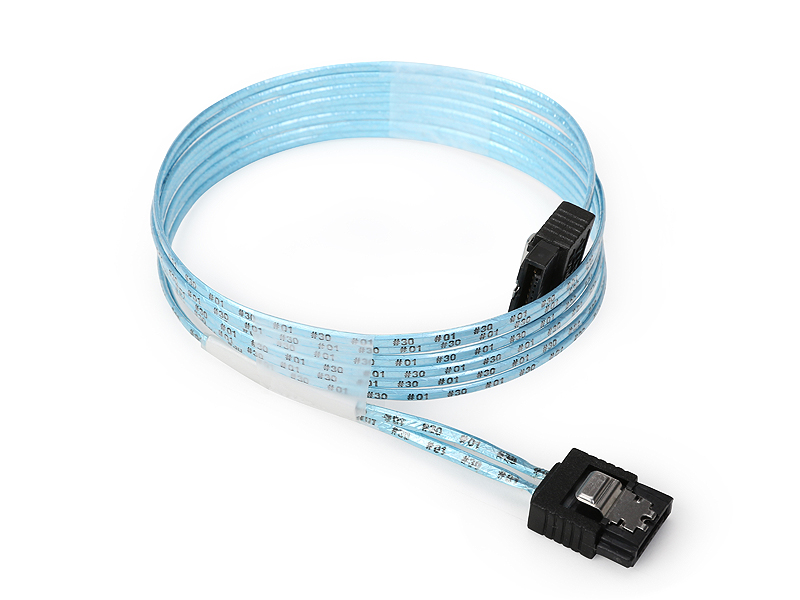

    384-14620-3304A0    		 Cable, SATAIII, 600mm, w/Lock
    Cable
    384-14620-3307A0    		 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment
    Cable

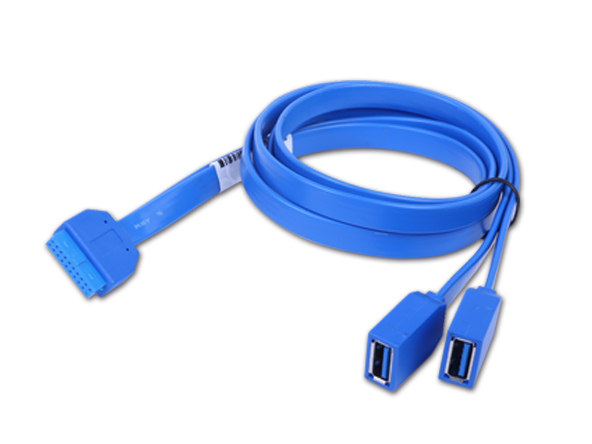

    384-14620-3308A0    		 USB3.0, 2 x Type A Port(26H03342203A0), 750mm
    Cable
    384-14620-3309A0    		 Cable, SATA III, 350mm, w/Lock
    Cable
    384-14620-3310A0    		 Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment
    Cable
    384-14620-3311A0    		 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment

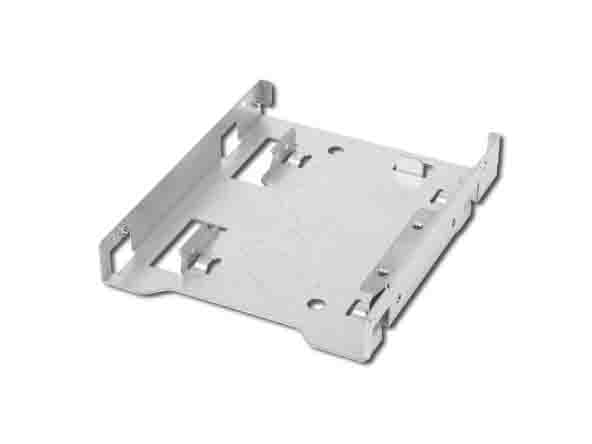

    HDD Carrier

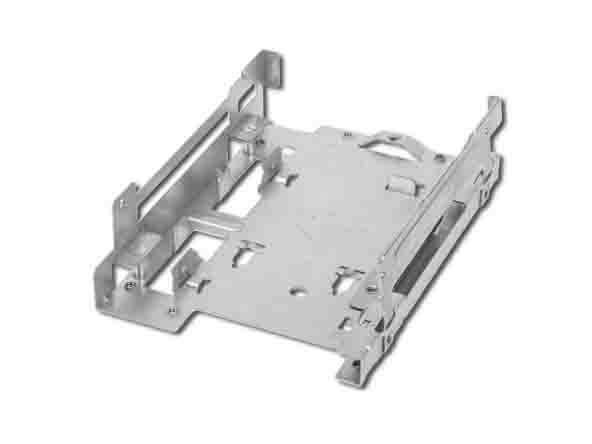

    84H314310-007    		 Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    HDD Carrier

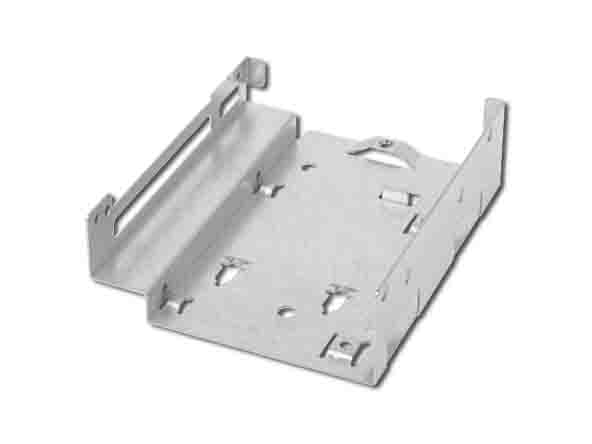

    84H314310-008    		 HDD Bracket, 1 x 2.5" bay, Non Tool-less Installation (3.5" to  2.5")
    HDD Carrier
    84H314910-092    		 Non Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    Heat Sink

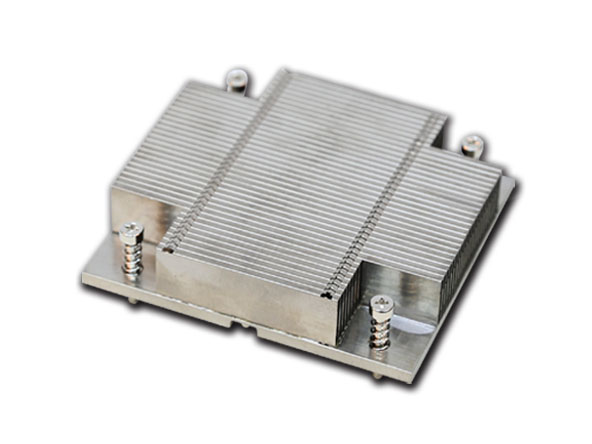

    384-14619-3300A0    		 Heat Sink

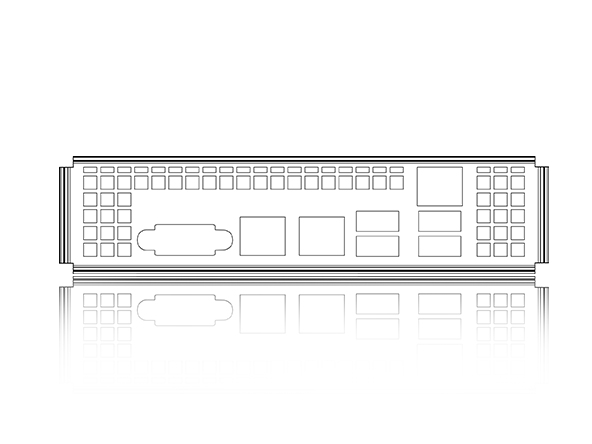

    I/O Shield
    84H313610-022    		 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH
    I/O Shield
    84H313610-056    		 I/O GASKET, Gigabyte MX31-BS0
    I/O Shield
    84H314610-009    		 1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    Power Supply

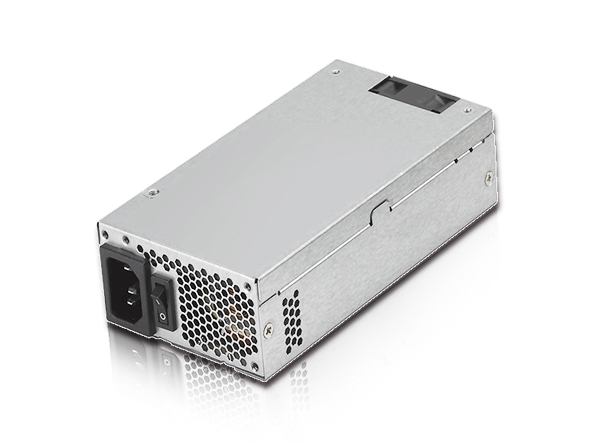

    84H314310-013    		 PSU, 200W, Full Range, w/PFC, FSP200-50LG(32H1022000702)

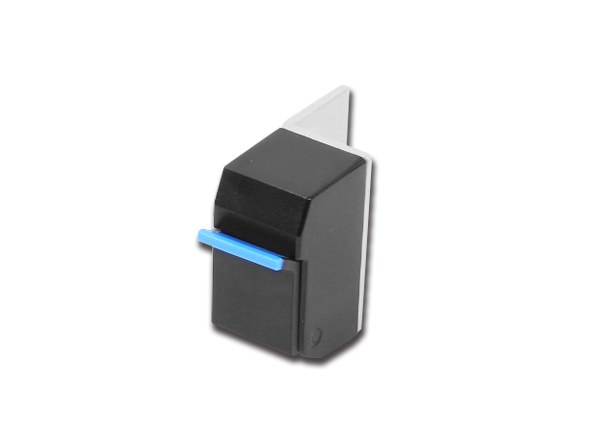

    Rack Handle

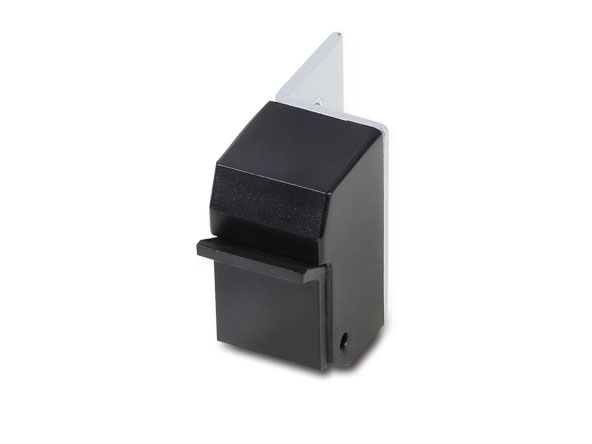

    384-14309-3011A0    		 Latch-type Rack Handle, Black (Left)
    Rack Handle
    384-14309-3012A0    		 Latch-type Rack Handle, Black (Right)
    Rack Handle

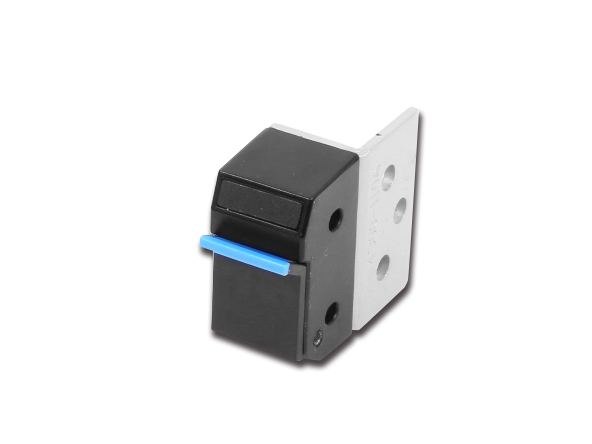

    84H314310-009    		 Latch-type Rack Handle (Left)
    Rack Handle
    84H314310-010    		 Latch-type Rack Handle (Right)

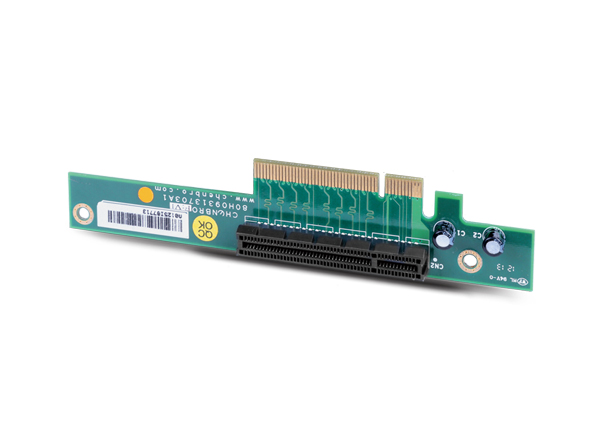

    Riser Card
    84H314310-005    		 1-slot, PCI-e x8, Short Version
    Riser Card

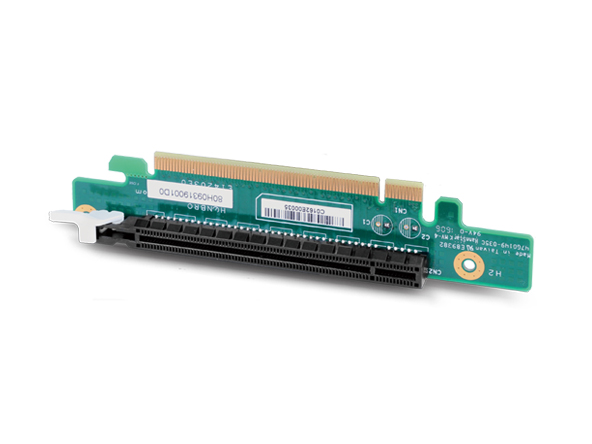

    84H314310-006    		 1-Slot, PCI-e 16x (80H09319001C0),  w/ bracket
    Slide Rail

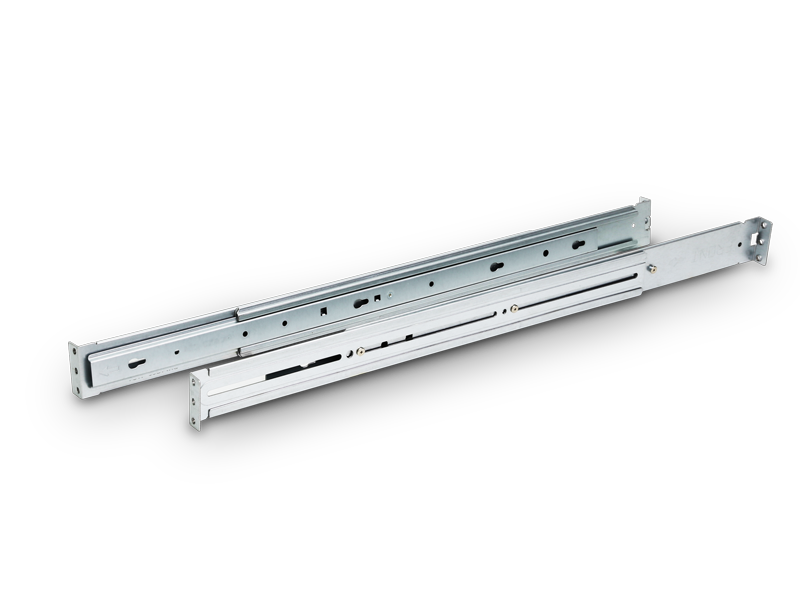

    384-14303-3100A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-14303-3101A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    84H314610-003    		 599 mm, Tool-less, Single Packing
    拉柄
    84H314310-009    		 Latch-type Rack Handle (Left)
    拉柄
    84H314310-010    		 Latch-type Rack Handle (Right)
