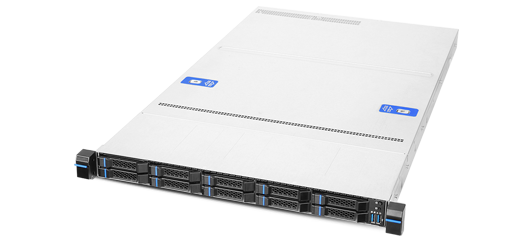

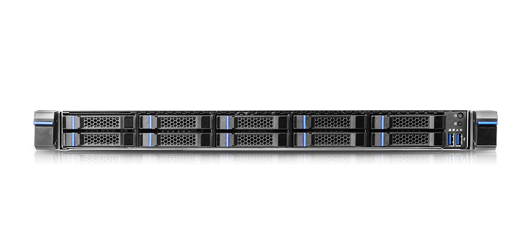

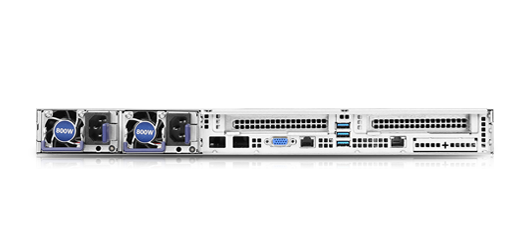

RM138 Series
1U全功能极端虚拟化服务器机箱
支持Intel S2600WT和S2600WF系列MB，在硬盘盒中采用模块化设计，免工具风扇模块和附加卡支架，可提升MB的虚拟性能。
产品规格比较
清除 确认
快速查找
  • 机箱类型
  • 主板
  • RAID阵列卡
  • 电源供应器
搜寻
产品规格比较
产品特点
  • 支持MB尺寸高达16.7“x 17”（自定义）
  • 支持Intel S2600WT和S2600WF系列主板
  • 硬盘盒的模块化设计
  • 免工具2.5“/ 3.5”硬盘托盘
  • 多样化的12Gb / s HDD背板，可实现灵活的存储配置

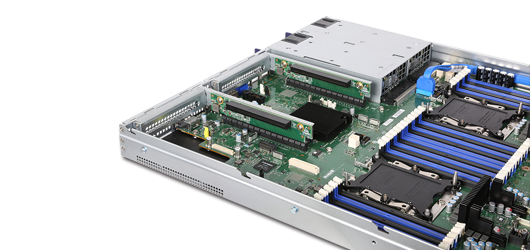

  • 支持两个全高PCI-e插槽
  • 支持1 + 1冗余CRPS PSU
  • 规格
  • 下载
  • 选配件
  • 兼容列表
  • Form Factor 1U
    适应主板 16.7" x 17" (Custom)
    机箱尺寸(深x 宽x 高) 732.7 x 438.5 x 43.2 (mm)
    28.85" x 17.27" x 1.7"
    槽位 RM13804 (3.5" Hot-swap)：4
    RM13804 (2.5" Internal)：2
    RM13804 (Slim ODD)：1
    RM13810 (2.5" Hot-swap)：10
    电源类型 1+1 Redundant or Single 1U
    指示灯号 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x UID
    1 x System Alarm
    前板控制 1 x Power On/Off
    1 x UID
    2 x USB3.0
    安全装置 Intrusion Switch (Option)
    风扇 RM13804 Middle : 6 x 40mm (T=28mm) (Maximum to T=56mm, Up to 8 units)
    RM13810 Middle : 6 x 40mm (T=28mm) (Maximum to T=56mm, Up to 8 units)
    扩展卡位 2 x Full Height PCIe Gen3 x16
    热抽拔背板 RM13804 : 4-Port 12Gb/s Mini SAS Passive
    RM13810 : 10-Port 12Gb/s Mini SAS Passive
    RM13810 : 10-Port NVME Passive (Option)
    净重 11.6kg
    毛重 15.3kg
    面板 Option
    才积 3.31
    装柜数量(单包) 20': 314
    40': 647
  • 分類 说明 版本号 档案大小 下载
    Datasheet RM138 Series Datasheet V1.3 V.1.3 2.9 MB
    User Manual RM138 Series User Manual V1.1 V1.1 3.0 MB
  • 类型 型号 说明 支持机型

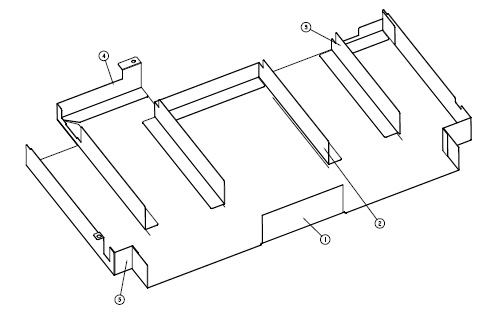

    Air Duct
    384-13815-3100A0    		 Air duct, Plastic, RM13804-307A, PC mylar, 94V-0, BK, for Fan 4056
    Bezel
    384-14605-3100A0    		 Front Bezel, 1U, Metal, Black

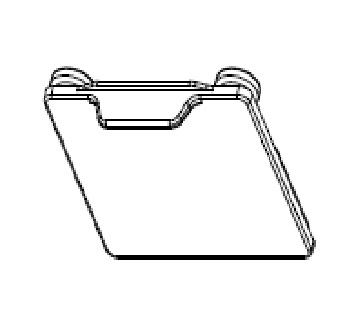

    Bracket
    55H073219A004    		 Dummy Cover, for CRPS Module Opening
    Cover
    50H033137B006    		 Cover Fan, plastic, RM13704-50B, ABS 94V-0, BK CC1012
    Cover
    55H033146A013    		 Dummy Cover for PCIe slot on rear window, for RM138 series

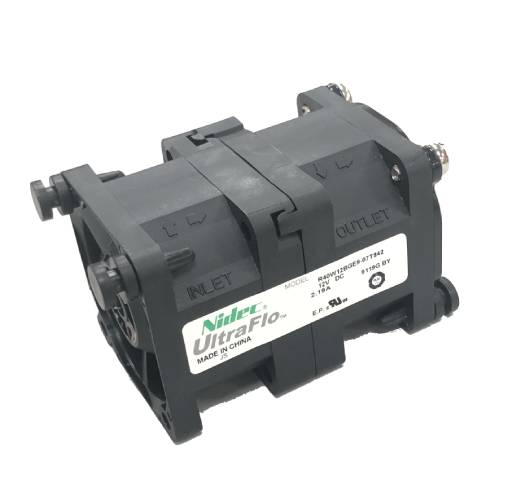

    Fan
    383-13830-3004A0    		 AS'Y MISC., Fan (4056), Nidec, RM13804, w/Fan guard & screw
    HDD Kit
    370-13310-3005A0    		 HDD Kit, screw packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS, for screw-on HDD tray
    HDD Kit
    370-13310-3006A0    		 HDD Kit, screw packing, 3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS, for screw-on HDD tray

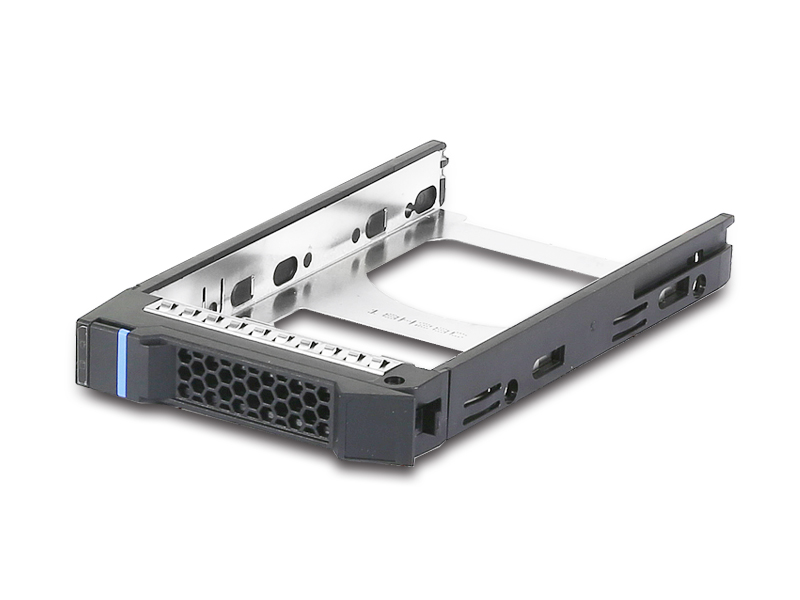

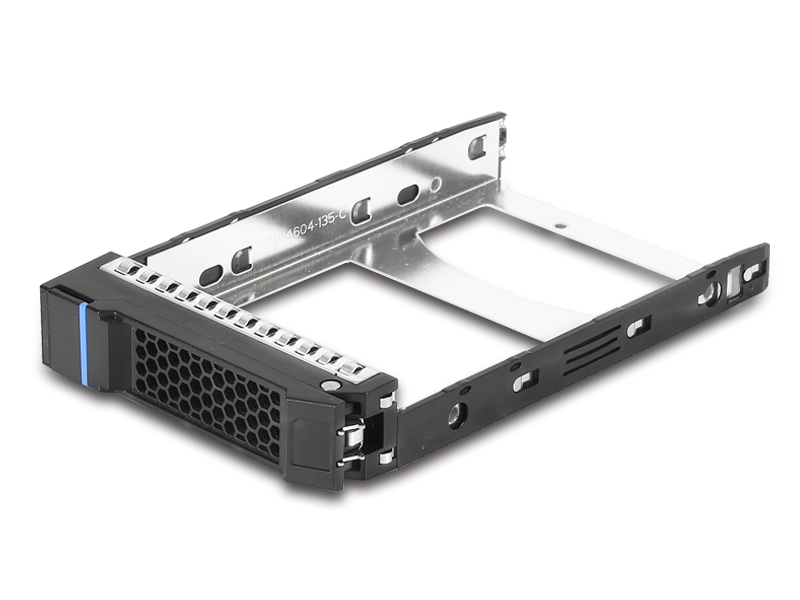

    HDD Tray
    383-14655-3034B0    		 2.5" HDD Tray, screw-on
    HDD Tray
    84H314610-005    		 3.5" HDD Tray(#83H553146-007),panel BK CC1012/BL CC8103(#285C), screw-on,  50pcs/CTN
    Rack Handle
    384-14609-3100A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024    		 Latch-type Rack Handle (Left)
    Rack Handle
    84H314610-025    		 Latch-type Rack Handle (Right)

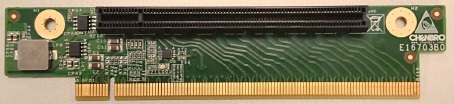

    Riser Card
    380-13809-3000A0    		 Riser Card, 1-slot, PCI-e 16x(RM13804b002), w/o PCIe holder, for RM138 series (for Intel 2600 MB Only)
    Riser Card
    384-14612-3101A0    		 Riser card, 1-slot, PCIe 16x (RM13804b002), with PCIe holder and packing, for RM138 series (for Intel 2600 MB Only)

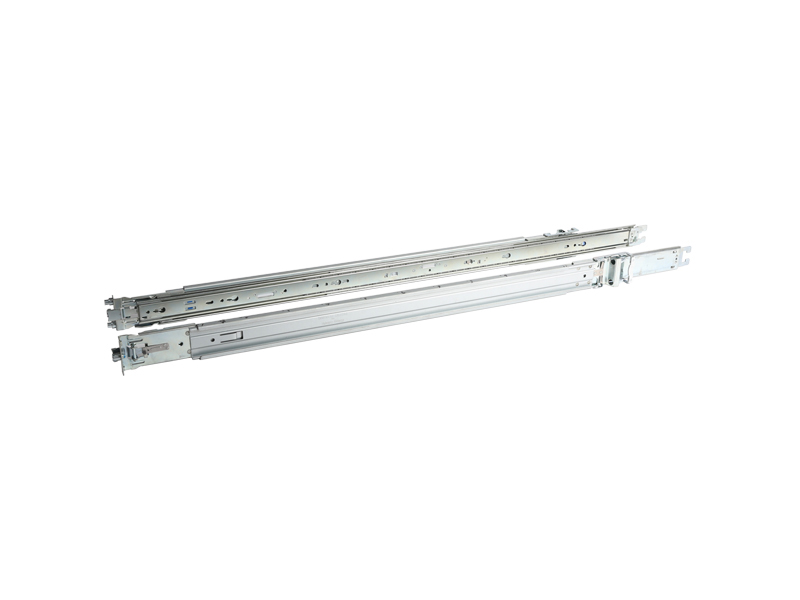

    Slide Rail
    384-23903-3300B0    		 32.8“ slide rail, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less

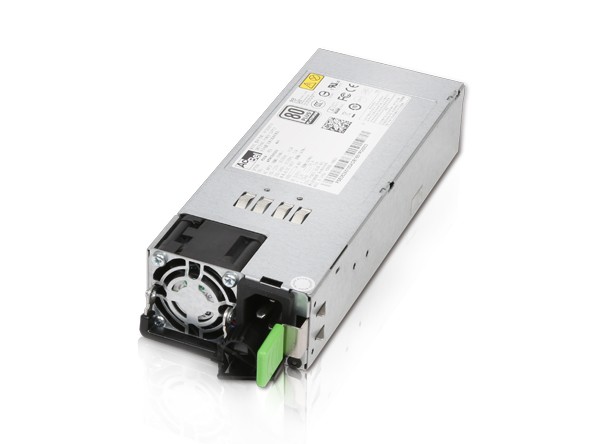

    电源供应器
    32H1080001101    		 PSU, CRPS, 800W, Hot Swap, w/o PDB, ACBEL, 1X
