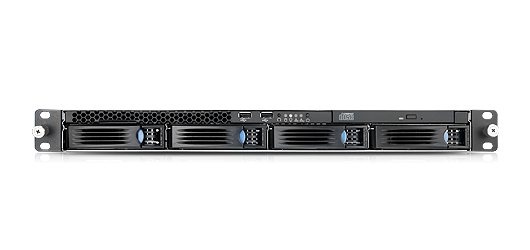

RM13604
1U 高散热效能服务器机箱
支持四个3.5’’热插拔SAS/SATA硬盘，具有多处专利设计的免工具安装。水平式背板、防回流设计和智慧风扇控制，使得它可以操作在较高的环境温度下，是节能的最佳选择。
产品规格比较
产品特点
- 免工具安装2.5’’硬盘、扩充卡架和风扇
- 快速安装与拆卸的前窗机柜固定螺丝
- 3.5’’硬盘托盘可支持3.5’’及2.5’’硬盘
- 前置信息标签，方便服务器管理
- 具智慧风扇控制的水平安装6Gb/s热插拔背板
- 气体流向控制挡片防止回流
- 具防震设计的中置风扇
- 支持1U单电源和1+1冗余电源
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 1U 适应主板 Extended ATX (12” x 13”) 机箱尺寸(深x 宽x 高) 658.4 x 430 x 43.3 (mm)
25.92” x 16.93” x 1.7”槽位 Slim ODD：1
3.5" Hot-swap：4
Internal 2.5"：2
电源类型 1U Single or Redundant 指示灯号 1 x Power Status,
1 x HDD Activity,
2 x LAN Activity ,
1 x Fan Failure and Overheat (RPSU SKU)前板控制 Power On/Off, Alarm Mute, System Reset, 2 x USB2.0 安全装置 NA 风扇 Middle: 4 x 40 mm, T=28 mm (Up to T=56mm ) (Up to 6 ) 扩展卡位 1x Full Height & Length 热抽拔背板 12Gb/s SATA 净重 6.8kg 毛重 9.0kg 面板 NA 才积 2.04 装柜数量(单包) 20': 450, 40':930, 40'H:1050 -
分類 说明 版本号 档案大小 下载 Firmware Intel S2600CW SDR for SKU RM13604T2-CW X00 7.3 KB
User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane (80H10313601A0), Rev. A0 V1.0 416.0 KB
User Manual LED 显示屏(80H03324101A0) 特徵与Jumper 设定 V1.0 762.6 KB
-

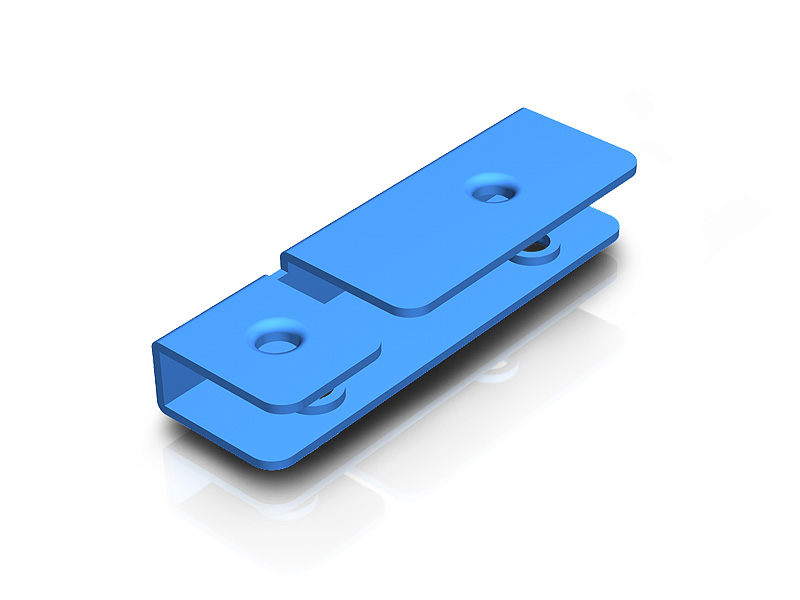

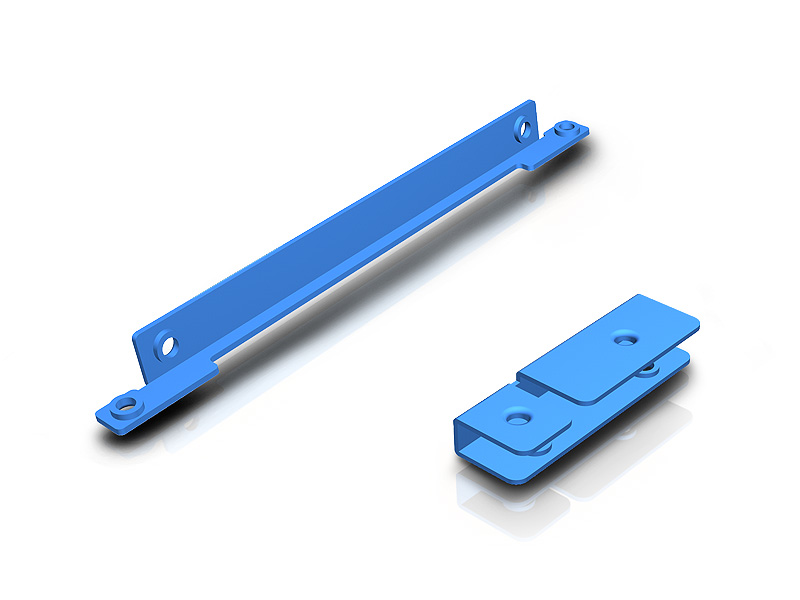

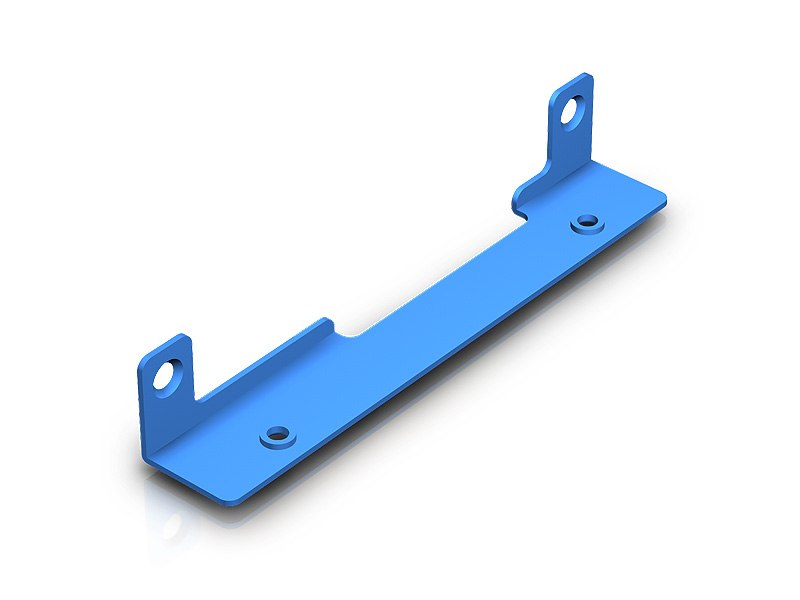

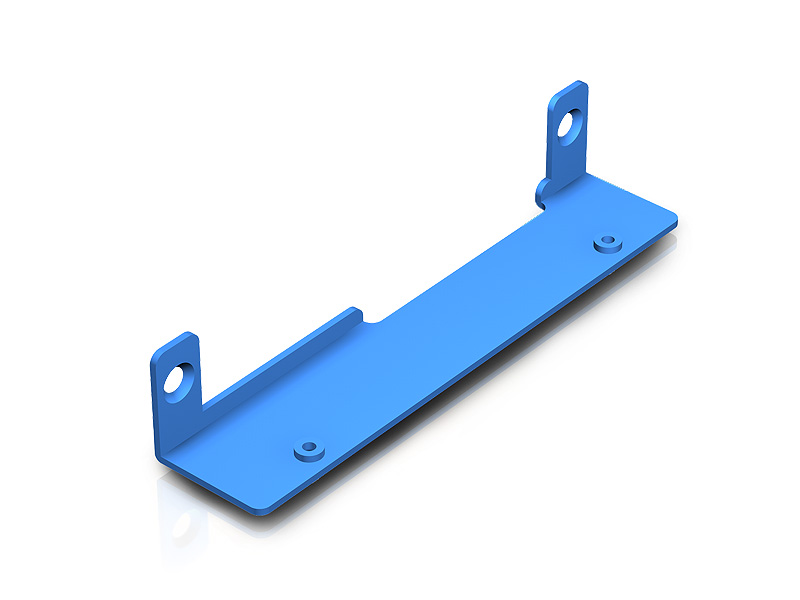

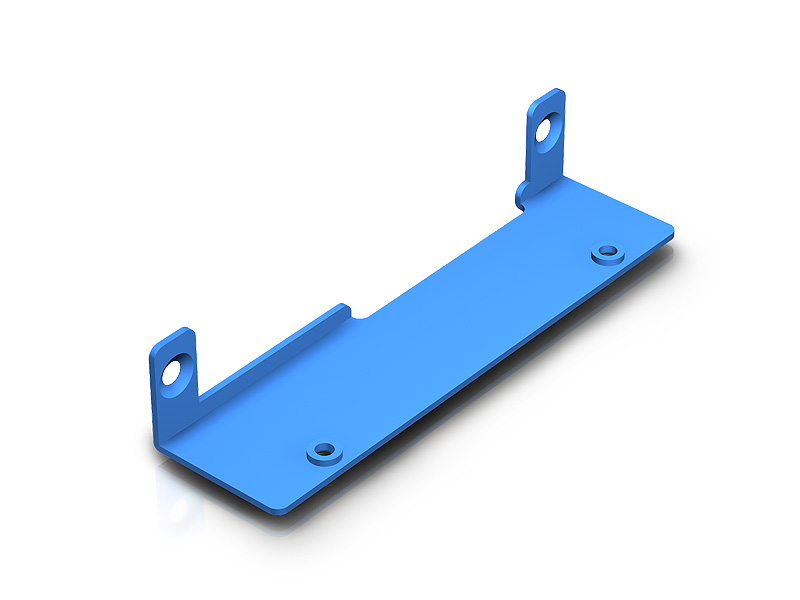

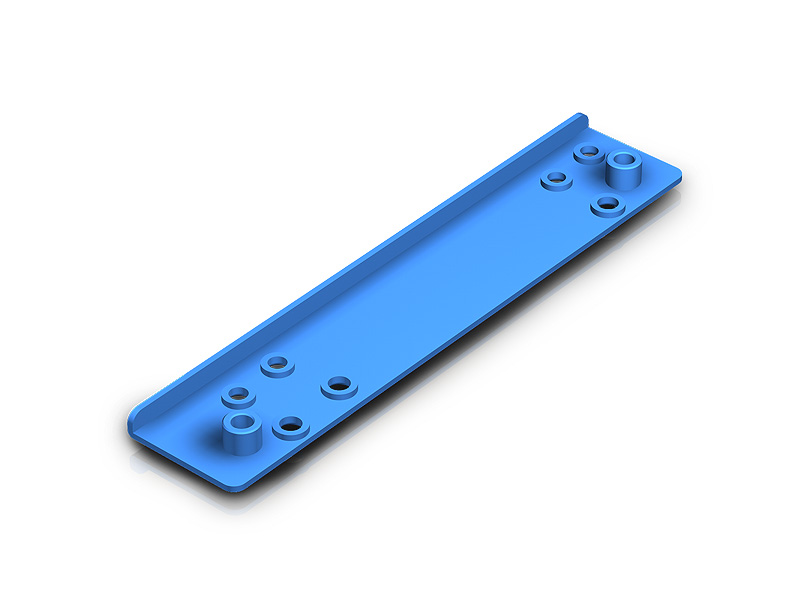

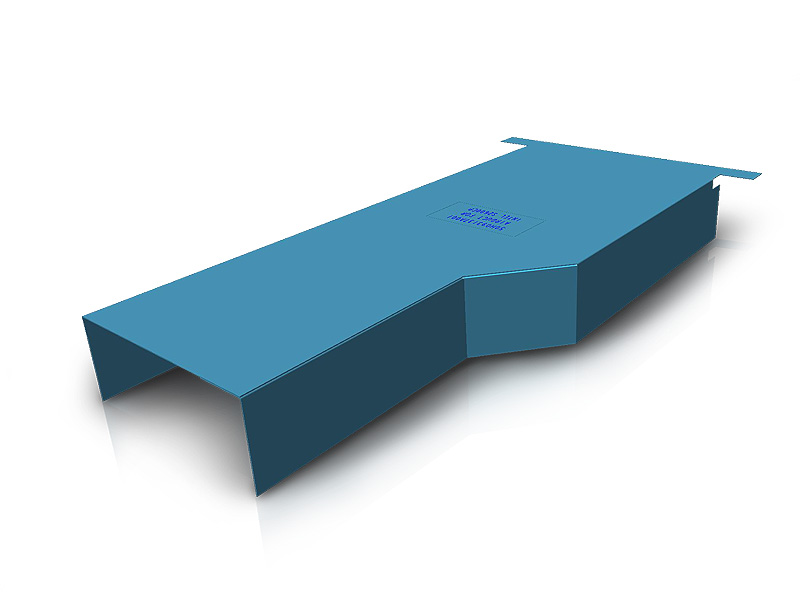

类型 型号 说明 支持机型 Air Duct 50H093137A001 Air Duct, PVC, For Intel S2600CP Bracket 84H312410-070 Bracket, PSU, 1U, For P1H-5400VP/P1H-5500V Bracket 84H313610-005 Bracket, PSU, 1U, For YH-8651BA11R Bracket 84H313610-007 Bracket, PSU, 1U, For AcBel FS9029-7H1G Bracket 84H313610-012 Bracket, PSU, 1U, For M1U2-5650V4H Bracket 84H313710-002 Bracket, PSU, 1U, For FSP500-701UP Bracket 84H313710-007 Bracket, PSU, 1U, For FSP460-701UH Cable 26H12323601A0 Cable, mini-SAS(Host) to 4x SATA, w/Sideband, 600mm

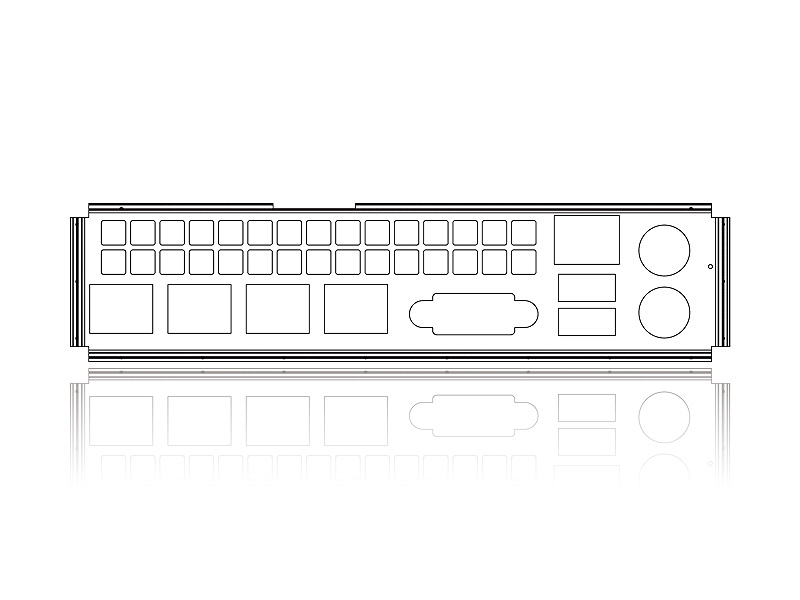

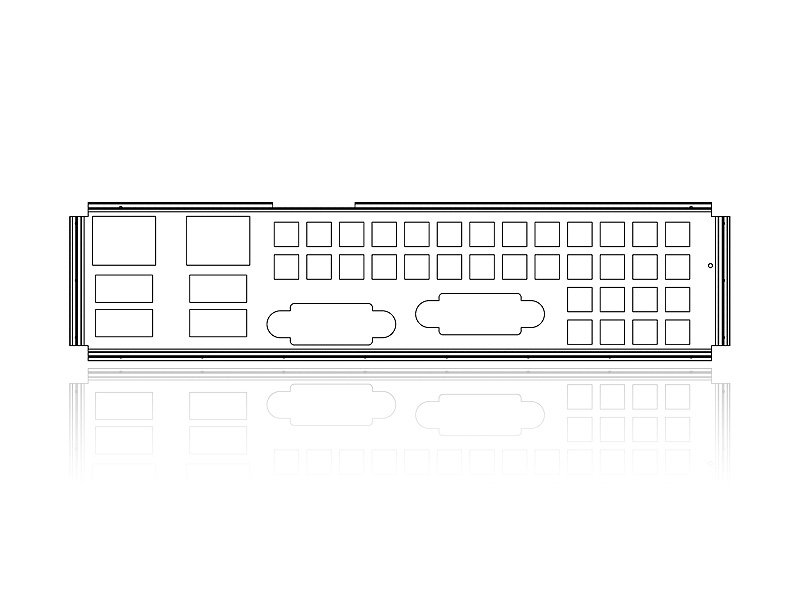

I/O Shield 84H313110-009 1U, For Intel S5520HC/S5500BC/S3420GP I/O Shield 84H313610-022 I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH I/O Shield 84H313710-009 1U, For Intel S2600CP/S2600CO I/O Shield 84H313710-022 1U, For ASUS Z9PE-D16 I/O Shield 84H314610-009 1U, For Intel S1200SPO/ S1200SPL/S1200SPS Power Supply 32H1050001101 PSU, 500W, 1U Single, Acbel FS9029-7H1G, 80+ Gold Power Supply 32H2065002202 PSU, 650W, 1+1 Redundant, YH-8651BA11R, PMBus 1.1 Riser Card 80H09313702A0 1-slot, PCI-e x16, Short Version Riser Card 80H09313703A1 1-slot, PCI-e x8, Short Version Slide Rail 84H311610-082 Slide Rail, 26", Tool-less Slide Rail 84H311710-095 Slide Rail, 26" 请选配件编号以观看图片 Support
