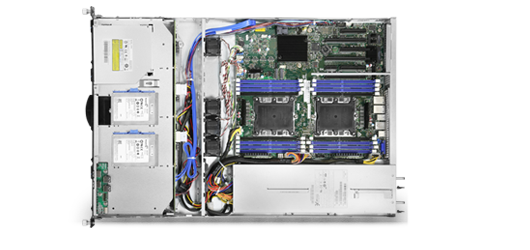

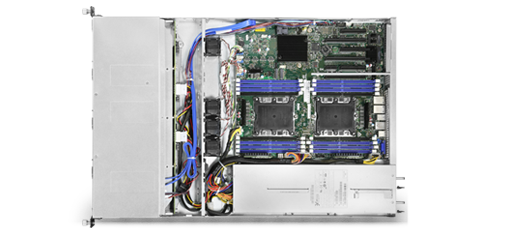

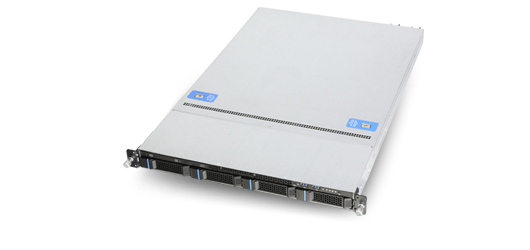

RM133 Series
1U 双插槽通用模块化服务器机箱
新一代1U通用服务器机箱，内置12Gb / s热插拔背板，采用智能速度控制风扇，最大限度地提高双插槽主板的性能。
产品规格比较
产品特点
- 支持 M/B 尺寸高达12“x13”
- 免工具安装HDD托盘2.5“和3.5”HDD / SSD
- 12Gb / s mini-SAS高清背板，带智能风扇控制
- 风扇厚度可达56mm
- 前端访问信息标签，便于服务器管理
- 支持1 + 1 冗余电源

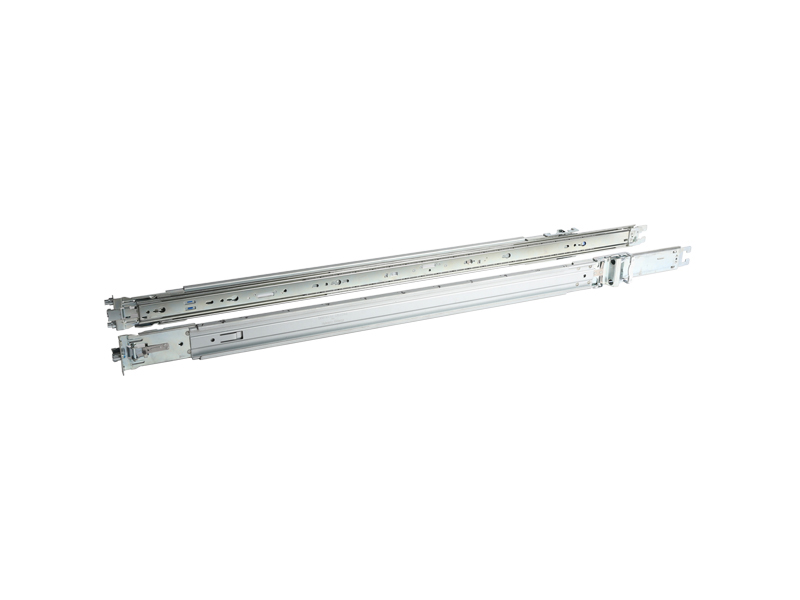

- 可选的易于使用的免工具或具有成本效益的摩擦导轨
- 规格
- 下载
- 选配件
- 兼容列表
-
Form Factor 1U 适应主板 Extended ATX (12" x 13") 机箱尺寸(深x 宽x 高) 657.5 x 438.5 x 43.5 (mm)

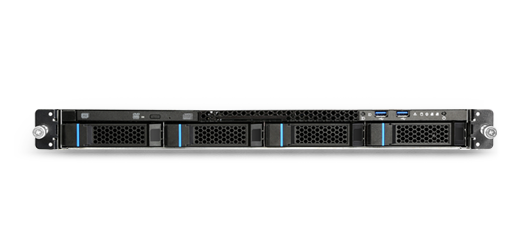

25.89”x 17.27” x 1.72”槽位 RM13304 3.5" Hot-swap：4
RM13304 2.5" Internal :：2
RM13304 slim ODD : ：1

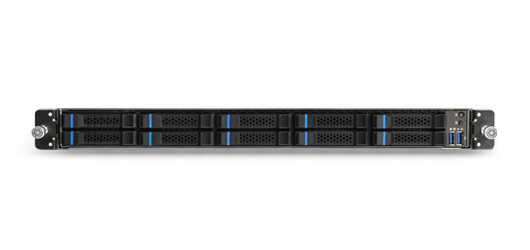

RM13310 2.5" Hot-swap：10

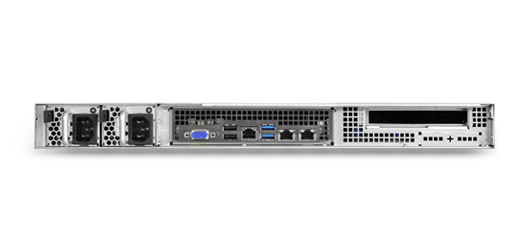

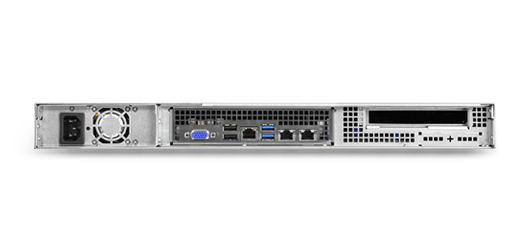

电源类型 1U Single, 1U 1+1 Redundant 指示灯号 1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x UID
1 x System Status前板控制 1 x Power On/Off
1 x UID
2 x USB 3.0安全装置 Intrusion Switch (Option) 风扇 RM13304 Middle: 4 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)

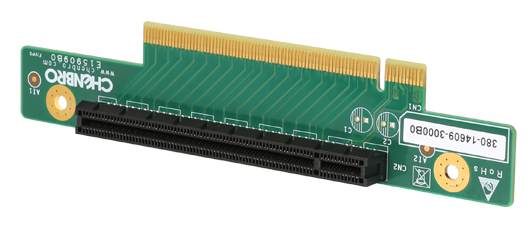

RM13310 Middle: 5 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)扩展卡位 1 x Full Height & Half Length 热抽拔背板 RM13304: 4-Port 12Gb/s SAS/SATA
RM13310: 10-Port 12Gb/s Mini-SAS HD净重 10.52 Kg 毛重 14.59 Kg 面板 Option 才积 3.00 装柜数量(单包) 20':240, 40':528 -
分類 说明 版本号 档案大小 下载 Datasheet RM133 Series Datasheet V1.3 2.2 MB
User Manual RM133 Series User Manual V1.3 2.2 MB
-

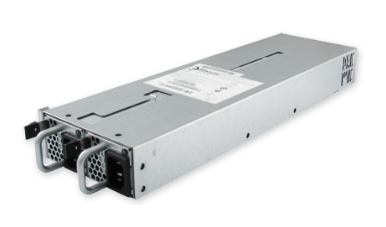

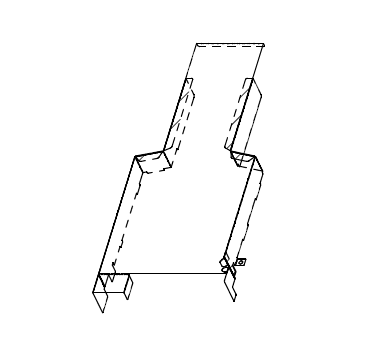

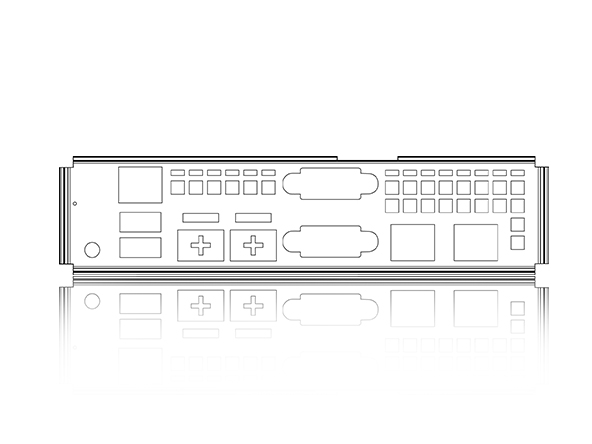

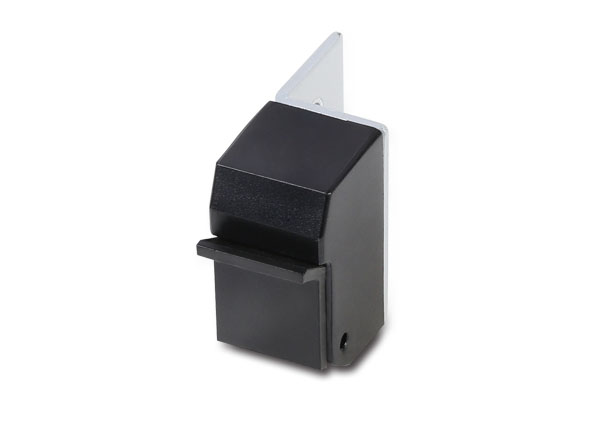

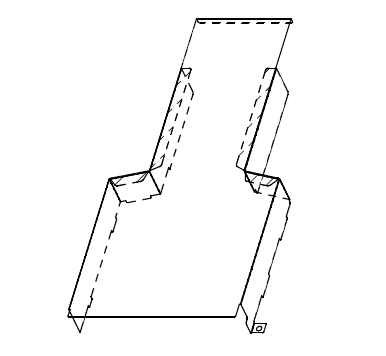

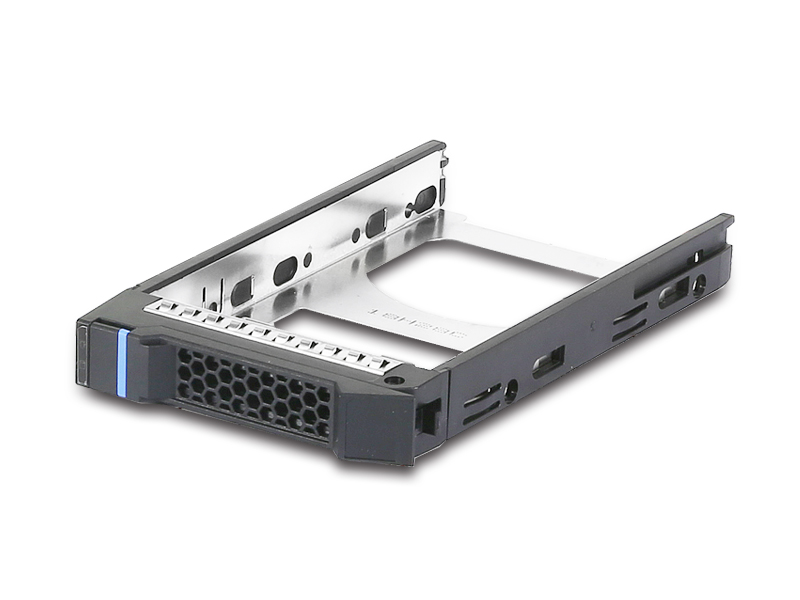

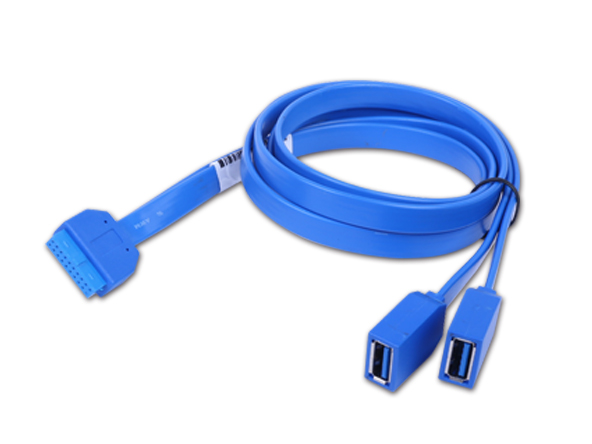

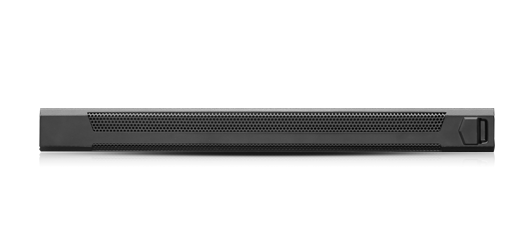

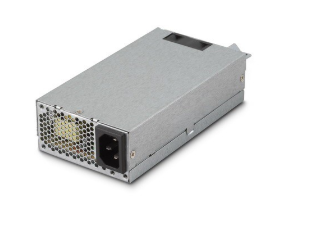

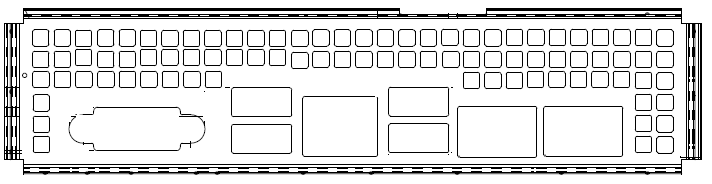

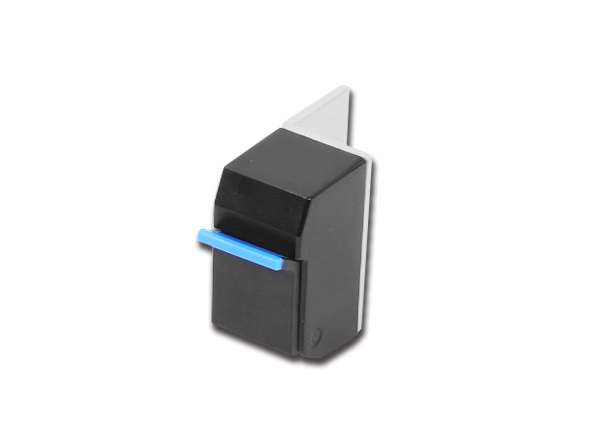

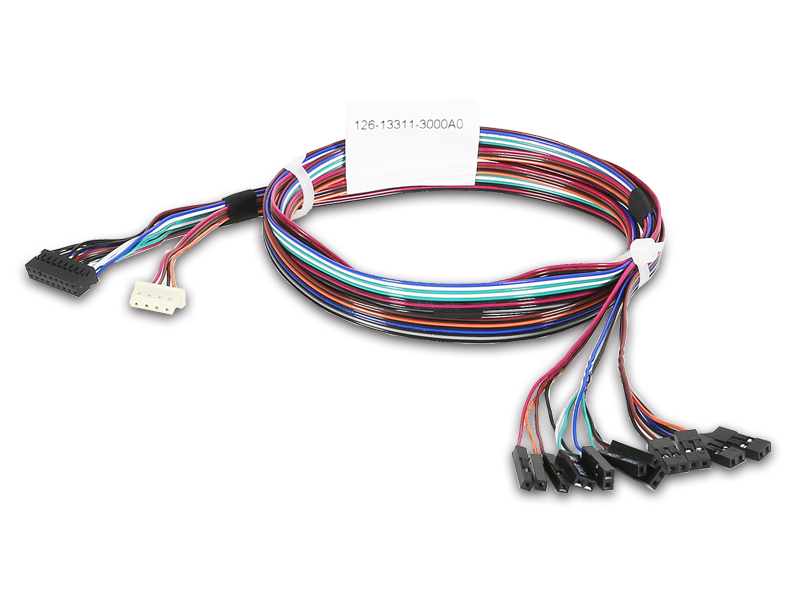

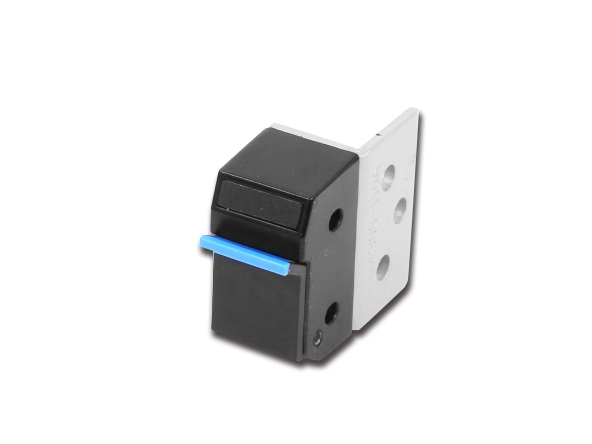

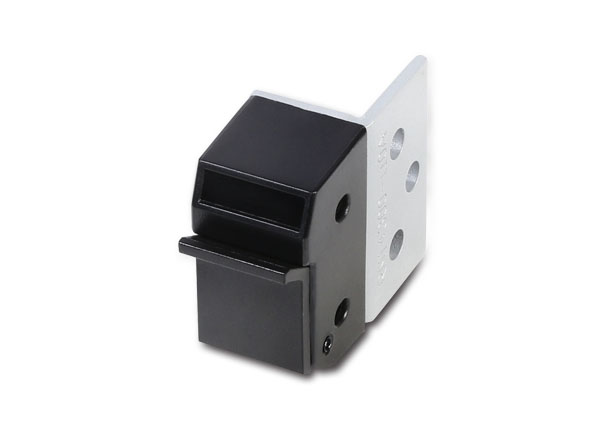

类型 型号 说明 支持机型 Air Duct 350-13335-3400A0 PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4056FAN*4PCS) Air Duct 350-13335-3401A0 PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4028FAN*3PCS/4PCS) Backplane 380138103000B0 10-port 12Gb/s Mini-SAS HD Backplane Backplane 80H10314603A0 4-port 12Gb/s SATA Backplane Bezel 384-14605-3100A0 Front Bezel, 1U, Metal, Black Cable 126-13311-3000A0 Cable, Display, 900mm, w/I2C, Discrete pins Cable 26H03313601A0 USB3.0, 20P to Type A plug, 750 mm Cable 384-14620-3307A0 Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment Cable 384-14620-3310A0 Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment Cable 384-14620-3311A0 Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment HDD Tray 383-14655-3034B0 2.5" HDD Tray, screw-on I/O Shield 384-13314-3200A0 1U I/O Gasket for Intel Silver Pass I/O Shield 84H314610-018 1U, For Asrock D1541D4U-2T8R Power Supply 132-10500-0502A0 PSU, SINGLE, 500W, FSP500-50FSPT Power Supply 132-20650-0500A0 PSU, 1+1 redundant,650W，FSP - RPSU - YH5651-1MA07R Rack Handle 384-14609-3100A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left Rack Handle 384-14609-3101A0 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right Rack Handle 84H314610-024 Latch-type Rack Handle (Left) Rack Handle 84H314610-025 Latch-type Rack Handle (Right) Riser Card 380-14609-3000B0 PCI-e x16 Riser Card Slide Rail 384-23803-3300B0 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less Slide Rail 84H314610-003 599 mm, Tool-less, Single Packing 请选配件编号以观看图片 Support
