RB251 Series
2U高运算效能准服务器
RB251系列支持第三代Intel Xeon 可扩充系列处理器，最多可配备24个内存插槽，针对企业及云端应用，满足高效运算需求。
产品规格比较
产品特点
- Intel® Server Board M50CYP2SBSTD
- 3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189
- High performance SAS/SATA/NVMe Gen 4 storage, up to 24 x 2.5” or 12 x 3.5” HDD
- Support for up to 8 PCIe 4.0 slots: 6 x full-height, 2 x half-height
- 1+1 redundant CRPS, 2000W
- Flexible ethernet with support for OCP 3.0 module per server
- Higher memory capacity, up to 12TB memory, 32 DIMMs per system

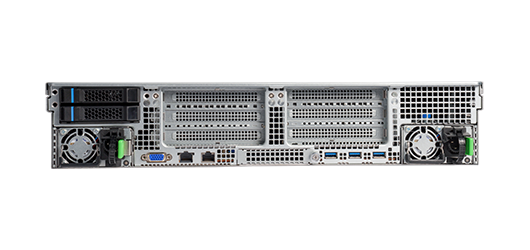

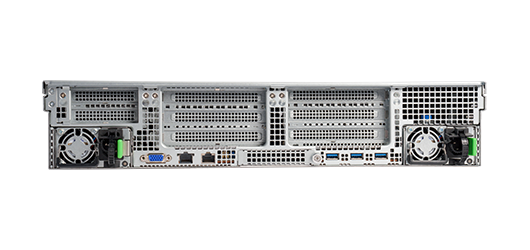

- 2-Bay 2.5" hot-swap HDD or 2x PCIe low profile in the rear
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
Form Factor 2U 主板 Intel M50CYP2SBSTD (Coyote Pass) 处理器 3rd Gen Intel Xeon Scalable Product Family, up to 270W
Dual Socket-P4 LGA4189处理器接口 Dual Socket-P4 LGA4189 芯片组 C621A 内存类型 Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM 内存容量 Up to 12TB Memory Max DIMM Slots 32 DIMMs (16 per CPU), 8 Channels CPU散热器 2U Passive with Air Duct (or 1U Passive with Air Duct - GPGPU Required) I/O口 OCP 3.0 机箱尺寸(深x 宽x 高) 770 x 438 x 87.0 mm;
30.3” x 17.24” x 3.4”Serial Port 1 x RJ45 Serial Port A 槽位 Rear Storage:：
- 2 x Internal Fixed Mount 2.5” SSDs (* Power Cable Option)：
- 2-Bay 2.5” HDD Hot Swappable, Supporting 7mm SSD or 15mm NVMe (Option)：
* NVMe module must be option with cooling fan kit (2pcs)：
* Shared PCIe low profile space, need to remove riser card w/ bracket：
2.5” SKUs:：

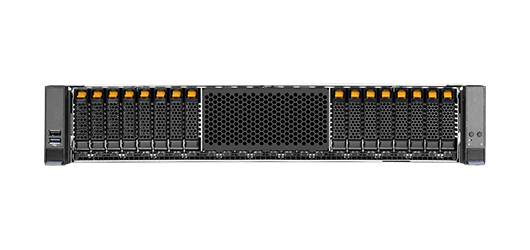

- 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 16 or 24-Bay, Optional)：

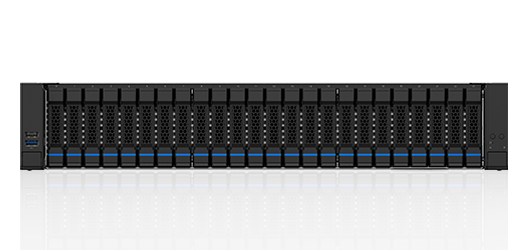

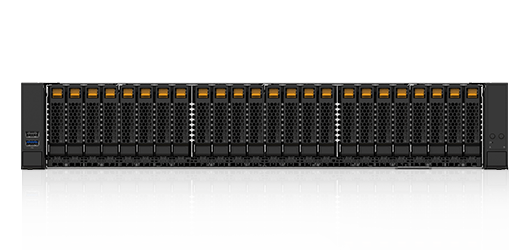

- 24 x 2.5” tool-less, Hot-swap; Supports SAS/SATA：

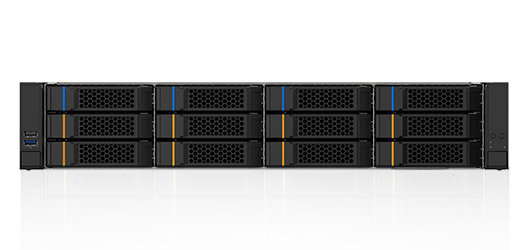

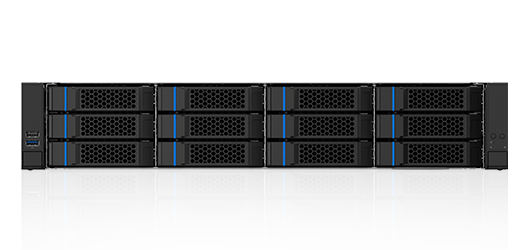

3.5” SKUs:：
- 8 x 3.5” Tool-less, Hot-swap; Supports SAS/SATA：

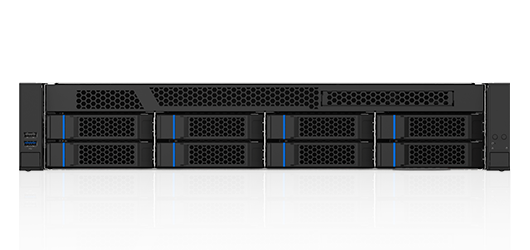

- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA：
网口 OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional) 电源类型 2000W 1+1 CRPS, 80+ Platinum 视频口 Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory 指示灯号 1 x System Status, 1 x HDD Activity USB口(外置) Rear: 3 x USB 3.0
Front: 1 x USB 3.0, 1 x USB 2.0前板控制 1 x Power On/Off, 1 x System Reset, 1 x ID Button,
1 x USB 3.0, 1 x USB 2.0安全装置 Intrusion Switch and Security Bezel with Key Lock (Optional) 风扇 6 x 60mm Middle Hot-swap System Fan, PWM, 23000 RPM 扩展卡位 Support for up to 8-slot PCIe 4.0: 6 x Full-height and 2 x Half-height
Riser 1 (CPU#0): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER1STD
Riser 2 (CPU#1): 3-slot PCIe 4.0
- 1 x PCIe 4.0 x16 (x16 lanes), FHFL
- 1 x PCIe 4.0 x16 (x8 lanes), FHFL
- 1 x PCIe 4.0 x8 (x8 lanes), FHFL
* P/N# Intel CYP2URISER2STD
Riser 3 (CPU#1): 2-slot PCIe 4.0
- 2 x PCIe 4.0 x16 (x8 lanes), LPHL
* P/N# Intel CYP2URISER3STD
* With option 2-Bay 2.5” HDD module, riser card w/ bracket needs to be removed.
Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)净重 23.1 KG/PCS 毛重 32.5 KG/PCS -
分類 说明 版本号 档案大小 下载 Datasheet RB251 series datasheet v1.1 V1.1 2.3 MB
User Manual RB251 Series User Manual v0.8 v0.8 31.0 MB
-
类型 型号 说明 支持机型 请选配件编号以观看图片 Support -
Part Category Part No. Qty. Description
