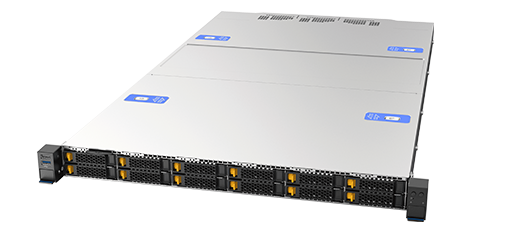

RB151 Series

1U高运算效能准服务器

RB151系列支持第三代Intel Xeon 可扩充系列处理器，最多可配备12个内存插槽，针对企业及云端应用，满足高效运算需求。

产品规格比较

清除确认

快速查找

搜寻

产品规格比较

产品特点

Intel® Server Board M50CYP2SBSTD
3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189
High performance SAS/SATA/NVMe Gen 4 storage, up to 12 x 2.5” or 4 x 3.5” HDD
Support for up to 3 low profile, half length PCIe 4.0 cards

1+1 redundant CRPS, 1600W
Flexible ethernet with support for OCP 3.0 module per server
Higher memory capacity, up to 12TB memory, 32 DIMMs per system

Specification
Download
Accessory
Compatibility
Order Information

Form Factor	1U
主板	Intel M50CYP2SBSTD (Coyote Pass)
处理器	3rd Gen Intel Xeon Scalable Product Family, up to 205W Dual Socket-P4 LGA4189
处理器接口	Dual Socket-P4 LGA4189
芯片组	C621A
内存类型	Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM
内存容量	Up to 12TB Memory
Max DIMM Slots	32 DIMMs (16 per CPU), 8 Channels
CPU散热器	1U Passive
I/O口	OCP 3.0
Serial Port	1 x RJ45 Serial Port A
网口	OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional)
视频口	Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory
USB口(外置)	Rear: 3 x USB 3.0 Front: 1 x USB 3.0, 1 x USB 2.0
扩展卡位	Up to 3-slot PCIe 4.0: 3 x Low-Profi le and Half-Length Riser 1 (CPU#0) - 1 x PCIe 4.0 x16 (LPHL) * P/N# Intel CYP1URISER1STD Interposer Riser (CPU#1) - 1 x PCIe 4.0 x8 (LPHL) * P/N# Intel CYP1URISER2KIT Riser 2 (CPU#1) - 1 x PCIe 4.0 x16 (LPHL) * P/N# Intel CYP1URISER2KIT Riser 3 (CPU1): NVMe Gen4 Expansion Slot - 2 x PCIe SlimSAS x8 support up to four NVMe SSDs in the front drive bay through a backplane. * P/N# Intel CYPRISER3RTM (Optional) Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)
