RB14604

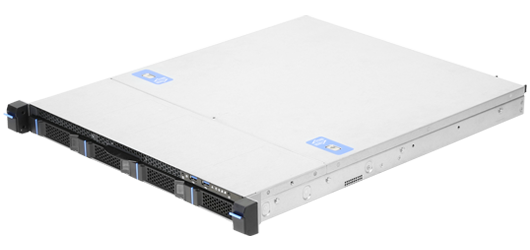

1U 单插槽企业和云端应用级服务器机箱
最新的1U服务器，采用Intel® Xeon® E-2300和第10代Intel® Pentium®系列处理器，旨在成为主流需求的主要工作服务器。
产品规格比较
产品特点
- ASRock® Server Board E3C252D4U
- Supports M/B size up to Micro-ATX (9.6" x 9.6")
- Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors, Single Socket H5 (LGA1200)
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1U single 400W (80+ Platinum)
- 1 x PCIe 4.0 x16 , FHHL
- Intel® C252 (6 SATA 6Gb/s; RAID 0/1/5/10) : 5 SATA 7-pin, 1 SATA DOM or 1 M.2
- Specification
- Download
- Accessory
- Compatibility
-
Form Factor 1U 主板 Micro-ATX(9.6" x 9.6") ASRock E3C252D4U 处理器 Intel Xeon E Processor (Single LGA1151), up to 95W TDP 处理器接口 Single Socket H5 (LGA1200) 芯片组 Intel® C252 内存类型 4 DIMM slots (2DPC) support DDR4 288-pin ECC/non-ECC UDIMM
(up to 32G-Max. Capacity per DIMM)内存容量 4 DIMM slots (2DPC) Memory Voltage 1.2V Max DIMM Slots ECC/non-ECC UDIMM: up to 32GB(per DIMM) CPU散热器 90 x 90 x 33.9(mm) , w/SCREW*4 , CU/AI 机箱尺寸(深x 宽x 高) 547.6 x 438.5 x 43.5 (mm) ; 21.56" x 17.26" x 1.71"
Serial Port 1 x ASPEED IPMI2.0 Compliant AST 2500 BMC

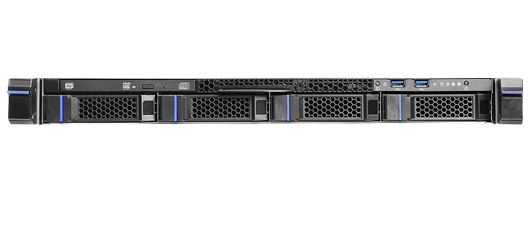

槽位 3.5" Hot-swap：4

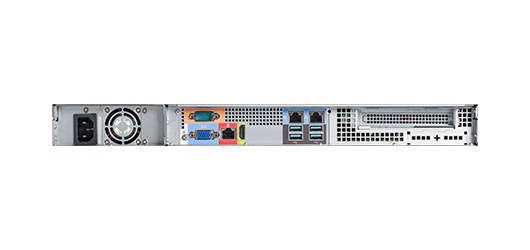

网口 4 x 1GbE Base-T RJ45
1 x MGNT电源类型 1U single 400W (80+ Platinum)
指示灯号 1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x System Alarm, 1 x HDD Status USB口(外置) 2 x USB3.1 Gen1 前板控制 1 x Power On/Off, 1 x System Reset, 2 x USB3.1 Gen1 风扇 4 x FAN,40*40*28(mm) ,14500RPM 扩展卡位 1 x Full Height and Half Length (PCIe 4.0 x16 supported)
热抽拔背板 3.5" 4-port 12 Gb/s, SAS/SATA 净重 14.0 Kg 毛重 26.5 KG/PCS -
分類 说明 版本号 档案大小 下载 Datasheet RB14604 Datasheet V1.0 259.2 KB
Product Certification RB14604 CB V1.0 113.3 KB
Product Certification RB14604 CE V1.0 347.2 KB
Product Certification RB14604 FCC V1.0 25.9 KB
Product Certification RB14604 UL V1.0 174.8 KB
User Manual User manual V1.3 1.6 MB
-
类型 型号 说明 支持机型 Backplane 380-14610-3000A2 3.5" 4-port 12Gbps SAS/SATA Backplane Cable 126-14612-3007A1 SATA Cable, 650mm Cable 126-14612-3008A1 SATA Cable, 280mm Cable 126-14612-3009A1 SATA Cable, 400mm Cable 126-14612-3010A1 SATA Cable, 500mm Cable 126-E0000-0010A0 DISPLAY CABLE,18P/4P TO 10P/20P/4P,W/I2C,680MM,FOR ASROCK MB

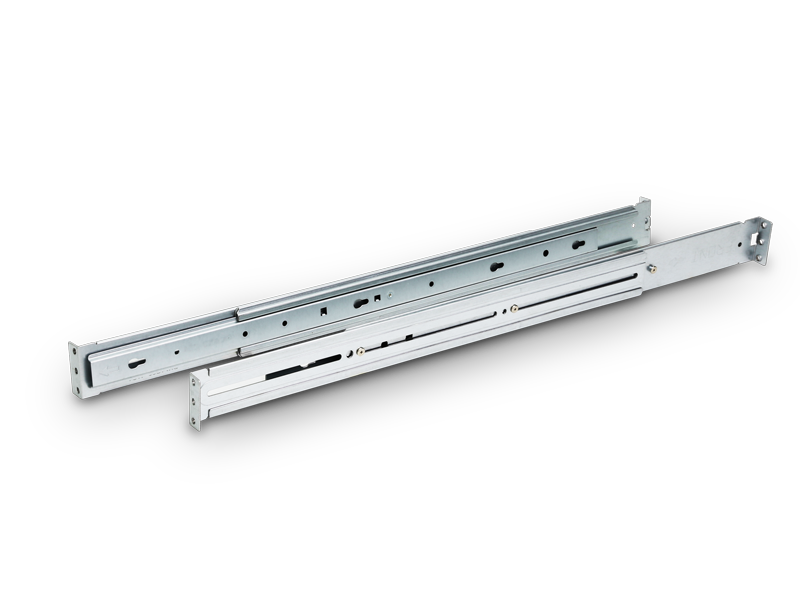

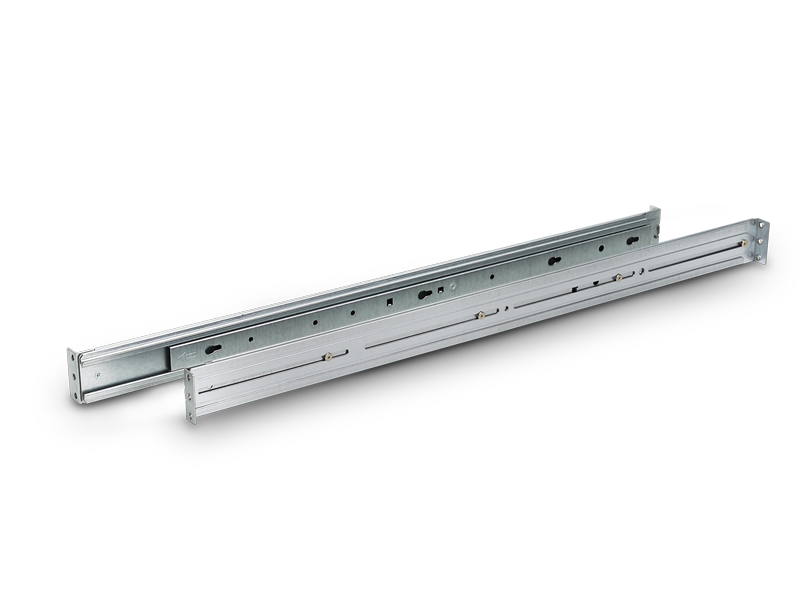

Cable 126-E0000-0011A0 CABLE,SGPIO,8P TO 10P,450MM,RB14604e003,REV.A0,JR3N04519,IDC TYPE Cable 26H03313601A0 CABLE,USB 3.0 REV.A0,RM13604e05,INTERNAL 20P TO TYPE A PLUG,750MM Fan 130-04028-3100A0 40x28mm System Fan HDD Tray 384-14602-3124A0 3.5" HDD TRAY,Panel BK, Screw-on Heat Sink 166-14603-E000A0 CPU Heatsink PCBA 380-14610-3000A2 AS'Y PCB,SAS,12G,4 PORT,RM14604b005,REV.A2,W/ANTI-STATIC BAG Power Supply 132-10400-0700A3 PSU,SINGLE,400W,FULL RANGE,P20+4:235MM/P8:280MM,W/BRACKET,ACTIVE PFC,FSE001-7HAG,RM14604e023,REV.A3,ACBEL Riser Card 380-14609-3000B0 PCI-e x16 Riser Card Slide Rail 384-14303-3102A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,8BOX/16CTN/PALLET Slide Rail 384-14303-3103A0 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,8BOX/16CTN/PALLET Slide Rail 84H314610-003 599 mm, Tool-less, Single Packing 请选配件编号以观看图片 Support
