| Form Factor |
1U |
| 主板 |
Intel S2600WFTR (Wolf Pass) |
| 处理器 |
Dual 2nd Generation Intel® Xeon® Scalable Processors, up to 165W
|
| 芯片组 |
Intel® C624 chipset
|
| 内存类型 |
24 x DDR4 DIMM Slot, 6 x Channel per processor
Up to 7.5TB, DDR4 UDIMM ECC, 2933 MT/s, 1.2V
|
| CPU散热器 |
1U passive |

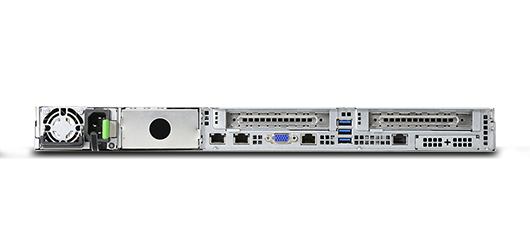

| I/O口 |
1 x UID
2 x 10GbE Base-T, RJ-45,
1 x MGNT
3 x USB3.0
|
| 机箱尺寸(深x 宽x 高) |
735.0 x 438.5 x 43.2 (mm)
28.94" x 17.26" x 1.70"
|
| TPM版本 |
2.0
|
| 槽位 |
3.5" Hot-swap：4
2.5" Internal：2
Slim ODD (Optional)：1
|
| 电源类型 |
800W CRPS, 80+ Platinum (single unit default)
|
| 指示灯号 |
1 x Power Status
2 x LAN Activity
1 x UID
|
| 前板控制 |
1 x Power Status
2 x LAN Activity
1 x UID
1 x System Alarm
2 x USB3.0
|
| 风扇 |
Middle : 6 x 4056 mm, 22.5K RPM |
| 扩展卡位 |
2 x FHHL PCIe Gen 3.0 x16
1 x I/O Module
1 x Integrated RAID Module |
| 热抽拔背板 |
3.5” 4-port SAS/SATA/NVMe PCIe Gen 3 (Tri-mode) |
| 净重 |
11.6 Kg
|
| 毛重 |
15.3 Kg |
