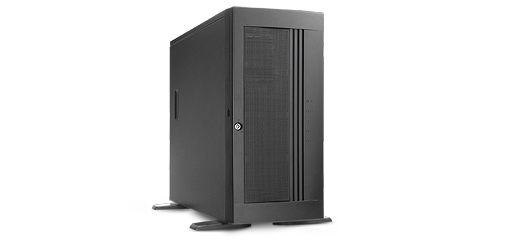

SR105 Plus
Versatile SSI EEB Tower Server Chassis
Provides a mainstream dual-socket chassis solution supporting wide range of system boards.
Compare
Features & Benefits

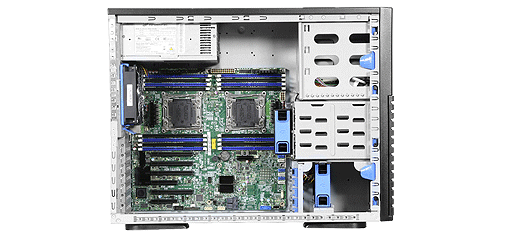

- Supports up to 12" x 13" M/B

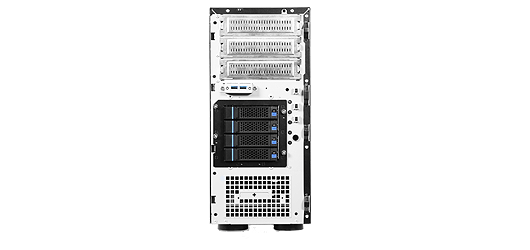

- Supports removable 4-bay 3.5" HDD Hot-swap and internal cages
- 3.5" HDD Hot-Swap cages with 12Gb/s Mini-SAS HD or SAS/SATA Backplane

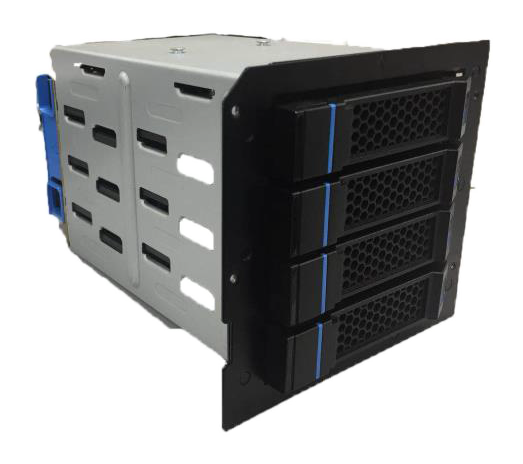

- Hot-swap cage with four patented tool-less 3.5" HDD trays
- 3.5" Internal HDD cage with patented anti-vibration technologies
- A dedicated 80mm fan for 3.5" HDD cooling
- A optional 80mm front fan for PCI-e card cooling
- Supports PCI-e 3.0 expansion slot opening
- Tool-less installation for bezel, HDD cage, side cover and fans
- Supports key lock, 3-wire intrusion switch and Kensington security slot
- Front bezel lock to prevent unauthorized access
- Supports Rack installation by slide rails(SR10566 Plus only)
- Supports single PS/2 and 1+1 Redundant PSU
- Specification
- Download
- Accessory
- Compatibility
- Order Information
-
M/B Form Factor SSI EEB (12" x 13") Dimensions (D x W x H) 533.0 x 198.0 x 425.0 (mm)
20.98" x 7.80" x 16.73" (w/o bezel)Drive Bays External 5.25"：3
3.5" Hot-swap：4
3.5" Internal (Option)：4
PSU Form Factor PS/2 Single or n+1 Redundant or 1+1 CRPS Indicators 1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x System AlarmFront Buttons 1 x Power On/Off
1 x System Reset
1 x Alarm Mute
2 x USB3.0System Security Intrusion Switch
Key Lock
Kensington SlotCooling Fans HDD Cage: 80 x 25 (1)
PCI: 80 x 25 (1)(Option)

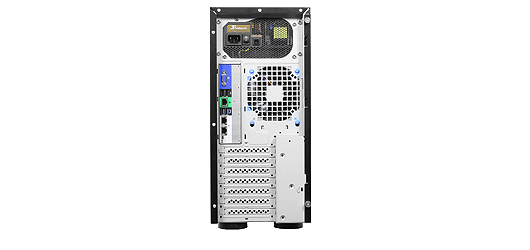

Rear: 120 x 25 (1)Expansion Slots 7 x Full Height (5 x Full Length + 2 x Half Length) HDD Backplane 3.5" 4-port 12Gbps, Mini-SAS HD
3.5" 4-port 12Gbps, SAS/SATA (Option)Metal Thickness 0.8mm Net Weight 9.0 kg Gross Weight 11.0 kg Front Bezel Option Cubic Feet 3.31 Container Loading 20': 315
40': 651
40'H: 720 (Single Packing) -
Category Description Revision Size Download Datasheet SR105 Plus_Datasheet V1.4 1.6 MB
Datasheet SR105 Plus Datasheet V1.5 26.6 MB
User Manual SR105-Plus_User Manual V2.3 2.3 MB
User Manual SR105 Plus User Manual V2.3 2.3 MB
-

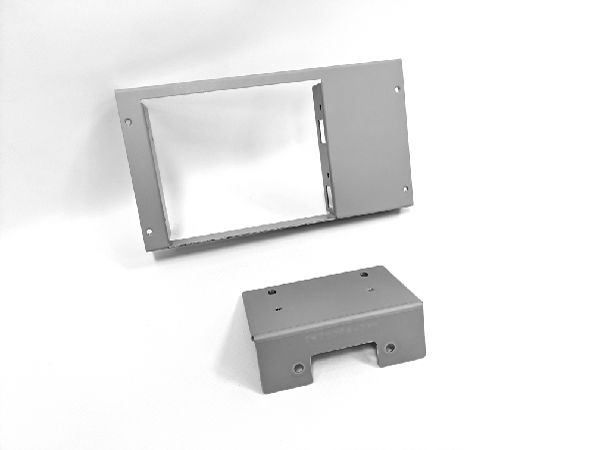

Product category Part. No# Description Support Bracket 384-MEC00390B0A0 Bracket, AS'Y COMPONENT,SR10569,BRACKET,BULK,FOR ACBEL CRPS PSU,W/SCREW PACKING,50PCS/CTN Bracket 84H210510-004 Rackmount Handle, Black, 2pcs/set, SR20966/SR10566
Cable CL-PWR-US Cable, Power Cord, 3-Pin, 6ft, 120V USA HDD Cage 384-10501-2101A0 Cage, 3.5" HDD, w/ 4-port 12Gbps mini-SAS HD BP & 80mm PWM Fan, Tool-less Tray HDD Cage 384-10501-2102A0 3.5" HDD cage, w/ 4-port 12Gbps SAS/SATA BP & 80mm PWM Fan, Tool-less Tray HDD Cage 384-10502-2100A0 Cage, 3.5" HDD, Internal, w/ Enhanced Anti-vibration Rubber & 80mm PWM Fan HDD Cage 84H220910-062 4-bay, 3.5" Non Hot-swap, w/92mm Fan HDD Cage 84H220910-085 4-bay, 3.5" Hot-swap, w/4-port 12Gbps SATA/SAS Backplane& 80mm Fan HDD Cage 84H220910-087 4-bay, 3.5" Hot-swap, w/4-port 12Gbps mini-SAS HD Backplane& 80mm Fan HDD Module 384-10501-2102A0 HDD Module, 3.5 HDD, 4-Port 12g SAS & SATA BP, TL Tray, SR105/209 Power Supply 132-20500-0500A0 PSU, 500W, 1+1 Redundant PSU, FSP500-50RAB, w/PSU Bracket PSU 132-20875-0700C1 PSU, Redundant1+1, 875W, P24:740/P8:640/P4+4:650mm, C0, ACBEL
PSU BRKT 84H210510-019 Bracket, PSU, Acbel R2IS Series, SRRail 84H210710-024 Rail, 23", SR105/107/112/209 SK SK31101T3 SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay SK SK32303T3 SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack SK SK33502T3 SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5" HDD Bays (12g SATA II/SAS) SK SK41101-BK-H SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK SK SK41202 SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay Click Part. No# to view item picture Support -
Order Code HDD Backplane HDD Cage PSU Cooling Fan SR10569-C4+ N/A 3.5" non Hot-swap Option 1x120mm; 1x80mm SR10569-C4+ R650 N/A 3.5" non Hot-swap Option 1x120mm; 1x80mm SR10569-C4+ R875 N/A 3.5" non Hot-swap Option 1x120mm; 1x80mm Part Category Part No. Qty. Description
