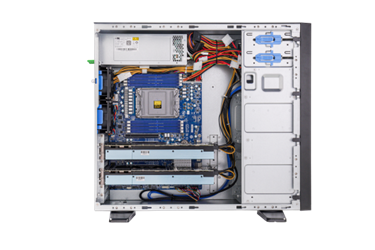

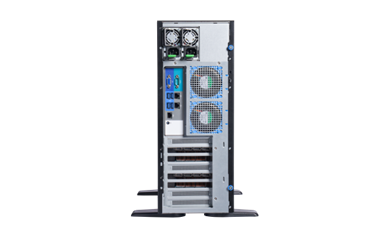

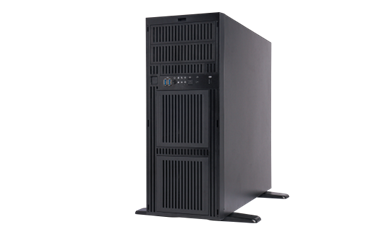

SR215
Tower Server Chassis for mATX and ATX Motherboard
This short-depth tower chassis is ideal for workstations, offering flexible configurations that maximize space efficiency while maintaining adaptability and performance.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports mATX and ATX motherboard
  • Replaceable two 5.25" drive bay and one 3.5" drive bay
  • Support ATX PSU and CRPS
  • Optional storage kit
  • Optional system fan kit
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor ATX (12" x 9.6"); Micro ATX (9.6" x 9.6")
    Dimensions (D x W x H) 526.6 x 175 x 440 mm; 20.7" x 6.89" x 17.32"
    Drive Bays External 5.25"：2
    External 3.5"：1
    3.5" internal HDD module with 80x38 mm fan：4
    3.5" external HDD hot-swap module with 80x38 mm fan：4
    PSU Form Factor 1200W ATX PSU; 800W 1+1 CRPS (optional)
    Indicators 1 x Power Status, 1 x System alarm, 1 x HDD Activity, 2x LAN Activity, 1 x UID
    Front Buttons 1 x Power on/off, 1 x system reset, 2 x USB3.0, 1 x audio combo, 1 x Type C (optional)
    System Security Intrusion switch; Key Lock on the front door
    Cooling Fans Front: 2 x 80mm (T=38mm), PWM, 8200RPM
    Rear: 2x 80mm (T=25mm), PWM, 4500RPM
    Expansion Slots 8 x full height
    HDD Backplane N/A
    Net Weight 19.2 KG
    Gross Weight 21.7 KG
    Cubic Feet 4.32 ft3
    Container Loading 20' FCL: 160 pcs / 40' FCL: 320 pcs (Single packing + Pallet)
  • Category Description Revision Size Download
    Datasheet SR215 Datasheet v1.0 591.2 KB
  • Product category Part. No# Description Support
    HDD Cage
    384-MIX00411B0A0    		 Internal 4-Bay HDD cage

    w/ fan： 384-MIX00411B0A0


    HDD Module
    384-PCB00046B0A0

    4-Bay HDD hot swap module， toolless HDD TRAY

    w/ fan： 384-PCB00046B0A0

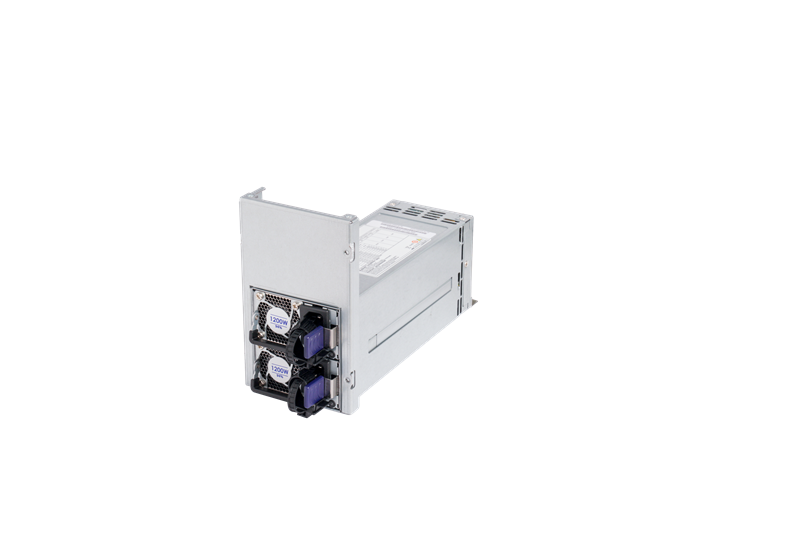

    Power Supply
    384-PSU00019B0A0

    Acbel 2U CRPS 220mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q010A00,ACBEL,FSL025-7HCG,800W,220MM


    Click Part. No# to view item picture
  • Order Code HDD Cage PSU Cooling Fan
    SR2156900-0010A0 2 bay 5.25", 1 bay 3.5"
    SR2156900-0020A0 2 bay 5.25", 1 bay 3.5", 1200W 2*8038 fan, 2*8025 fan
