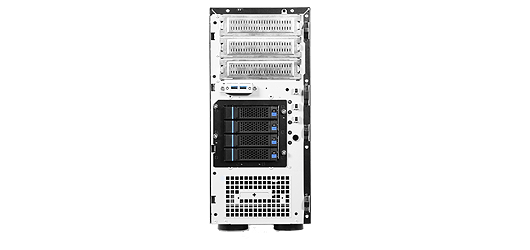

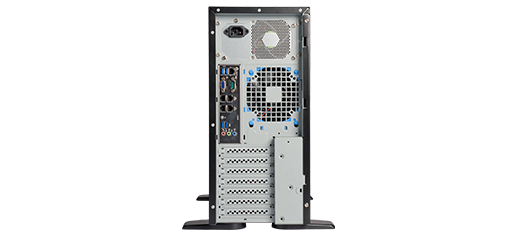

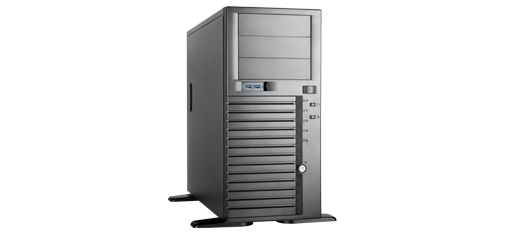

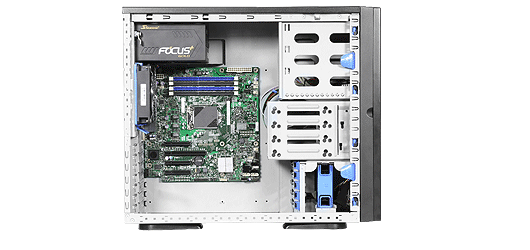

SR209 Plus
Feature-Rich ATX Tower Server Chassis
Provides a flexible single-socket chassis solution with adaptive installation and thermal options.
Compare
Features & Benefits
- Supports up to 12" x 9.6" M/B
- Supports cage for 4x internal 3.5" drives, OR cage for 4x hot-swappable 3.5" drives
- 3.5" HDD Hot-Swap cages with 12Gb/s Mini-SAS HD or SAS/SATA Backplane
- Hot-swap cage with four patented tool-less 3.5" HDD trays
- 3.5" Internal HDD cage with patented anti-vibration technologies
- A dedicated 80 mm fan for 3.5" HDD cooling
- A optional 80 mm front fan for PCI-e card cooling
- Supports PCI-e 3.0 expansion slot opening
- Tool-less installation for bezel, HDD cage, side cover and fans
- Supports key lock, 3-wire intrusion switch and Kensington security slot
- Front bezel lock to prevent unauthorized access
- Supports Rack installation by slide rails(SR20966 Plus only)
- Supports single PS/2 PSU and 1+1 redundant PSU
- Specification
- Download
- Accessory
- Compatibility
-
M/B Form Factor ATX (12” x 9.6”) Dimensions (D x W x H) 465.0 x 198.0 x 425.0 (mm)
18.31" x 7.80" x 16.73" (w/o bezel)Drive Bays External 5.25"：3
3.5" (Internal)：4
or 3.5" (Hot-swappable)：4
PSU Form Factor PS/2 Single or N+1 Redundant or 1+1 CRPS Indicators 1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x System AlarmFront Buttons 1 x Power On/Off
1 x System Reset
1 x Alarm Mute
2 x USB2.0/USB3.0 (Option)System Security Intrusion Switch
Key Lock
Kensington SlotCooling Fans HDD Cage: 80 x 25 (1)
PCI: 80 x 25 (1)(Option)
Rear: 120 x 25 (1)Expansion Slots 7 x Full Height (5 x Full Length + 2 x Half Length) HDD Backplane 3.5" 4-port 12Gbps, Mini-SAS HD
3.5" 4-port 12Gbps, SAS/SATA (Option)Metal Thickness 0.8mm Net Weight 7.8 kg Gross Weight 9.8 kg Front Bezel Option Cubic Feet 2.94 Container Loading 20ʼ: 350
40ʼ: 734
40'H: 820 (Single Packing) -
Category Description Revision Size Download Datasheet SR209 Plus_Datasheet V1.4 1.6 MB
Datasheet SR209 Plus Datasheet V1.5 48.9 MB
User Manual SR209-Plus_User Manual V2.4 2.2 MB
User Manual SR209 Plus User Manual V2.4 2.2 MB
-

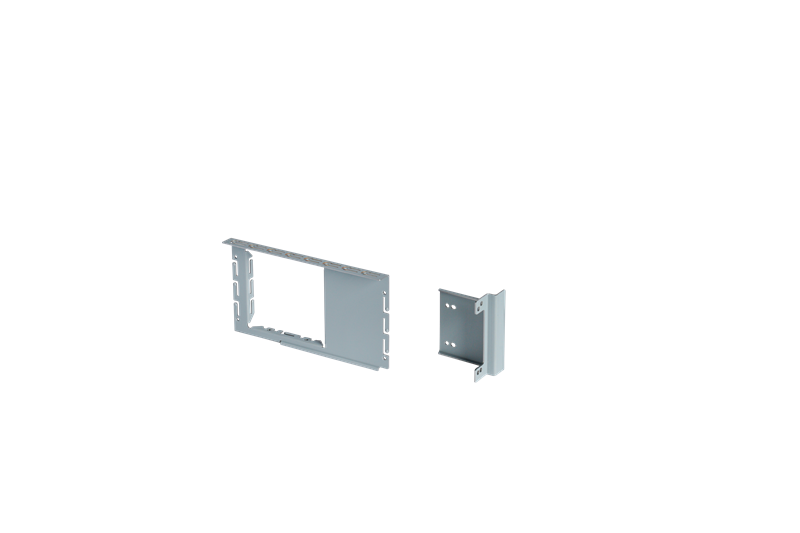

Product category Part. No# Description Support Bracket 384-MEC00390B0A0 Bracket, AS'Y COMPONENT,SR10569,BRACKET,BULK,FOR ACBEL CRPS PSU,W/SCREW PACKING,50PCS/CTN Bracket 84H210510-004 Rackmount Handle, Black, 2pcs/set, SR20966/SR10566

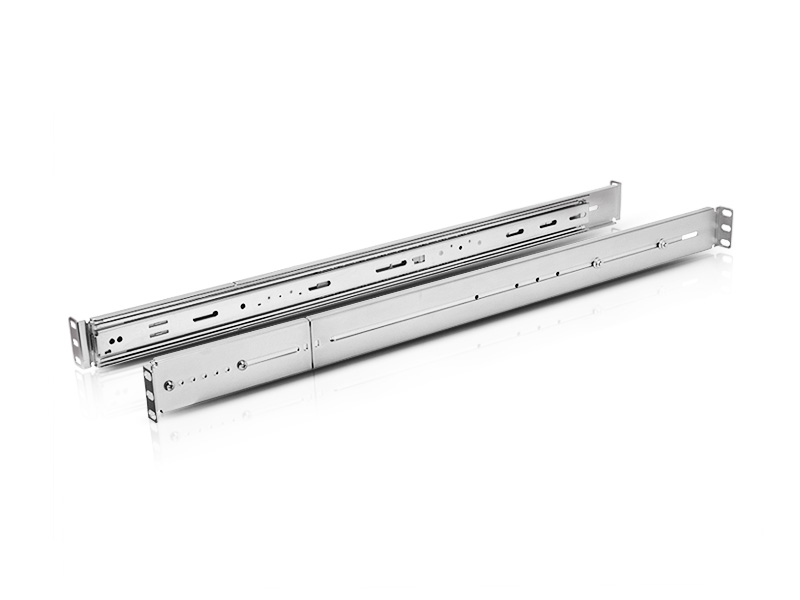

Cable CL-PWR-US Cable, Power Cord, 3-Pin, 6ft, 120V USA HDD Cage 384-10501-2101A0 Cage, 3.5" HDD, w/ 4-port 12Gbps mini-SAS HD BP & 80mm PWM Fan, Tool-less Tray HDD Cage 384-10501-2102A0 3.5" HDD cage, w/ 4-port 12Gbps SAS/SATA BP & 80mm PWM Fan, Tool-less Tray HDD Cage 384-10502-2100A0 Cage, 3.5" HDD, Internal, w/ Enhanced Anti-vibration Rubber & 80mm PWM Fan HDD Cage 84H220910-062 4-bay, 3.5" Non Hot-swap, w/92mm Fan HDD Cage 84H220910-085 4-bay, 3.5" Hot-swap, w/4-port 12Gbps SATA/SAS Backplane& 80mm Fan HDD Cage 84H220910-087 4-bay, 3.5" Hot-swap, w/4-port 12Gbps mini-SAS HD Backplane& 80mm Fan HDD Module 384-10501-2102A0 HDD Module, 3.5 HDD, 4-Port 12g SAS & SATA BP, TL Tray, SR105/209 Power Supply 132-10400-0505A0 PSU, 400W, Single, FSP400-70PFL Power Supply 132-20500-0500A0 PSU, 500W, 1+1 Redundant PSU, FSP500-50RAB, w/PSU Bracket Rail 84H210710-024 Rail, 23", SR105/107/112/209 SK SK31101T3 SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay SK SK32303T3 SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack SK SK33502T3 SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5" HDD Bays (12g SATA II/SAS) SK SK41101-BK-H SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK SK SK41202 SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay Slide Rail 84H210710-024 Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107 Click Part. No# to view item picture Support
