RM43736

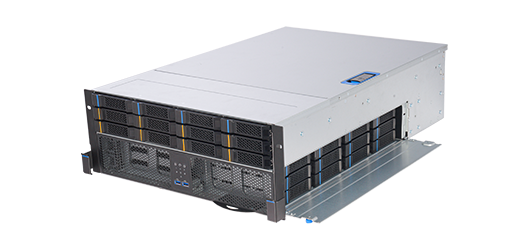

4U 36-Bay Tri-load High Density Storage Server Chassis
4U Tri-load storage server design with 24x3.5” side & 12x3.5” front access hot-swap HDDs support 8 SAS/SATA/NVMe Gen4 SSD drives & up to EATX MB support for high-performance applications
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Ultra-dense 4U storage server chassis optimized for warm and cold data tiering

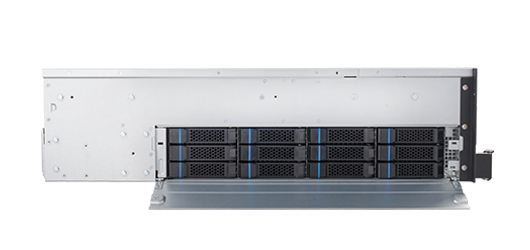

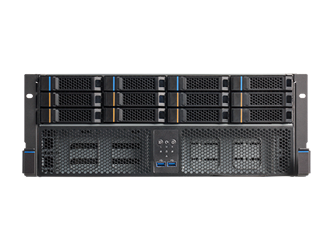

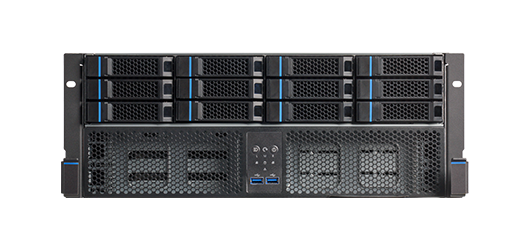

  • Innovative Tri-load design for 24 x 3.5” side access and 12 x 3.5” front access hot-swap HDDs
  • Front storage up to eight SAS/SATA/NVMe Gen 4 drives and rear optional two-bay NVMe Gen 4 SSD module

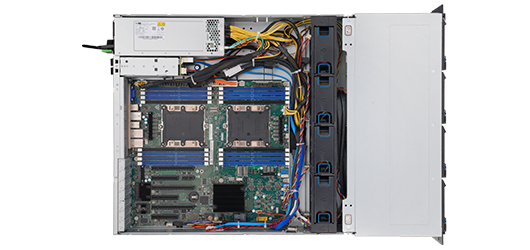

  • Flexible motherboard support to EATX, ATX, microATX
  • 4+4 Redundant 80mm fan module support hot-swappable
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor EATX(12" x 13 "), ATX (12" x 9.6"), mATX (9.6" x 9.6“)
    Dimensions (D x W x H) 660mm x 438mm x 175mm ; 26’’ x 17.2’’ x 6.9"
    Drive Bays 12 Bay 3.5" HDD hot swap module, front / left / right:3
    *Option: 2 Bay 2.5" HDD hot swap module, rear:
    PSU Form Factor Redundant CRPS (1+1), 1200W or 1600W(80+Platinum)
    Indicators 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Activity, 3 x HDD Status (L/M/R), 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0
    System Security Intrusion Switch
    Cooling Fans Middle: 80mm (T:38mm) fan module with fan bar
    -Performance: 4 x 14400RPM, PWM, Hot-swap
    -Mainstream: 3 x 11000RPM, PWM, Hot-swap

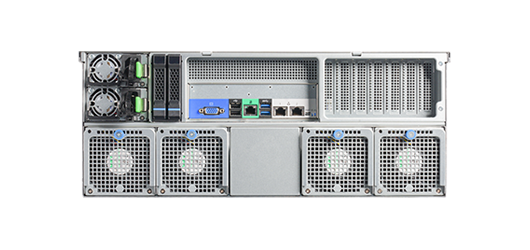

    Rear: 80mm (T:38mm) fan module, 4 x 11000 RPM, PWM, Hot-swap
    Expansion Slots 7 x Low Profile or 3 x Full Height (Option)
    HDD Backplane 12 port 12Gbps SAS Expander Backplane, front / left / right
    12 port 8T4S Gen 4 Backplane, front
    *Option:
    -2 Port 12Gbps SAS/SATA, rear
    -2 Port NVMe Gen3, rear
    -2 Port NVMe Gen4, rear
    Net Weight 25KG /PCS
    Gross Weight 28.64KG/CTN
    Cubic Feet 5.34
    Container Loading (Single Packing) 20' FCL: 132pcs / 40' FCL: 276pcs (Single Packing + Pallet)
  • Category Description Revision Size Download
    Datasheet RM43736 Datasheet v1.1 v1.1 643.7 KB
    User Manual RM43736 User Manual V1.0 v1.0 5.7 MB
  • Product category Part. No# Description Support
    Cable
    126-23612-3000A0
    miniSAS-HD to miniSAS-HD cable, 600mm
    Cable
    126-23811-3003A0
    Display cable for Super Micro, 500mm
    Cable
    126-25112-3008A0
    Slim SAS 8i to dual 4i cable
    Cable
    126-30000-0136A0
    Slim SAS 4i to 4i cable
    CMA
    84H349010-006
    Cable Management Arm (CMA)
    Fan
    384-FAN00006BA0
    80mm fan module (Middle), 11000RPM, hot swap, spare
    Fan
    384-MIX00275B0A0
    80mm fan module (Rear), 11000RPM, hot swap, spare
    HDD Cage
    384-23701-3116B0
    2-bay 2.5" HDD Cage w/12Gbps SAS& SATA Backplane, 2 x 650mm SATA Cable
    NVMe Gen4 SSD module
    384-PCB00053B0A0
    2-Bay NVMe Gen4 SSD module (Rear)

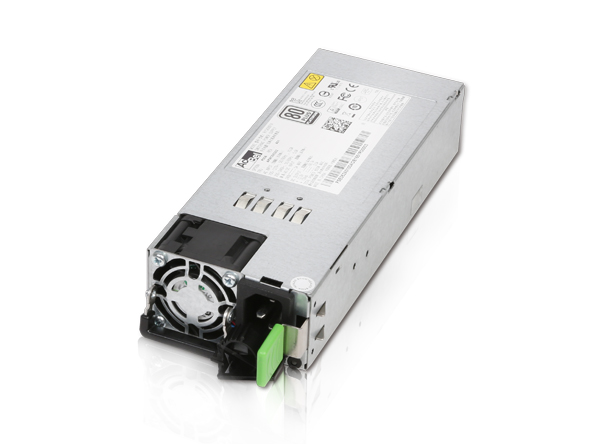

    Power Supply
    132-41200-0700A1
    PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module

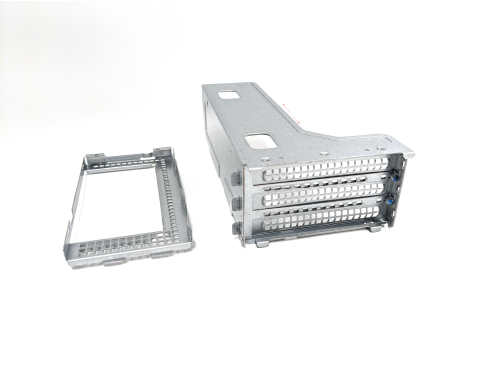

    Riser Kit
    384-23812-3112A0
    PCIe 3.0 x16 Riser Kit (EN62368)
    Slide Rail
    384-RAL00001BA0
    Slide rail kit can support CMA - P2P: 26" to 36.7", Traveling Distance 28.5", tool-less
    Click Part. No# to view item picture
  • Order Code
    RM4373601 01*923451: RM43736 R1200 Mainstream (SAS/SATA SKU), middle fan support to 14400RPM
    RM4373601 01*926602: RM43736 R1200 Performance (SAS/SATA SKU), middle fan support to 11000RPM
    RM4373601 01*938722: RN43736 R1600 (Hybrid 8T4S Gen 4 SKU), middle fan support to 11000RPM
