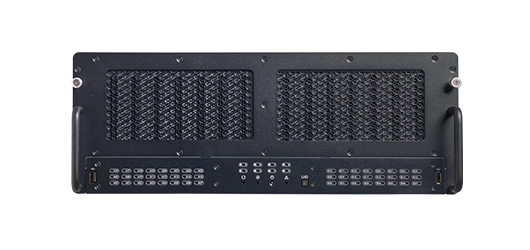

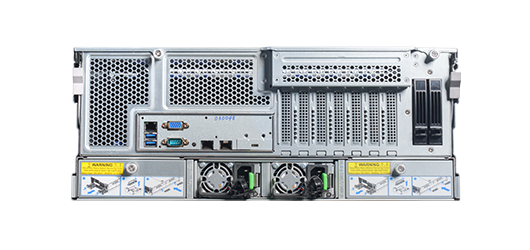

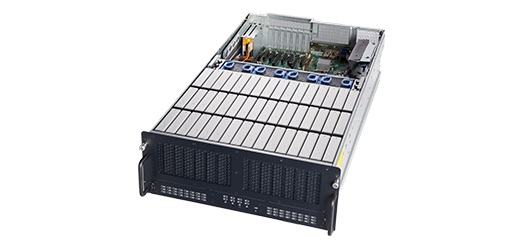

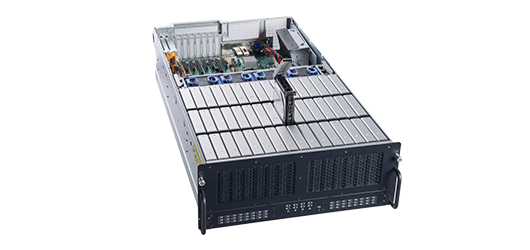

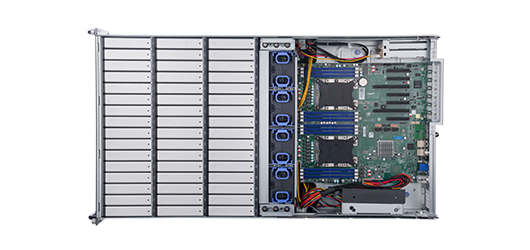

RM43348 CRPS
4U 48-Bay High Density Storage Server Chassis
It accommodates 48 3.5” hot-swap HDDs and an EATX M/B. Its built-in 1200W 80 Plus Platinum Common Redundant Power Supply provides the capability to meet high availability demands.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Hard drive LED indicators and identification labels for immediate disk function information
  • Hot-swap fan modules with hysteresis feature to smooth the fan speed transition
  • Redundant fan modules and power supplies for system reliability and failover
  • Removable side handles and motherboard tray for easier installation and maintenance
  • Optional cable management arm for slide rails to make the rear of the system neat and clean
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order information
  • MB Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 835.2 x 438 x 175.8 (mm), 32.88” x 17.24” x 6.92”
    Drive Bays 3.5" Hot-swap：48
    External 2.5" (Optional)：2
    3.5” Internal (Option)：2
    PSU Form Factor 1+1 CRPS, 1200W 80 Plus Platinum
    Indicators 1 x Power Status, 48 x HDD Activity, 8 x Fan Failure, 1 x Overheat & PSU Failure
    Front Control Power On/Off, System Reset, UID
    System Security N/A
    Cooling Fans Middle: 4 x 80 mm (T = 56mm), PWM
    Expansion Slots 7 x Low Profile
    HDD Backplane 2 x 24-port 12Gb/s Mini-SAS HD w/Expander
    Net Weight 30.0 kg
    Gross Weight 55.0 kg
    Cubic Feet 14.7
    Container Loading (Single Packing) 20': 76, 40': 154, 40'H: 172 (Single + Pallet)
  • Category Description Revision Size Download
    Datasheet RM43348 CRPS Datasheet V1.1 v1.1 8.1 MB
  • Product category Part. No# Description Support
    Bracket
    83H553433-010    		 Bracket, Metal Cover, For opening of 2-bay HDD Cage
    Bracket
    83H553433-011    		 Bracket, 2-bay 3.5" HDD, Internal
    Power Supply
    132-41200-0700A1    		 PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module
    Slide Rail

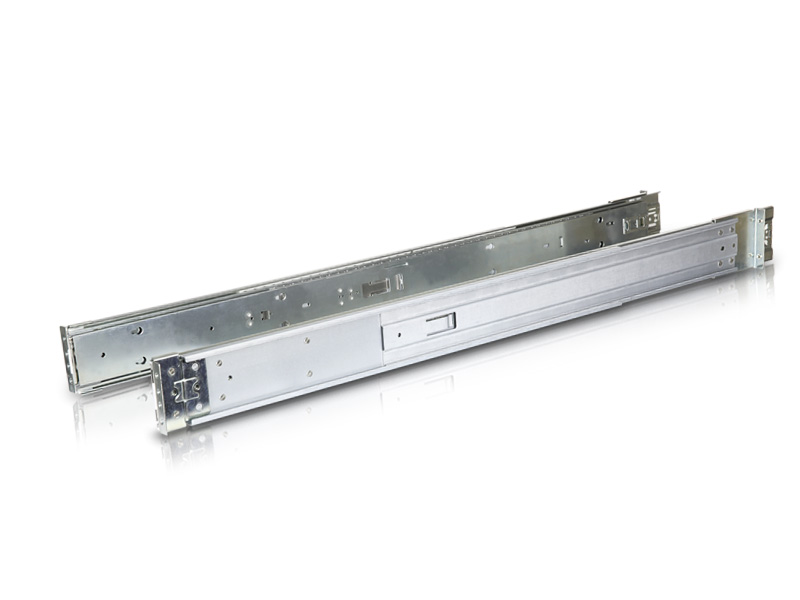

    84H024010-012    		 Slide Rail, 34.6“, P2P:36.8" to 37.2", Traveling Distance 31.7", Loading Weight 90 Kg, Tool-less
    Slide Rail
    84H343210-003    		 Cable Management ARM, For Slide Rail(84H024010-012) only
    Click Part. No# to view item picture
  • Order Code M/B Size Cooling Fans HDD Backplane Expansion Slot PSU Slide Rail
    RM43348-0010C0 12" x 13" 4 x 8056 12Gb/s Mini-SAS HD w/Expander 7 x LP 1200W, CRPS Included
