RM252 Series
2U Expandable Short Depth Edge Computing Server Chassis
2U short depth server chassis is designed for dual socket server board and flexible hot swap fan access, maximizing computing performance for distributed and open IT infrastructure.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • 450 mm ultra-short chassis fits various environments and is perfect for footprint minimization.
  • Optimized I/O design for machine learning in edge sites offering up to three full-height or seven low-profile PCIe expansion slots for GPU/FPGA accelerator cards
  • Equipped with the latest tool-less design, storage, HDD trays, system fans and PCIe riser brackets for easy upgrades and maintenance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

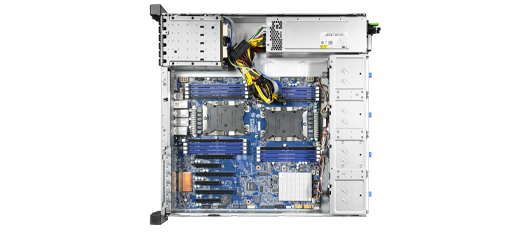

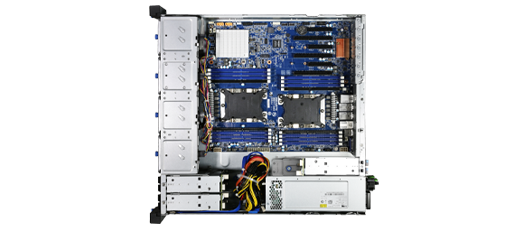

  • MB Form Factor SSI EEB (12” x 13”), CEB (12” x 10.5”), ATX (12” x 9.6”)
    Dimensions (D x W x H) 450.0 x 438.0 x 87.0 mm; 17.72” x 17.24” x 3.43”

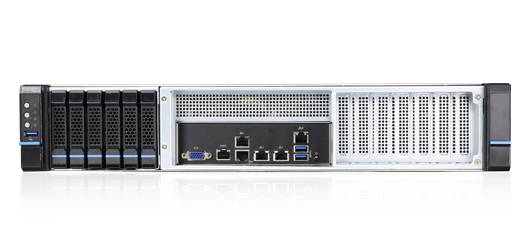

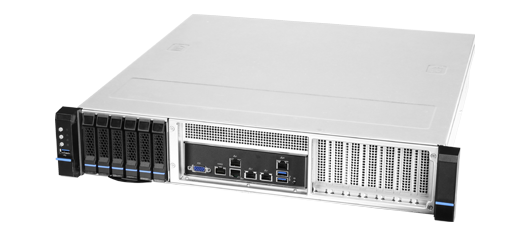

    Drive Bays RM25206/FIO (2.5" Hot-swap):6

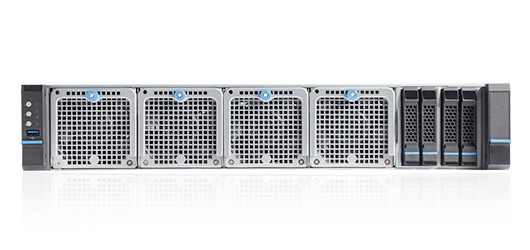

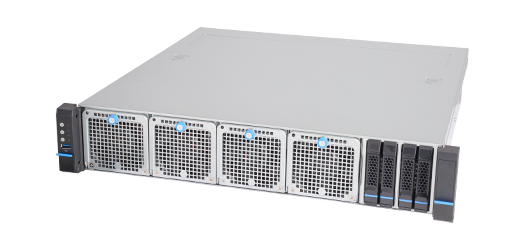

    RM25204/RIO (2.5" Hot-swap):4
    RM25204/RIO (2.5" Hot-swap)(Option):2

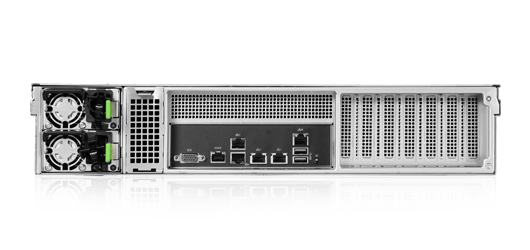

    PSU Form Factor 2U 800W 1+1 CRPS
    Indicators 1 x Power Status, 2 x LAN Activity, 1 x UID,
    1 x HDD Status, 1 x System Alarm
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0

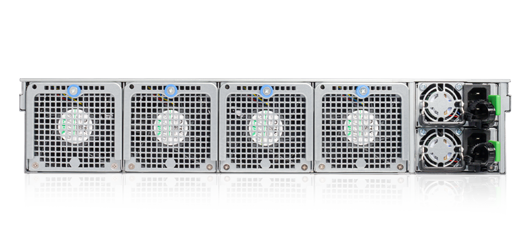

    Cooling Fans Rear : 80 mm (4), 11000 RPM
    up to T=38 mm, Hot-swap
    Expansion Slots 3 x Full Height or 7 x Low Profile
    HDD Backplane RM25206/FIO:
    -2.5” 6-port 12Gbps SAS/SATA
    RM25204/RIO:
    - 2.5” 2-port 12Gbps SAS/SATA
    - 2.5” 2-port PCIe Gen3 NVMe
    - 2.5” 2-port PCIe Gen4 NVMe
    Net Weight 9.5 KG/PCS
    Gross Weight 12.5 KG/CTN
    Cubic Feet 2.80
    Container Loading (Single Packing) 20' FCL: 208 PCS / 40' FCL: 448 PCS
  • Category Description Revision Size Download
    Datasheet RM252 upgrade Datasheet V1.0 489.5 KB
  • Product category Part. No# Description Support
    Riser
    384-PCB000019BA0
    Kit, RM25206, Riser(62368), w/Rear Window/Riser Card x16, 12pcs/ctn
    Slide Rail
    384-25203-3301A0
    Slide rail kit can support CMA: Works for 438 mm Width Rack Chassis, P2P: 26 to 33", Traveling Distance 19", Tool-less
    Click Part. No# to view item picture
  • Order Code
    RM25204 RIO : RM25204H01*15624
    RM25204N4RP8
    RM25206 FIO : RM25206H02*15621
    RM25206N4RP8
