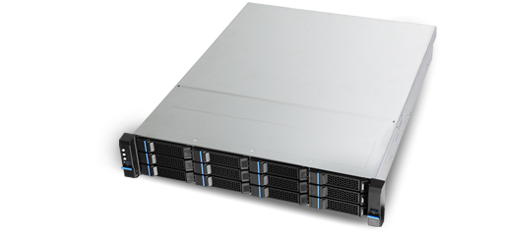

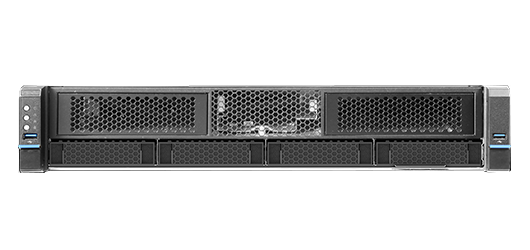

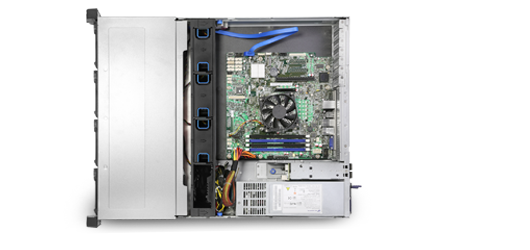

RM245 Series
2U Short Depth, Flexible General Purpose Server Chassis
In combination eight or twelve 3.5" HDD hot-swap bays, 12Gb/s backplane, and flexible fan configurations, RM245 Series can best address cost effect user application demands.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B size up to 12" x 10.5"
  • Features tool-less 3.5" HDD tray
  • Supports 8-bay or 12-bay 3.5" HDD cage
  • Supports 12Gb/s backplane w/ or w/o Expander
  • Built-in up to two front access USB3.0 ports

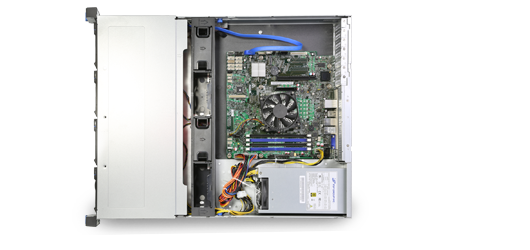

  • Supports up to four 80 mm middle fans with smart speed control on backplane

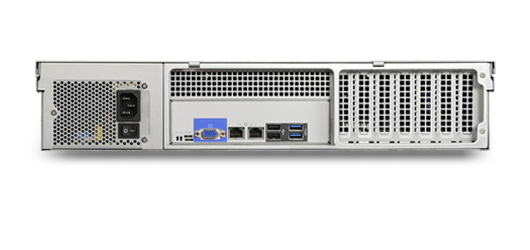

  • Easy-swap rear window for 3-slot or 7-slot configurations
  • Optional rear 2-bay 2.5 HDD cage for OS drives

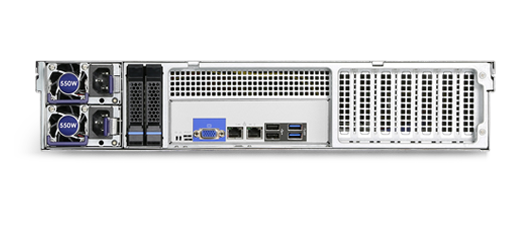

  • Supports 1 + 1 CRPS or 2U single PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB Form Factor ATX (12" x 9.6")
    Dimensions (D x W x H) 557.2 x 438 x 87 (mm)
    21.94" x 17.24" x 3.42"

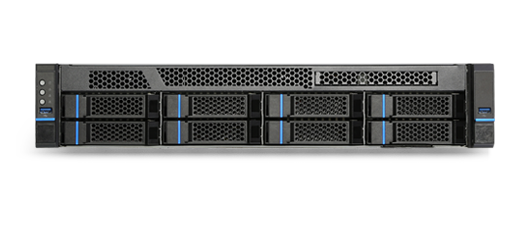

    Drive Bays RM24508 (3.5" Hot-swap)：8
    RM24508 (Slim ODD)：1
    RM24508 (Internal 2.5")：2

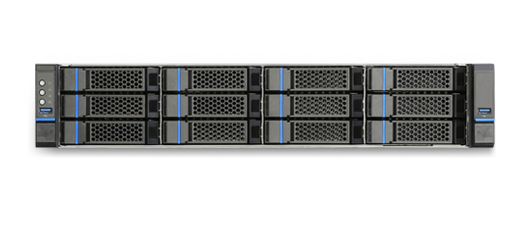

    RM24512 (3.5" Hot-swap)：12
    Optional 2.5" (Hot-swap) for OS：2

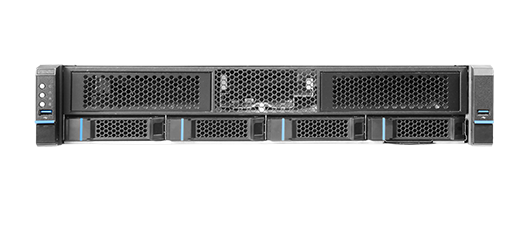

    RM24500 (5.25" Open-bay)：2
    RM24504 (5.25" Open-bay)：2
    RM24504 (3.5" Hot-swap)：4
    PSU Form Factor 1+1 CRPS (80+ Platinum) or 2U Single (80+ Gold)
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x HDD Status
    1 x System status
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.0
    System Security Intrusion switch (Option)
    Cooling Fans Middle: 2 ~ 3 x 80mm (Up to 4), PWM (Hot-swap or Non Hot-swap)
    Expansion Slots 7 x Low Profile or 3 x Full Height
    HDD Backplane 12Gb/s Mini-SAS HD w/ or w/o Expander
    Net Weight 9.5kg
    Gross Weight 12.0kg
    Front Bezel Option
    Cubic Feet 2.89
    Container Loading (Single Packing) 20': 260, 40': 560, 40'H: 616
  • Category Description Revision Size Download
    Datasheet RM245 Series Datasheet V2.0 3.1 MB
    User Manual RM245 User Manual V1.2 3.3 MB
  • Product category Part. No# Description Support
    Bezel
    384-23705-3106A0    		 Bezel, 2U, Metal w/o Key-lock, Black
    Bezel
    384-23705-3107A0    		 Bezel, Front w/ Key-lock, Black, RM237/238
    Bracket
    55H073219A004    		 Dummy Cover, for CRPS Module Opening
    Cable
    26H11313705A0    		 Cable, Motherboard to LED Board, 800 mm
    Cable
    CL-PWR-US    		 Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Cage
    384-23701-3116A0    		 2-bay 2.5" HDD Cage, with 2-port 12Gb/s SAS/SATA Backplane (Only for RM238 Series E3RP8)
    HDD Module
    384-23701-3116B0    		 HDD Cage, 2-bay 2.5 w/12Gbps SAS & SATA Backplane, 2* 650mm SATA III Cable
    HDD Tray
    384-14602-3123A0
    Tray, Mix, 3.5" HDD Tray (#383-14655-3039a0), Tool-less, RM14604
    Power Supply

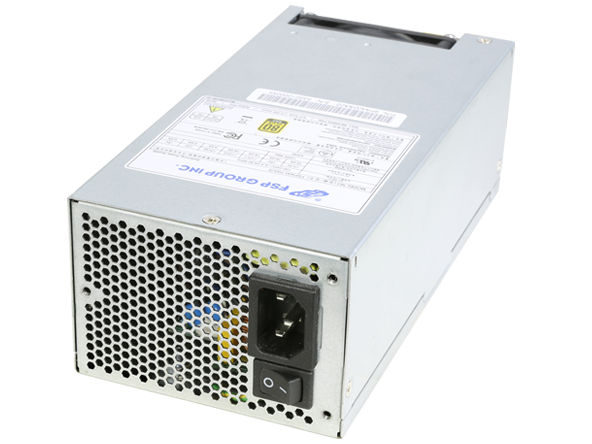

    132-10400-0504A0    		 400W, 2U Single, 80+ Gold
    Rail
    384-14303-3102A0    		 Rail, Simple Rail Long, RM143/RM146/RM133 (MOQ=8)
    Rail
    84H314610-003    		 Rail, Ball Bearing, 2-Section, Tool-less 23
    Rear Window
    384-23808-3100A0    		 Rear Window, 2U, for 3-slot Full Height (PCI-e) Retention Bracket
    Riser BRKT
    384-23812-3102A0    		 Bracket, Rear Window (FH), Riser BKT + Screw Type, 3-Slot, RM238
    Riser Card
    384-23812-3101A0    		 Riser Card, 2 x PCI-e 8x, Full Height
    SK
    SK51102T3    		 SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    Slide Rail
    384-23803-3300A0    		 Slide Rail 28.6", Tool-less, 1U/2U
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU
    RM24504T3RP5 12" x 9.6" 3 x 8038 8-port 12Gb/s mini-SAS HD 550W 1+1 CRPS
    RM24508M3FP5
    RM24508M3RP5 3 x 8038/Hot-swap 8-port 12Gb/s mini-SAS HD Passive 500W 1+1 CRPS Redundant
