RM24100 CRPS/FLEX
2U Feature-Advanced Industrial Server Chassis
Support CRPS redundant 1+1 or Flex ATX PSU and anti-vibration drive cage; it's a trusted platform for industrial applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Depth 18” of chassis for space-sensitive applications

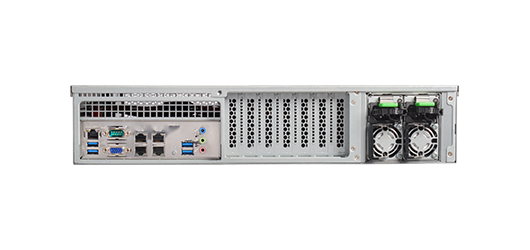

  • 7-slot low profile rear window
  • The cushion on drive cages to depress HDD & ODD vibration

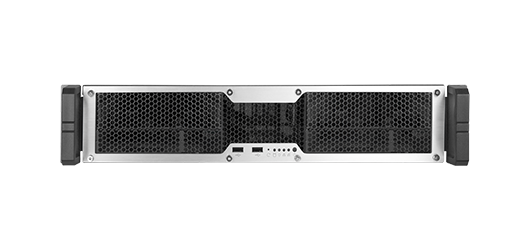

  • Supports more drives, 2 x 5.25", 2 x 3.5" and 2 x 2.5" on the front side
  • Removable drive cages for easy installation
  • Supports 1+1 CRPS or Flex ATX PSU, which is standard and easy to get in the market
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor ATX (12" x 9.6")
    Dimensions (D x W x H) 457.0 x 430.0 x 88.1 (mm) 18.00" x 16.93" x 3.47"
    Drive Bays External 5.25"：2
    External 3.5"：2
    Internal 3.5"：2
    PSU Form Factor Flex ATX single or 1+1 CRPS redundant
    Option:
    -Flex ATX, 500W (80+, Gold)
    -2U Redundant CRPS 1+1, 550W (80+, Platinum)
    Indicators 1 x Power Status, 2 x LAN Activity, 1 x HDD Status
    Front Control 1 x Power On/Off, 1 x System Reset , 2 x USB 3.0
    System Security Intrusion switch (Option)
    Cooling Fans 1 x 80mm (T=32mm) , PWM , 5000 RPM, non hot swap, front
    2 x 40mm (T=28mm) , PWM , 14500 RPM, non hot swap, rear (Option)
    Expansion Slots 7 x Low Profile
    HDD Backplane N/A
    Net Weight 6.9 KG
    Gross Weight 9.4 KG
    Cubic Feet 2.50
    Container Loading (Single Packing) 20' FCL: 388 pcs, 40' FCL: 252 pcs
  • Category Description Revision Size Download
    Datasheet RM24100 CRPS/FLEX datasheet v1.1 v1.1 473.6 KB
  • Product category Part. No# Description Support

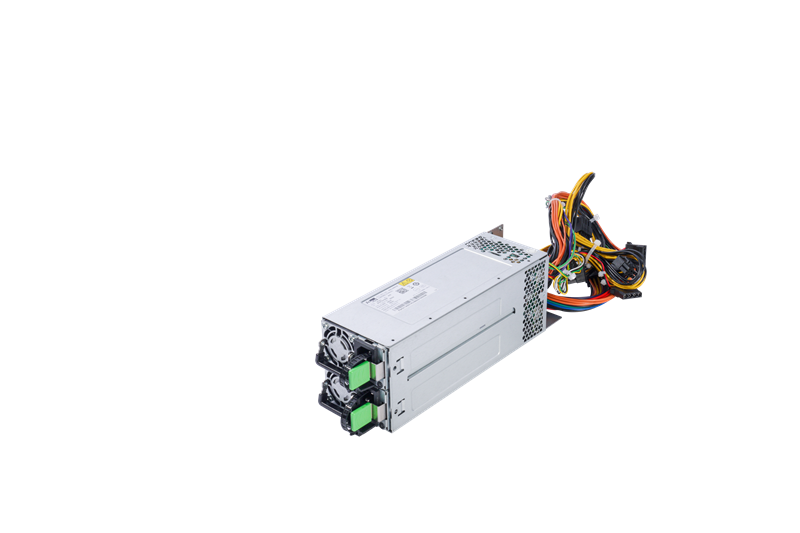

    CRPS module
    384-PCB00049B0A0

    FSP 550W (1+1) 2U Redundant CRPS module
    CRPS module
    384-PCB00050B0A0    		 Acbel 550W (1+1) 2U Redundant CRPS module
    Flex ATX 500W PSU
    384-PCB00051B0A0    		 Flex ATX 500W PSU, 80+ Gold, Acble FSD059-7HCG

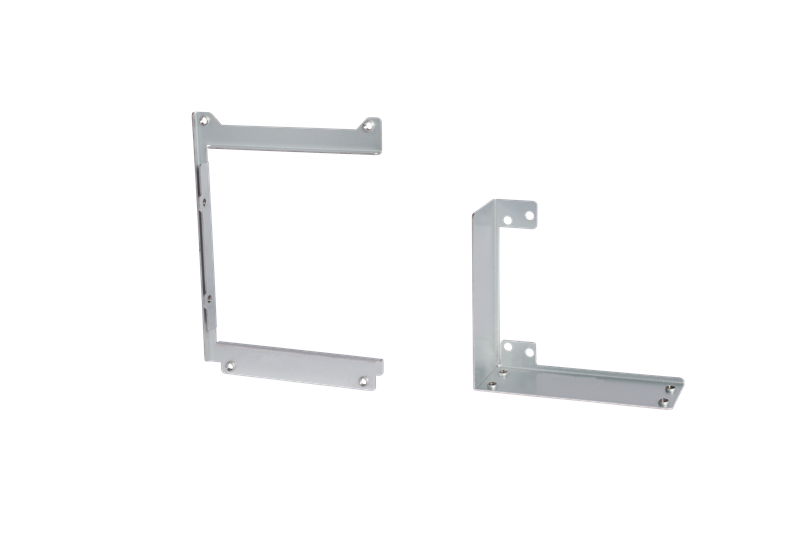

    PSU bracket
    384-24104-3201A0    		 Power bracket to support flex ATX

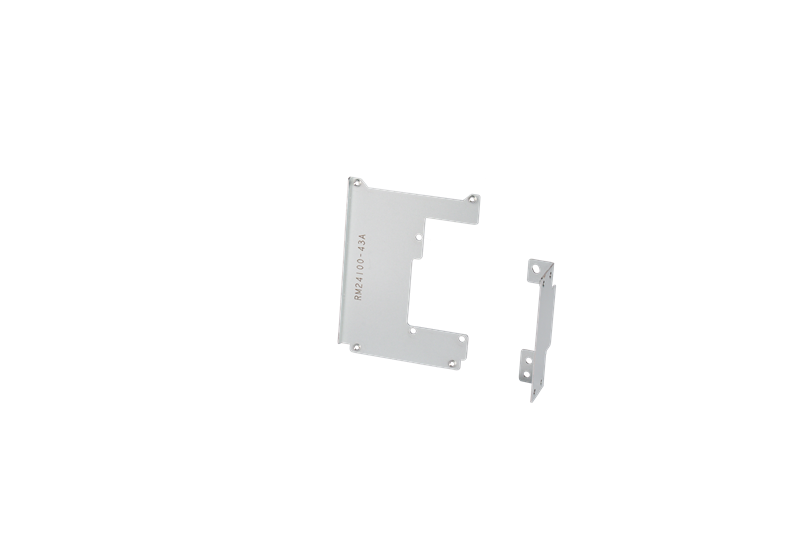

    PSU bracket
    384-PSU00015B0A0    		 Power bracket to support CRPS for FSP or Acbel
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
    Click Part. No# to view item picture
  • Order Code PSU
    RM24100H11*15911 CRPS
    RM24100H11*15912 FLEX
