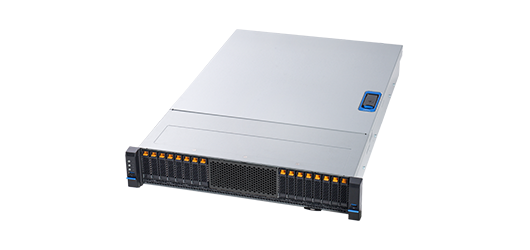

RM238 NVMe Gen4
2U General Purpose NVMe Gen 4 Server Chassis
RM238 NVMe Gen4 server chassis maximizes computing performance or distributed and open IT infrastructure.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

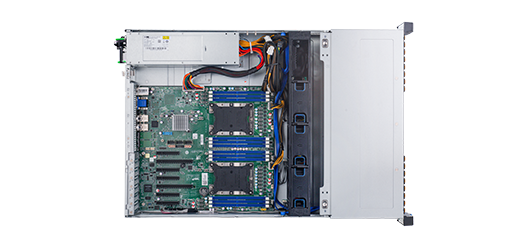

  • Rackmount 2U supports M/B size up to 12” x13”.
  • 16 port 2.5" (2pcs x 8 port) 16G PCIe Gen 4 NVMe SSD Backplane, or 12 port 3.5", 8 Tri-mode (SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane, and 2 Bay 2.5" OS option module on the rear.
  • Easy service toolless 2.5" / 3.5" HDD trays.
  • Supports 12-bay or 16-bay 2.5"/3.5" HDD cage for wide workload use.
  • Optional rear two-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache ( NVMe) buffer use.
  • Built-in up to two front access USB 3.0 ports.

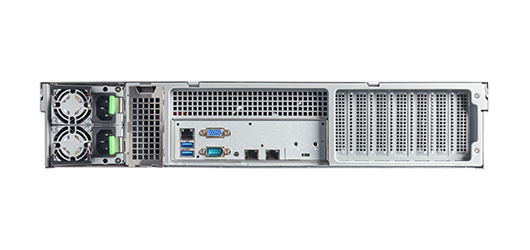

  • Easy conversion three-slot / 7-slot rear window.
  • Supports 2U CRPS 1+1.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 658.6 x 438.0 x 87.0 (mm), 25.93” x 17.24” x 3.43”
    Drive Bays 3.5" Hot-swap：12
    2.5" Hot-swap：16
    PSU Form Factor 1+1 CRPS, 1200W 80 Plus Platinum
    Indicators 1 x Power Status, 2 x LAN Activity, 1 x UID, 1 x HDD Status, 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB3.0
    System Security Intrusion Switch(Option)
    Cooling Fans 3 x 80 x 38 mm, 11000RPM, Hot-swap
    Expansion Slots 7 x Low Profile or 3 x Full Height (Option)

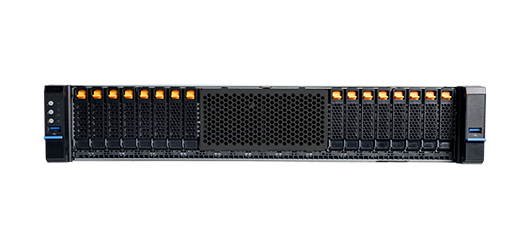

    HDD Backplane -16 port 2.5" (2pcs x 8 -port) 16G PCIe Gen 4 NVMe SSD Backplane,

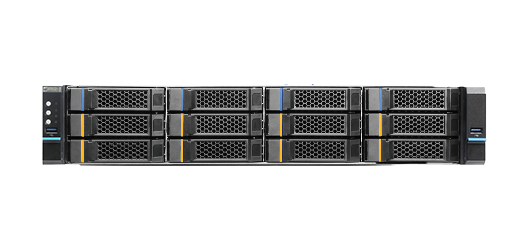

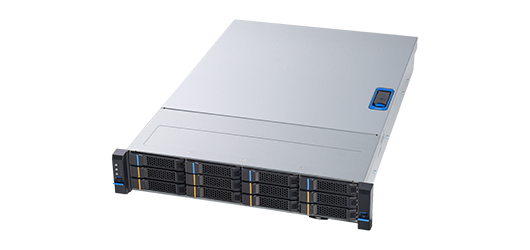

    -12- port 3.5”, 8 Tri-mode(SAS3/SATA/NVMe Gen.4) + 4 SAS3/SATA Backplane
    Net Weight 11.5 kg
    Gross Weight 14.0 kg
    Cubic Feet 3.3
    Container Loading (Single Packing) 20': 200, 40': 460, 40'H: 506 (Single Packing)
  • Category Description Revision Size Download
    Datasheet RM238 NVMe Gen4 Datasheet v1.1 572.6 KB
  • Product category Part. No# Description Support
    Cable
    126-23712-3004A0    		 Cable, OCuLink Vertical to OCuLink Right Angle, 2-in-1, 300mm
    Cable

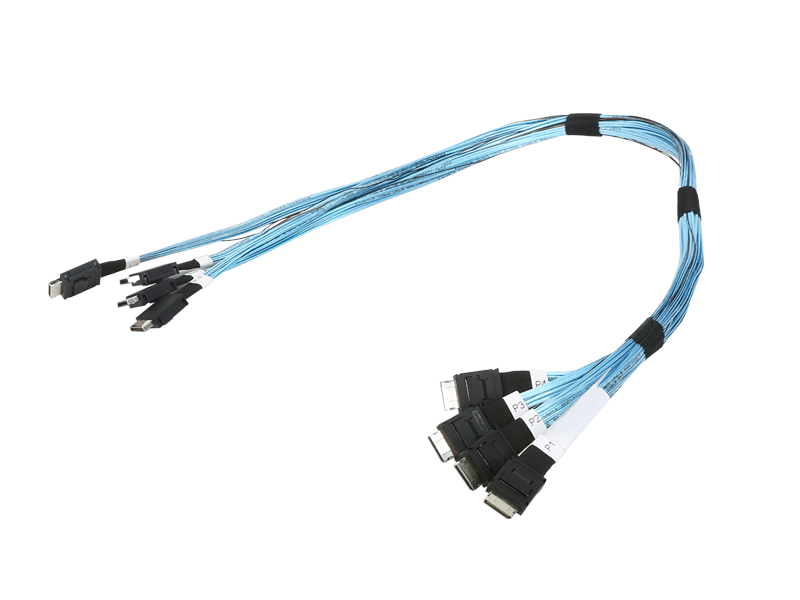

    126-23712-3005A1    		 Cable, OCuLink Vertical to OCuLink Vertical, 4-in-1, 650mm/600mm
    Cable
    26H11313705A0    		 Cable, Motherboard to LED Board, 800 mm
    Cable
    26H12314604A0    		 SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
    Cable
    26H12314607A0    		 Mini-SAS HD (Host) to Mini-SAS HD, 550 mm
    Fan module(Spare Parts)
    384-23811-3106A0    		 3 x 80 x 38 mm, 11000RPM, Hot-swap
    HDD Cage
    384-23701-3116B0    		 2-bay 2.5" HDD Cage w/12Gbps SAS& SATA Backplane, 2 x 650mm SATA Cable
    NVMe Gen4 SSD module
    384-PCB00053B0A0    		 2-Bay NVMe Gen4 SSD module (Rear)
    Panel
    384-23705-3106B0    		 PANEL,RM23708,18BOX/12CTN/PALLET,FOR OTS
    Power Supply
    132-41200-0700A1    		 PSU, 1200W, CRPS, Hot-swap, w/o PDB, ACBEL, Single Module
    PSU Cage
    380-23807-3002A1    		 PSU Cage w/PDB & Cable
    Rail

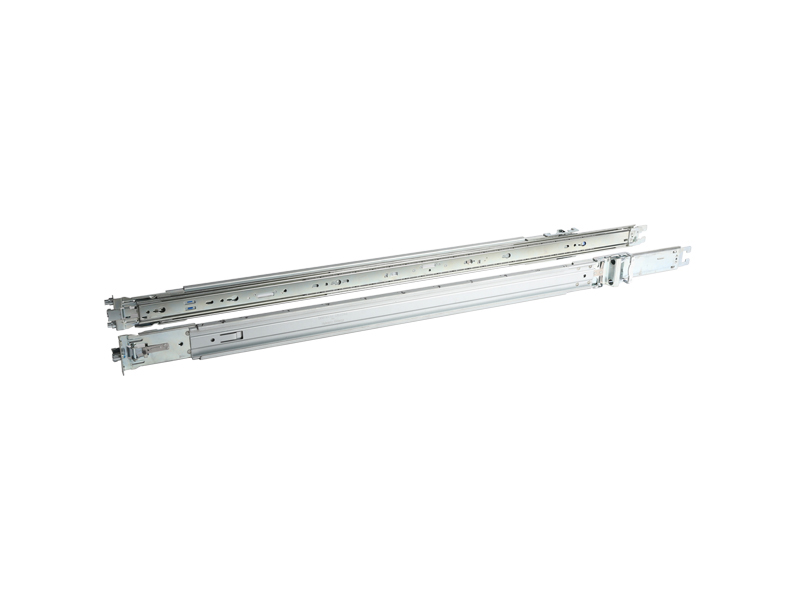

    384-23803-3300D0    		 Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Riser Bracket
    384-23812-3110A0    		 PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder.
    Riser Card
    384-23812-3101A0    		 Riser Card, 2 x PCI-e 8x, Full Height
    Slide Rail
    384-23803-3300D0    		 Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Upgrade Kits
    384-23801-3103A0    		 2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane and Mylar Air Duct
    Upgrade Kits
    384-23801-3104A0    		 2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane, Oculink Cable, and Mylar Air Duct
    Click Part. No# to view item picture
  • Order Code
    RM2381202-01*934159
    RM2382402-01*934161
