DL25212

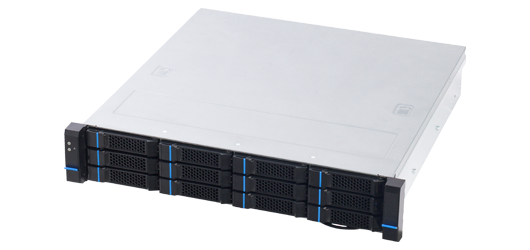

2U 12-Bay JBOD Storage Chassis
2U JBOD server chassis is designed for storage with a 12x3.5" Hot-swap HDD.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Support 12-bay x 3.5”SAS/SATA HDD.
  • Support Redundant CRPS 1+1.
  • Built-in 3 x 80mm hot-swap PWM fans.
  • BMC module with IPMI function.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor N/A
    Dimensions (D x W x H) 450mm x 438mm x 87mm
    17.72’’ x 17.24’’ x 3.43’’

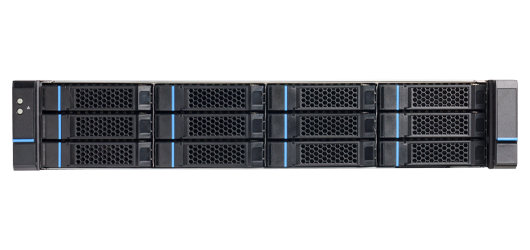

    Drive Bays 3.5" HDD Hot swap Module, Front：12
    PSU Form Factor Redundant CRPS (1+1), 550W (80+ Platinum)
    Indicators 1 x Power Status
    1 x UID
    1 x System Status
    Front Control 1 x Power On/Off
    1 x UID
    Cooling Fans 3 x 80mm (T:38mm) fan module, 11000 RPM, PWM, Hot-swap
    HDD Backplane 12 x 3.5" SAS4 Backplane
    *support dual domain with SAS Drives
    *support single domain with SATA Drives
    Net Weight 11.8 KG/PCS
    Gross Weight 14.8 KG/CTN
    Cubic Feet 2.8
    Container Loading (Single Packing) 20’ FCL: 208pcs / 40’ FCL: 448pcs
  • Category Description Revision Size Download
    Datasheet DL25212 v1.0 358.3 KB
  • Product category Part. No# Description Support
    Slide Rail
    384-25203-3301A0
    Slide rail kit can support CMA: Works for 438 mm Width Rack Chassis, P2P: 26 to 33", Traveling Distance 19", Tool-less
    Click Part. No# to view item picture
  • Order Code
    DL2521201-0010A0
