RM14604

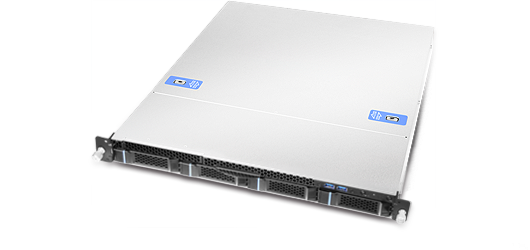

1U 4-bay Tool-less Compact Server Chassis
A user friendly tool-less design, best suit SME maintenance need and equipped with high performance 12Gb/s HDD backplane with smart fans speed control.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • New tool-less 3.5" HDD tray based on Chenbro feature 3.0 architecture

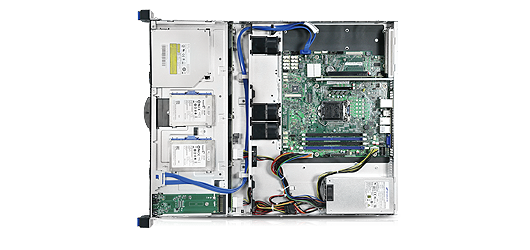

  • Friendly Tool-less design on top cover, slim ODD, internal 2.5" drives and fans
  • Supports 40mm fan up to 56mm thickness in vary
  • Supports 12Gb/s Mini-SAS HD and SATA backplanes
  • Front access info. tag for easy server management
  • Optional specific kits for Intel S1200SP server board
  • Built-in cable managment kits
  • Supports Flex ATX PSU
  • Plastic rack ear handle preserve for logo placement
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Form Factor ATX(12" x 9.6")
    Dimensions (D x W x H) 547.6 x 438.5 x 43.2(mm)
    21.6" x 17.2" x 1.7"
    Drive Bays 3.5" Hot-swap：4
    Internal 2.5"：2
    Slim ODD：1
    PSU Form Factor Flex ATX
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Activity
    1 x Status
    1 x UID

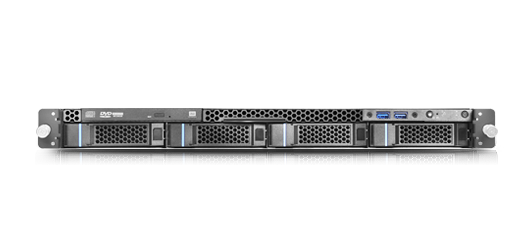

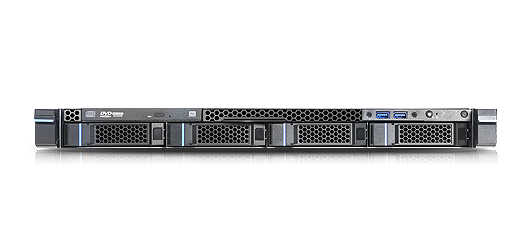

    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.0 or USB2.0
    System Security N/A
    Cooling Fans Middle : 3 x 40mm (Up to 4), (Up to T=56mm) PWM
    Expansion Slots 1 x Full Height (Option)
    HDD Backplane 12Gb/s mini-SAS HD or 12Gb/s SAS/SATA
    Net Weight 7.5Kg
    Gross Weight 10.0Kg
    Front Bezel Option
    Cubic Feet 2.82
    Container Loading (Single Packing) 20': 480, 40':960
  • Category Description Revision Size Download
    Configuration Guide RM14604 Configuration Guide V1.0 509.7 KB
    Firmware Intel S1200SPS SDR for SKU RM14604 X00 2.2 MB
    Quick Installation Guide(QIG) RM14604 QIG V1.2 5.2 MB
    Technical Product Specification (TPS) RM14604 TPS V1.2 4.0 MB
  • Product category Part. No# Description Support

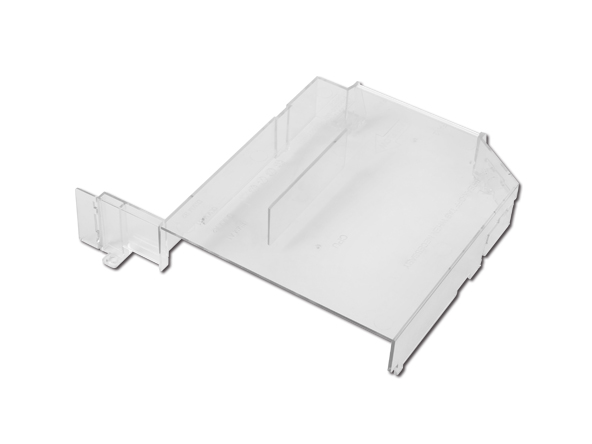

    Air Duct
    50H353149A003    		 PC Transparent, For Intel S1200SPO/ S1200SPL/S1200SPS

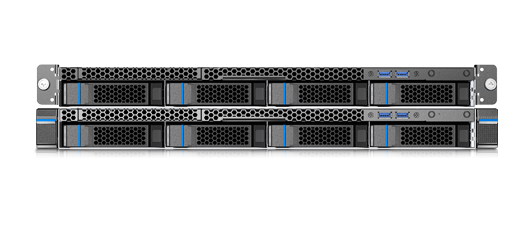

    Bezel
    384-14605-3100A0
    Front Bezel, Metal, Black (2nd Generation, Tool-less) BKCC1012/BKCC1012,RM133/RM146
    Cable
    384-14620-3307A0    		 Cable, SATAIII, 650mm, w/Lock
    Cable
    384-14620-3311A0    		 Cable, SATAIII, 550mm, w/Lock
    Cable
    CL-PWR-US    		 Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Tray
    384-14602-3119B0    		 Tray, HDD 2.5", Tray (Tool-less)
    HDD Tray
    384-14602-3123A0
    Tray, Mix, 3.5" HDD Tray (#383-14655-3039a0), Tool-less, RM14604
    MB I/O
    84H313210-018    		 I/O Gasket (w/Square Hole)
    MB I/O
    84H313610-056    		 I/O, Gigabyte, MX31
    MB I/O
    84H314610-009    		 I/O for Intel S1200SPO/S1200SPL/S1200SPS
    Power Supply
    84H314610-020    		 PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket
    Rack Handle
    384-14609-3100A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0    		 Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024    		 Latch-type Rack Handle (Left)
    Rack Handle
    84H314610-025    		 Latch-type Rack Handle (Right)
    Rail
    384-14303-3102A0    		 Rail, Simple Rail Long, RM143/RM146/RM133 (MOQ=8)
    Rail
    84H314610-003    		 Rail, Ball Bearing, 2-Section, Tool-less 23

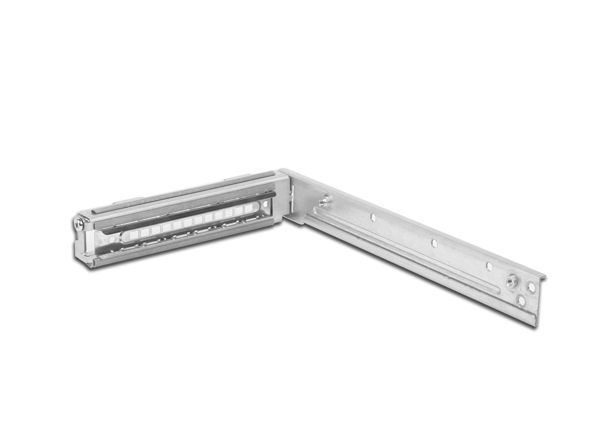

    Riser
    84H314610-023    		 Riser card, x 16, RM14604, w/Bracket
    Riser Bracket
    56H093146-003    		 Riser bracket, 1 Slot, Full Height with Card Holder
    SK
    SK51102T3    		 SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    Slide Rail
    384-14303-3101A0    		 AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU Slide Rail
    RM14604M3FP4 12" x 9.6" 3 x 4028 12Gb/s Mini-SAS 400W Option
    RM14604T3FP4+ 12" x 9.6" 3 x 4028 12Gb/s Mini-SAS 400W Option
