| Form Factor |
Intel® Server Board M50FCP2SBSTD (18.9" x 16.9") |
| MB |
Intel M50FCP2SBSTD (Fox Creek Pass) |
| CPU |
4th Gen Intel Xeon Scalable product family ; Dual Socket-E LGA4677 |
| Chipset |
C741 |
| Memory Capacity |
32 DIMMs (16 per CPU), 8 channels; Supports DDR5 , SDRAM DDR5 DIMMs (RDIMM, 3DS-RDIMM, & 9x4 RDIMM) |
| Dimensions (Dx Wx H) |
770.0 x 438.0 x 87.0 mm; 30.3” x 17.24” x 3.4” |
| Drive Bays |

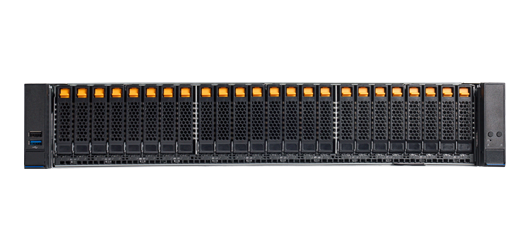

2.5” SKU SFF Hot-Swap (Tray-less：24

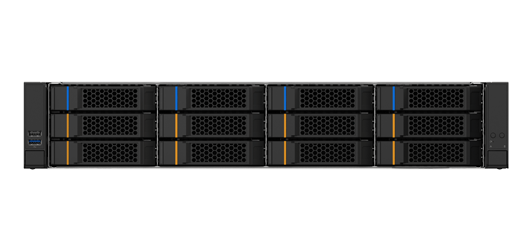

3.5” SKU LFF Hot-Swap (Tool-less)：12
|
| PSU Form Factor |
1+1 Max. 2100W CRPS Redundant Power Supply |
| Indicators |
1 x Power Status, 1 x UID,1 x HDD Activity, 1 x System Status |
| Front Control |
1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0,1 x USB2.0 |
| System Security |
Option |
| Cooling Fans |
6 x 6038, 23000RPM, Hot Swap |
| Expansion Slots |
Riser Slot #1: 1 x single-width slot (Intel NVMe riser card iPC FCP2URISER1RTM)
Riser Slot #2: Two-Slot PCIe* Riser Card for Riser Slot #2 ((iPC FCP2URISER2STD)
Riser Slot #3: Two PCIe NVMe SlimSAS connectors with re-timers(Intel NVMe riser card iPC CYPRISER3RTM)
*Option:1 x Full Height and Full Length (Intel FCP2URISER1STD 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 16 supported)
1 x Full Height and Half Length (Intel FCP2URISER1DW 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 16 supported)
1 x Full Height and Full Length (Intel FCP2URISER1SWv 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 16 supported)
1 x Full Height and Half Length (Intel FCP2URISER2DW 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 16 supported)
2 x Full Height and Full Length (Intel FCP2URISER1SW 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 16 supported)
2 x Low Height and Half Length (Intel FCP2URISER3STD 1 x PCIe 5.0 x16 & 1 x PCIe 5.0 x 8 supported) |
| HDD Backplane |
2.5” SKU: 3 x 8-port 2.5” NVMe(Gen4) 16 Gb/s NVMe support. (optionals:16 or 8 Bay )
3.5” SKU: 12 x 3.5" Tri-mode hot-swap HDDs (SAS / SATA / NVMe Gen4) backplane applications.(8T4S)
|
| Net Weight |
23.1 KG/PCS |
| Gross Weight |
32.5 KG/PCS |
