Form Factor |
2U |
MB |
Intel M50CYP2SBSTD (Coyote Pass) |
CPU |
3rd Gen Intel Xeon Scalable Product Family, up to 270W Dual Socket-P4 LGA4189 |
CPU Socket |
Dual Socket-P4 LGA4189 |
Chipset |
C621A |
Memory Type |
Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM |
Memory Capacity |
Up to 12TB Memory |
Max DIMM Slots |
32 DIMMs (16 per CPU), 8 Channels |
CPU Heatsink |
2U Passive with Air Duct (or 1U Passive with Air Duct - GPGPU Required) |
I/O Modules |
OCP 3.0 |
Dimensions (Dx Wx H) |
770 x 438 x 87.0 mm; 30.3” x 17.24” x 3.4” |
Drive Bays |

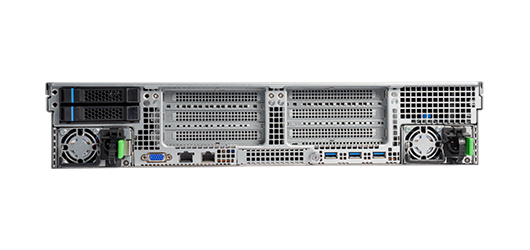

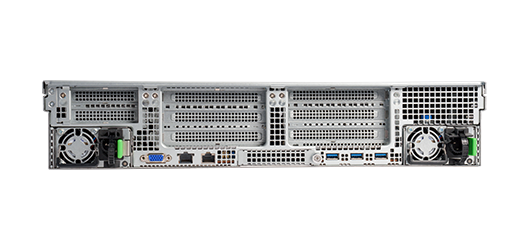

Rear Storage::
- 2 x Internal Fixed Mount 2.5” SSDs (* Power Cable Option):
- 2-Bay 2.5” HDD Hot Swappable, Supporting 7mm SSD or 15mm NVMe (Option):
* NVMe module must be option with cooling fan kit (2pcs):
* Shared PCIe low profile space, need to remove riser card w/ bracket:

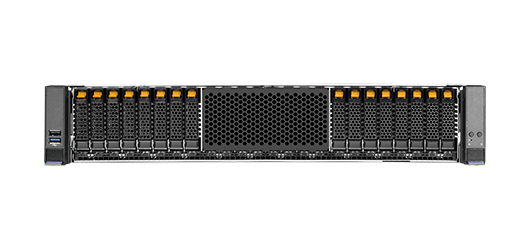

2.5” SKUs::

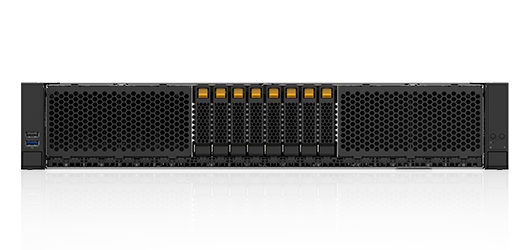

- 8 x 2.5” Tray-less, Hot-swap; Supports NVMe Gen 4 (up to 16 or 24-Bay, Optional):

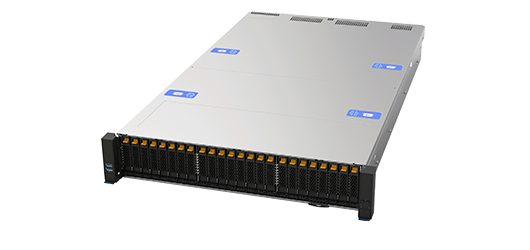

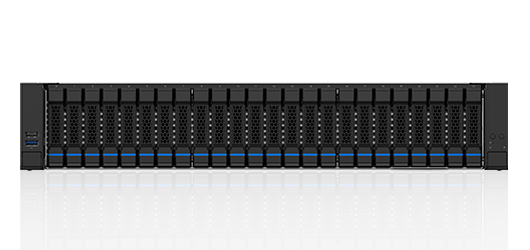

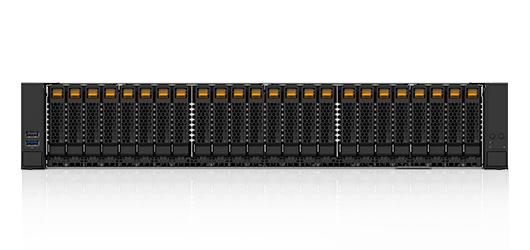

- 24 x 2.5” tool-less, Hot-swap; Supports SAS/SATA:
3.5” SKUs::

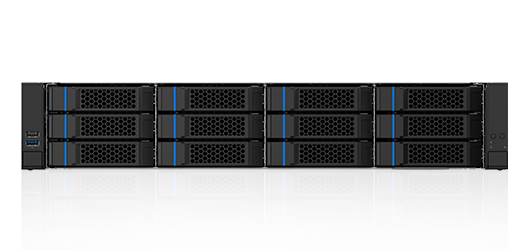

- 8 x 3.5” Tool-less, Hot-swap; Supports SAS/SATA:

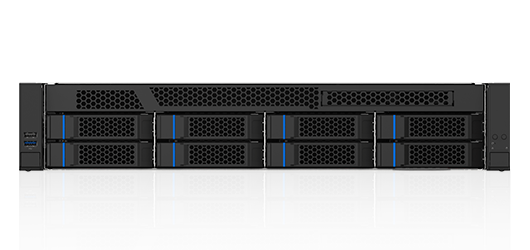

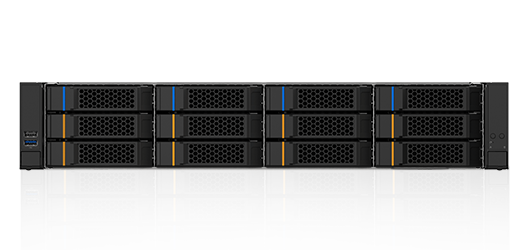

- 12 x 3.5” Tool-less, Hot-swap; Supports 8 x Tri-mode NVMe Gen 3 or SAS/SATA:
|
Ethernet |
OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional) |
PSU Form Factor |
2000W 1+1 CRPS, 80+ Platinum |
Serial Port |
1 x RJ45 Serial Port A |
Video |
Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory |
USB |
Rear: 3 x USB 3.0 Front: 1 x USB 3.0, 1 x USB 2.0 |
Front Control |
1 x Power On/Off, 1 x System Reset, 1 x ID Button, 1 x USB 3.0, 1 x USB 2.0 |
System Security |
Intrusion Switch and Security Bezel with Key Lock (Optional) |
Cooling Fans |
6 x 60mm Middle Hot-swap System Fan, PWM, 23000 RPM |
Expansion Slots |
Support for up to 8-slot PCIe 4.0: 6 x Full-height and 2 x Half-height Riser 1 (CPU#0): 3-slot PCIe 4.0 - 1 x PCIe 4.0 x16 (x16 lanes), FHFL - 1 x PCIe 4.0 x16 (x8 lanes), FHFL - 1 x PCIe 4.0 x8 (x8 lanes), FHFL * P/N# Intel CYP2URISER1STD Riser 2 (CPU#1): 3-slot PCIe 4.0 - 1 x PCIe 4.0 x16 (x16 lanes), FHFL - 1 x PCIe 4.0 x16 (x8 lanes), FHFL - 1 x PCIe 4.0 x8 (x8 lanes), FHFL * P/N# Intel CYP2URISER2STD Riser 3 (CPU#1): 2-slot PCIe 4.0 - 2 x PCIe 4.0 x16 (x8 lanes), LPHL * P/N# Intel CYP2URISER3STD * With option 2-Bay 2.5” HDD module, riser card w/ bracket needs to be removed. Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16) |
Net Weight |
23.1 KG/PCS |
Gross Weight |
32.5 KG/PCS |
