RB151 Eagle Stream
1U High-Performance Computing Server for Enterprise and Cloud Applications
The latest 1U rackmount barebones server, based on the 4th Gen Intel® Xeon® Sapphire Rapids Series Processor.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B size up to 18.9 " x 16.9"
  • 4th Gen Intel® Xeon® Scalable processors, Sapphire Rapids Series Processor, Dual Socket E LGA4677.
  • High performance NVMeGen 4 storage, up to 12 x 2.5” or 4 x 3.5” HDD
  • 1+1 redundant CRPS, Max. 1600W
  • Higher memory capacity, up to 12TB memory, 16 DDR5 RDIMMs per processor.
  • 1.5X memory bandwidth vs prior gen, with DDR5 support.
  • 2X I/O throughput vs. prior gen, with PCIe 5.0 support.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor Intel® Server Board M50FCP2SBSTD (18.9" x 16.9")
    MB Intel M50FCP2SBSTD (Fox Creek Pass)
    CPU 4th Gen Intel Xeon Scalable product family; Dual Socket-E LGA4677
    Chipset C741
    Memory Capacity 32 DIMMs (16 per CPU), 8 channels; Supports DDR5 , SDRAM DDR5 DIMMs (RDIMM, 3DS-RDIMM, and 9x4 RDIMM)
    Dimensions (Dx Wx H) 770 x 438.5 x 43.0 mm; 30.3” x 17.26” x 1.7”

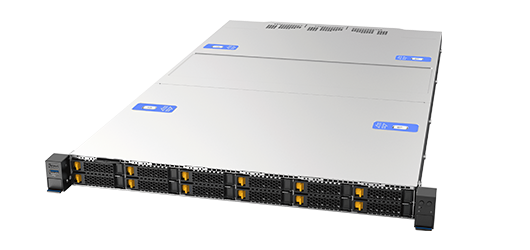

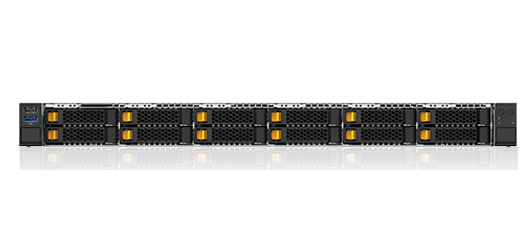

    Drive Bays 2.5" sku SFF Hot-Swap (Tray-less) 3 x 4-port 2.5” NVMe(Gen4) 16 Gb/s NVMesupport：12

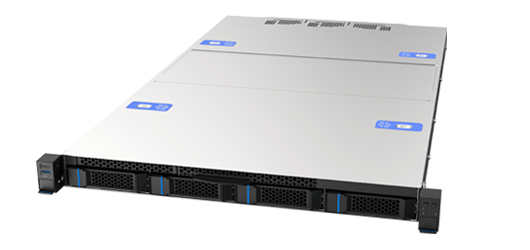

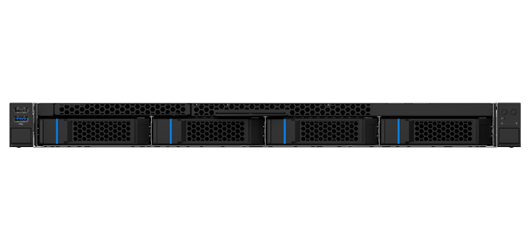

    3.5" sku LFF Hot-Swap (Tool-less)：4

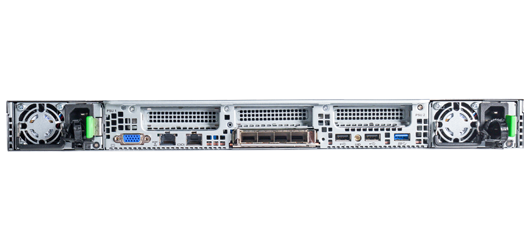

    PSU Form Factor 1+1 Max. 1600W CRPS Redundant Power Supply
    Indicators 1 x Power Status, 1 x UID,1 x HDD Activity, 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0, 1 x USB 2.0
    System Security Option

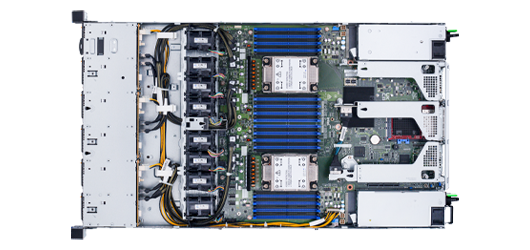

    Cooling Fans FAN,40*40*56,22900/23200RPM, non-hot swap
    Expansion Slots •Riser Slot #1
    1 x single-width slot(Intel FCP1URISER1 1x PCIe 5.0 x16 supported)
    •Riser Slot #2
    1 x Low Profile/Half Length (Intel FCP1URISER2 1 x PCIe 5.0 x16 supported)
    •Riser card (iPCFCP1URISER2KIT)
    *Option: supports: 1 x Low Profile/Half Length,LowProfile/Half Length (1 x PCIe 5.0 x16 supported)
    PCIe* Interposer Riser Slot (requires PCIe* Riser Card in Riser Slot #2)
    iPCFCP1URISER2KIT includes the PCIe interposer riser card, PCIe riser card, and PCIe interposer cable.
    HDD Backplane •2.5” SKU: 3 x 4-port 2.5” NVMe(Gen4) 16 Gb/s NVMe support.
    •3.5” SKU: 1 x 4-port 3.5” SAS/SATA3 12 Gb/s support.
    Net Weight 22.5 KG/PCS
    Gross Weight 26.5 KG/PCS
  • Category Description Revision Size Download
    Datasheet RB151Eagle stream datasheet v1.0 279.2 KB
  • Product category Part. No# Description Support
    Power Supply
    132-41600-0701A0    		 CRPS,1600W,FULL RANGE,80PLUS(PLATINUM),ACTIVE PFC
    Slide Rail
    384-15103-3301A0    		 SLIDE RAIL,TRAVEL:820MM,CHASSIS
    Click Part. No# to view item picture
  • Order Code
    RB1510403-001000
    RB1511202-001000
