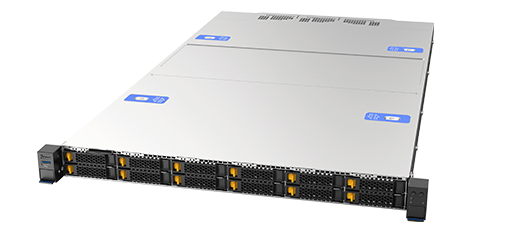

RB151 Series
1U High Performance Computing Server for Enterprise and Cloud Applications
The latest 1U rackmount barebones server, based on the Intel® Xeon® Scalable Ice Lake Series Processor, is designed to be the primary workhorse server for enterprise and cloud applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

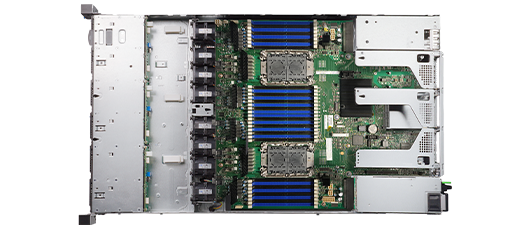

  • Intel® Server Board M50CYP2SBSTD
  • 3rd Gen Intel® Xeon® Scalable product family, up to 205W, Dual Socket-P4 LGA4189

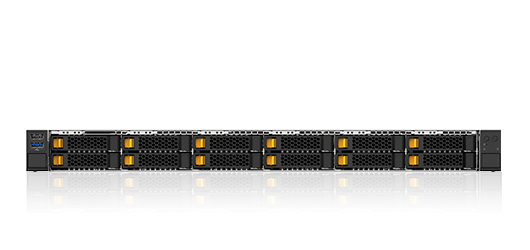

  • High performance SAS/SATA/NVMe Gen 4 storage, up to 12 x 2.5” or 4 x 3.5” HDD
  • Support for up to 3 low profile, half length PCIe 4.0 cards
  • 1+1 redundant CRPS, 1600W
  • Flexible ethernet with support for OCP 3.0 module per server
  • Higher memory capacity, up to 12TB memory, 32 DIMMs per system
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Intel M50CYP2SBSTD (Coyote Pass)
    CPU 3rd Gen Intel Xeon Scalable Product Family, up to 205W
    Dual Socket-P4 LGA4189
    CPU Socket Dual Socket-P4 LGA4189
    Chipset C621A
    Memory Type Supports DDR4 3200 RDIMM/LRDIMM or 3DS-RDIMM/LRDIMM
    Memory Capacity Up to 12TB Memory
    Max DIMM Slots 32 DIMMs (16 per CPU), 8 Channels
    CPU Heatsink 1U Passive
    I/O Modules OCP 3.0
    Ethernet OCP 3.0 Adapter Support for 1/10/25/40/50/100GbE (Optional)
    Serial Port 1 x RJ45 Serial Port A
    Video Integrated 2D Video Controller in BMC with 128M DDR4 Video Memory
    USB Rear: 3 x USB 3.0
    Front: 1 x USB 3.0, 1 x USB 2.0
    Expansion Slots Up to 3-slot PCIe 4.0: 3 x Low-Profi le and Half-Length
    Riser 1 (CPU#0)
    - 1 x PCIe 4.0 x16 (LPHL)
    * P/N# Intel CYP1URISER1STD
    Interposer Riser (CPU#1)
    - 1 x PCIe 4.0 x8 (LPHL)
    * P/N# Intel CYP1URISER2KIT
    Riser 2 (CPU#1)
    - 1 x PCIe 4.0 x16 (LPHL)
    * P/N# Intel CYP1URISER2KIT
    Riser 3 (CPU1): NVMe Gen4 Expansion Slot
    - 2 x PCIe SlimSAS x8 support up to four NVMe SSDs in the front drive bay through a backplane.
    * P/N# Intel CYPRISER3RTM (Optional)
    Mezzanine Slot: OCP 3.0 Module Support (PCIe 4.0 x16)
  • Category Description Revision Size Download
    Datasheet RB151 series datasheet v1.0 V1.0 1.6 MB
  • Product category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code

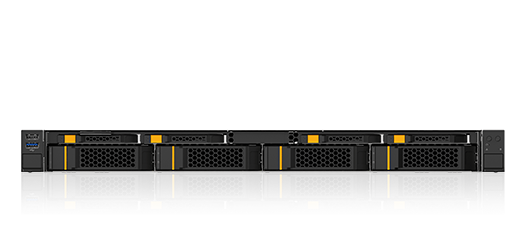

    RB1510401-01*899500 : RB15104-0 (1600W 1+1): 1U 4-bay 3.5” Server (SAS/SATA)

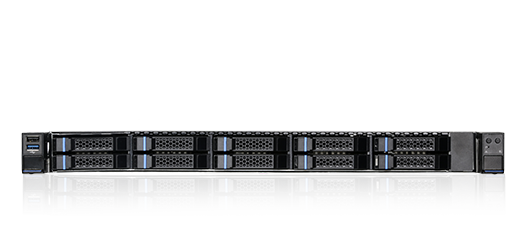

    RB1511001-01*899502 : RB15110-1 (1600W 1+1): 1U 10-bay 2.5” Server (SAS/SATA)

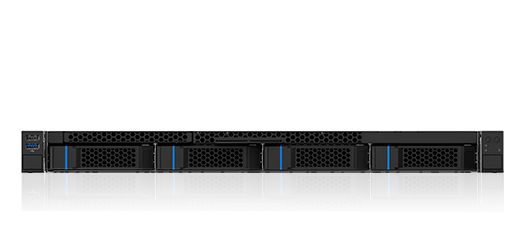

    RB1511201-01*899504 : RB15112-1 (1600W 1+1): 1U 8-bay 2.5” Server (NVMe Gen 4)
