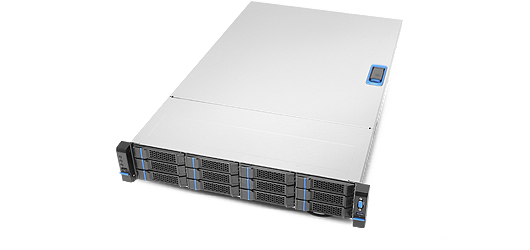

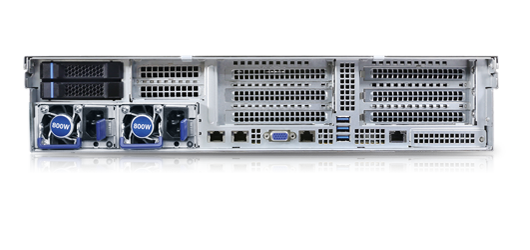

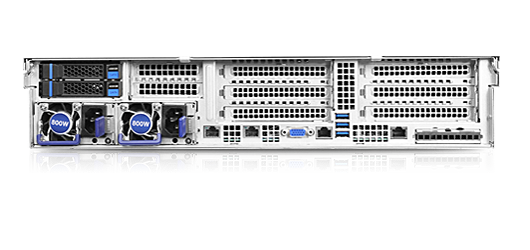

RM237 Series
2U 虛擬化應用伺服器機殼
高度模組化與免工具安裝設計的硬碟盒、主機板托盤、風扇架與擴充卡等,可快速提供符合需求的解決方案。支援Intel S2600WT 以及 S2600WF 系列主機板,配置八個 PCI Express 插槽,擁有極佳擴充能力。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • 支援主機板尺寸至 16.7" x 17" (Custom)

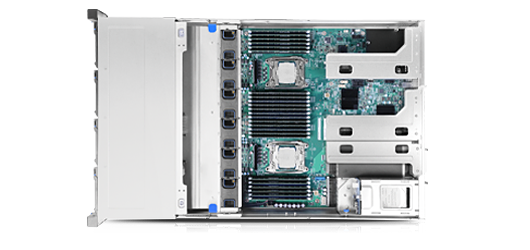

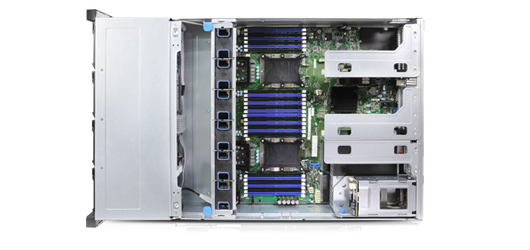

  • 支援 Intel S2600WT 以及 S2600WF 系列主機板
  • 提供模組化的硬碟盒、主機板托盤、風扇架與擴充卡架
  • 免工具安裝 2.5 或 3.5" 硬碟托盤
  • 提供多款 12Gb/s 硬碟背板,使機箱系統組態更彈性
  • 選配兩顆後方 2.5" 硬碟盒並搭配 12Gb/s 背板
  • 支援 1+1 備援 CRPS 電源
  • 規格
  • 下載
  • 選配件
  • 相容列表
  • 訂購訊息
  • 主機板尺寸 16.7" x 17" (Custom)
    外觀尺寸 (深x 寬 x 高) 735.0 x 438.0 x 87.0 (mm)
    28.94" x 17.24" x 3.43"
    儲存媒體插槽 RM23708 (Slim ODD):1
    RM23708 (3.5" Hot-swap):8
    RM23708 (Internal 2.5"):2

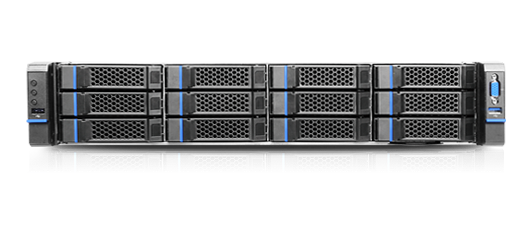

    RM23712 (3.5" Hot-swap):12

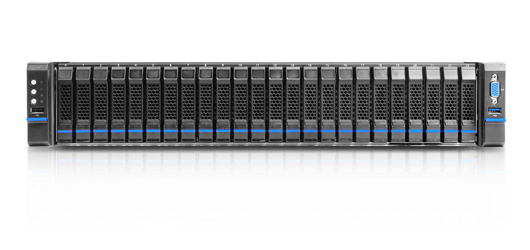

    RM23724 (2.5" Hot-swap):24
    Optional 2.5" (Hot-swap) for OS:2
    電源供應器 1+1 CRPS
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x System Alarm
    前置控制 1 x Power On/Off
    1 x System Reset
    1 x UID
    1 x VGA
    1 x USB3.0
    1 x USB2.0
    系統安全裝置 Intrusion Switch (Option)
    擴充槽 6 x Full Height & 2 x Low Profile (Max.)
    硬碟熱插拔背板 RM23708: 3.5" 8-port 12Gbps, Mini-SAS HD
    RM23712: 3.5" 12-port 12Gbps, Mini-SAS HD, Expander
    RM23724: 2.5" 8-port 12Gbps, Mini-SAS HD
    2.5" 16-port 12Gbps, Mini-SAS HD, Expander
    淨重 14.9 kg/32.82 lb
    毛重 19.0 kg/41.86 lb
    面板 Option
    材積 4.75
    裝櫃數量(單包) 20': 160, 40': 336, 40'H: 378
  • 類別 規格敘述 版本 大小 下載
    Configuration Guide RM237 series Configuration Guide V1.2 553.9 KB
    Product Brief RM237 Series Product Brief V1.2 470.6 KB
    Product Brief RM23724 Product Brief V1.0 328.9 KB
    Product Brief RM23712 Product Brief V1.0 320.4 KB
    Technical Product Specification (TPS) TPS_RM237 Series v1.2 7.0 MB
    技術規格 RM237 Datasheet V1.0 3.3 MB
    使用手冊 RM237 Series QIG V1.0 10.6 MB
  • 產品類別 料號 規格敘述 支援

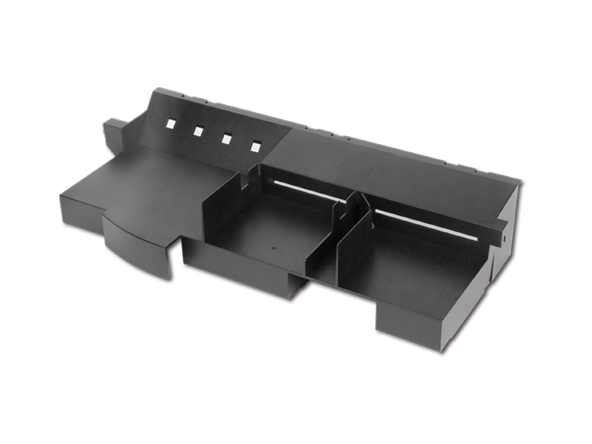

    Air Duct
    84H323710-028
    PC black, For Intel S2600WT2
    Backplane
    80H10323703A1
    2-por 12Gb/s SATA& SAS Backplane for 2.5" HDD/SSD
    Bezel
    384-23705-3106A0
    Front Bezel, 2U, Metal, 18Pcs/CTN

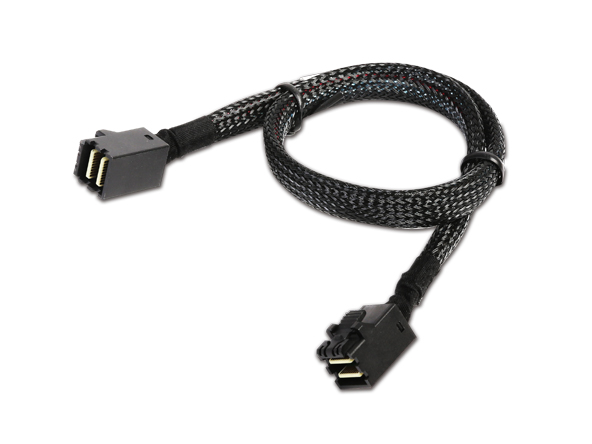

    Cable
    126-23612-3005A0
    mini-SAS HD TO mini-SAS HD,600mm

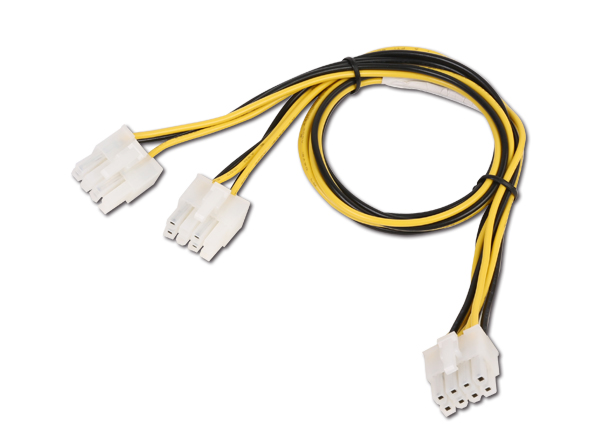

    Cable
    26H06323703A0
    PSU cable, 2 pcs, MINIFIT8P to MINIFIT8P x2, 500/780 mm
    Cable
    26H06323705A0
    Cable, POWER, miniFIT 4P TO MicroFit 6P, 270mm
    Cable
    26H06323706A0
    PSU cable, 2 pcs, MINIFIT8P to MINIFIT8P x2, 400 mm (For RM/RB23712 only)
    Cable
    26H11323701A0
    Cable, SGPIO, 270mm

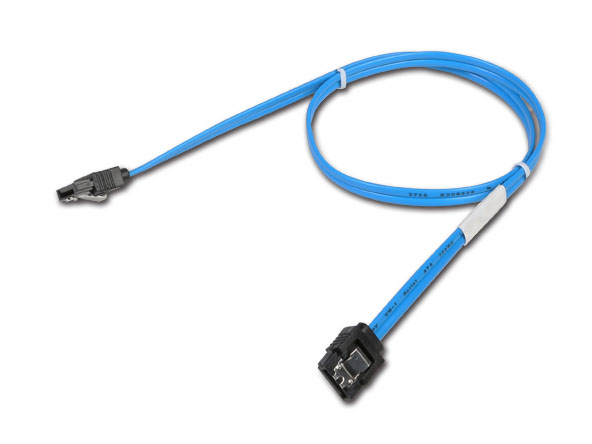

    Cable
    26H12314601A0
    SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock
    Cable
    26H12314606A0
    Mini-SAS HD (Host) to Mini-SAS HD, 350 mm, For RM23724 only

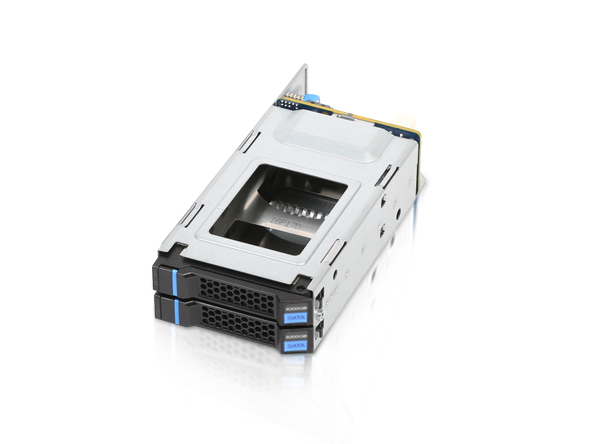

    HDD Cage
    84H323710-027
    2-bay 2.5", Hot-swap, Rear Installation, w/12Gbps SAS Backplane and Cables

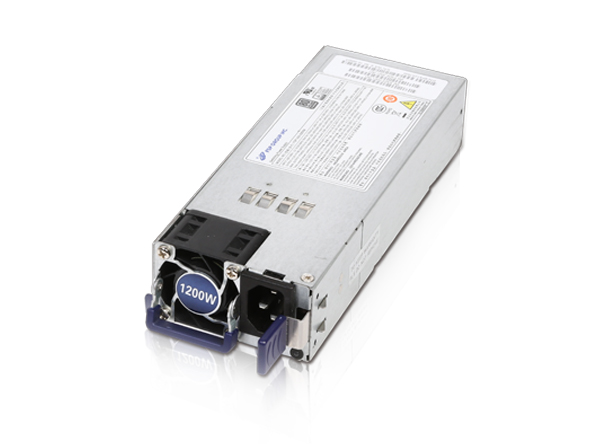

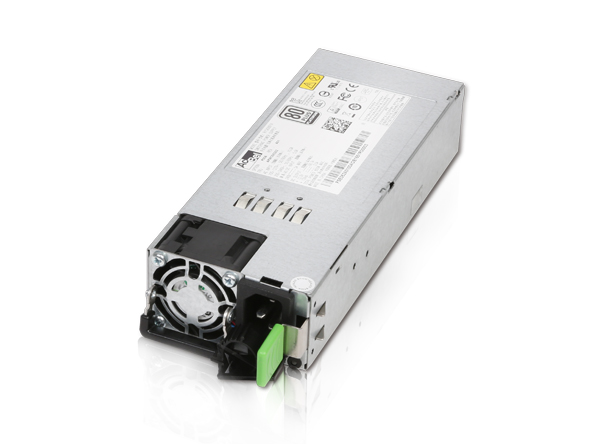

    Power Supply
    132-11200-0500A0
    PSU, CRPS, 1200W, Hot Swap, w/o PDB, FSP, 1X, For RM/B23724 only
    Power Supply
    132-41200-0700A0
    PSU, CRPS, 1200W, Hot Swap, w/o PDB, ACBEL, 1X, For RM/B23724 only

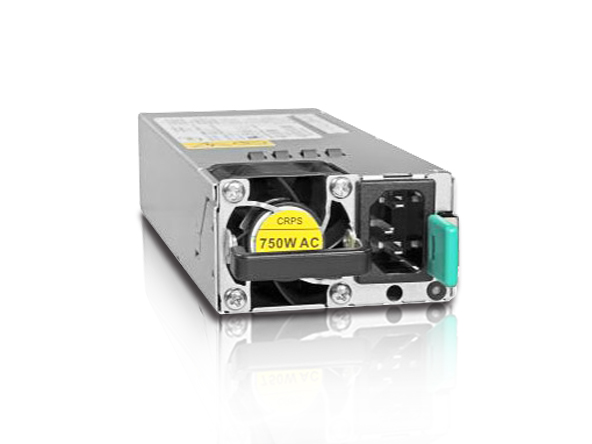

    Power Supply
    32H1075002501
    750W, 1+1 Redundant CRPS,Intel

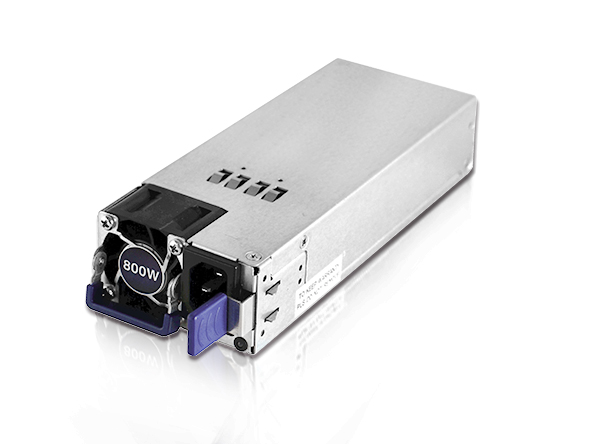

    Power Supply
    32H1080000701
    800W, 1+1 Redundant CRPS, FSP
    Power Supply
    32H1080001101
    PSU, CRPS, 800W, Hot Swap, w/o PDB, ACBEL, 1X
    Riser Card
    384-23720-3102A0
    Full Height PCIe module (W/Riser card:80H09323703A0: ONE x16 &One x8 and mounting retainer)

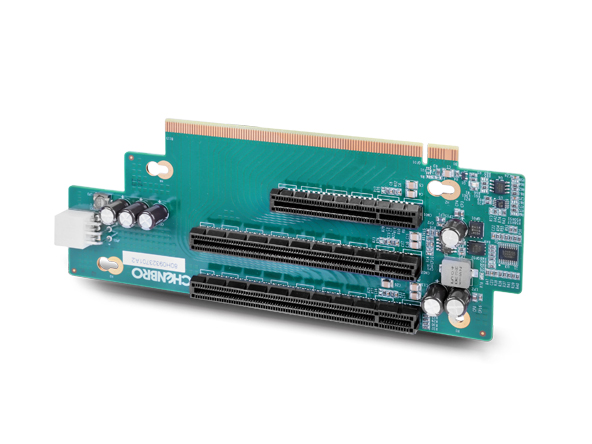

    Riser Card
    80H09323701A2

    2 x PCI-e 16x, 1 x PCI-e 8x Rev. A2

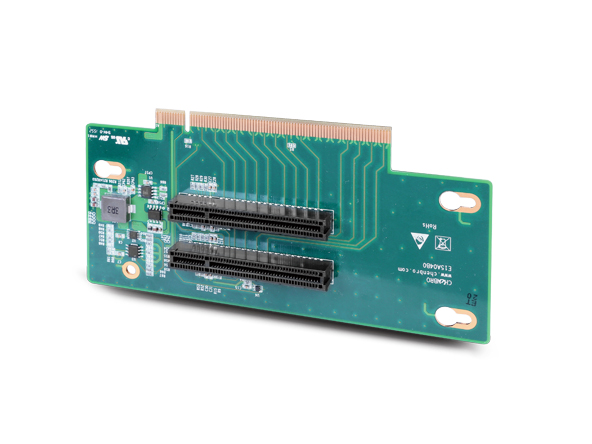

    Riser Card
    80H09323702A1

    2 x PCI-e 8x, Rev. A1

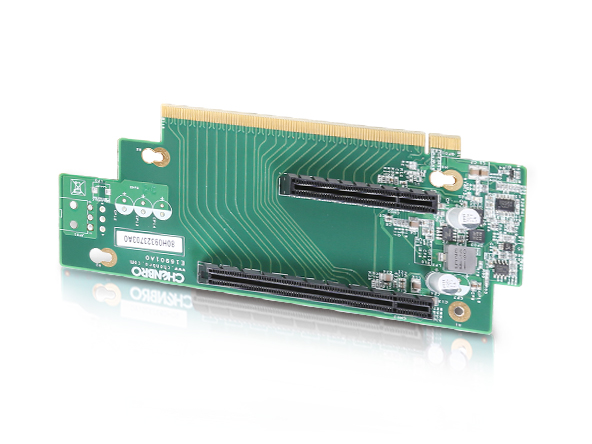

    Riser Card
    80H09323703A0
    One X16 & One X8, For RM23724 only

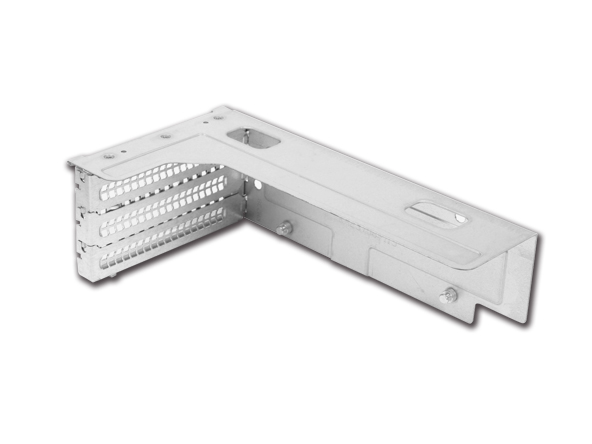

    Riser Card
    84H323710-016
    Full height PCIe module (W/Riser card:80H09323701A2: TWO x16 &One x8 and mounting retainer)
    Riser Card
    84H323710-025
    Low Profile PCIe module(W/Riser card:80H09323702A1:TWO x8 and mounting retainer)
    Slide Rail
    84H323710-002
    34“, P2P:28.4" to 37.8", Traveling Distance 35.4", Loading Weight 22.7 Kg, tool-less
    Click Part. No# to view item picture
  • 訂購碼 主機板尺寸 熱插拔背板 風扇 電源供應器 擴充槽 滑軌
    RM23708M3-WF 16.7" x 17" 8-port 12Gb/s mini-sas HD 6 x 6038 Option For Intel S2600WF M/B Option
    RM23712E3-WF 16.7" x 17" 12-port 12Gb/s mini-sas HD w/ Expander 6 x 6038 Option For Intel S2600WF M/B Option
    RM23712E3-WT 16.7" x 17" 12-port 12Gb/s SAS Expander 6 x 6038 Option 3-slot/FH Option
    RM23724E3-WF 16.7" x 17" 16+8 port 12Gb/s SAS mini-sas HD w/ Expander 6 x 6038 Option For Intel S2600WF M/B Option
    RM23724E3-WT 16.7" x 17" 24-port 12Gb/s mini-SAS HD w/ Expander 6 x 6038 Option 3-slot/FH Option
