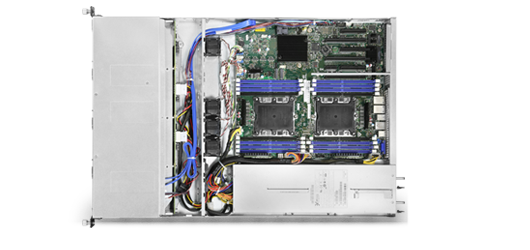

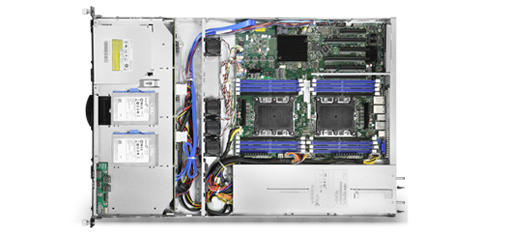

RM133 Series
1U 雙插槽通用模塊化服務器機箱
新一代1U通用服務器機箱,內置12Gb/s 熱插拔背板,採用智能速度控制風扇,最大限度地提高雙插槽主板的性能。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • 支援 M/B 尺寸高達 12“x13”
  • 免工具安裝HDD托盤2.5“和3.5”HDD / SSD
  • 12Gb / s mini-SAS 高清背板,帶智能風扇控制
  • 風扇厚度可達56mm
  • 前端訪問信息標籤,便於服務器管理
  • 支援1 + 1 冗餘電源
  • 可選的易於使用的免工具或具有成本效益的摩擦導軌
  • 規格
  • 下載
  • 選配件
  • 相容列表
  • 訂購訊息
  • 主機板尺寸 SSI EEB (12" x 13")
    外觀尺寸 (深x 寬 x 高) 660.0 x 438.5 x 43.5 (mm)
    25.98"x 17.26" x 1.71"

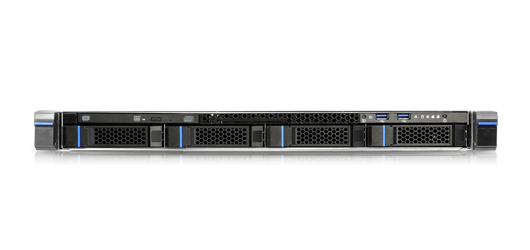

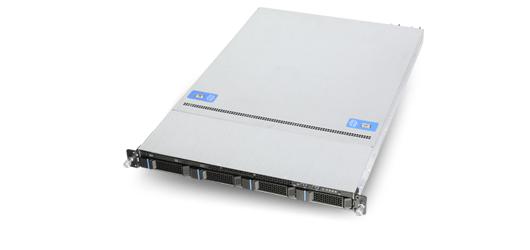

    儲存媒體插槽 RM13304 3.5" Hot-swap:4

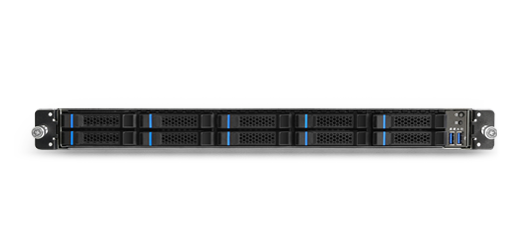

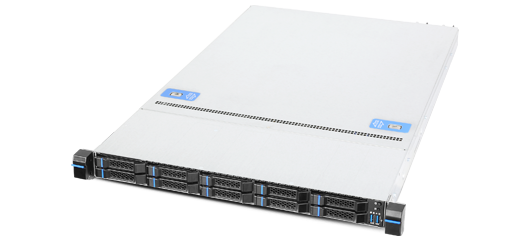

    RM13310 2.5" Hot-swap:10
    RM13304 Slim ODD:1
    RM13304 2.5" Internal:2

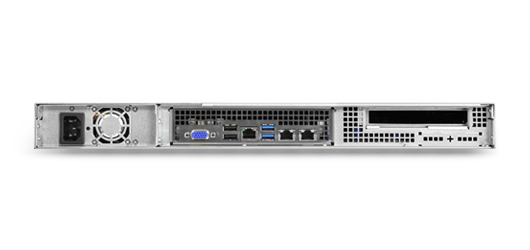

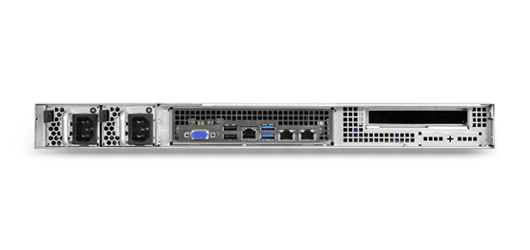

    電源供應器 1U Single or 1+1 Redundant
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x UID
    1 x System Alarm
    前置控制 1 x Power On/Off
    1 x UID
    2 x USB3.0
    系統安全裝置 Intrusion Switch (Option)
    擴充槽 1 x Full Height & Half Length
    硬碟熱插拔背板 RM13304 : 3.5" 4-port 12Gbps, SATA 7pin
    RM13310 : 2.5" 10-port 12Gbps, Mini-SAS HD
    2.5" 10-port PCIe Gen 3, OCuLink,
    2-port Tri-mode
    淨重 10.5 kg/23.13 lb
    毛重 14.6 kg/32.16 lb
    面板 Option
    材積 3.00
    裝櫃數量(單包) 20': 450, 40': 930
  • 類別 規格敘述 版本 大小 下載
    技術規格 RM133 Series Datasheet V1.1 430.6 KB
    使用手冊 RM133 Series User Manual V.1.0 6.4 MB
  • 產品類別 料號 規格敘述 支援

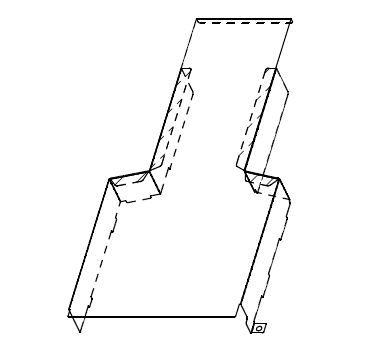

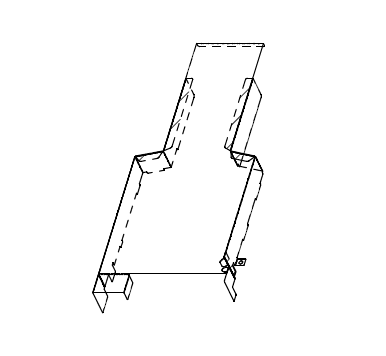

    Air Duct
    350-13335-3400A0
    PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4056FAN*4PCS)
    Air Duct
    350-13335-3401A0
    PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4028FAN*3PCS/4PCS)
    Air Duct
    350-13335-3402A0
    PLASTIC,AIR DUCT,PC MYLAR,BK,UL94V0,FOR S2600ST (4048FAN*4PCS)
    Backplane
    380138103000B0
    10-port 12Gb/s Mini-SAS HD Backplane
    Backplane
    80H10314603A0
    4-port 12Gb/s SATA Backplane
    Cable
    126-13311-3000A0
    Cable, Display, 900mm, w/I2C, Discrete pins
    Cable

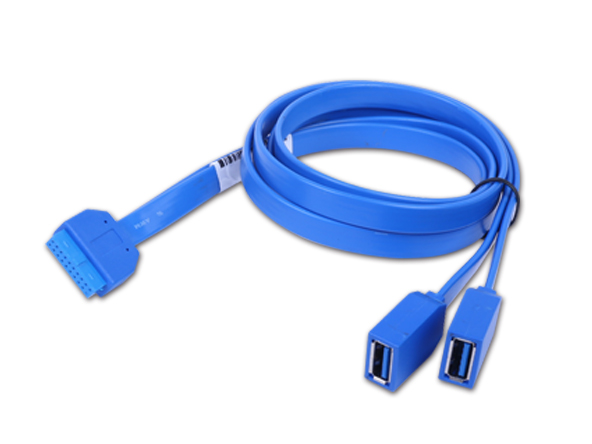

    26H03313601A0
    USB3.0, 20P to Type A plug, 750 mm
    Cable
    384-14620-3307A0
    Cable, SATAIII, 650mm, w/Lock ,JPC(26H12314604A0), no shipment
    Cable
    384-14620-3310A0
    Cable, SATA III, 450mm, w/Lock, JPC(26H12314602A0),no shipment
    Cable
    384-14620-3311A0
    Cable, SATAIII, 550mm, w/Lock, JPC(26H12314603A0),no shipment

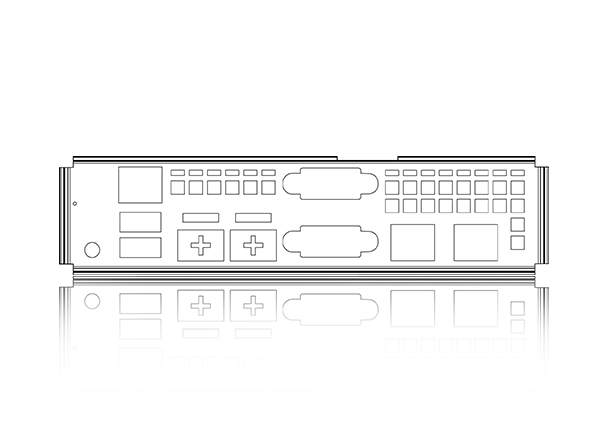

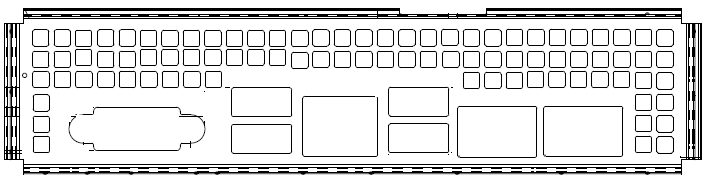

    I/O Shield
    384-13314-3200A0
    1U I/O Gasket for Intel Silver Pass
    I/O Shield
    84H314610-018
    1U, For Asrock D1541D4U-2T8R
    Power Supply
    132-10500-0502A0
    PSU, SINGLE, 500W, FSP500-50FSPT

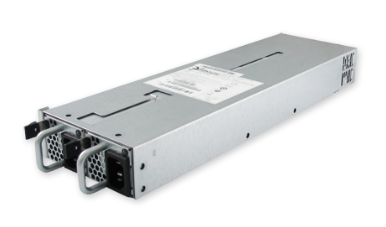

    Power Supply
    132-20650-0500A0
    PSU, 1+1 redundant,650W,FSP - RPSU - YH5651-1MA07R
    Rack Handle
    384-14309-3012A0
    Latch-type Rack Handle, Black (Right)
    Rack Handle
    384-14609-3101A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-025
    Latch-type Rack Handle (Right)

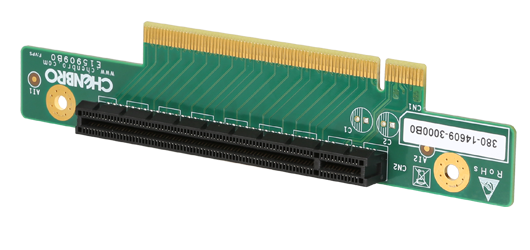

    Riser Card
    380-14609-3000B0
    PCI-e x16 Riser Card

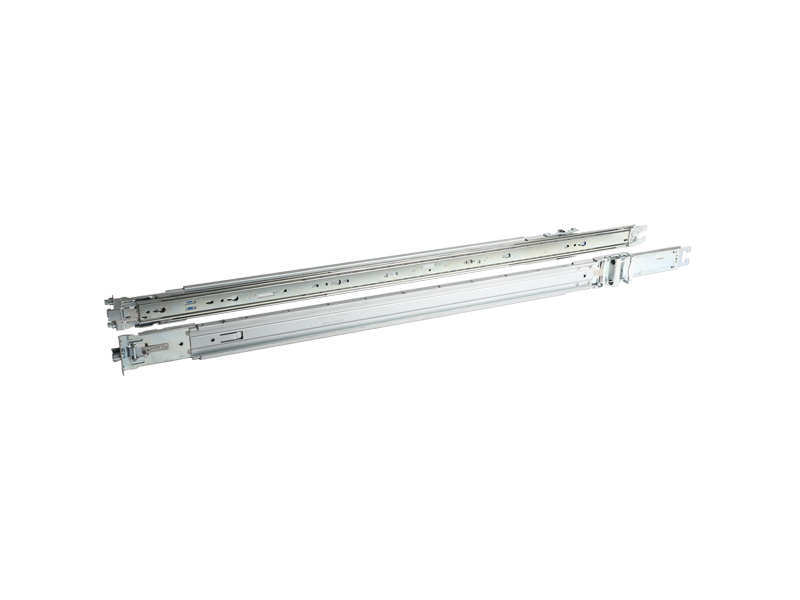

    Slide Rail
    384-23803-3300B0
    32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Click Part. No# to view item picture
  • 訂購碼 熱插拔背板 風扇 USB 3.0 電源供應器
    RM13304T3 4-Port 12Gb/s SAS/SATA 4 X 4028 Yes
    RM13304T3-500 4-Port 12Gb/s SAS/SATA 4 X 4028 Yes FSP500-50FSPT w/ PSU bracket
    RM13304T3-R650 4-Port 12Gb/s SAS/SATA 4 X 4028 Yes 1+1 FSP, 650w YH5651-1MA07R w/PSU bracket
    RM13310M3 10-Port 12Gb/s MINI-SAS HD 5 X 4028 Yes
    RM13310M3-500 10-Port 12Gb/s MINI-SAS HD 5 X 4028 Yes Acbel FSD059-7HCG
    RM13310M3-R650 10-Port 12Gb/s MINI-SAS HD 5 X 4028 Yes Acbel R1BU5651A
    RM133N10-R650 10-port 12Gbps NVME Backplane 5 X 4028 Yes Acbel R1BU5651A
