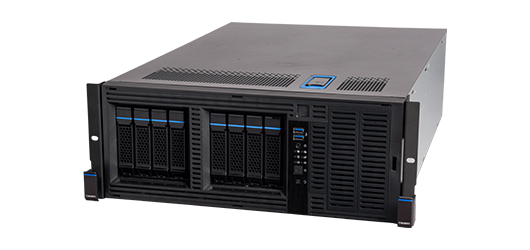

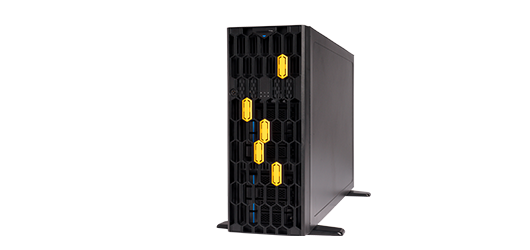

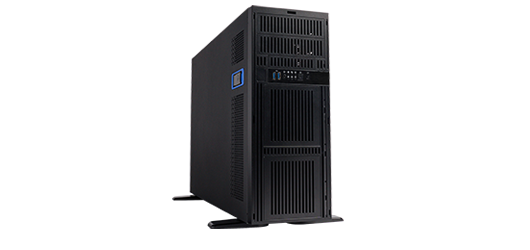

SR113
4U直立可轉機架式伺服器機箱
4U尺寸的GPGPU伺服器,最高可安裝5張GPGPU卡,靈活的硬碟安裝和高效的散熱設計,使其成為工作站伺服器在AI、機器學習及高效能運算應用的理想方案。
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益
  • Perfectly fitted as a rackmount or a standalone system
  • Supports a maximum of 5 double-width GPGPU cards
  • Card retainer design to secure GPGPU card transportation
  • Supports a maximum of 8-bay 3.5” SAS/SATA and 8-bay 2.5” SAS/SATA
  • Flexible thermal solution option for various configurations
  • Supports 19" rack installation via optional kit
  • Supports CRPS / ATX PSU (EEB SKU)
  • Links with Chenbro’s reference motherboard program
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information

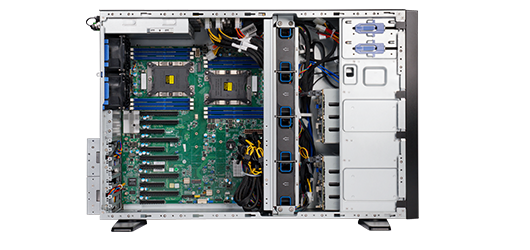

  • 主機板尺寸 Proprietary (15.12” x 13.2”): SMC X12DPG/X11DPG
    Proprietary (14.23” x 13.24”): Tyan S7105
    SSI EEB (12” x 13”): 8-slot SKU Only
    外觀尺寸 (深 x 寬 x 高) 680.0 x 438.0 x 175.0 mm
    26.77" x 17.24" x 6.89"

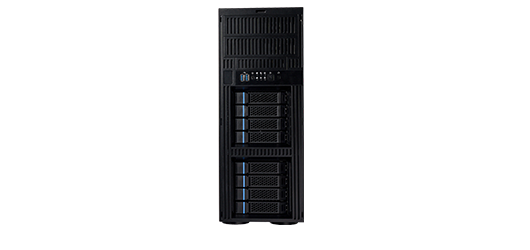

    儲存媒體插槽 External: 2 x 5.25” and 1 x 3.5”:
    Hot-swap: 2 x 4-bay 3.5” SAS/SATA Hot-swap Module:
    電源供應器 Redundant CRPS 1+1, 1200W / 2000W (80+, Platinum)
    Single PSU (PS/2 form factor) for 8-slot SKU Only

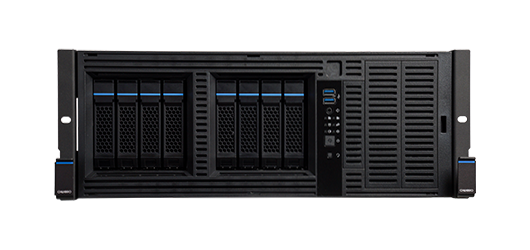

    前置指示燈 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 1 x System Alarm
    前置控制鈕 1 x Power On/Off, 1 x System Reset, 2 x USB 3.0, 1 x Audio Combo
    系統安全裝置 Intrusion Switch; Key Lock on Front Door (Option)

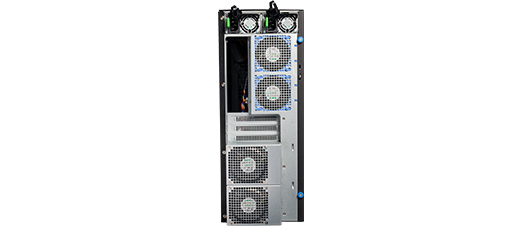

    風扇 Middle (Default): 4 x 80 (mm), PWM, 11000 RPM, Hot-Swap
    Rear CPU Fan Module for Internal: 2 x 80 (mm), PWM, 8200 RPM, Fixed (Option)
    Rear GPU Hot-swap Fan for External: 2 x 80 (mm), PWM, 11000 RPM, Hot-Swap (Option)
    擴充槽 11 x Full Height and Full Length (Up to Double Width 5-GPU Support)
    8 x Full Height and Full Length (Up to Double Width 4-GPU Support, EEB Only)
    *Card Retainer: Optional
    硬碟熱插拔背板 12Gb/s, Mini-SAS HD
    淨重 25 KG/PCS
    毛重 26 KG/CTN
    材積 5.77
    裝櫃數量(單包) 20' FCL: 96 PCS / 40’ FCL: 192 PCS/ 40'H: 224 PCS
  • 類別 規格敘述 版本 大小 下載
    Datasheet SR113 Datasheet v1.2 v1.2 748.5 KB
  • 產品類別 料號 規格敘述 支援
    Click Part. No# to view item picture
  • 訂購碼
    SR11369H01*15554 : SR113 with 2000W 1+1, 5-GPUs SKU
    SR11369H01*15639 : SR113 with 2000W 1+1, 4-GPUs SKU
